Model Image
Manufacturer

GE

Model Number

GDG900AW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WE01X28020 WE01X28020 BAR - SEALED
WE01X27992 WE01X27992 BEARING-STEEL
WE12X27366 WE12X27366 BELT
WD-0850-76 WD-0850-76 BRACKET
WD-0850-23 WD-0850-23 BRACKET
WE02X27388 WE02X27388 BRACKET - FASTEN
WD-0850-75 WD-0850-75 BRACKET - GAS VAVLE
WD-0850-68 WD-0850-68 BRACKET - MOTOR
WD-1148-01 WD-1148-01 BURNER
WE01X27978 WE01X27978 BUSHING
WE01X27983 WE01X27983 CASING - BLOWER
WD-1480-06 WD-1480-06 CASING - COMBUSTION
WD-1650-13 WD-1650-13 CLIP
WE01X27977 WE01X27977 CLIP-TENSION ARM
WH01X27914 WH01X27914 CORD - POWER
WD-1945-04 WD-1945-04 COUPLING-RUBBER
WD-1950-202 WD-1950-202 COVER - BLOWER
WD-1950-212 WD-1950-212 COVER-INLET SHROUD
WD-2300-09 WD-2300-09 DOOR - FRONT
WD-2410-13 WD-2410-13 DRUM
WD-2500-08 WD-2500-08 ELEMENT - HEATING
WE01X27982 WE01X27982 FILTER - LINT
WE01X27385 WE01X27385 FITTING - WOOL 1
WE01X27386 WE01X27386 FITTING - WOOL 2
WE01X27988 WE01X27988 FLANGE
WD-2950-54 WD-2950-54 FRAME - FRONT DOOR
WE01X27981 WE01X27981 FRAME - LINT FILTER
WE01X27981 WE01X27981 FRAMELINT FILTER
WD-3100-96 WD-3100-96 GASKET-DRUM
WD-3150-02 WD-3150-02 GRILL-BACK
WD-3210-01 WD-3210-01 GROUNDING
WE01X28010 WE01X28010 GUIDE-ALIGNMENT
WE01X27975 WE01X27975 HANDLE
WE01X27975 WE01X27975 HANDLE
WD-3450-18 WD-3450-18 HINGE
WE01X27990 WE01X27990 HINGE - LEFT
WE01X28017 WE01X28017 HINGE - RIGHT
WE01X28027 WE01X28027 IGNITOR
WE01X27980 WE01X27980 IMPELLER
WE01X27980 WE01X27980 IMPELLER

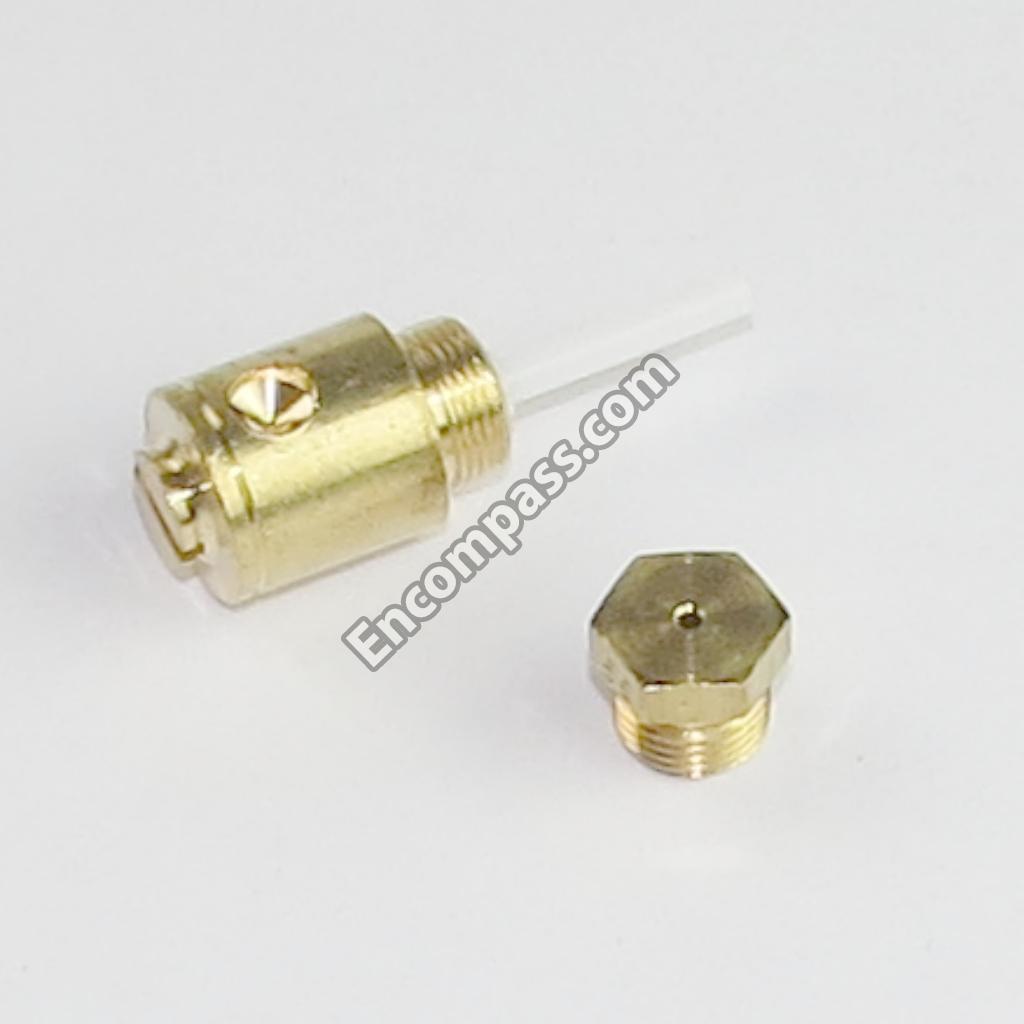

WD-3940-01 WD-3940-01 KIT-GAS CONVERSION
WE10X27377 WE10X27377 LATCH-DOOR
WD-4150-08 WD-4150-08 LEG-ADJUSTABLE
WE01X27982 WE01X27982 LINT FILTER
WE10X27373 WE10X27373 LOCK - DOOR
WD-4550-095 WD-4550-095 MOTOR
WE02X26366 WE02X26366 NUT
WD-4720-19 WD-4720-19 NUT
WD-5200-100 WD-5200-100 PANEL
WD-5200-98 WD-5200-98 PANEL - CONTROL
WD-5200-124 WD-5200-124 PANEL - FRONT
WD-5200-122 WD-5200-122 PANEL-TOP BACK
WD-5255-64 WD-5255-64 PIPE - EXHAUST
WD-5255-73 WD-5255-73 PIPE - EXHAUST
WD-5300-06 WD-5300-06 PLATE
WD-5300-47 WD-5300-47 PLATE - CONTROL
WD-5300-43 WD-5300-43 PLATE-BRACKET
WD-5300-82 WD-5300-82 PLATE-CONNECTING
WD-5300-87 WD-5300-87 PLATE-POWER CORD
WE01X27379 WE01X27379 RING - FRICTION
WH02X26927 WH02X26927 SCREW
WH02X26924 WH02X26924 SCREW
WD-6150-43 WD-6150-43 SCREW
WD-6150-139 WD-6150-139 SCREW
WD-6150-135 WD-6150-135 SCREW
WD-6150-49 WD-6150-49 SCREW
WH02X26188 WH02X26188 SCREW
WD-6150-178 WD-6150-178 SCREW
WH01X27834 WH01X27834 SCREW-TAPPING
WD-6150-146 WD-6150-146 SCREW-TAPPING
WE01X27998 WE01X27998 SENSOR - TEMP
WE01X27404 WE01X27404 SPONGE - AIRPROOF
WD-6750-84 WD-6750-84 SPRING-RIGHT
WE01X27979 WE01X27979 SPRING-TENSION
WE01X27974 WE01X27974 SUPPORT A
WE01X27974 WE01X27974 SUPPORT-A
WE01X27976 WE01X27976 SUPPORT-B
WE12X26355 WE12X26355 SWITCH - BELT
WE10X27374 WE10X27374 SWITCH-DOOR
WE04X27367 WE04X27367 THERMOSTAT - BACK-UP
WE04X27365 WE04X27365 THERMOSTAT-OVERHEAT
WE04X27422 WE04X27422 THERMOSTAT-TEMPERATU
WH41X26871 WH41X26871 TUBE-WIND
WE01X28002 WE01X28002 VALVE-GAS ASSY
WD-7950-05 WD-7950-05 WASHER
WD-7950-16 WD-7950-16 WASHER
WD-7950-15 WD-7950-15 WASHER-SPRING
