Model Image
Manufacturer

Haier

Model Number

GWT900AG

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WD-0010-03 WD-0010-03 ACCESSORIES - BALANC
WD-0010-05 WD-0010-05 ACCESSORIES - CABINE

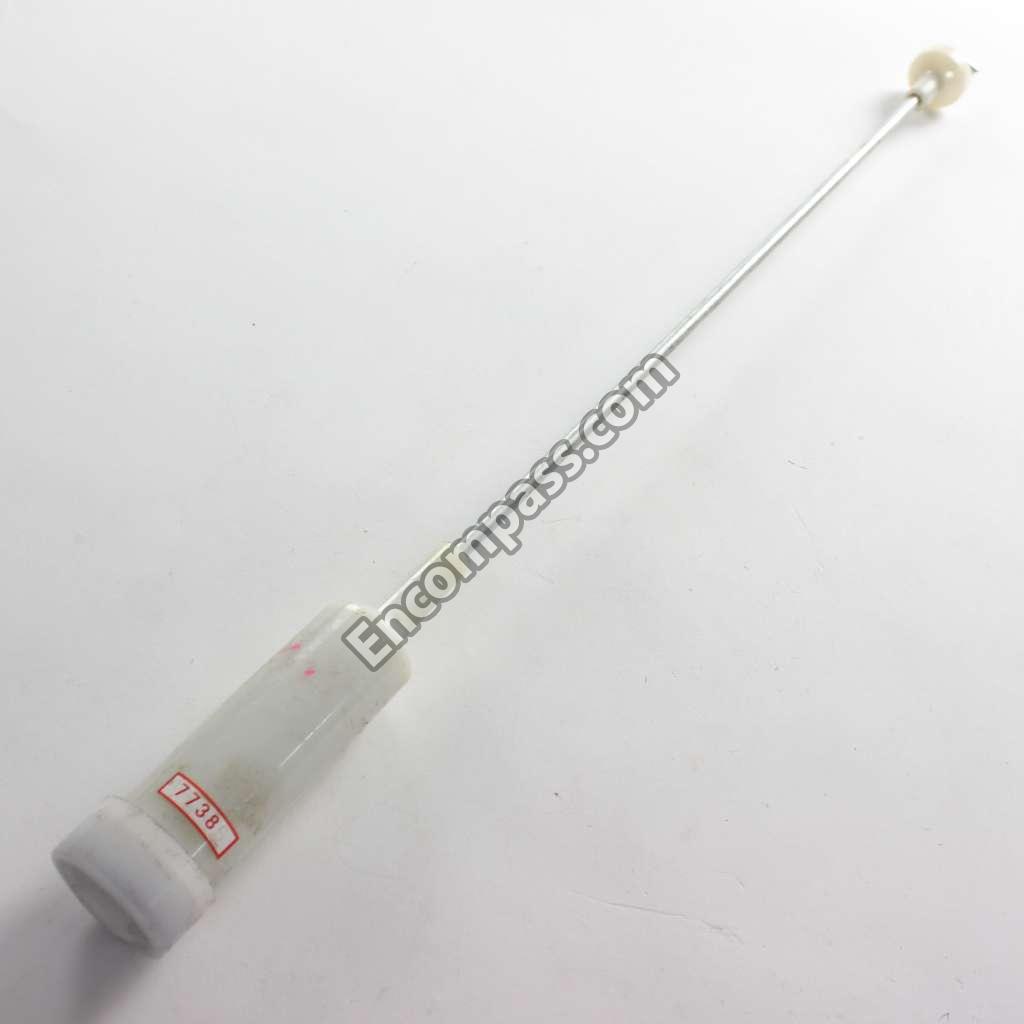

WD-0010-04 WD-0010-04 ACCESSORIES - DAMPIN
WD-0015-02 WD-0015-02 ADAPTER-DRAIN HOSE
WD-0100-17 WD-0100-17 ARM - SUPPORTING
WD-0100-16 WD-0100-16 ARM-CONNECTING
WD-0140-02 WD-0140-02 AXLE-HINGE [RIGHT]
WD-0155-07 WD-0155-07 BAG
WH01X27678 WH01X27678 BAND
WH07X27710 WH07X27710 BELT-LOCKING
WD-0350-31 WD-0350-31 BELT-V
WD-0668-12 WD-0668-12 BOARD - VALVE ASSY
WD-0668-13 WD-0668-13 BOARD-FIXING
WD-0668-14 WD-0668-14 BOARD-MOTOR DRIVE
WD-0750-45 WD-0750-45 BOLT
WD-0750-27 WD-0750-27 BOLT
WH02X27268 WH02X27268 BOLT
WH02X26923 WH02X26923 BOLT
WD-0750-40 WD-0750-40 BOLT-MOTOR
WD-0850-23 WD-0850-23 BRACKET
WD-0850-58 WD-0850-58 BRACKET - DRAIN HOSE
WD-0850-47 WD-0850-47 BRACKET-DOOR SWITCH
WD-1150-08 WD-1150-08 BUSHING-A
WD-1150-22 WD-1150-22 BUSHING-FIXABLE
WD-1150-21 WD-1150-21 BUSHING-FIXING
WD-1640-58 WD-1640-58 CLAMP
WH41X26954 WH41X26954 CLAMP
WH41X26959 WH41X26959 CLAMP
WH01X27831 WH01X27831 CLAMP-DRAIN HOSE
WH02X26870 WH02X26870 CLAMP-TUBE
WD-1650-21 WD-1650-21 CLIP
WH41X26962 WH41X26962 CLIP
WD-1650-20 WD-1650-20 CLIP - DRAIN HOSE
WH01X27930 WH01X27930 CONNECTOR - WATER INLET
WH01X27930 WH01X27930 CONNECTOR-WATER INLE
WH01X27914 WH01X27914 CORD - POWER
WD-1950-150 WD-1950-150 COVER - BACK
WD-1950-151 WD-1950-151 COVER - INNER ASSY
WD-2015-09 WD-2015-09 CUSHION-BRACKET
WD-2015-010 WD-2015-010 CUSHION-INNER TUB
WD-2300-05 WD-2300-05 DOOR - FRONT
WH01X28077 WH01X28077 DRAIN PUMP
WD-2800-20 WD-2800-20 FILTER - LINT
WD-2900-09 WD-2900-09 FOOT-TOP LID
WD-3100-47 WD-3100-47 GASKET
WD-3100-44 WD-3100-44 GASKET
WH08X27270 WH08X27270 GASKET-CABINET
WD-3100-83 WD-3100-83 GASKET-MOTOR INSULAT
WH08X26187 WH08X26187 GASKET-WATER ABSORPT
WE01X28010 WE01X28010 GUIDE-ALIGNMENT
WH01X27911 WH01X27911 HOSE - DRAIN (INNER)
WH41X27396 WH41X27396 HOSE - DRAIN 6 FT
WD-3570-39 WD-3570-39 HOSE - DRAIN CONNECT
WD-3570-37 WD-3570-37 HOSE-DRAIN
WD-4050-42 WD-4050-42 LABEL-NOTICE
WD-2900-14 WD-2900-14 LEG
WD-4250-21 WD-4250-21 LID - TOP
WD-4550-62 WD-4550-62 MOTOR
WH20X27368 WH20X27368 MOTOR - BRAKE
WD-4720-17 WD-4720-17 NUT-INNER TUB
WD-5200-98 WD-5200-98 PANEL - CONTROL
WD-5200-102 WD-5200-102 PANEL-TUB
WD-5255-63 WD-5255-63 PIPE - WATER INLET
WD-5255-60 WD-5255-60 PIPE-CONNECTING
WD-5255-62 WD-5255-62 PIPE-WINDING
WD-5300-06 WD-5300-06 PLATE
WD-5300-41 WD-5300-41 PLATE-NAME
WD-5450-24 WD-5450-24 PULLEY - BELT
WH01X28077 WH01X28077 PUMP - DRAIN
WD-5645-05 WD-5645-05 RESERVOIR-LIQUID
WE11X26352 WE11X26352 RING - WATERPROOF
WD-5800-31 WD-5800-31 RING-BALANCE
WD-6150-41 WD-6150-41 SCREW
WH01X27834 WH01X27834 SCREW
WD-6150-44 WD-6150-44 SCREW
WD-6150-55 WD-6150-55 SCREW
WD-6150-139 WD-6150-139 SCREW
WD-6150-43 WD-6150-43 SCREW
WH02X26155 WH02X26155 SCREW
WE02X27161 WE02X27161 SCREW
WH01X27833 WH01X27833 SCREW
WH02X26899 WH02X26899 SCREW
WD-6150-102 WD-6150-102 SCREW
WD-6150-36 WD-6150-36 SCREW-BOLT WITH LOCK
WH01X27938 WH01X27938 SEAT - CONTROL PANEL
WD-6200-23 WD-6200-23 SEAT-WATER LEVER SEN
WD-6250-06 WD-6250-06 SENSOR - TEMP
WD-6250-01 WD-6250-01 SENSOR - WATER LEVEL
WD-6290-05 WD-6290-05 SEQUENCER - COMPUTER
WD-7100-64 WD-7100-64 SWITCH - SAFETY

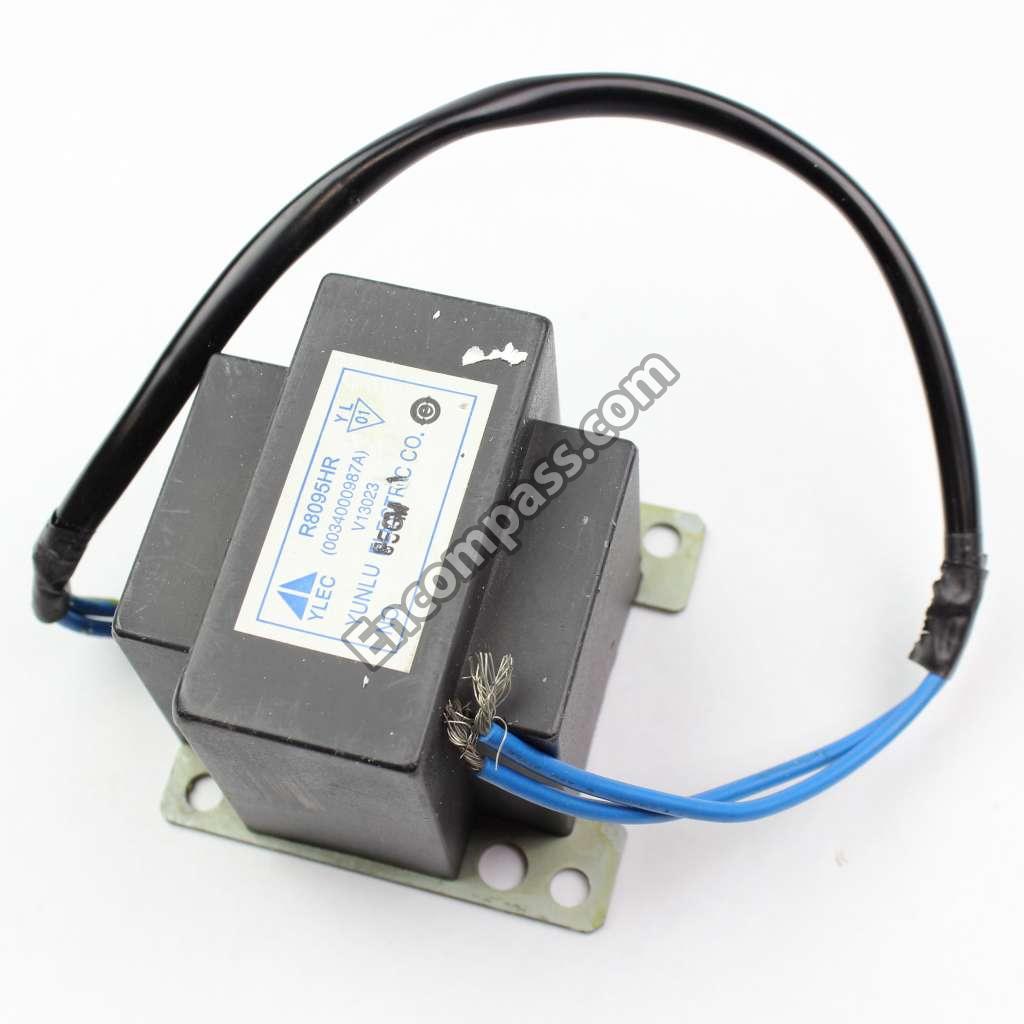

WD-7550-01 WD-7550-01 TRANSFORMER
WD-7560-04 WD-7560-04 TRANSMISSION
0034000076B 0034000076B VALVE - WATER INLET
WD-7950-05 WD-7950-05 WASHER
