Model Image
Manufacturer

GE

Model Number

HA10TG21SB

Description

9.8 Cu. Ft. Top Freezer Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR01X29272 WR01X29272 ADJUSTABLE LEGS PART I
WR01X29273 WR01X29273 ADJUSTABLE LEGS PART II
WR71X29297 WR71X29297 AIR ADJUSTABLE BAR
312370300134 312370300134 AIR TOWER CUSHION BLOCK
312370300133 312370300133 AIR TOWER GASKET II, USES QTY 3
WR14X29243 WR14X29243 AIRDUCT COVER
WR09X29249 WR09X29249 ALUMINUM WIRE WITH DRAINAGE AND HEAT CONDUCTION
312129900341 312129900341 BLADE FOR THERMOSTAT
WR55X29245 WR55X29245 CAPACITOR
312200400384 312200400384 COMPRESSOR
312031000064 312031000064 COMPRESSOR SUPPORTED PLATE ASSEMBLY
312151400015 312151400015 COMPRESSOR WIRING COMPONENT
312310200022 312310200022 COUNTERSUNK FLAT HEAD TAPPING SCREWS
WR71X29295 WR71X29295 CRISPER
WR71X29296 WR71X29296 CRISPER COVER COMPONENT
312310400010 312310400010 CROSS RECESSED PAN HEAD SCREWS, USES QTY 2
WR55X30207 WR55X30207 DEFROST FUSE PARTS
WR14X29251 WR14X29251 DEFROST WATER PAN
WR01X29257 WR01X29257 DIRECT CURRENT MOTOR PARTS
WR14X29283 WR14X29283 DOOR GASKET PART
312200600004 312200600004 DRY FILTER
WR09X29252 WR09X29252 ELECTRONIC DEFROST TIMER
311010600148 311010600148 EVAPORATOR DEFROST TUBE PARTS
WR14X29256 WR14X29256 FAN TIGHT CLIPS
312122100001 312122100001 FLAP
WR01X29258 WR01X29258 FLAT HEAD TAPPING SCREWS, USES QTY 4
312200300405 312200300405 FORCED AIR EVAPORATOR
WR14X29253 WR14X29253 FREEZER AIR TOWER
312121500029 312121500029 FREEZER DOOR BIN, USES QTY 2
WR78X29277 WR78X29277 FREEZER FOAM DOOR ASSEMBLY
WR14X29278 WR14X29278 FREEZER GASKET PARTS
312300200199 312300200199 FREEZER SHELF PARTS
WR71X29266 WR71X29266 GALLON DOOR BIN
312151300008 312151300008 GROUND WIRE
312310400017 312310400017 GROUNDING BOLTS, USES QTY 2

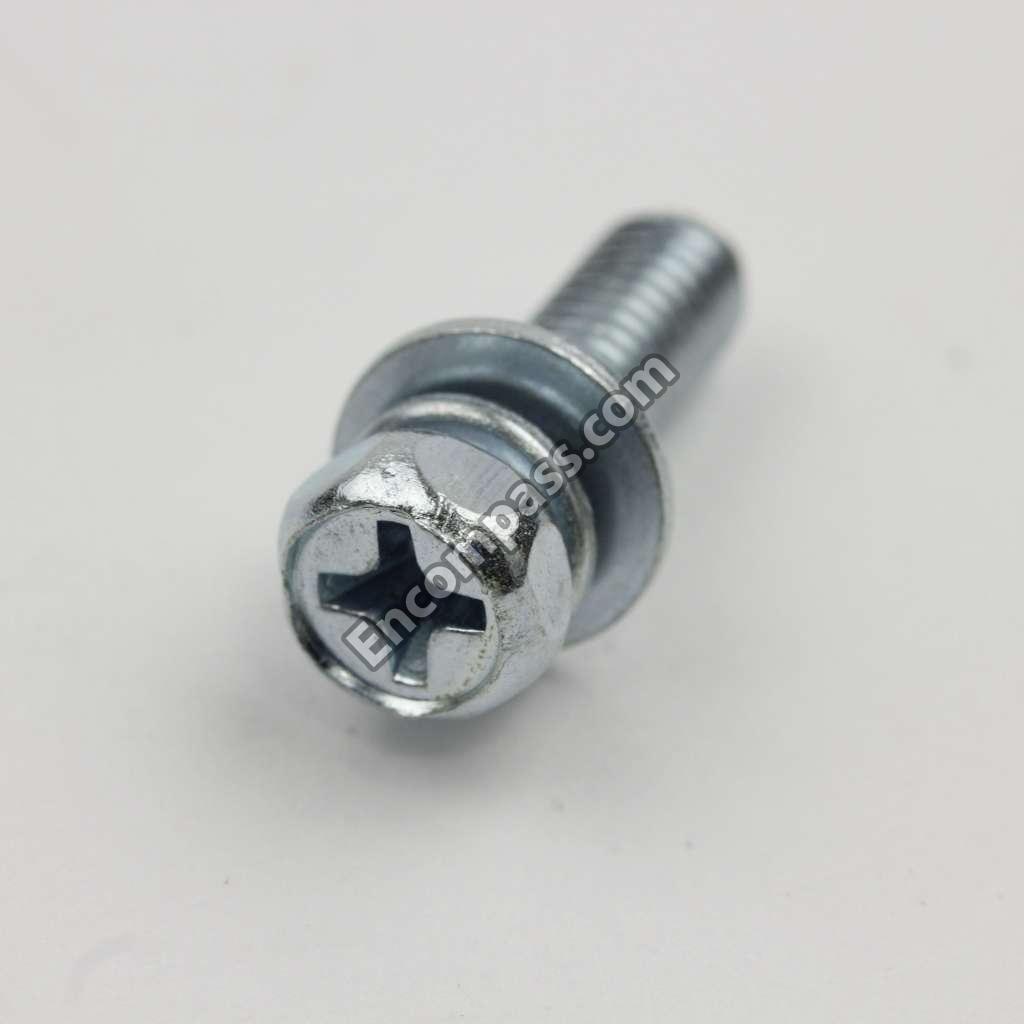

312310400008 312310400008 HEXAGON BOLT WITH CROSS RECESSED, USES QTY 2
WR01X29269 WR01X29269 HEXAGON HEAD BOLTS, USES QTY 10
312129900179 312129900179 HINGE HOLE COVER
312090101178 312090101178 INNER AND OUTER CABINET ASSEMBLY
WR14X29271 WR14X29271 LAMP COVER
312310300037 312310300037 LARGE FLAT HEAD SELF TAPPING SCREW, USES QTY 2
WR01X29254 WR01X29254 LARGE FLAT HEAD SELF-DRILLING SCREW, USES QTY 4
WR55X29270 WR55X29270 LED LIGHT COMPONENT
312319900003 312319900003 LOCK WASHERS EXTERNAL TEETH, USES QTY 2
WR13X29244 WR13X29244 LOWER HINGE PART
312031100142 312031100142 MIDDLE DOOR HINGE
WR55X29276 WR55X29276 POWER CORD
WR87X30198 WR87X30198 PROTECTOR
WR14X29262 WR14X29262 REFRIGERATOR AIR OUTLET
WR14X29247 WR14X29247 REFRIGERATOR AIR TOWER I
312370500003 312370500003 REFRIGERATOR AIR TOWER II
312121500030 312121500030 REFRIGERATOR DOOR BIN I
WR71X29263 WR71X29263 REFRIGERATOR DOOR LOCKET
312090502321 312090502321 REFRIGERATOR FOAM DOOR PART
WR71X30200 WR71X30200 REFRIGERATOR SHELF COMPONENT
312122800027 312122800027 RIGHT DOOR HINGE BUCKLE
WR01X29265 WR01X29265 RIGHT LIMITING STOPPER
312122300047 312122300047 SCREW PLUG, USES QTY 2
312310200015 312310200015 SELF TAPPING SCREW, USES QTY 4
312310300005 312310300005 SMALL SELF-DRILLING SCREW, USES QTY 4
WR87X30206 WR87X30206 STARTER
WR09X29288 WR09X29288 THERMOSTAT
WR14X29246 WR14X29246 THERMOSTAT BOX
WR01X29289 WR01X29289 THERMOSTAT KNOB
WR14X29290 WR14X29290 TIMER BOX
WR14X29291 WR14X29291 TIMER BOX COVER
WR13X29293 WR13X29293 UPPER DOOR HINGE COVER
WR13X29292 WR13X29292 UPPER DOOR HINGE PARTS
WR14X29250 WR14X29250 WATER PAN
WR01X29298 WR01X29298 WIRING BOX COVER
