Model Image
Manufacturer

GE

Model Number

HC17SF15RW

Description

Qualified Compact Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR01X27675 WR01X27675 ADJUSTABLE LEVELER
0060704743 0060704743 COMPRESSOR
0060840150C 0060840150C DOOR ASSEMBLY
RF-2400-10 RF-2400-10 DRIER FILTER
RF-2650-111 RF-2650-111 EVAPORATOR
RF-2300-302 RF-2300-302 EVAPORATOR DOOR LOWER HINGE
WR02X27686 WR02X27686 EVAPORATOR DOOR SPRING
RF-1302-22 RF-1302-22 GROUNDING CABLE ASSEMBLY
0060211445 0060211445 ICE TRAY
WR87X28553 WR87X28553 INJECTION TUBE

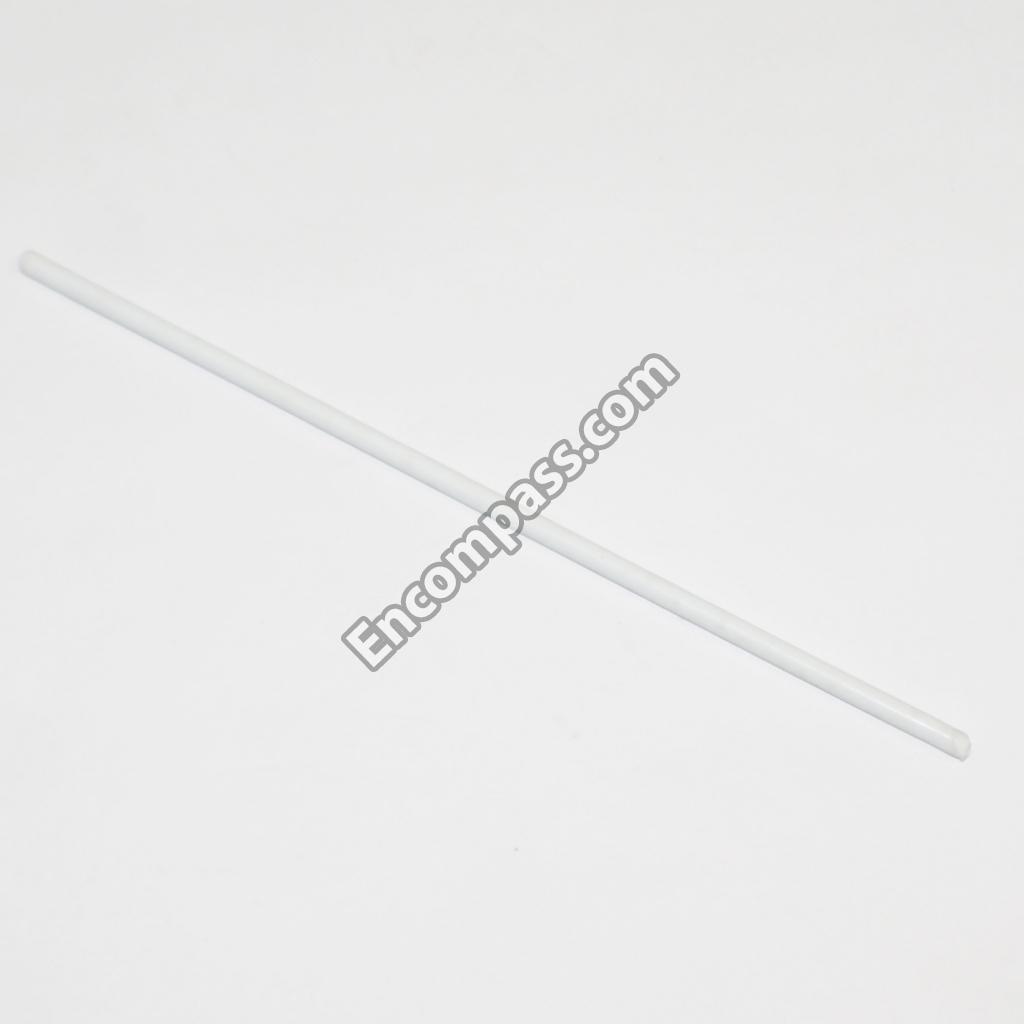

WR71X27679 WR71X27679 LONG BOTTLE RAIL
RF-3450-352 RF-3450-352 LOWER HINGE BASE
WR02X27676 WR02X27676 NAME PLATE
RF-1900-61 RF-1900-61 POWER CABLE
RF-6150-13 RF-6150-13 SCREW
RF-6150-144 RF-6150-144 SCREW
RF-6150-68 RF-6150-68 SCREW
RF-6150-340 RF-6150-340 SCREW
WR01X27682 WR01X27682 SCREW STEEL
WR71X27685 WR71X27685 SHELF
0060704746 0060704746 THERMOSTAT
RF-3600-19 RF-3600-19 THERMOSTAT HOUSING
WR02X27674 WR02X27674 THERMOSTAT KNOB
WR13X27666 WR13X27666 UPPER HINGE BOX
RF-3450-356 RF-3450-356 UPPER HINGE BOX
WR14X27668 WR14X27668 WATER BASIN
