Model Image
Manufacturer

GE

Model Number

HC27SF10RW

Description

Refrigerator With Freezer

Interactive Exploded View

Parts List

Part Number Description
WR01X27675 WR01X27675 ADJUSTABLE LEVELER
WR71X27692 WR71X27692 BOTTLE STOPPER

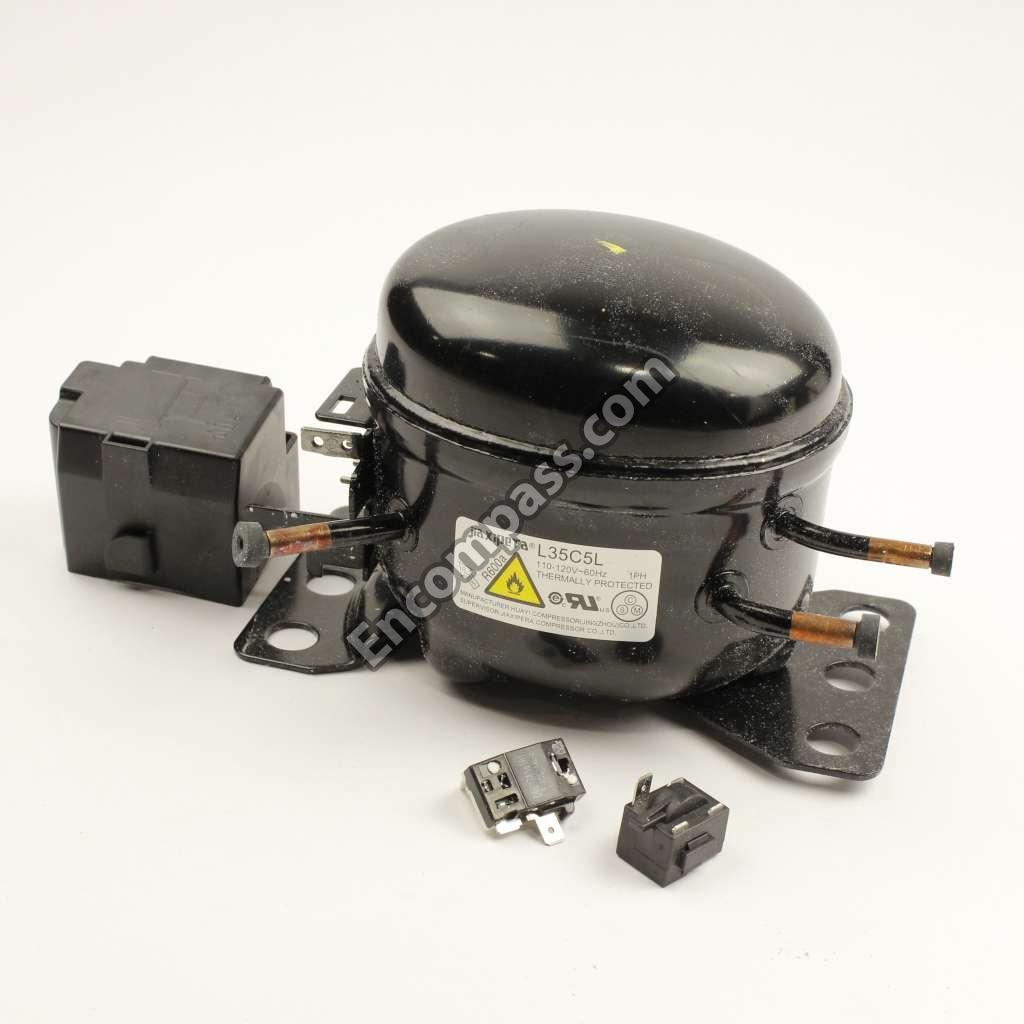

0060704743 0060704743 COMPRESSOR
RF-0850-114 RF-0850-114 COMPRESSOR BRACKET
0060810764P 0060810764P DOOR ASSEMBLY
RF-2400-10 RF-2400-10 DRIER FILTER
RF-2650-73 RF-2650-73 EVAPORATOR
RF-2300-302 RF-2300-302 EVAPORATOR DOOR LOWER HINGE
WR02X27686 WR02X27686 EVAPORATOR DOOR SPRING
RF-1302-22 RF-1302-22 GROUNDING CABLE ASSEMBLY

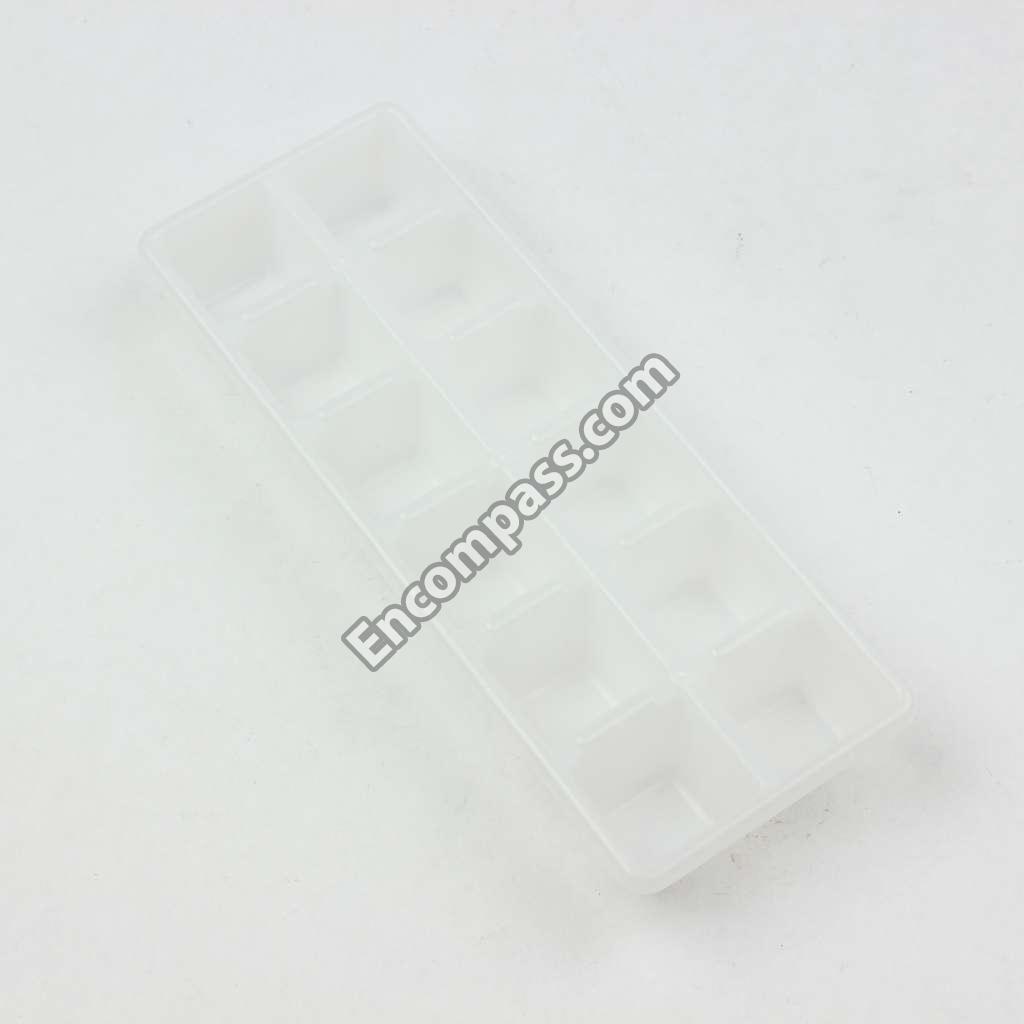

0060211445 0060211445 ICE TRAY
WR87X28553 WR87X28553 INJECTION TUBE
RF-3450-352 RF-3450-352 LOWER HINGE BASE
WR02X27676 WR02X27676 NAME PLATE
RF-1900-61 RF-1900-61 POWER CABLE
RF-6150-144 RF-6150-144 SCREW
RF-6150-13 RF-6150-13 SCREW
RF-6150-340 RF-6150-340 SCREW

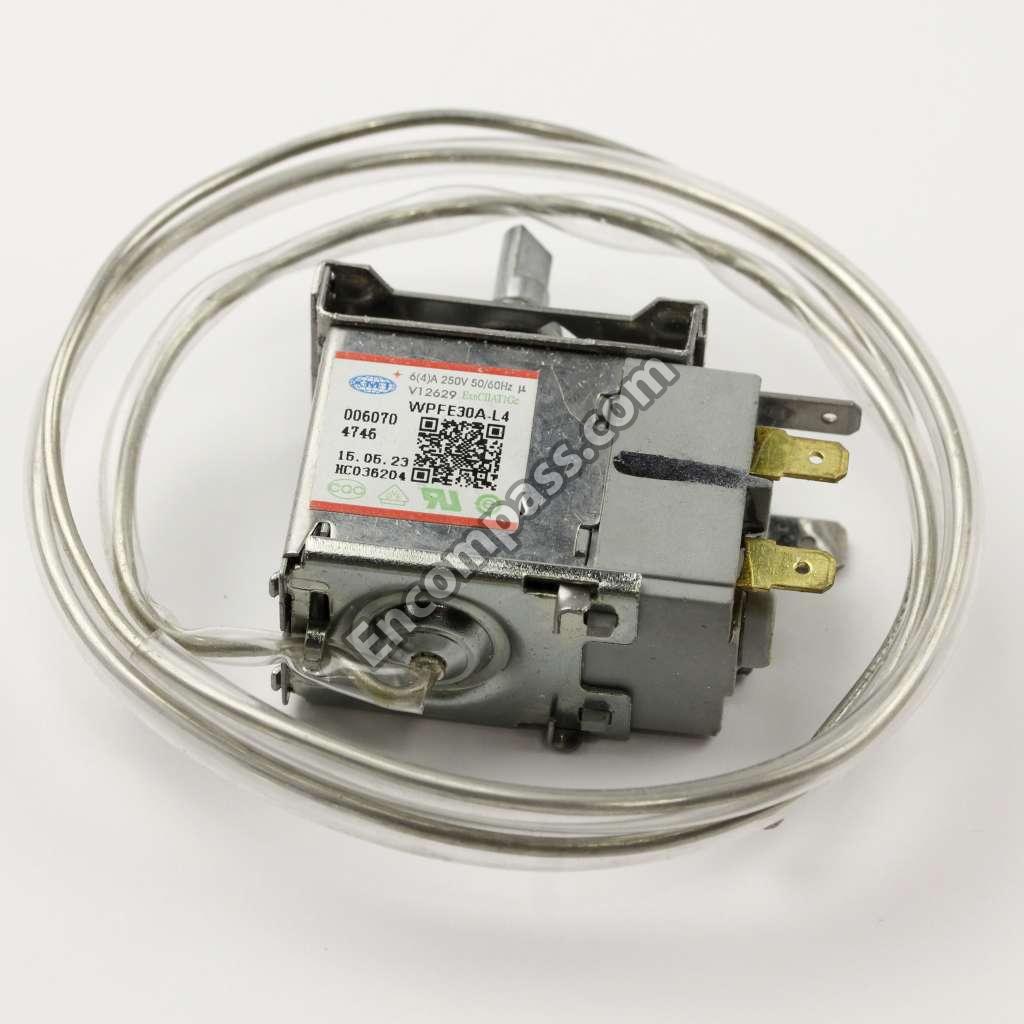

0060704746 0060704746 THERMOSTAT
RF-3600-19 RF-3600-19 THERMOSTAT HOUSING
WR02X27674 WR02X27674 THERMOSTAT KNOB
WR13X28177 WR13X28177 UPPER HINGE BOX
RF-3450-356 RF-3450-356 UPPER HINGE BOX
WR14X27668 WR14X27668 WATER BASIN
