Model Image
Manufacturer

Haier

Model Number

HC40SG42SB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
R_01_86_04_03010 R_01_86_04_03010 BIG GLASS SHELF
RF-0140-31 RF-0140-31 BOTTOM HINGE AXE
RF-3450-325 RF-3450-325 BOTTOM HINGE BOARD
C_L35C5L-1 C_L35C5L-1 COMPRESSOR
RF-5300-125 RF-5300-125 COMPRESSOR BASE PLATE
R_01_05_05_60020 R_01_05_05_60020 DIVIDER
RF-5310-59 RF-5310-59 DOOR HOLE PLUG
R_01_86_05_11010 R_01_86_05_11010 DOOR WIRE SHELF
R_01_86_02_05020 R_01_86_02_05020 DRIP TRAY
RF-2800-22 RF-2800-22 DRYER FILTER
R_01_02_02_04020 R_01_02_02_04020 EVEPNORATOR FASTEN B
R_01_86_07_03000 R_01_86_07_03000 EVEPORATOR
R_01_86_09_03310 R_01_86_09_03310 FOAMED CABINET
R_01_86_09_06310 R_01_86_09_06310 FOAMED DOOR
R_01_86_02_06020 R_01_86_02_06020 FREEZER COVER
R_01_86_02_08000 R_01_86_02_08000 GASKET
R_01_17_05_09000 R_01_17_05_09000 I SHAPED WIRE SHELF
R_01_02_02_14020 R_01_02_02_14020 ICE CUBE BOX
WR01X29962 WR01X29962 LEVELING LEG
R_01_17_05_08000 R_01_17_05_08000 N SHAPED DRILL
C_L35C5L-1B C_L35C5L-1B OVERLOAD RELAY
R_01_86_02_11010 R_01_86_02_11010 PLASTIC DOORIRE W
RF-1900-105 RF-1900-105 POWER CORD
RF-6150-421 RF-6150-421 SCREW
WR01X27738 WR01X27738 SCREW HOLE PLUG
R_01_86_04_02010 R_01_86_04_02010 SMALL GLASS SHELF

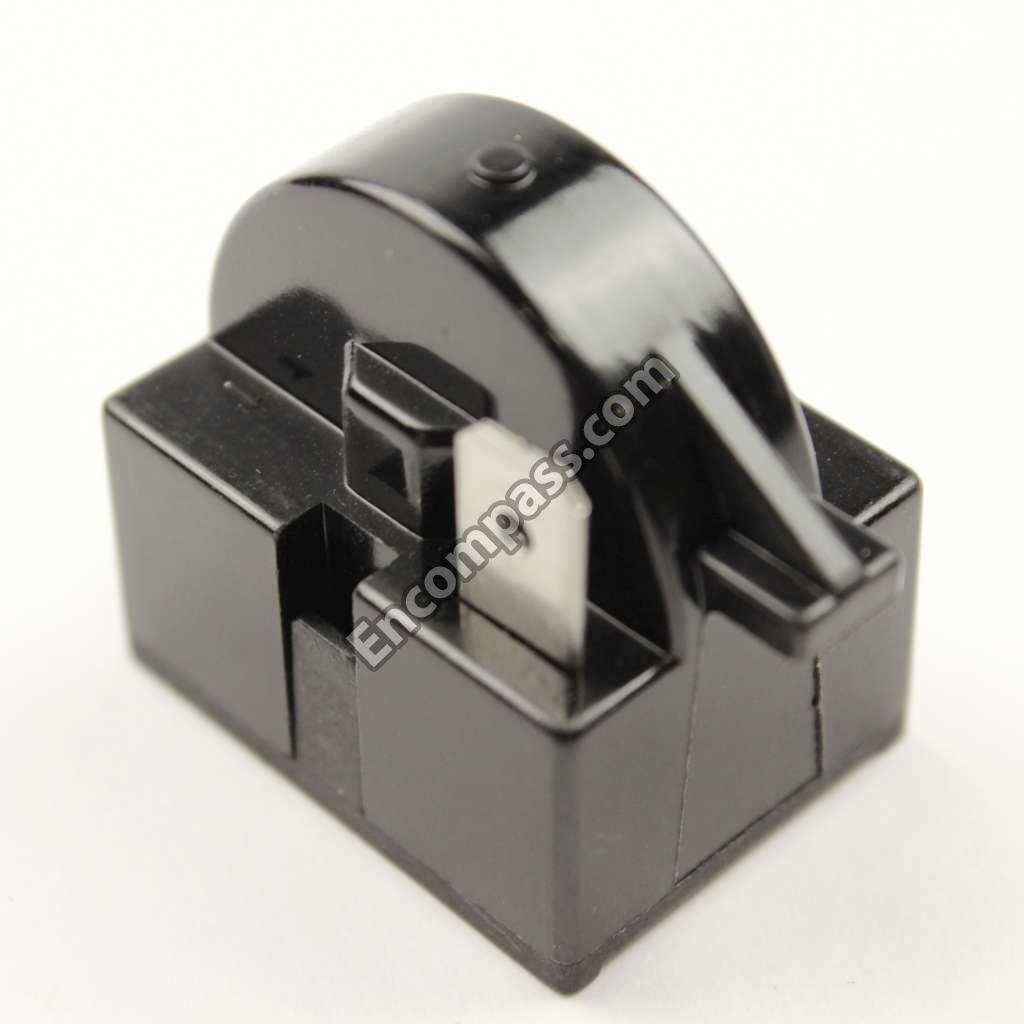

C_L35C5L-1A C_L35C5L-1A START RELAY
R_01_02_02_11020 R_01_02_02_11020 TEMPERATURE CONTROL CARD

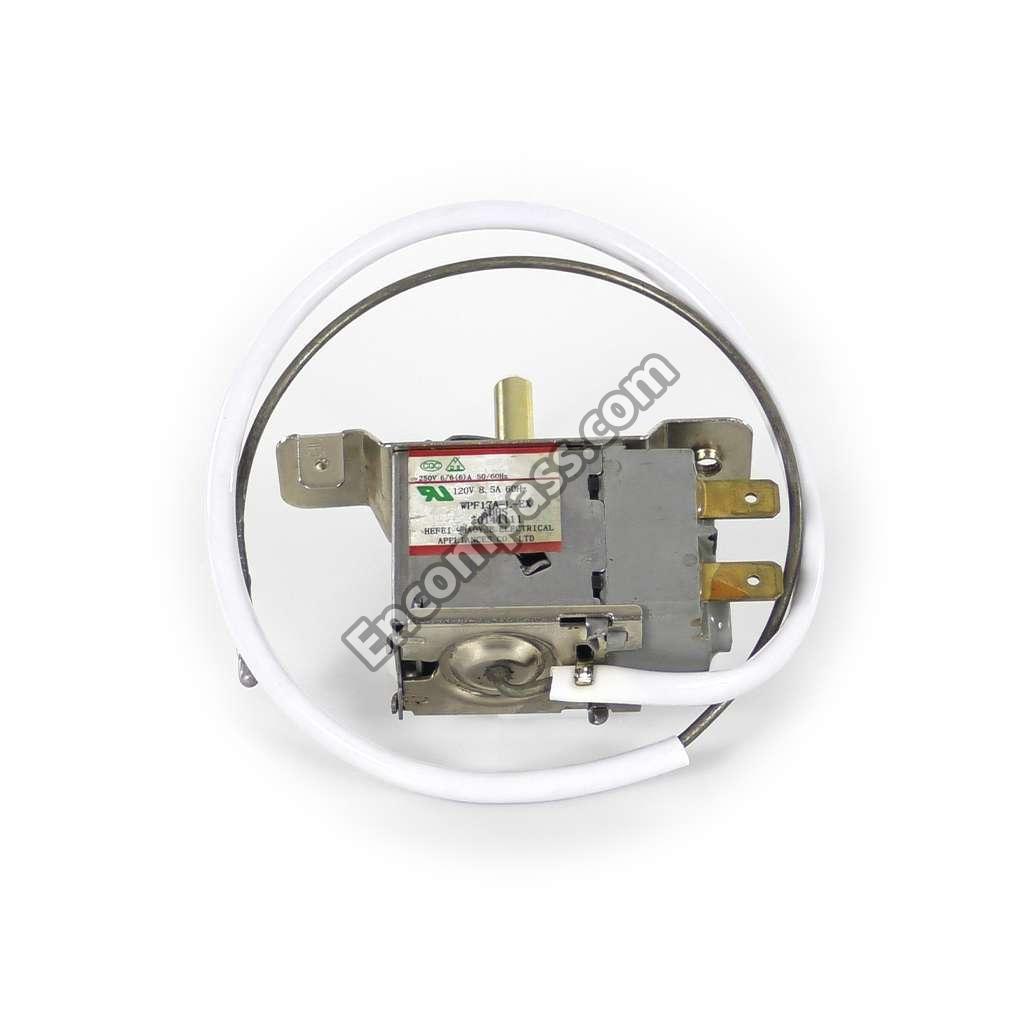

WR09X29317 WR09X29317 THERMOSTAT
R_01_05_02_09100 R_01_05_02_09100 THERMOSTAT HOUSING
R_01_05_02_21023 R_01_05_02_21023 THERMOSTAT KNOB
RF-6400-02 RF-6400-02 THERMOSTAT SHEELVE
RF-3450-318 RF-3450-318 TOP HINGE
WR13X27746 WR13X27746 TOP HINGE COVER
