Model Image
Manufacturer

Haier

Model Number

HC46SF10SV

Description

4.5 Cu. Ft. Compact Refrigerator

Interactive Exploded View

Parts List

Part Number Description
RF-0250-042 RF-0250-042 BASE PLATE

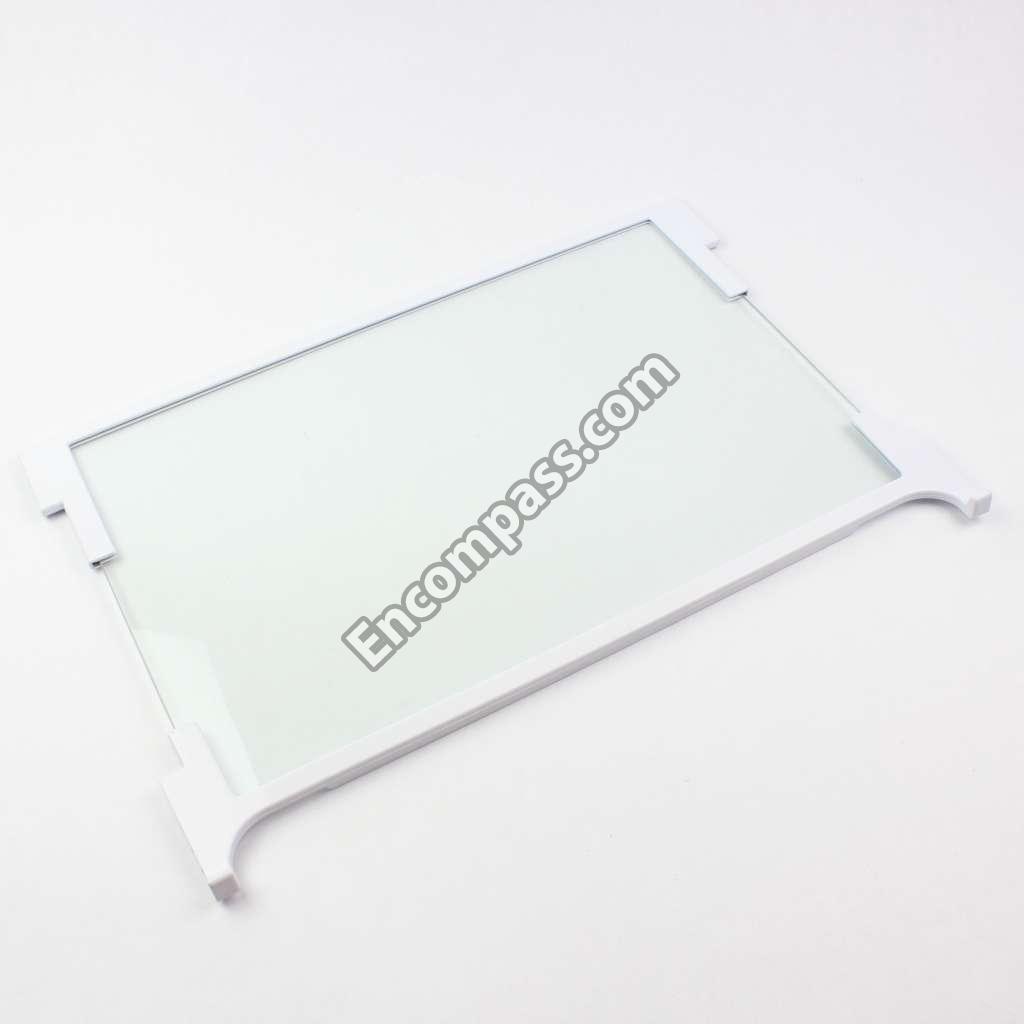

WR71X29960 WR71X29960 BIG GLASS SHELF
R_01_05_09_79000 R_01_05_09_79000 BOTTOM HINGE
RF-1150-018 RF-1150-018 BUSHING
WR71X28459 WR71X28459 CAN RACK
WR71X28193 WR71X28193 CAN RACK BAR
RF-1640-031 RF-1640-031 CLAMP
RF-0850-193 RF-0850-193 CLIP FOR COLD CONTROL
8_06_02_0_120005 8_06_02_0_120005 COLD CONTROL
R_01_05_09_30000 R_01_05_09_30000 COLD CONTROL BOX
C_QD43Y11G-M C_QD43Y11G-M COMPRESSOR ASS'Y
RF-7950-113 RF-7950-113 COMPRESSOR FIX SPRING WASHER
RF-8070-45 RF-8070-45 COMPRESSOR GROUNDING WIRE
WR14X28466 WR14X28466 DEFROST TRAY
R_01_05_07_12000 R_01_05_07_12000 EVAPORATOR
RF-0750-18 RF-0750-18 EVAPORATOR CLIP A
RF-0750-19 RF-0750-19 EVAPORATOR CLIP B
RF-6150-408 RF-6150-408 FIX COMPRESSOR SCREW
RF-7950-112 RF-7950-112 FIX COMPRESSOR WASHER
RF-5300-111 RF-5300-111 FIX HOLDER FOR COLD CONTROL
R_01_05_09_06054 R_01_05_09_06054 FOAMED DOOR
R_01_05_02_46000 R_01_05_02_46000 FREEZER DOOR

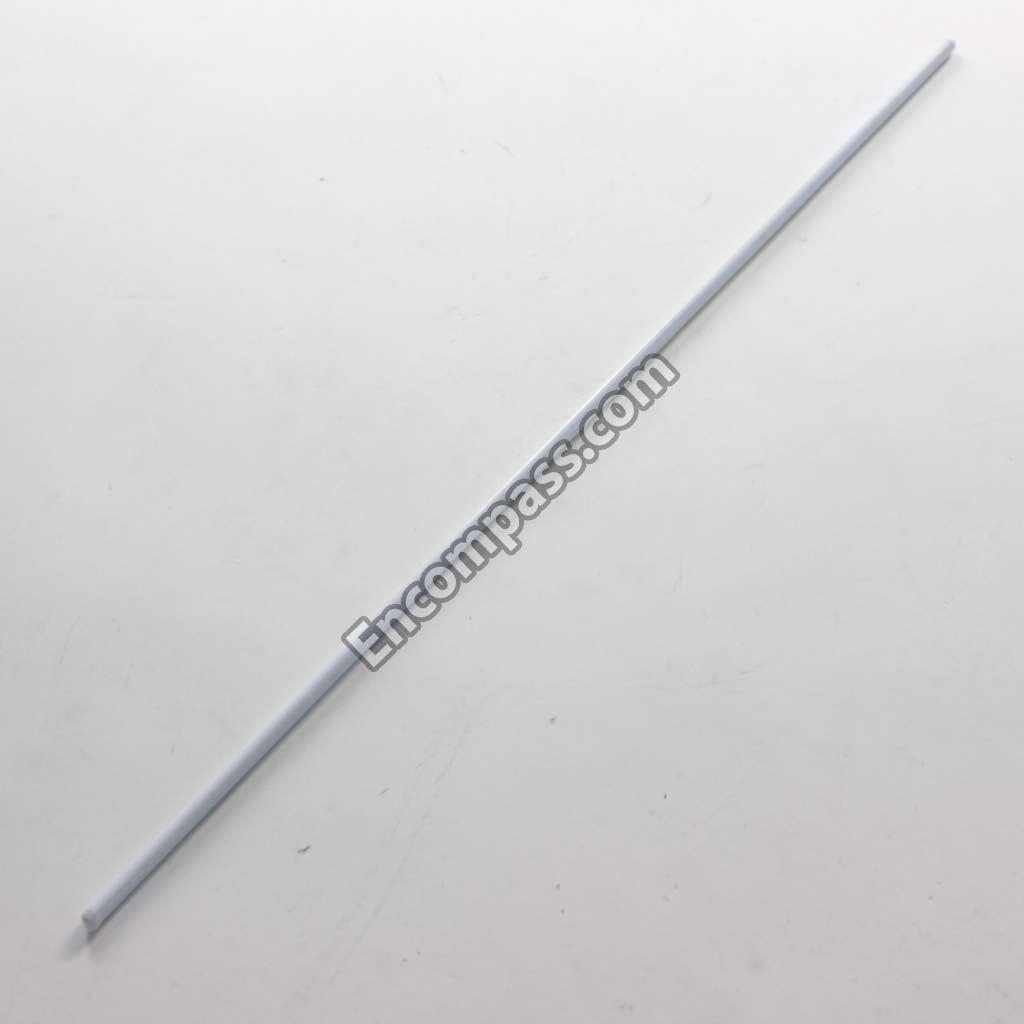

WR71X28461 WR71X28461 FULL WIDTH WIRE DOOR SHEFL
WR71X28463 WR71X28463 HALF WIDTH WIRE DOOR SHELF FOR BOTTLE

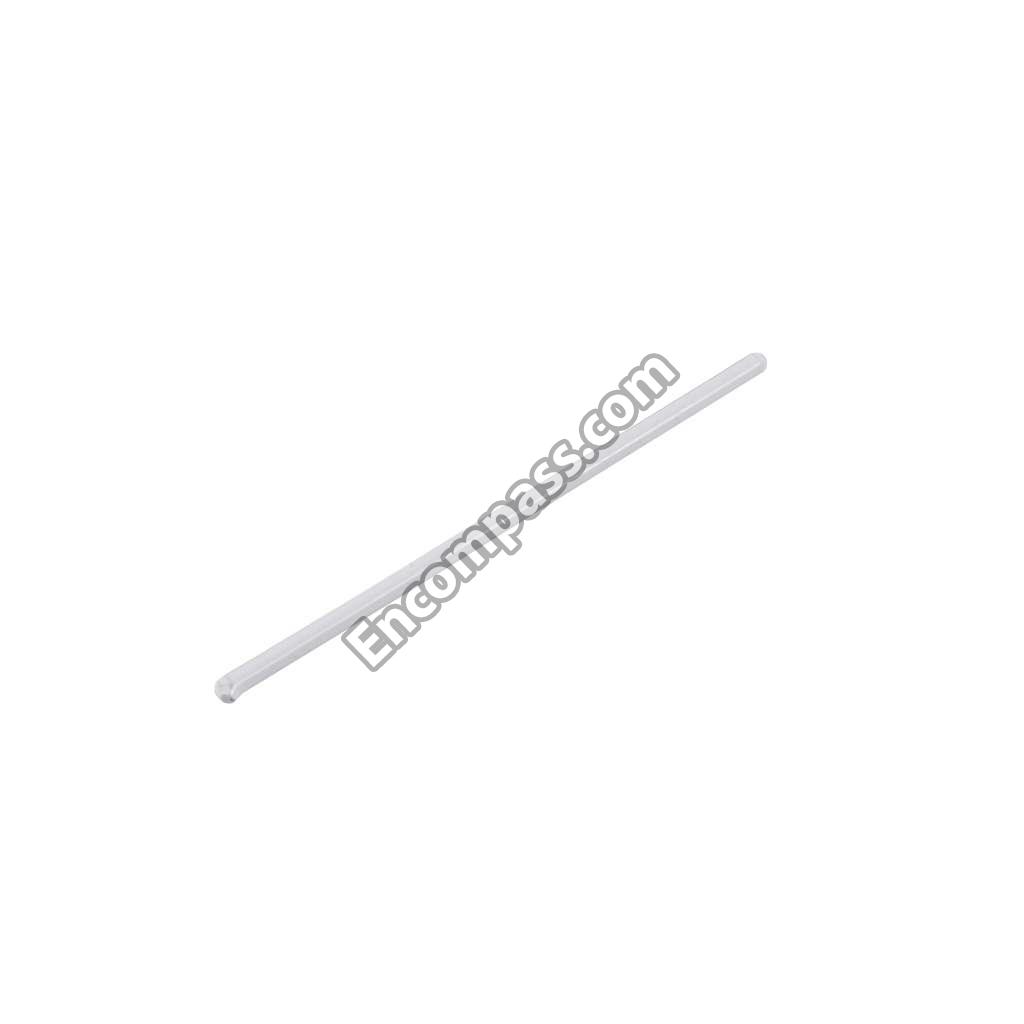

WR71X28465 WR71X28465 HALF WIDTH WIRE DOOR SHELF FOR CAN
RF-6150-353 RF-6150-353 HEX BELT
RF-7600-226 RF-7600-226 ICE TRAY
RF-4000-114 RF-4000-114 KNOB CONTROL
WR01X27726 WR01X27726 LEVELING LEG RIGHT (BB)
RF-2400-59 RF-2400-59 ORIER
8_05_06_020 8_05_06_020 PE SLEEVE FOR SUCTION PIPE
RF-5310-69 RF-5310-69 PLASTIC PLUG (BB)
RF-3600-61 RF-3600-61 POWER CORD CLIP TOP
RF-1900-105 RF-1900-105 POWER CORD(BB)
RF-6150-354 RF-6150-354 SCREW
RF-6150-439 RF-6150-439 SCREW FOR COLD CONTROL
RF-6150-392 RF-6150-392 SCREW FOR POWER CORD CLIP
RF-6400-02 RF-6400-02 SLEEVE FOR COLD CONTROL
R_01_05_04_07000 R_01_05_04_07000 SMALL GLASS SHELF
RF-3450-277 RF-3450-277 TOP HINGE
