Model Image
Manufacturer

Haier

Model Number

HCFU42HA03

Description

Convertible A/c

Interactive Exploded View

Parts List

Part Number Description
AC-0550-15 AC-0550-15 BLADE-LONG (1)
AC-0550-16 AC-0550-16 BLADE-LONG (2)
AC-0595-10 AC-0595-10 BLOCK-TERMINAL
WJ26X23823 WJ26X23823 BLOCK-TERMINAL
AC-0595-09 AC-0595-09 BLOCK-TERMINAL
AC-0668-47 AC-0668-47 BOARD-WALL
AC-0668-67 AC-0668-67 BOARD-WALL
AC-0800-66 AC-0800-66 BOX-ELECTRIC
AC-0800-63 AC-0800-63 BOX-ELECTRIC
AC-0850-22 AC-0850-22 BRACKET
AC-0850-10 AC-0850-10 BRACKET-FAN MOTOR
AC-0850-18 AC-0850-18 BRACKET-FIXING
AC-0850-16 AC-0850-16 BRACKET-LEFT
AC-0850-28 AC-0850-28 BRACKET-MOTOR
AC-0850-26 AC-0850-26 BRACKET-MOTOR
AC-0850-32 AC-0850-32 BRACKET-OUTLET GRILL
AC-0850-13 AC-0850-13 BRACKET-SENSOR
AC-1400-66 AC-1400-66 CAPACITOR
AC-1400-104 AC-1400-104 CAPACITOR-ID MOTOR
AC-1470-30 AC-1470-30 CASE-INLET SCROLL
AC-1470-28 AC-1470-28 CASE-SCROLL
AC-1650-26 AC-1650-26 CLIP-CABLE
AC-1650-38 AC-1650-38 CLIP-MIDDLE
AC-1692-03 AC-1692-03 COIL-4-WAY VALVE
AC-1750-53 AC-1750-53 COMPRESSOR
AC-1950-84 AC-1950-84 COVER
AC-1950-73 AC-1950-73 COVER-BOTTOM ASSY
AC-1950-114 AC-1950-114 COVER-INDICATOR LIGH
AC-1950-120 AC-1950-120 COVER-LEFT TOP
AC-1950-161 AC-1950-161 COVER-TOP
AC-1950-159 AC-1950-159 COVER-TOP
AC-1950-125 AC-1950-125 COVER-TOP ASSY.
AC-1950-112 AC-1950-112 COVER-TOP ASSY.
AC-2750-34 AC-2750-34 FAN-AXIAL
AC-2750-68 AC-2750-68 FAN-CENTRIFUGAL
AC-2800-18 AC-2800-18 FILTER-AIR
AC-3150-28 AC-3150-28 GRILL-FRONT
AC-3150-37 AC-3150-37 GRILL-INLET
AC-3350-04 AC-3350-04 HANDLE
AC-3363-01 AC-3363-01 HARNESS-WIRING
AC-3845-12 AC-3845-12 INSULATION-PIPE 1
AC-4050-11 AC-4050-11 LABEL
AC-4050-13 AC-4050-13 LABEL-DECORATION
AC-4050-14 AC-4050-14 LABEL-DECORATION
AC-4050-12 AC-4050-12 LABEL-DECORATION
AC-4050-15 AC-4050-15 LABEL-DECORATION
AC-4550-81 AC-4550-81 MOTOR
AC-4550-91 AC-4550-91 MOTOR-SYNCHRO
AC-5210-57 AC-5210-57 P.C.B.
AC-5100-41 AC-5100-41 PAD
AC-5200-181 AC-5200-181 PANEL-FRONT
AC-5200-157 AC-5200-157 PANEL-RECEIVER
AC-5200-155 AC-5200-155 PANEL-SERVICE ASSY
AC-5300-117 AC-5300-117 PLATE-ASSY.
AC-5300-112 AC-5300-112 PLATE-PARTITION
AC-5300-125 AC-5300-125 PLATE-SLIDE [RIGHT]
AC-5950-23 AC-5950-23 ROD

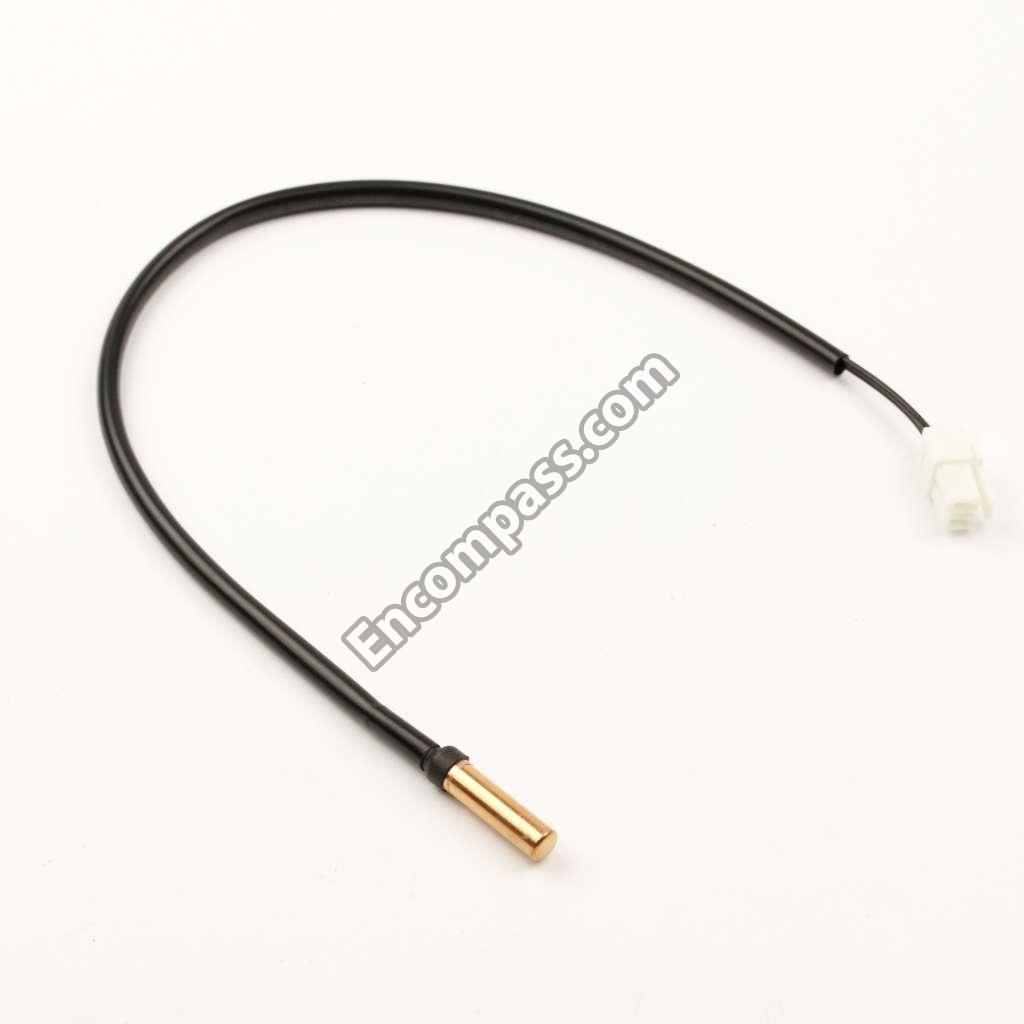

AC-6250-06 AC-6250-06 SENSOR-PIPE TEMP
AC-6250-14 AC-6250-14 SENSOR-TEMP
AC-6250-22 AC-6250-22 SENSOR-TEMP
AC-7100-14 AC-7100-14 SWITCH-HIGH PRESSURE
AC-7550-10 AC-7550-10 TRANSFORMER
AC-7600-02 AC-7600-02 TRAY-PARTITION ASSY.
AC-7800-47 AC-7800-47 VALVE
AC-7800-13 AC-7800-13 VALVE-4-WAY
AC-7800-09 AC-7800-09 VALVE-STOP 3-WAY
