Model Image
Manufacturer

Haier

Model Number

HLP140E

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WD-0155-07 WD-0155-07 BAG

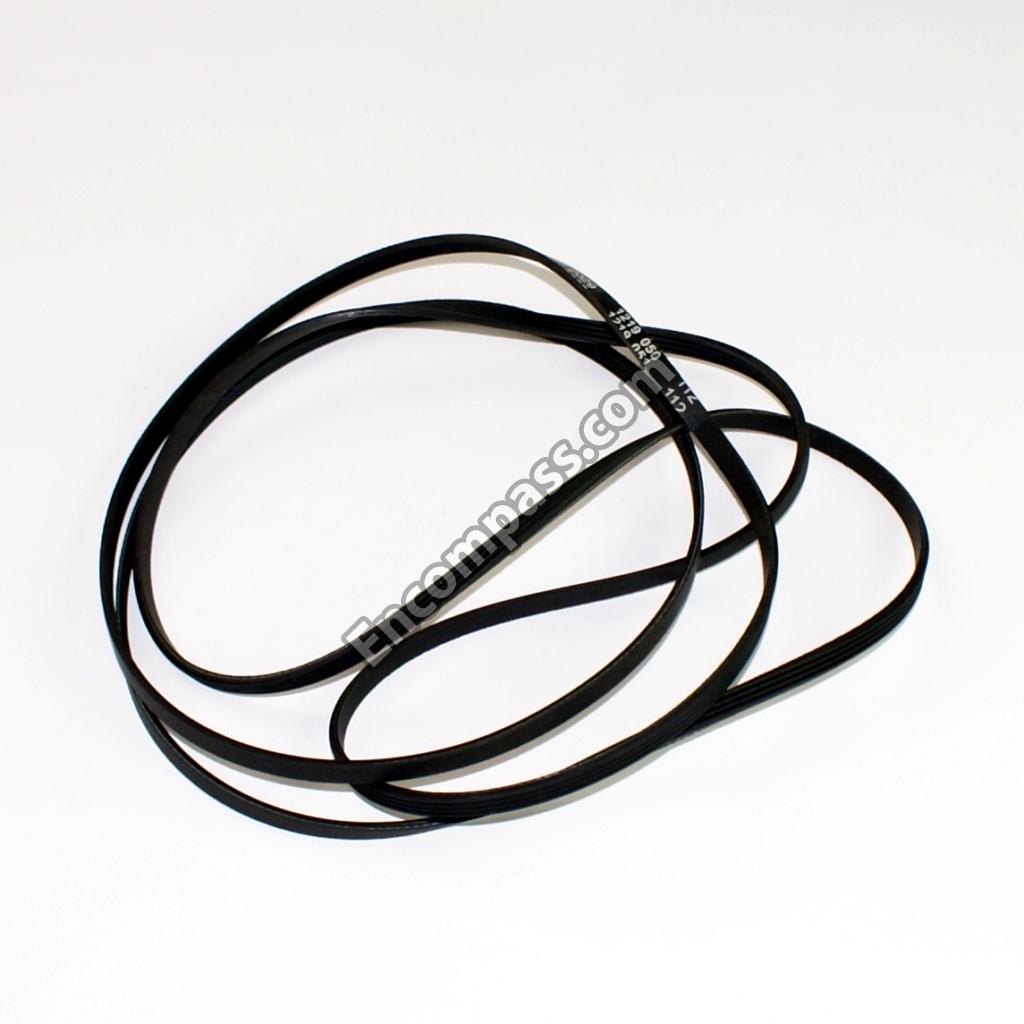

WH01X27935 WH01X27935 BELT - DRUM
WH01X27921 WH01X27921 BELT-FAN

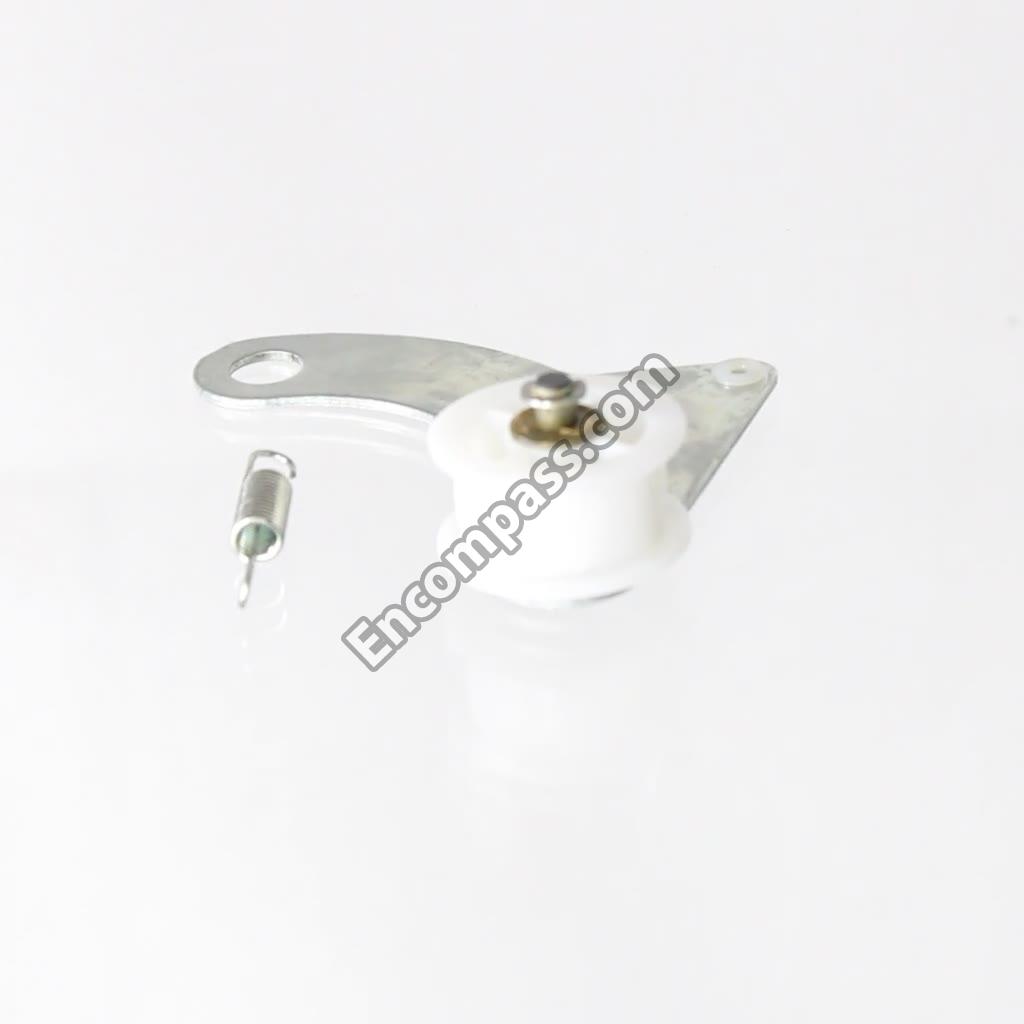

WH07X27710 WH07X27710 BELT-LOCKING
WD-0750-60 WD-0750-60 BOLT

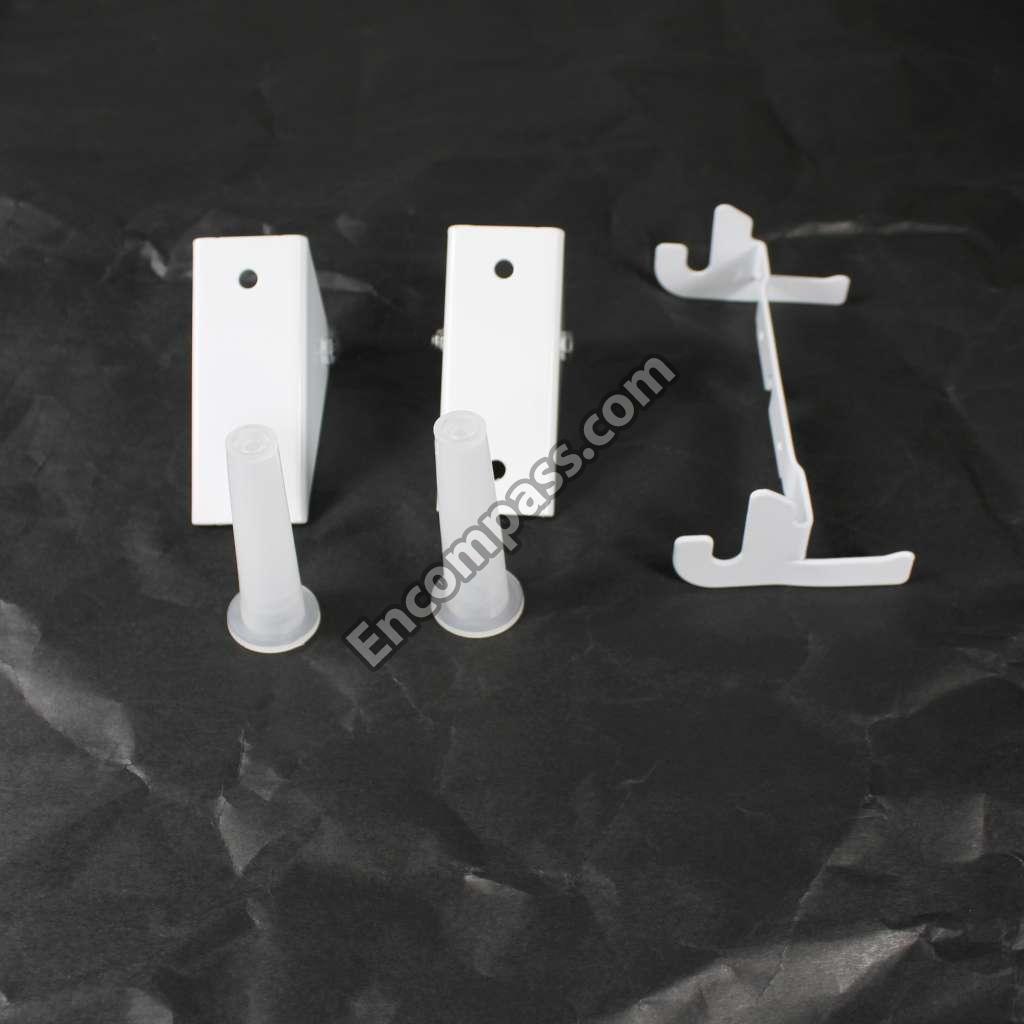

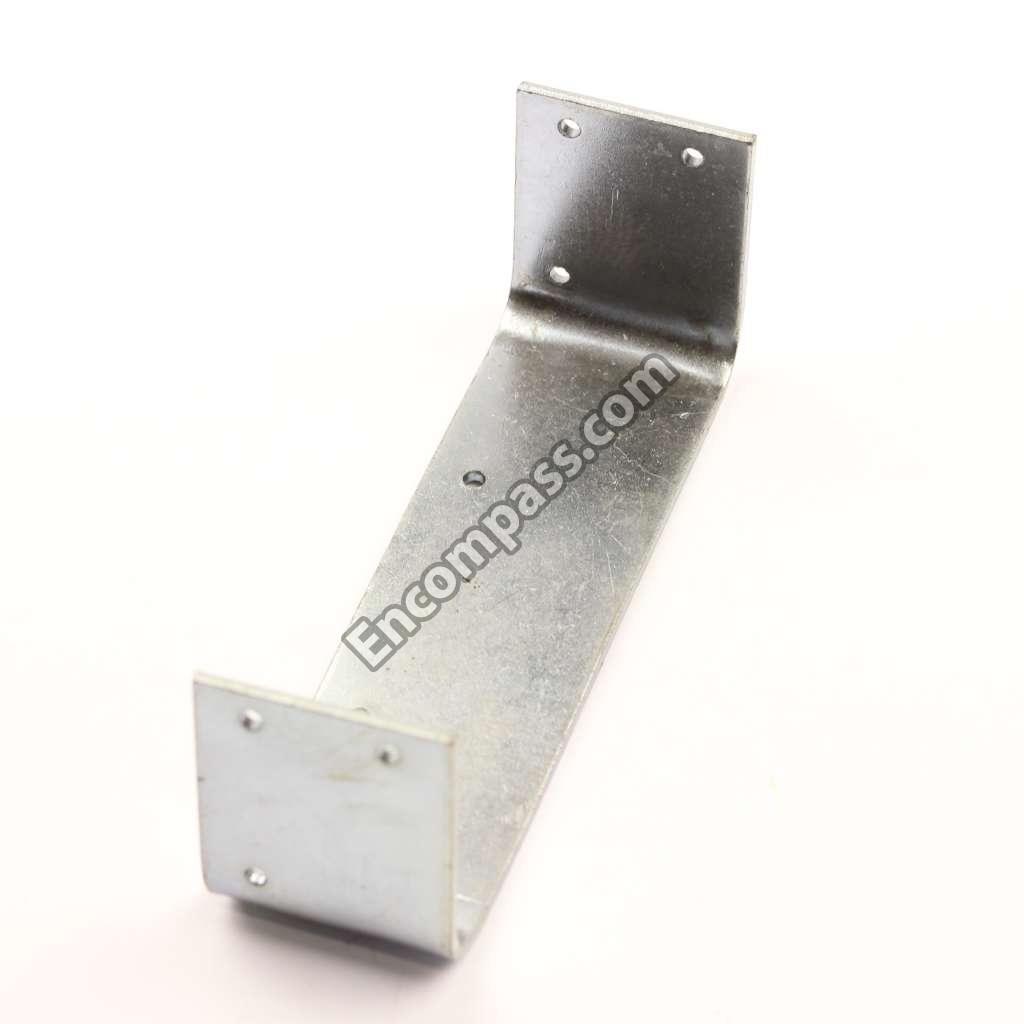

WE01X27695 WE01X27695 BRACKET - WALL HANGI

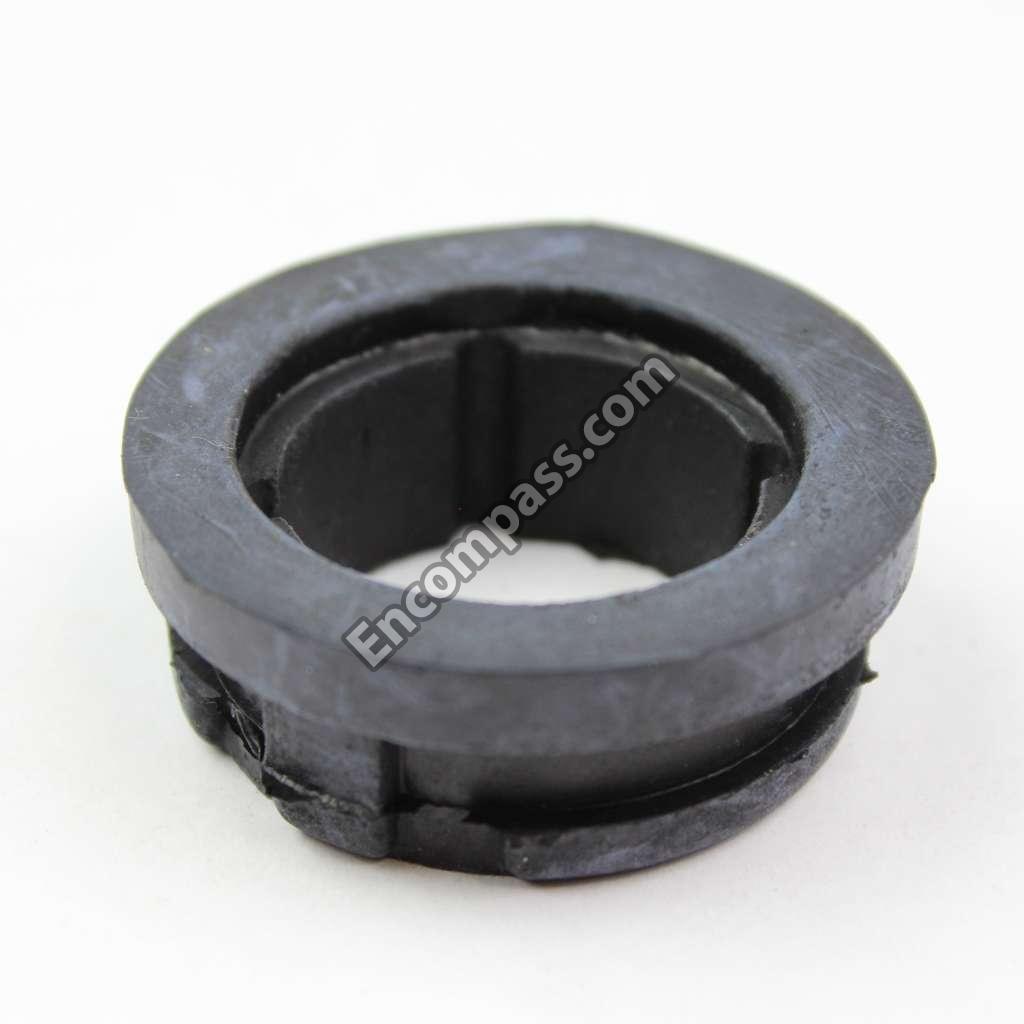

WH01X27841 WH01X27841 BUSHING-B

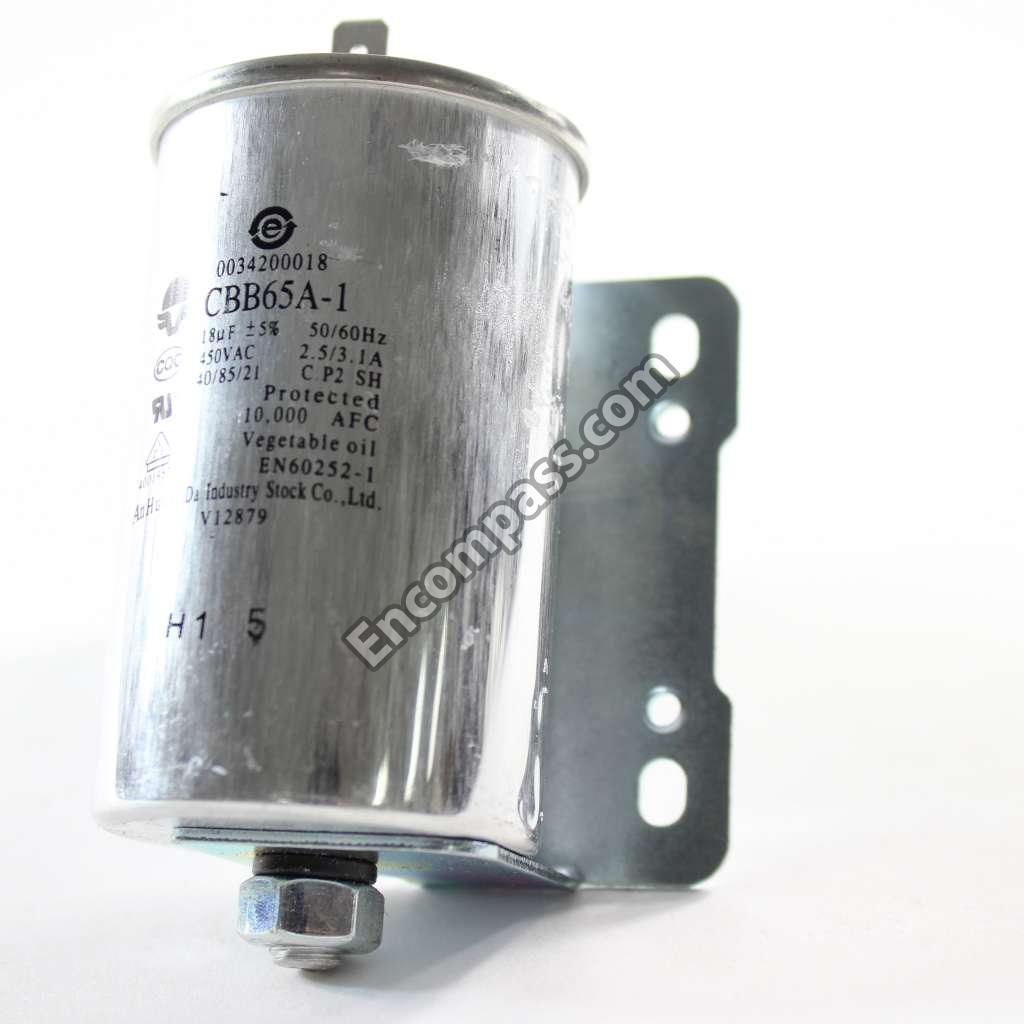

WE01X27997 WE01X27997 CAPACITOR
WD-1450-12 WD-1450-12 CARTON

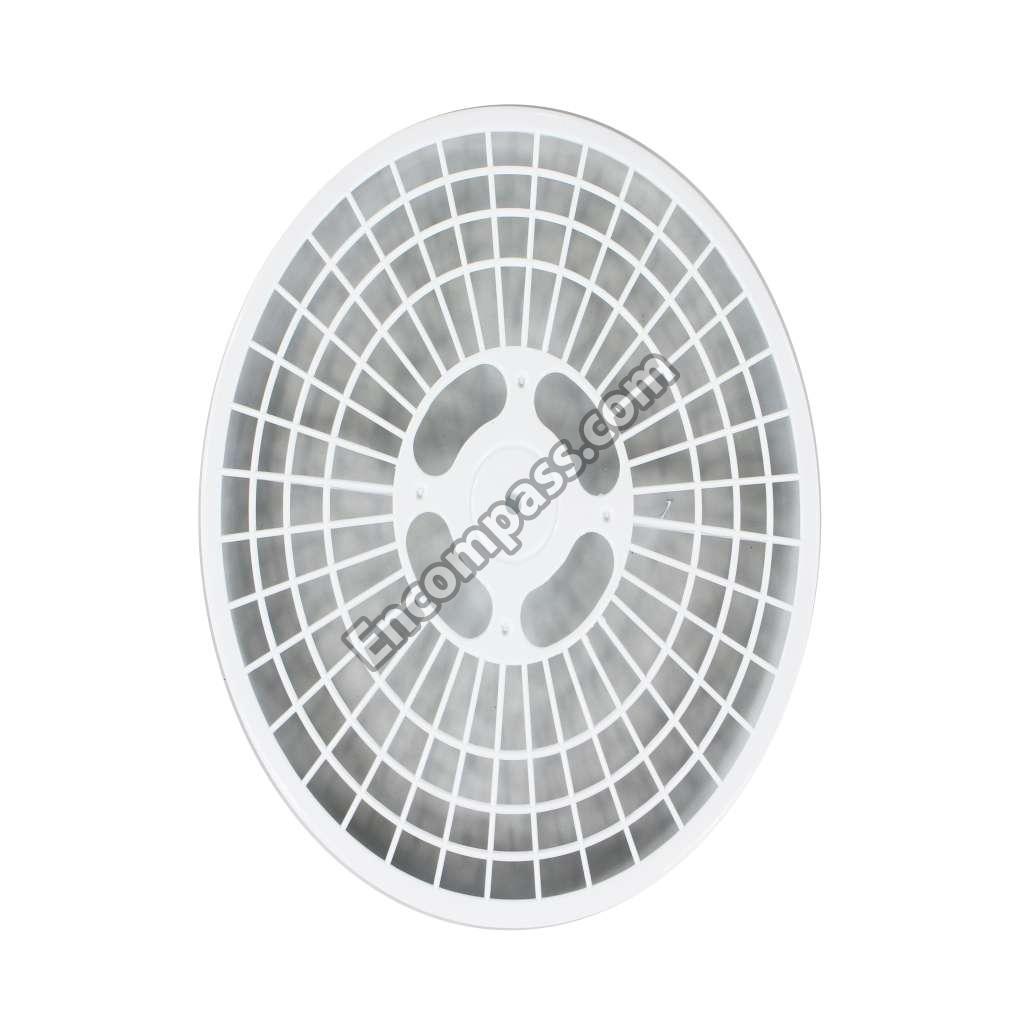

WE18X27690 WE18X27690 CASING - FILTER
WE01X27989 WE01X27989 CASING-FILTER
WD-1640-64 WD-1640-64 CLAMP
WD-1830-07 WD-1830-07 CONNECTOR
WD-1830-06 WD-1830-06 CONNECTOR
WD-1870-22 WD-1870-22 CONTROL-BAR
WH01X27914 WH01X27914 CORD - POWER
WE18X27691 WE18X27691 COVER - OUTWARD-WIND
WD-1950-165 WD-1950-165 COVER-BACK
WE01X28025 WE01X28025 COVER-IMPELLER
WD-1950-167 WD-1950-167 COVER-INWARD-WIND

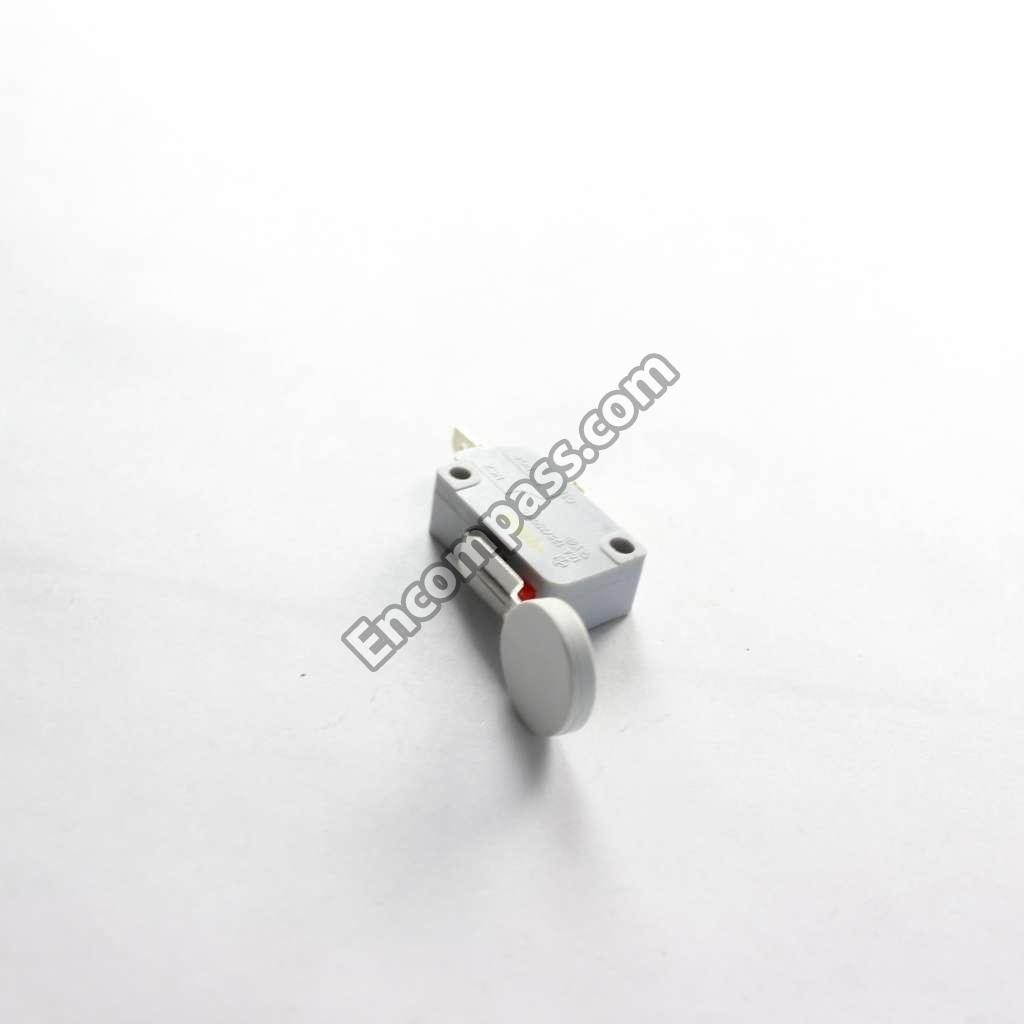

WD-2300-08 WD-2300-08 DOOR - SWITCH

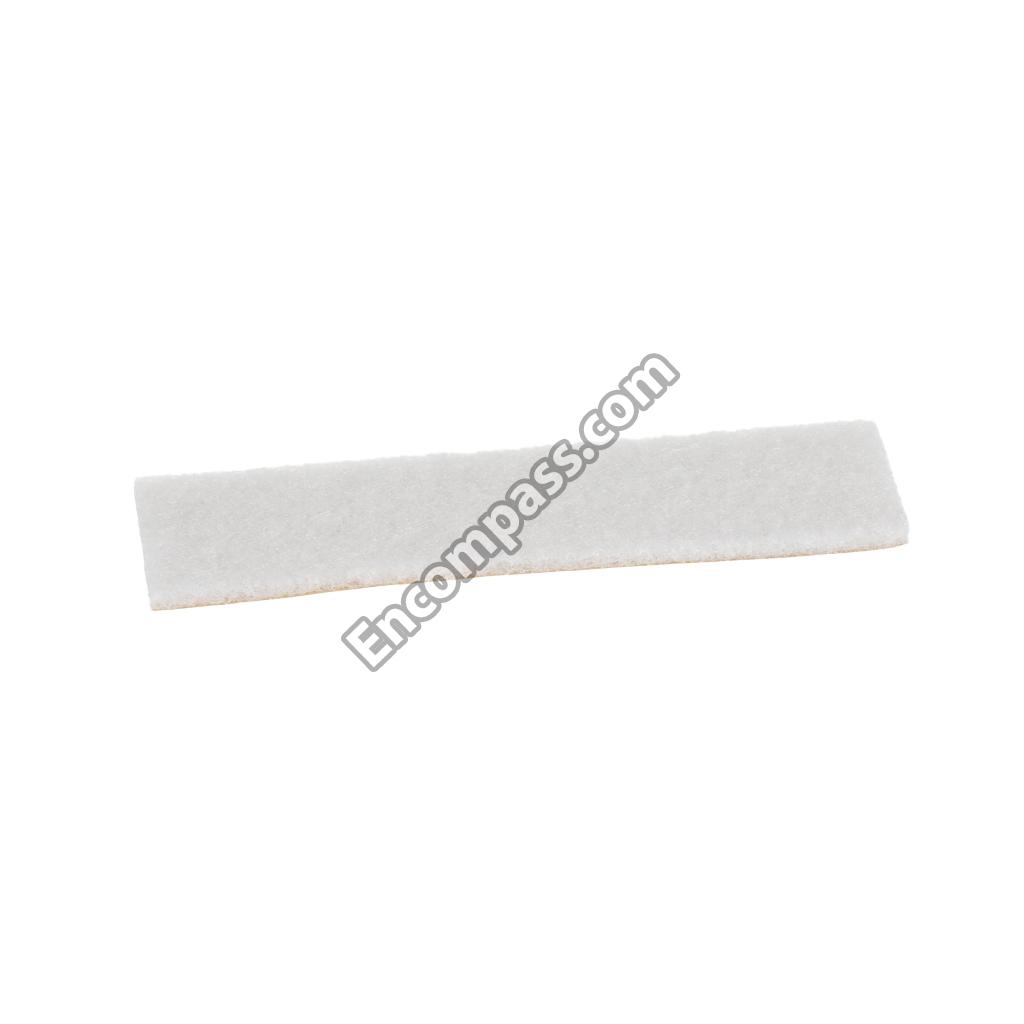

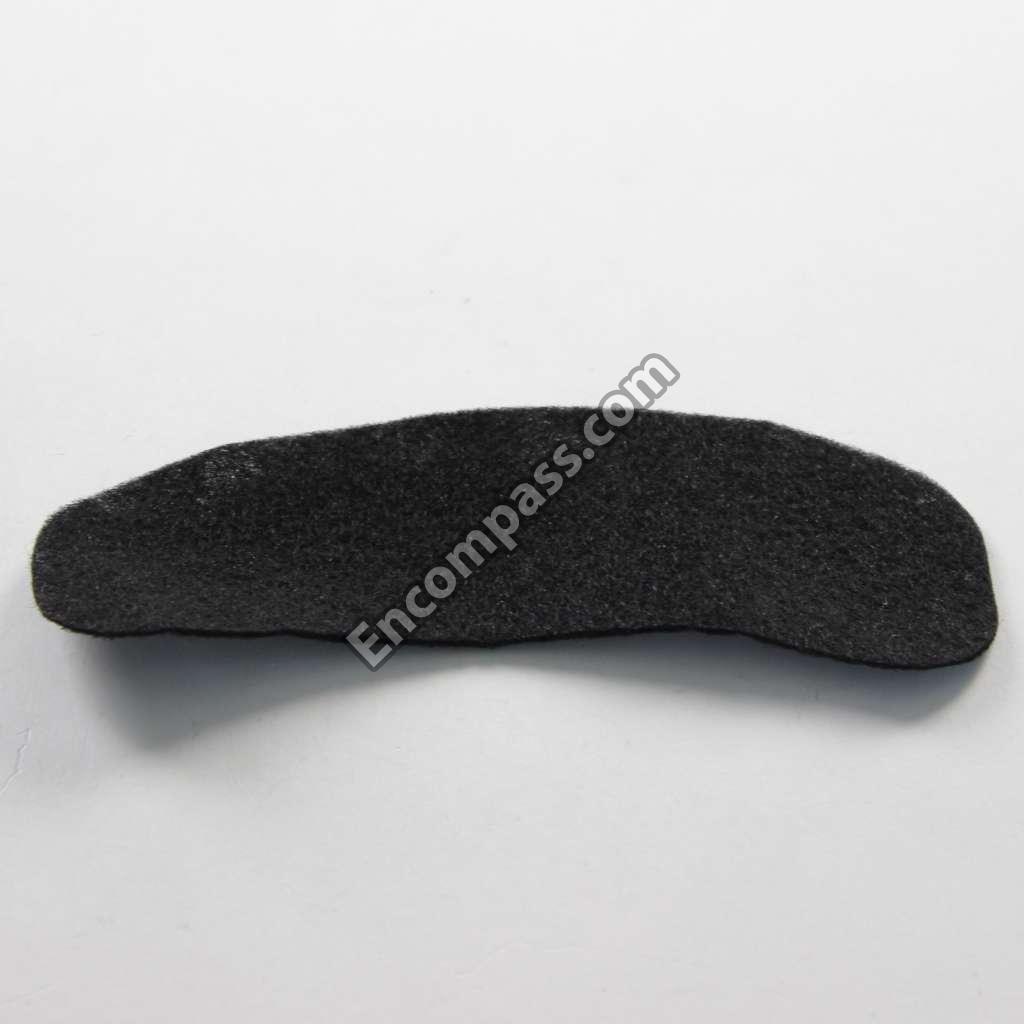

WE01X28028 WE01X28028 FELT

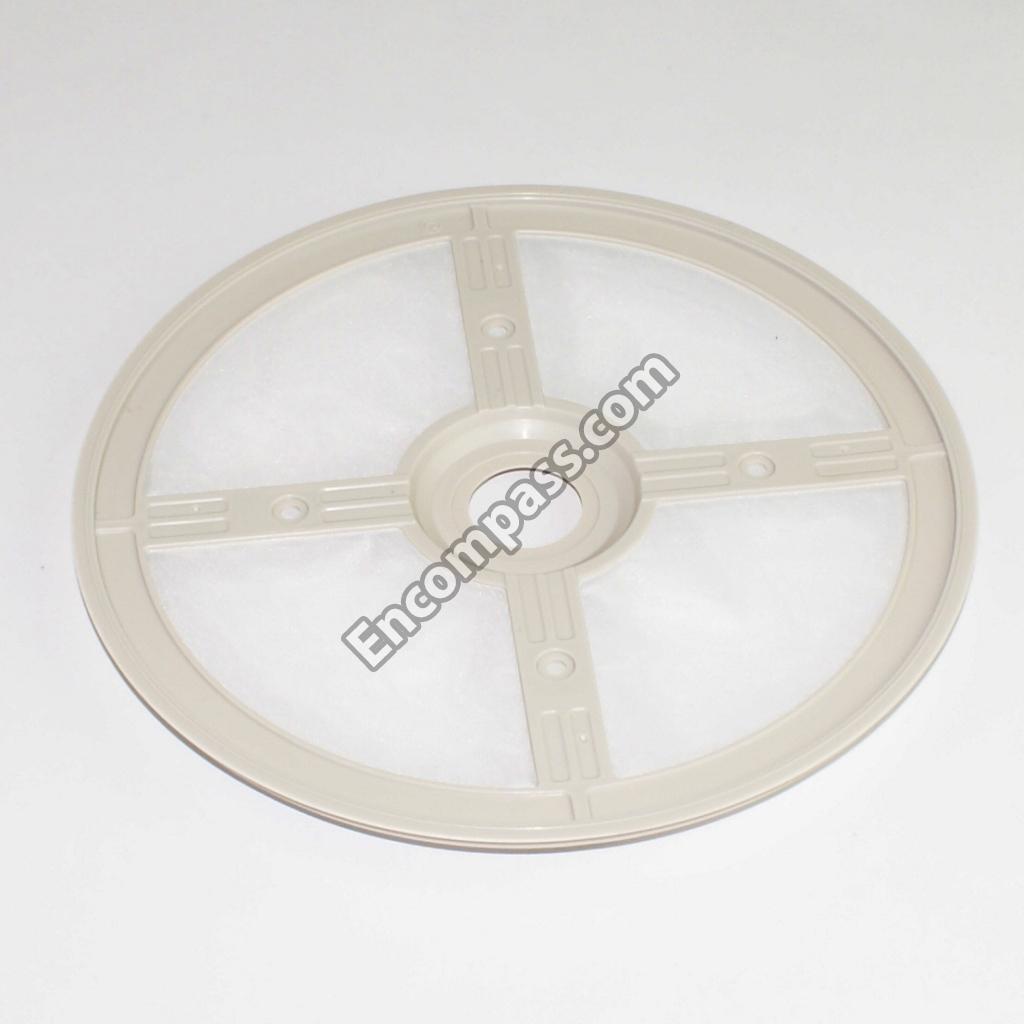

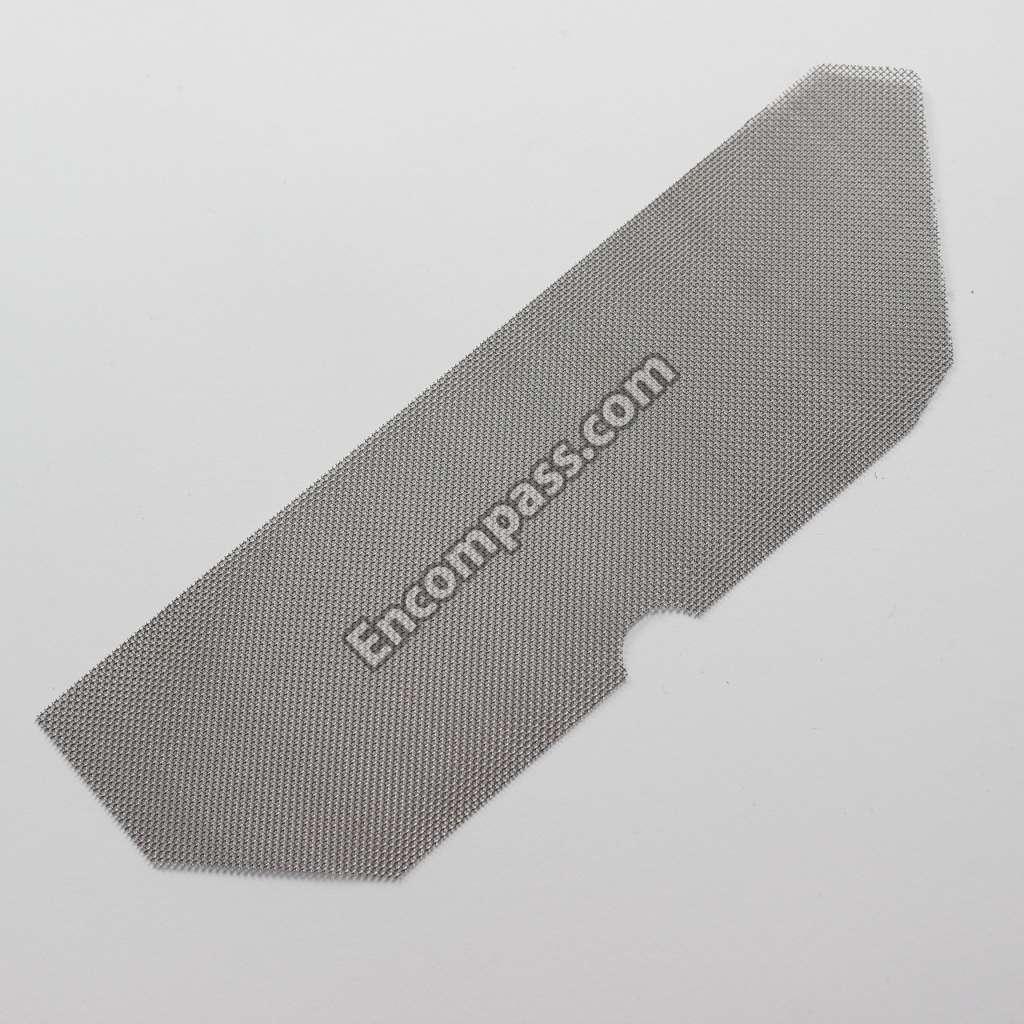

WE01X28008 WE01X28008 FILTER, LINT

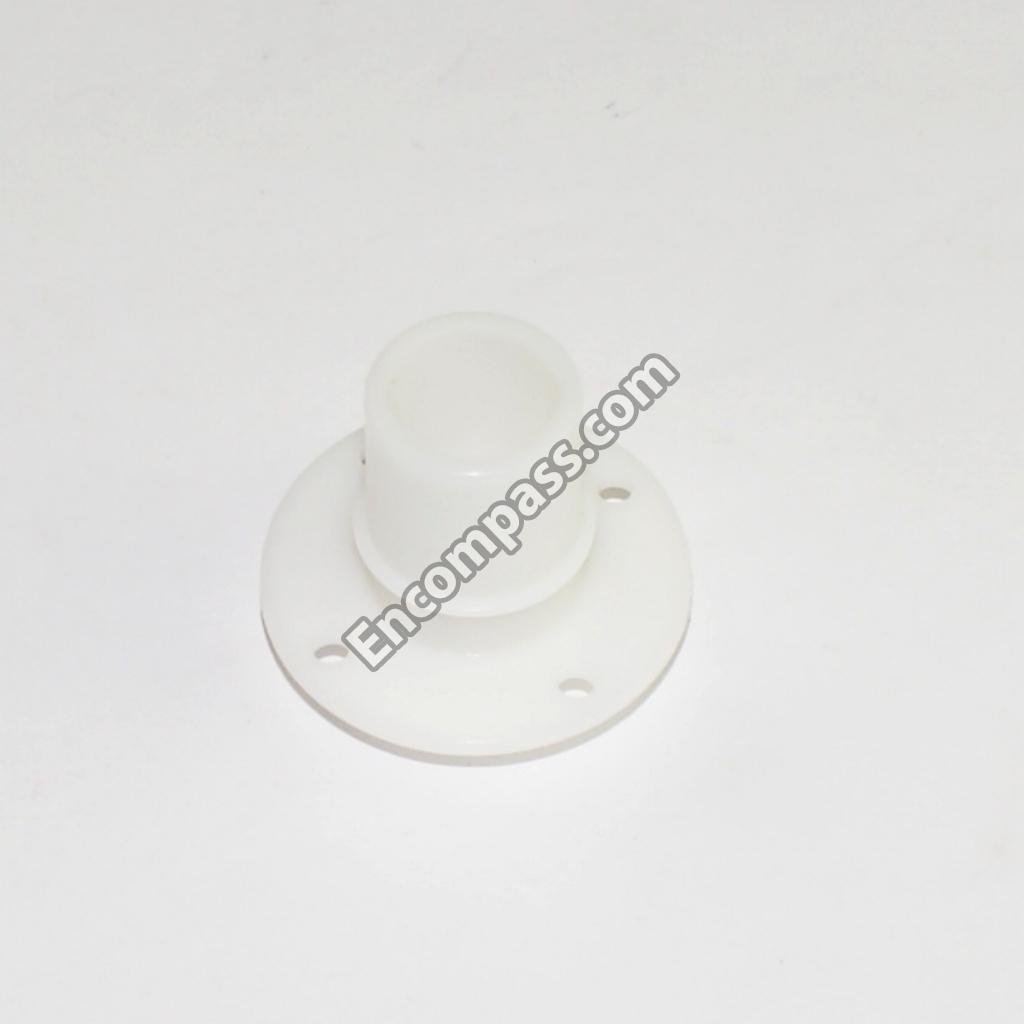

WE01X28011 WE01X28011 FLANGE-SUPPORT
WE01X28000 WE01X28000 GASKET
WE01X28012 WE01X28012 GASKET
WD-3100-81 WD-3100-81 GASKET

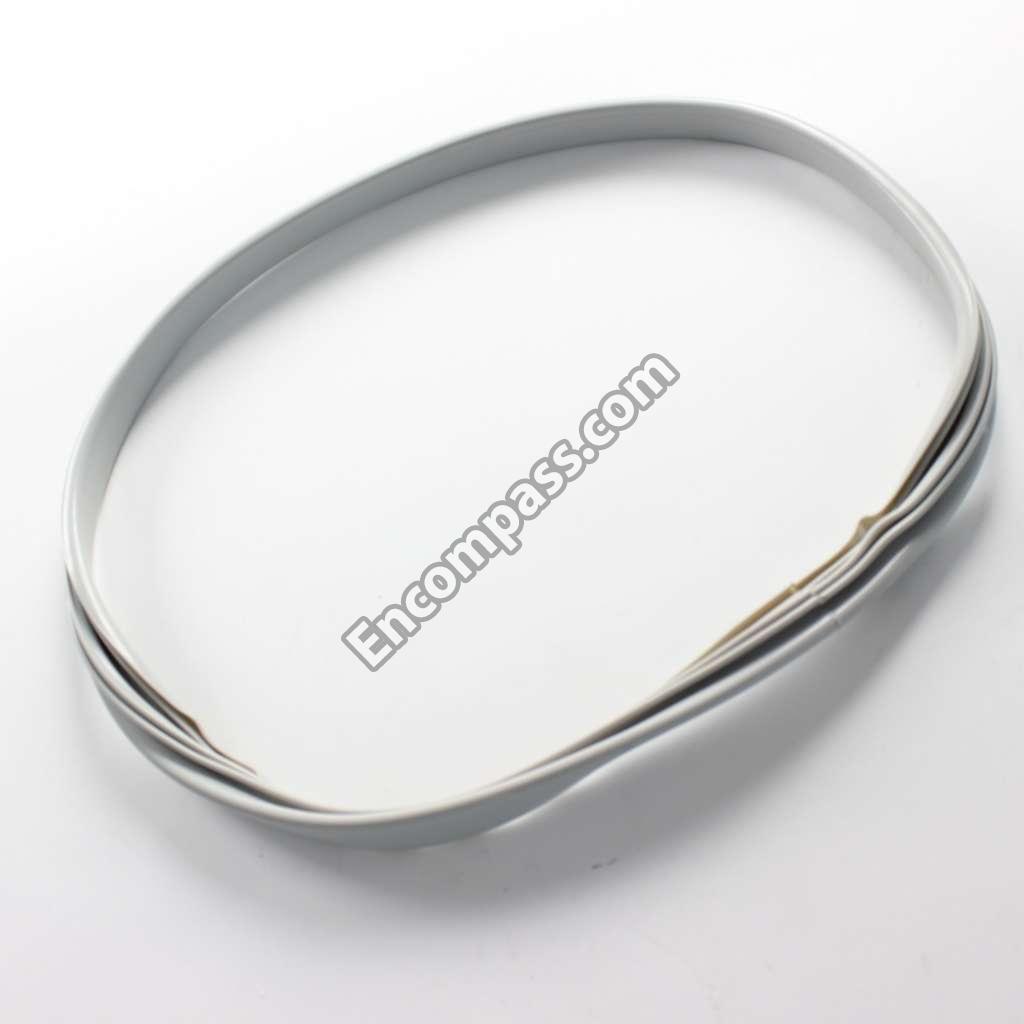

WE09X27688 WE09X27688 GASKET-LONG SEAL
WD-3250-05 WD-3250-05 GUARD - FRAME
WD-3350-28 WD-3350-28 HANDLE-CABINET

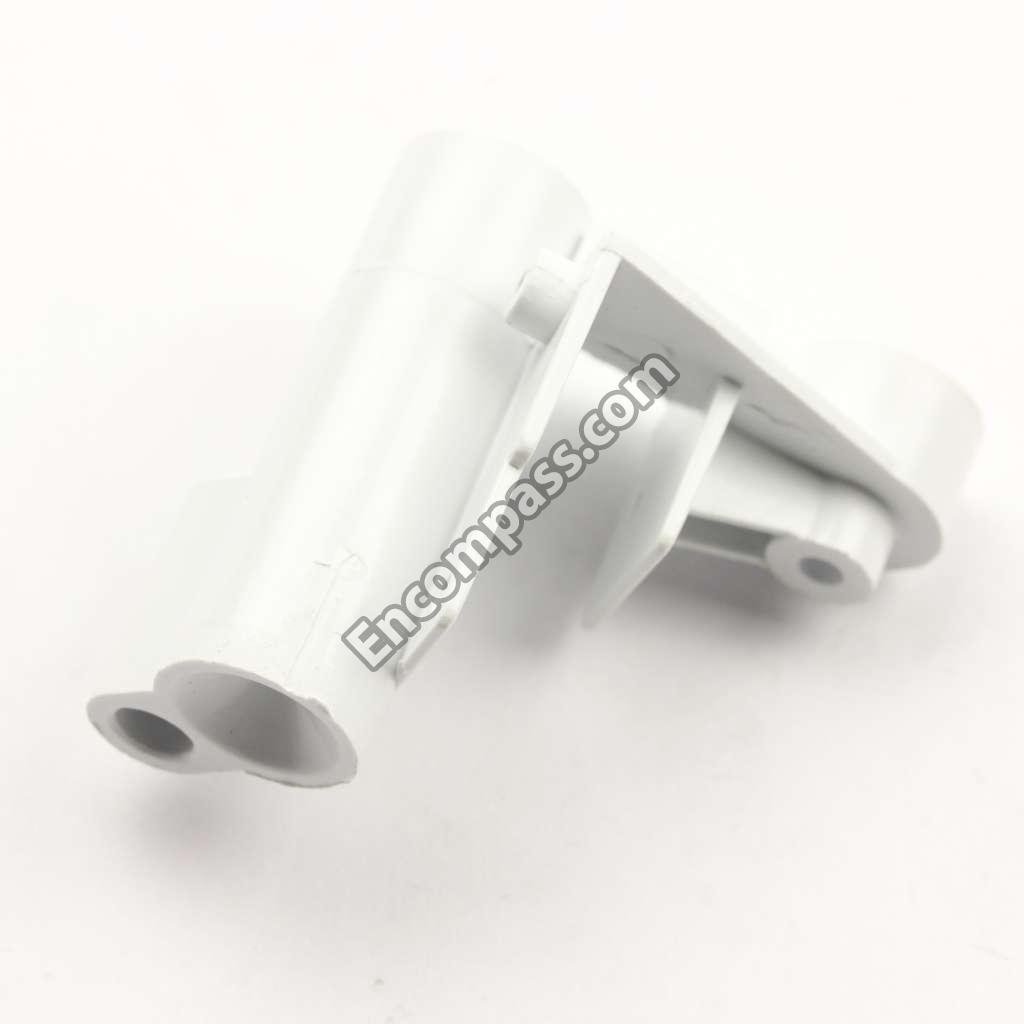

WE01X28007 WE01X28007 HANDLE-HOOK
WD-3363-17 WD-3363-17 HARNESS-WIRE

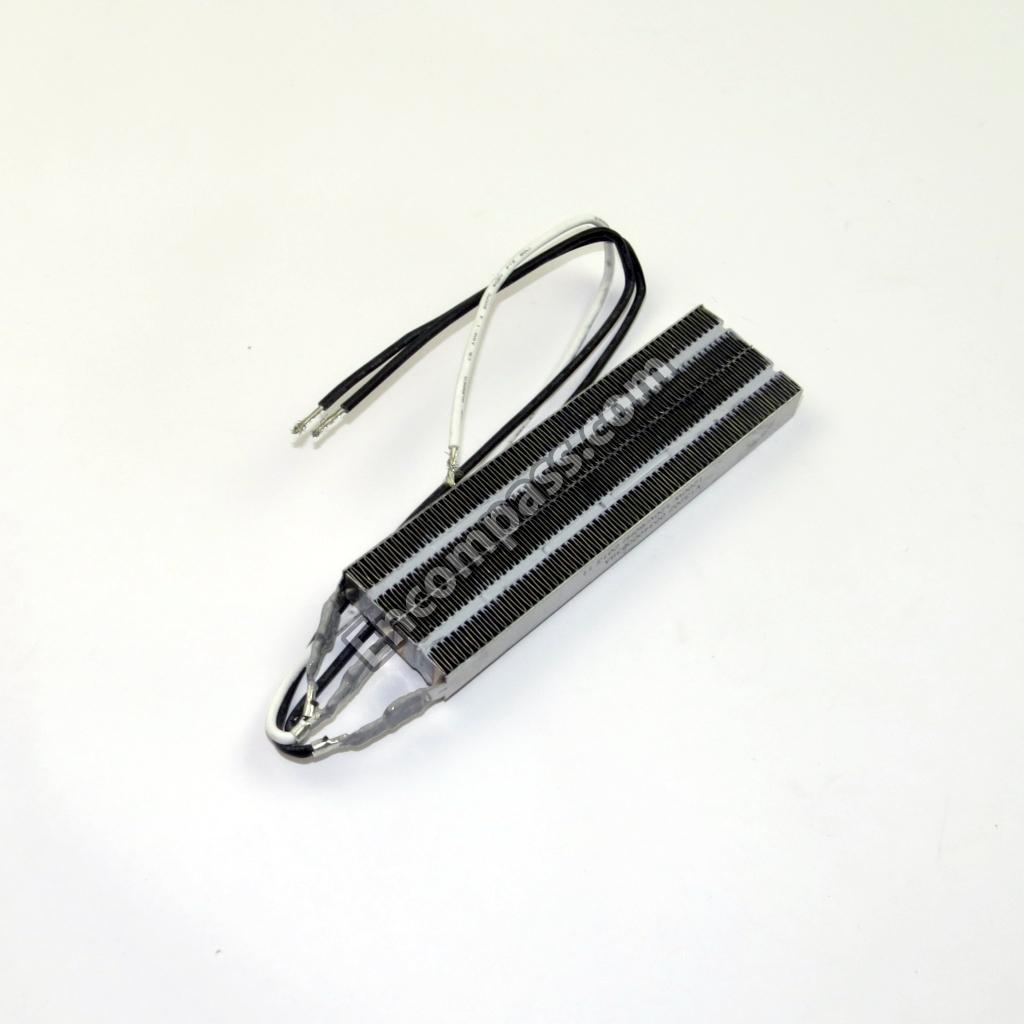

WE01X28029 WE01X28029 HEATER - PTC
WH01X27923 WH01X27923 HOLDER - FILTER SCRE

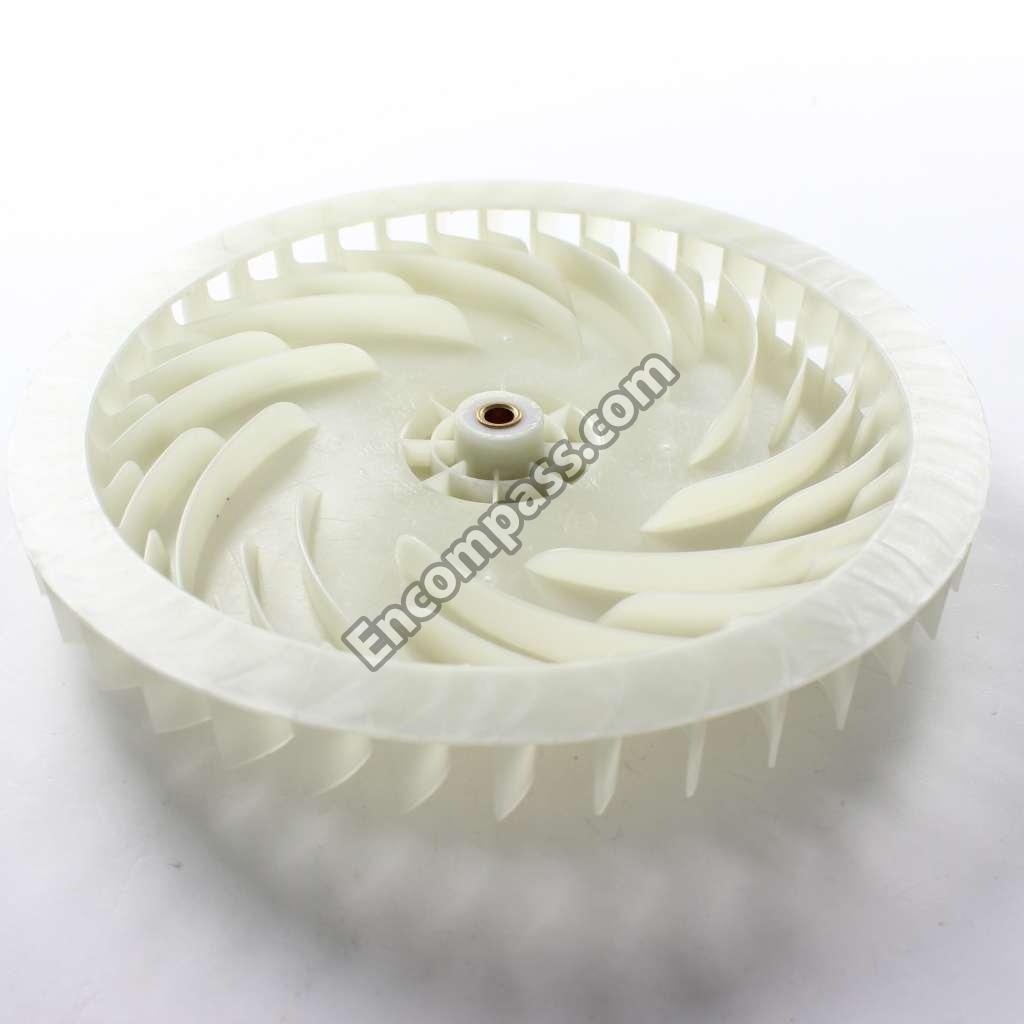

WE01X28004 WE01X28004 IMPELLER
WD-4050-45 WD-4050-45 LABEL-WARNING
WD-4100-02 WD-4100-02 LATCH-DOOR

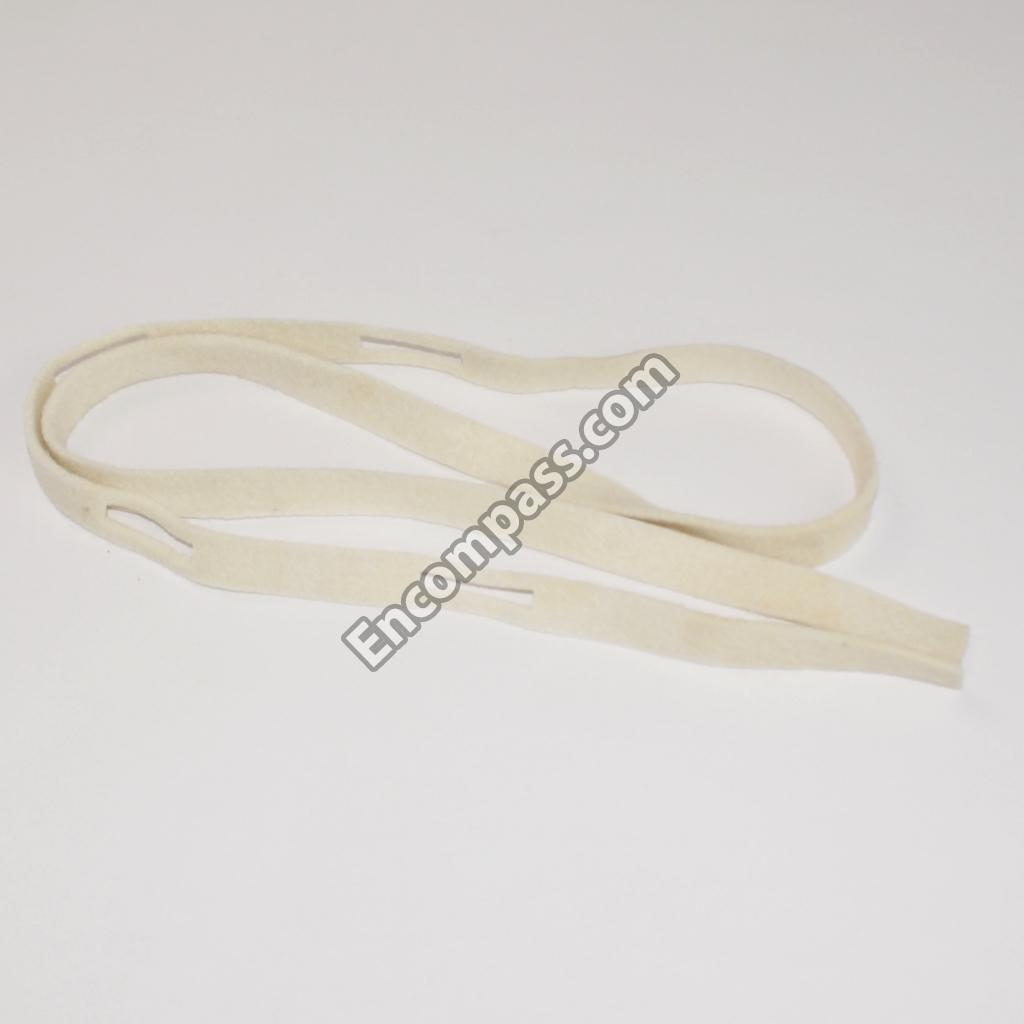

WE18X27689 WE18X27689 LINT SCREEN FELT
WE10X27373 WE10X27373 LOCK
WE01X27995 WE01X27995 MANIFOLD-EXHAUST

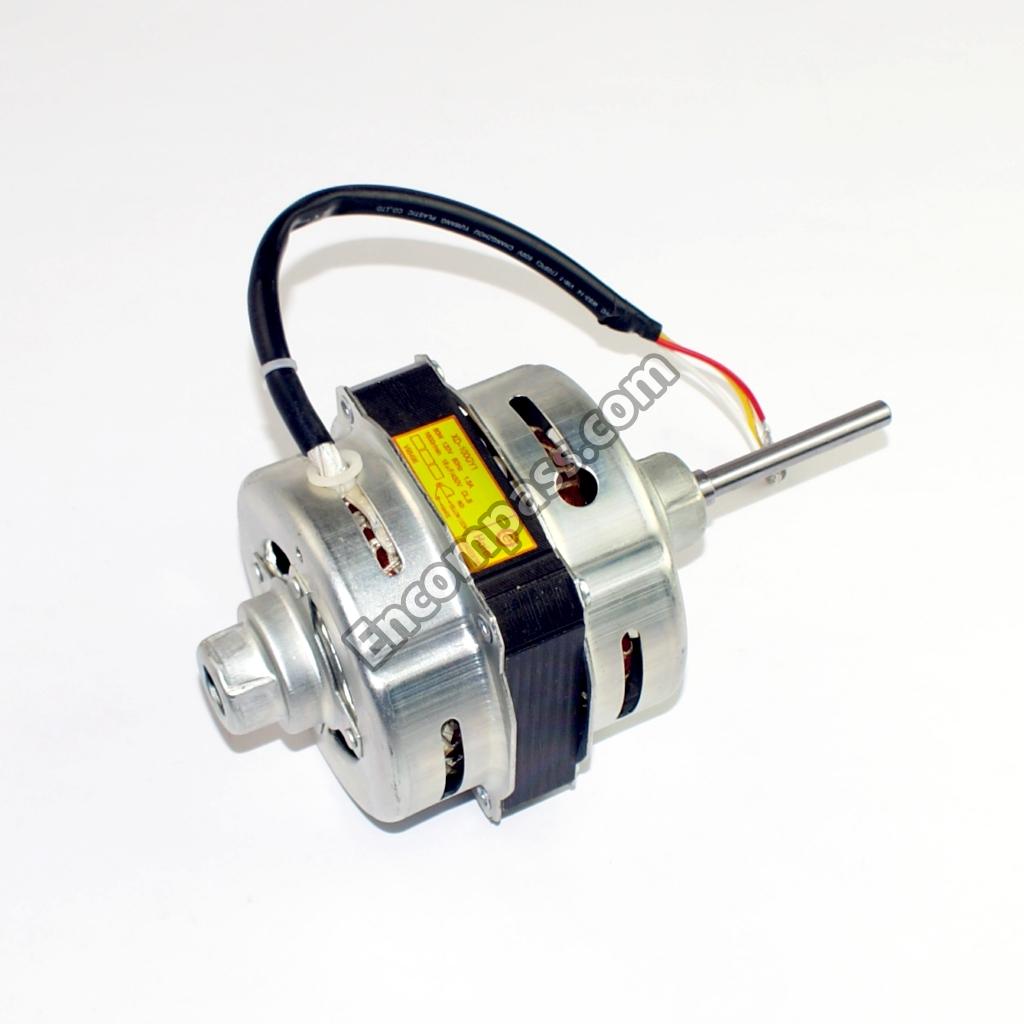

WE01X27984 WE01X27984 MOTOR
WD-4550-72 WD-4550-72 MOTOR - WHEEL BELT
WD-4550-71 WD-4550-71 MOTOR-BRACKET
WD-4600-35 WD-4600-35 NAMEPLATE
WD-4720-50 WD-4720-50 NUT
WD-5100-24 WD-5100-24 PAD - FRONT (EXHAUST VENT SHROUD IN MANUAL)

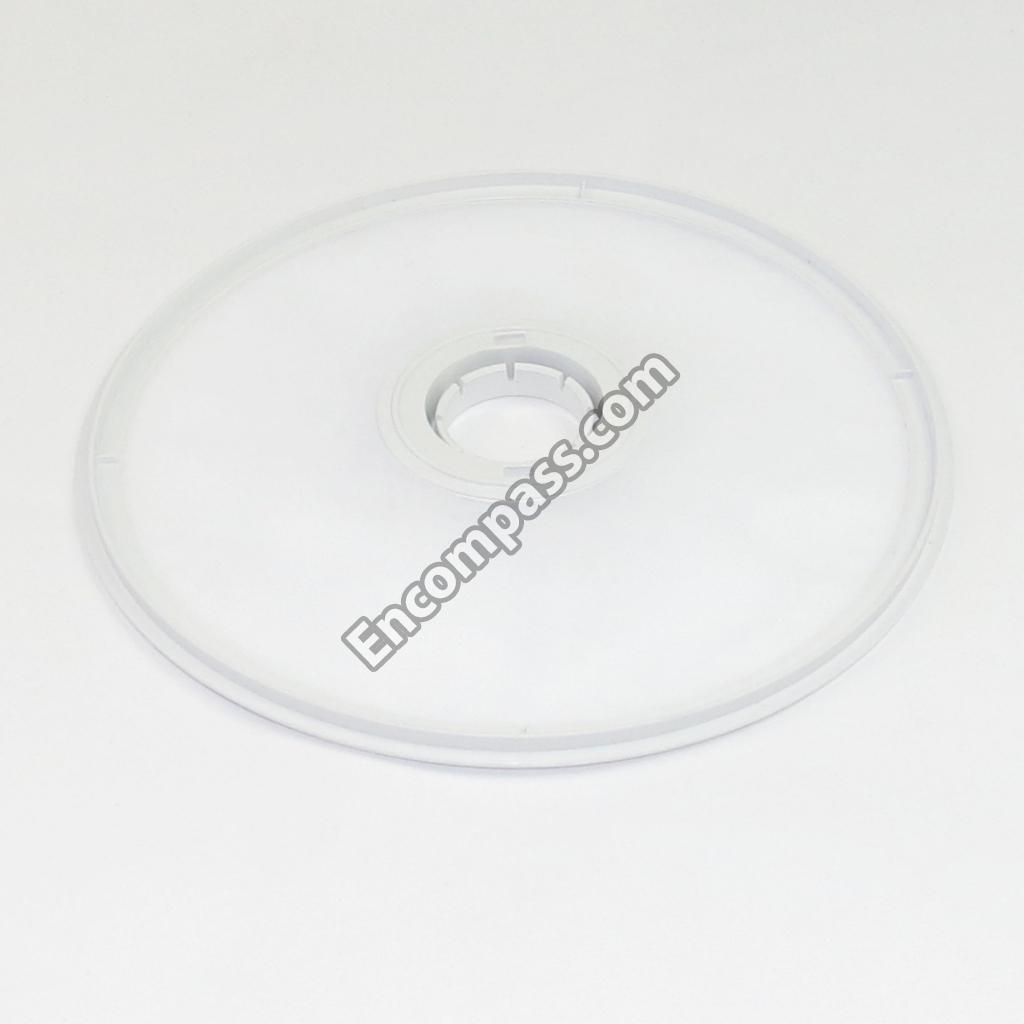

WE18X27689 WE18X27689 PAD - WOOL (ROUND LINT FILTER IN MANUAL)
WD-5100-22 WD-5100-22 PAD-RUBBER

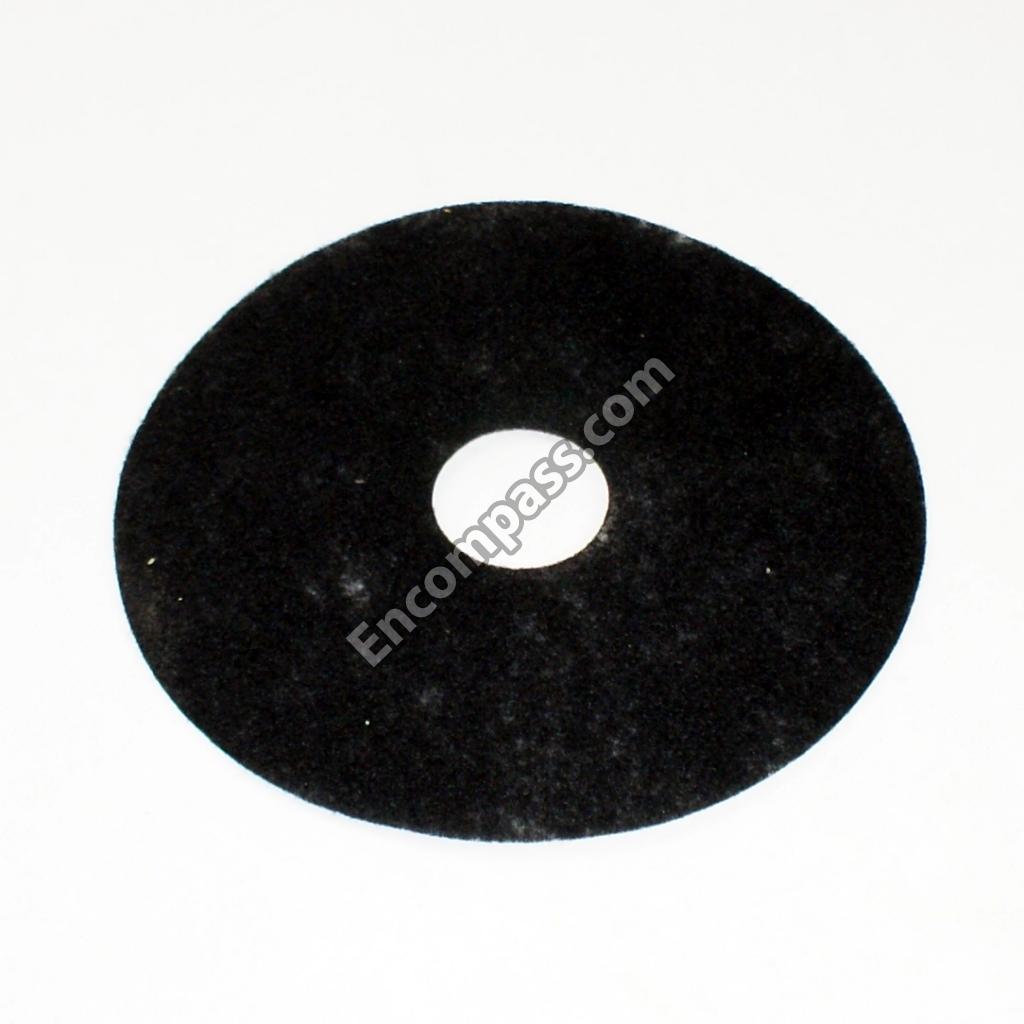

WE01X28014 WE01X28014 PAD-WOOL REAR
WE01X28003 WE01X28003 PANEL - CONTROL
WD-5250-70 WD-5250-70 PIN-AXIS

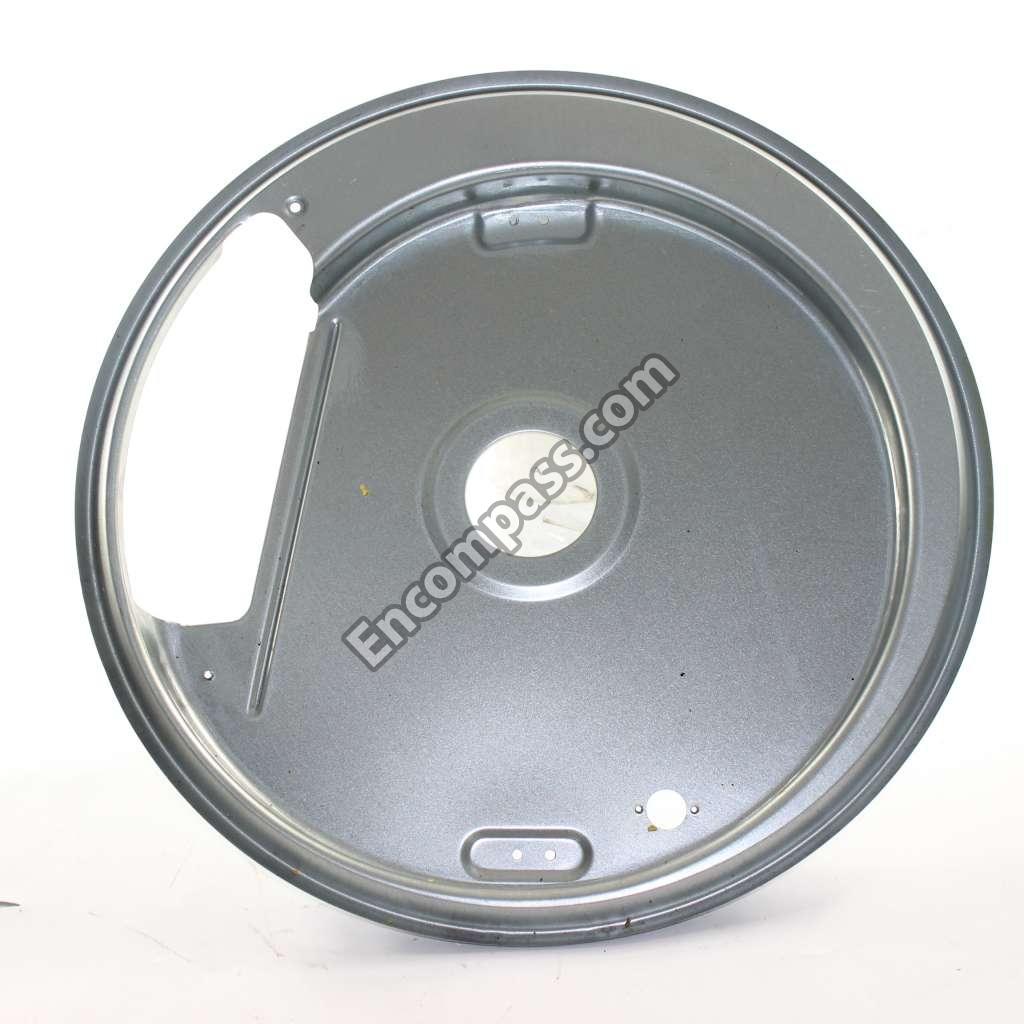

WE01X27423 WE01X27423 PLATE
WD-5300-51 WD-5300-51 PLATE

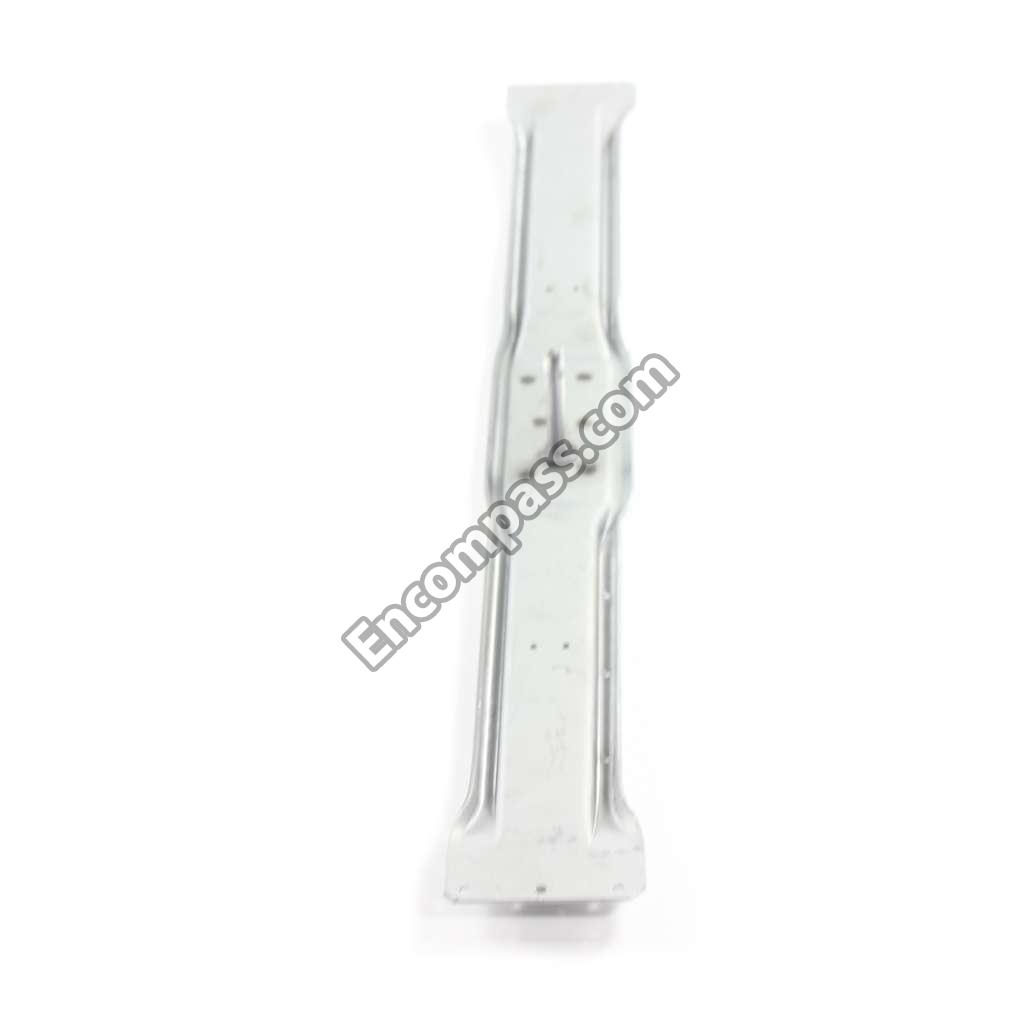

WE01X28016 WE01X28016 PLATE - RACK

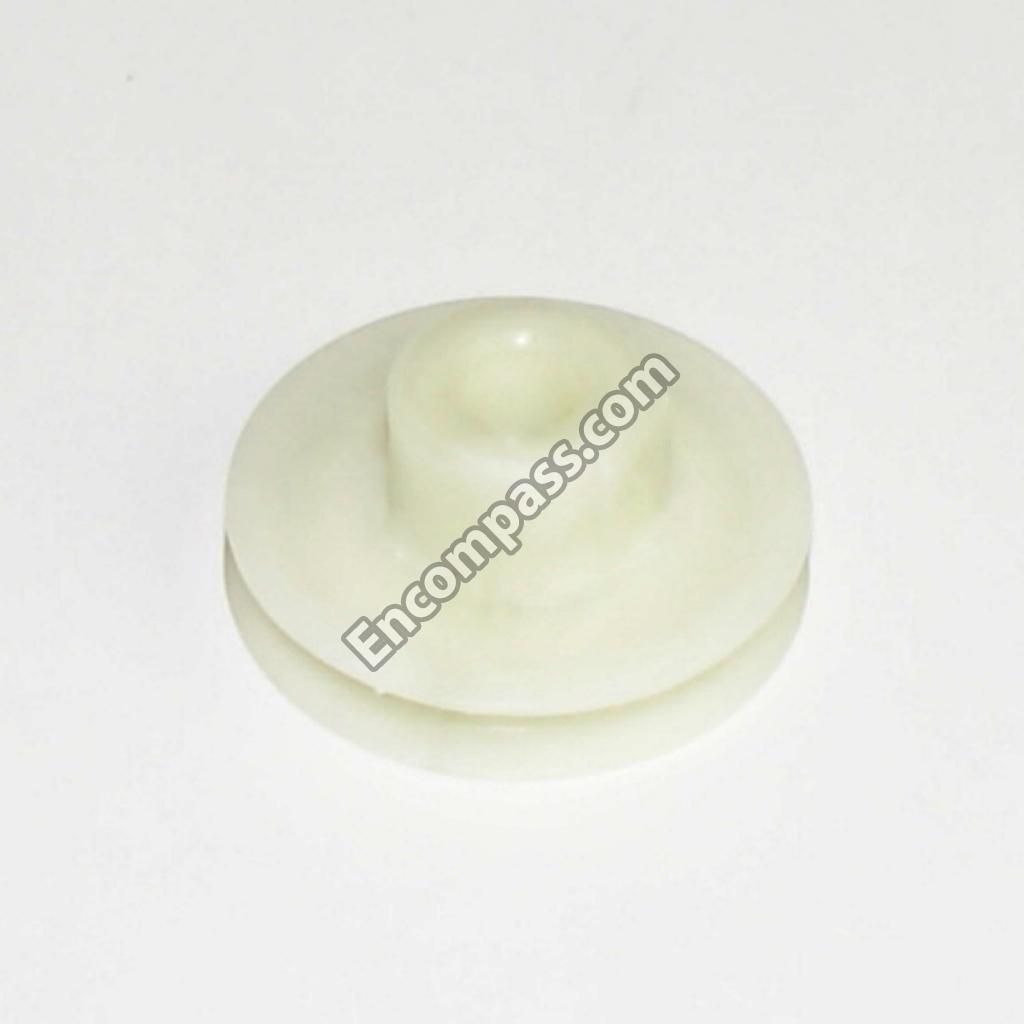

WH01X27932 WH01X27932 PULLEY-BELT
WD-5700-01 WD-5700-01 RETAINER-PTC

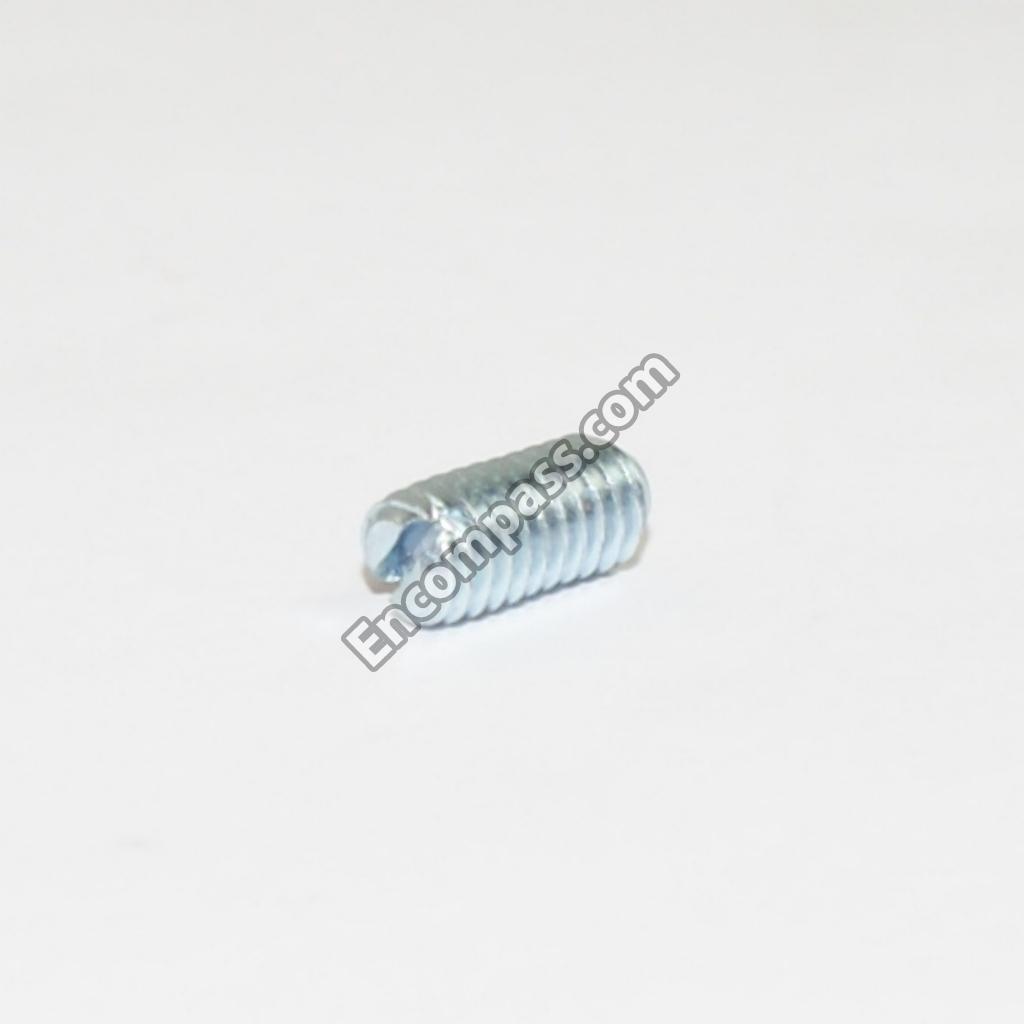

WD-6150-170 WD-6150-170 SCREW
WD-6150-169 WD-6150-169 SCREW
WH02X26155 WH02X26155 SCREW
WD-6150-171 WD-6150-171 SCREW
WD-6150-167 WD-6150-167 SCREW
WD-6150-53 WD-6150-53 SCREW
WH02X26188 WH02X26188 SCREW
WD-6150-55 WD-6150-55 SCREW
WD-6150-172 WD-6150-172 SCREW
WD-6150-168 WD-6150-168 SCREW-CROSS GROOVE
WH01X27834 WH01X27834 SCREW-TAPPING
WH01X27912 WH01X27912 SEAL-LOOP
0034000750B 0034000750B SENSOR - TEMPERATURE
WD-7000-21 WD-7000-21 SUPPORT-PTC

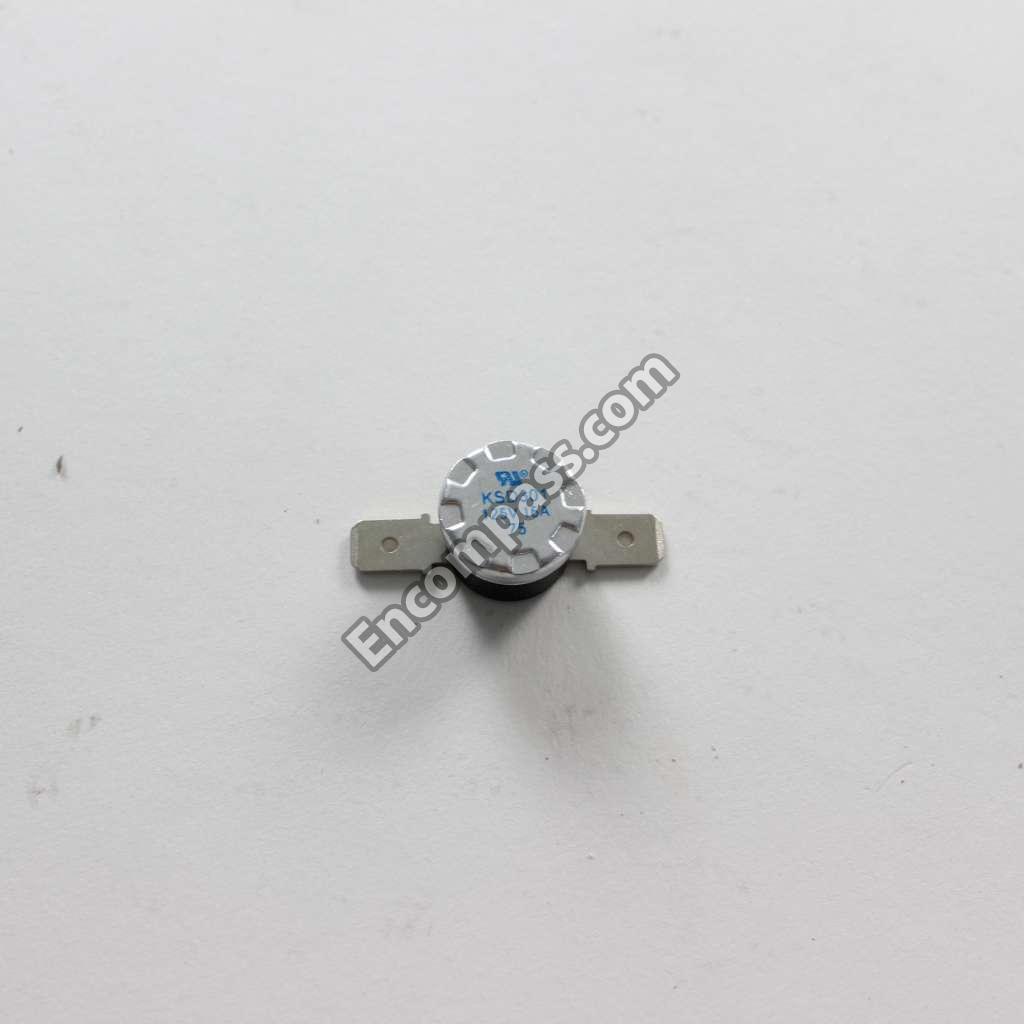

WE01X28018 WE01X28018 THERMOSTAT

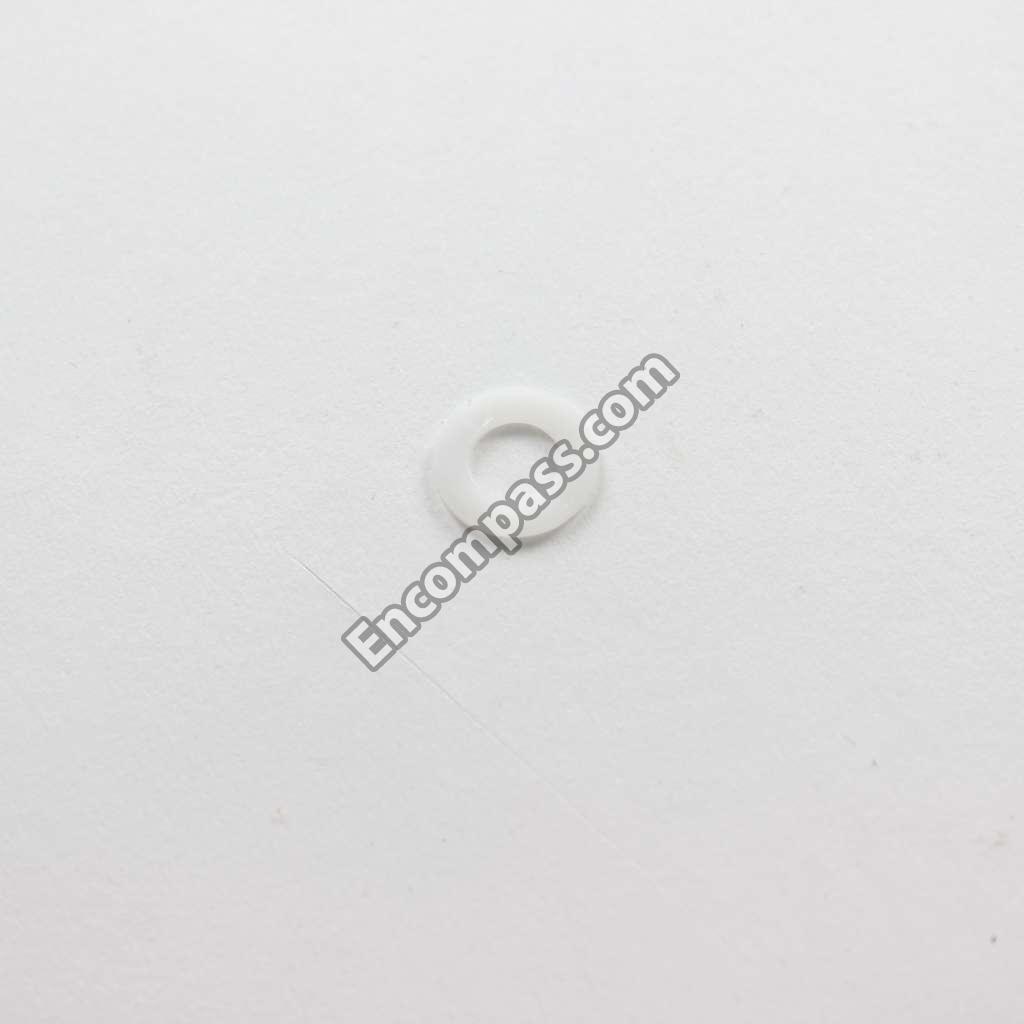

WD-7950-05 WD-7950-05 WASHER
WH01X27921 WH01X27921 WD-0350-37-BELT - FAN
WH01X27935 WH01X27935 WD-0350-38-DRYER DRUM DRIVE BELT
WE01X28029 WE01X28029 WD-3400-04-HEATER - PTC
WD-8050-01 WD-8050-01 WINDOW-DOOR
WD-8050-02 WD-8050-02 WINDOW-INNER
WD-8070-28 WD-8070-28 WIRE-CAPACITOR LEG
WD-8070-27 WD-8070-27 WIRE-GROUND
