Model Image
Manufacturer

Haier

Model Number

HLPW028AXW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

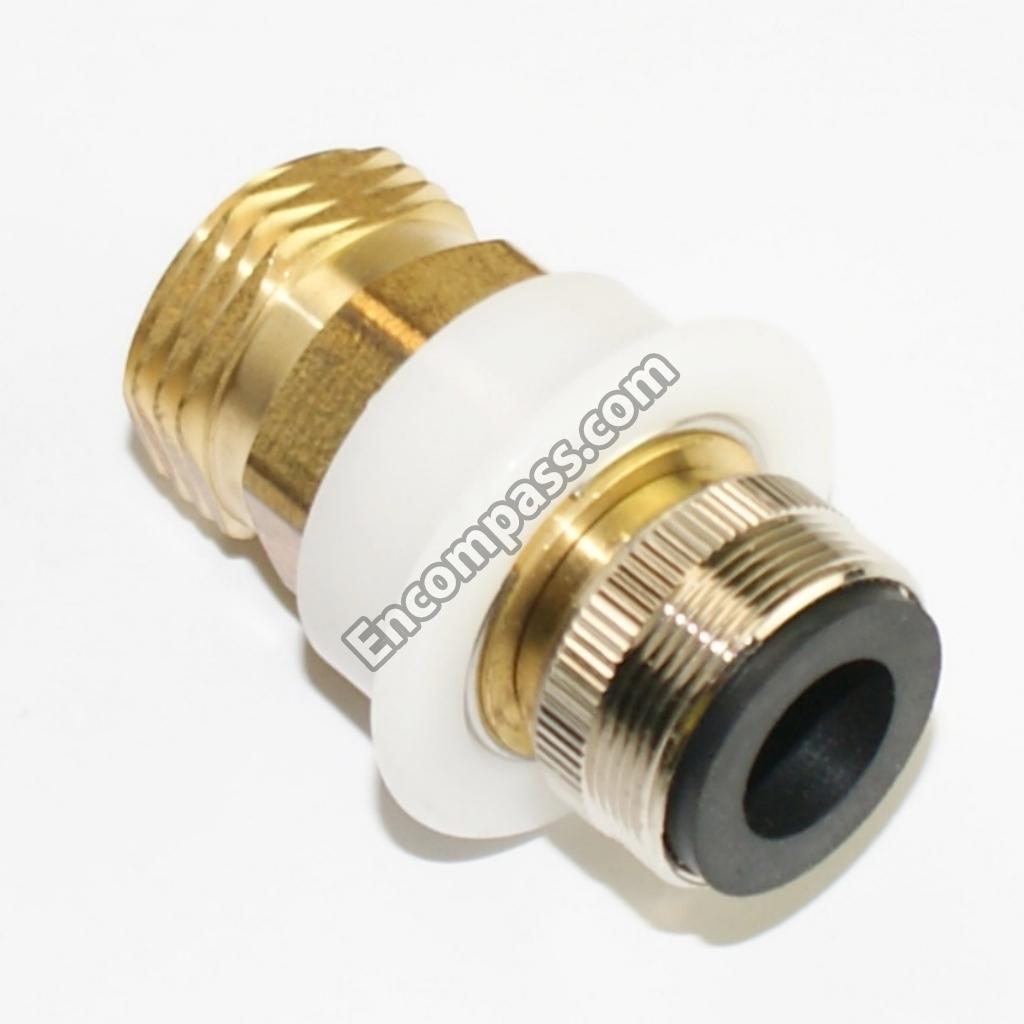

WH41X27707 WH41X27707 ADAPTER-HOSE FAUCET (LEAD FREE)
WH46X27700 WH46X27700 ADJUSTABLE FEET
0030504687B 0030504687B ADJUSTABLE FOOT LABEL
WH46X27696 WH46X27696 BACK COVER
WH44X26194 WH44X26194 BACK PLATE
0030204650A 0030204650A BAFFLE
00330703502 00330703502 BAG
0030802685J 0030802685J BALANCE RING COMPONENT
WH02X27268 WH02X27268 BOLT
WH02X27271 WH02X27271 BOLT
WH02X27452 WH02X27452 BOLT COMPONENT
WH46X27708 WH46X27708 BOTTOM PLATE ( SHOWING LOC.71 ON PITURE)
0030204065 0030204065 BUFFER CUSHION
0030204986 0030204986 BYPASS BOARD
00330104012A 00330104012A CABINET BUFFER GASKET
WD-3100-40 WD-3100-40 CABINET BUFFER GASKET
0030808070H 0030808070H CABINET COMPONENT
WH46X27697 WH46X27697 CABINET HANDLE
0034200036B 0034200036B CAPACITOR
WH01X26921 WH01X26921 CONNECTING ARM
WH41X26871 WH41X26871 CONNECTING PIPE
WH02X26870 WH02X26870 CONNECTING PIPE CLAMP

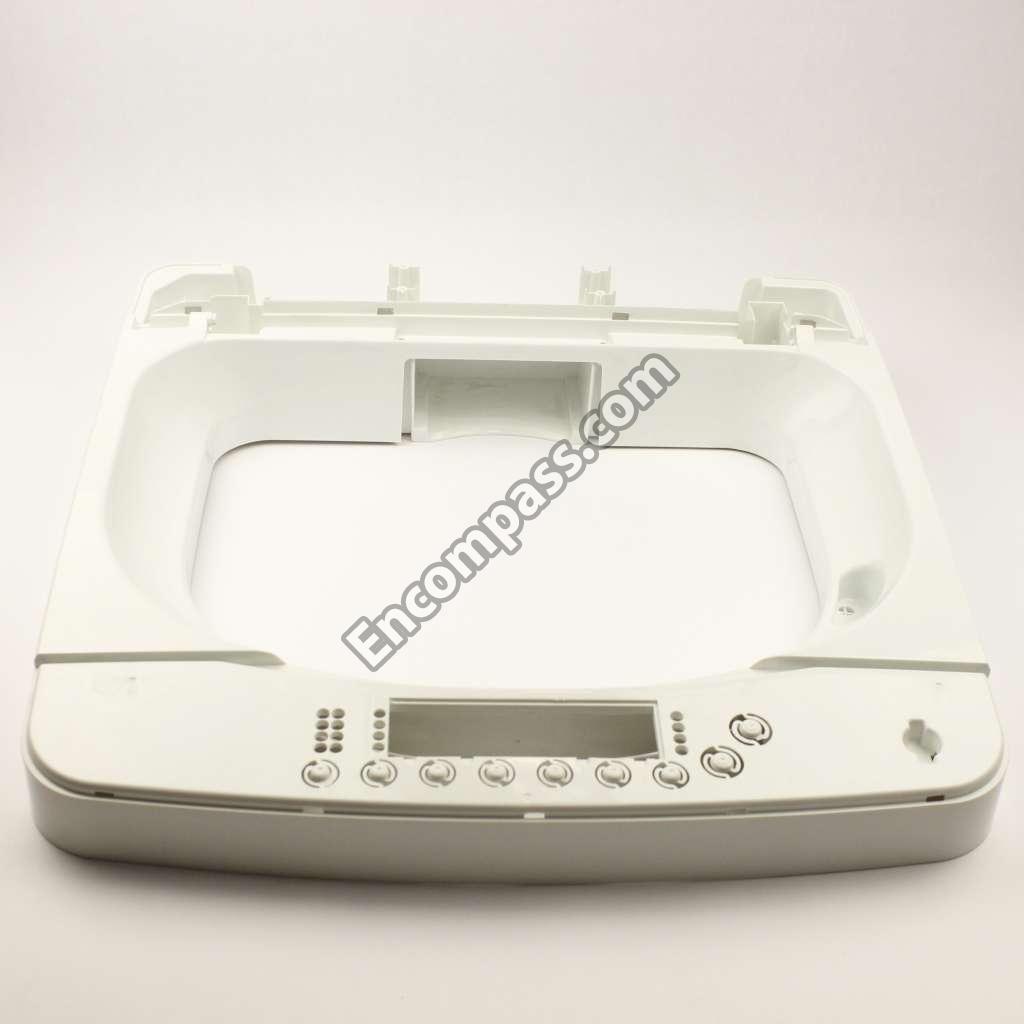

0030204968H 0030204968H CONTROL PANEL SEAT
WH01X26183 WH01X26183 CONTROL ROD
WH01X27822 WH01X27822 CONTROLRODSEAT
0030205313 0030205313 CRIMP BUSHING
0030205365 0030205365 CRIMP BUSHING A

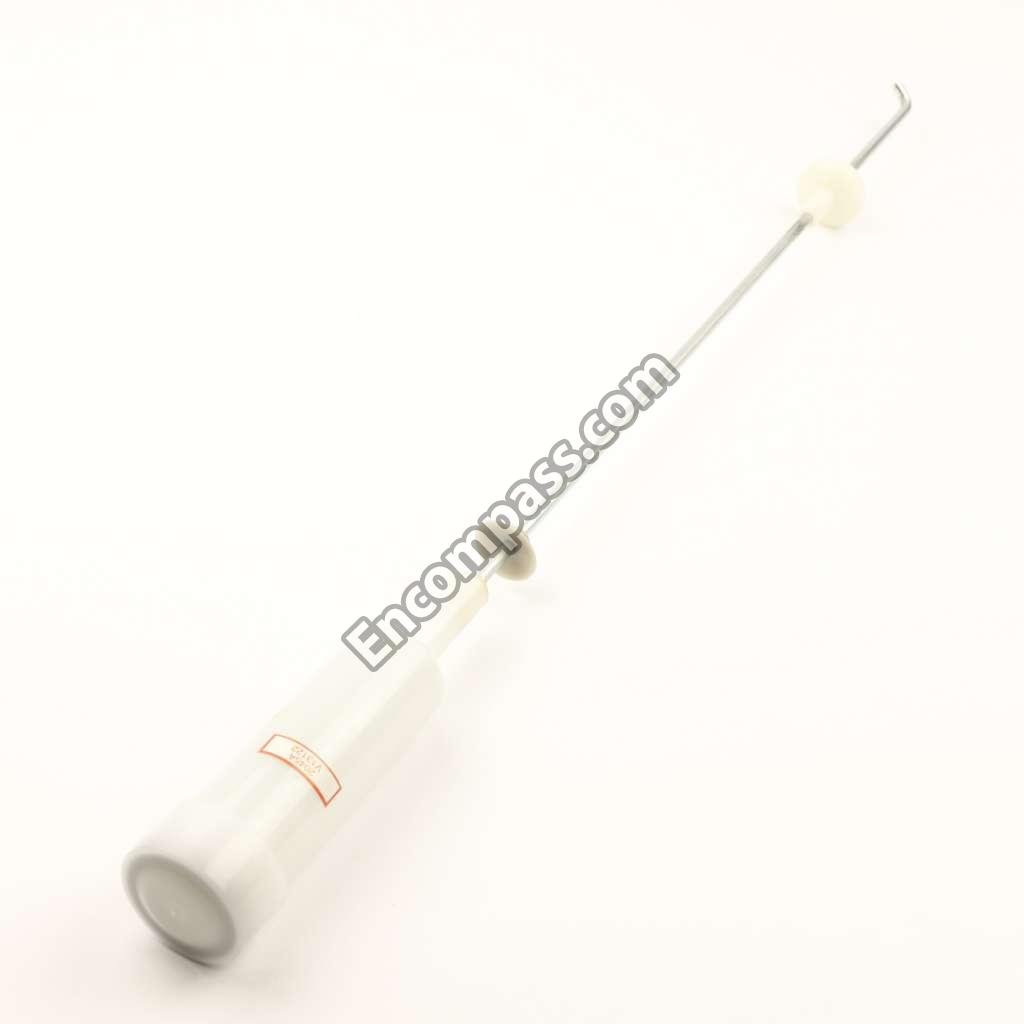

WH01X27832 WH01X27832 DAMPING COMPONENT
0030807670 0030807670 DETERGENT BOX COMPONENT

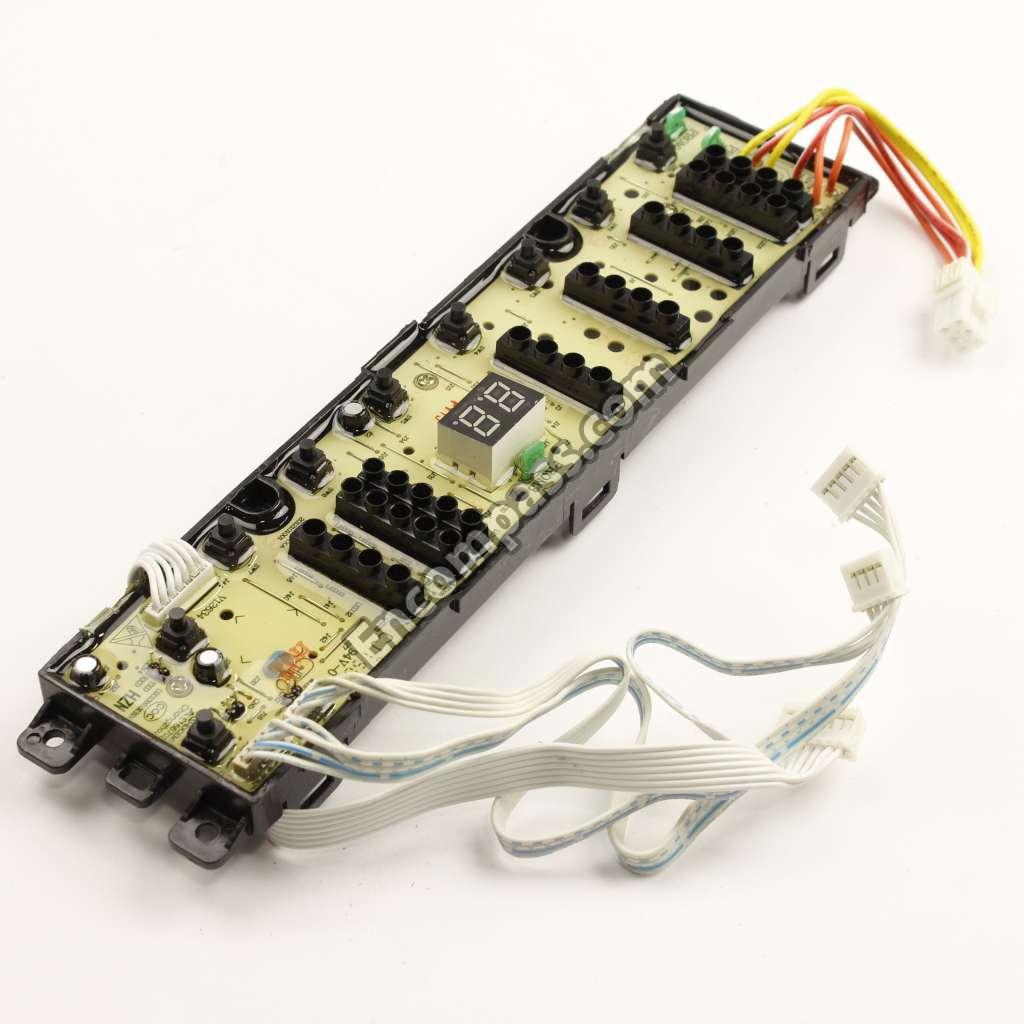

WH18X27382 WH18X27382 DISPLAY BOARD
WH01X27840 WH01X27840 DRAIN BUSHING

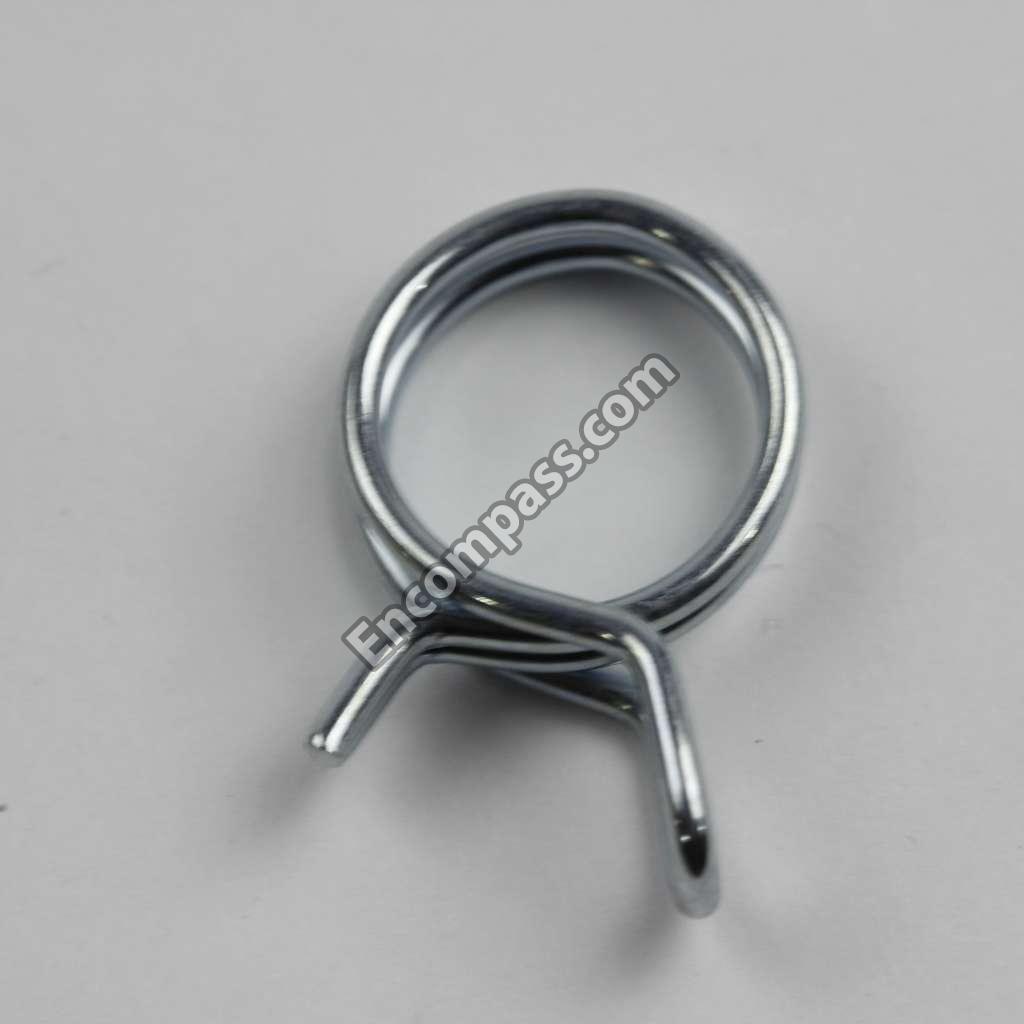

WH01X27836 WH01X27836 DRAIN HOSE CLAMP
WH20X27368 WH20X27368 DRAIN MOTOR
WH23X27419 WH23X27419 DRAIN PUMP
WD-0850-73 WD-0850-73 DRAIN PUMP SEAT
WH02X26896 WH02X26896 FASTEN BOLT
WH46X27701 WH46X27701 FIXEDFOOT

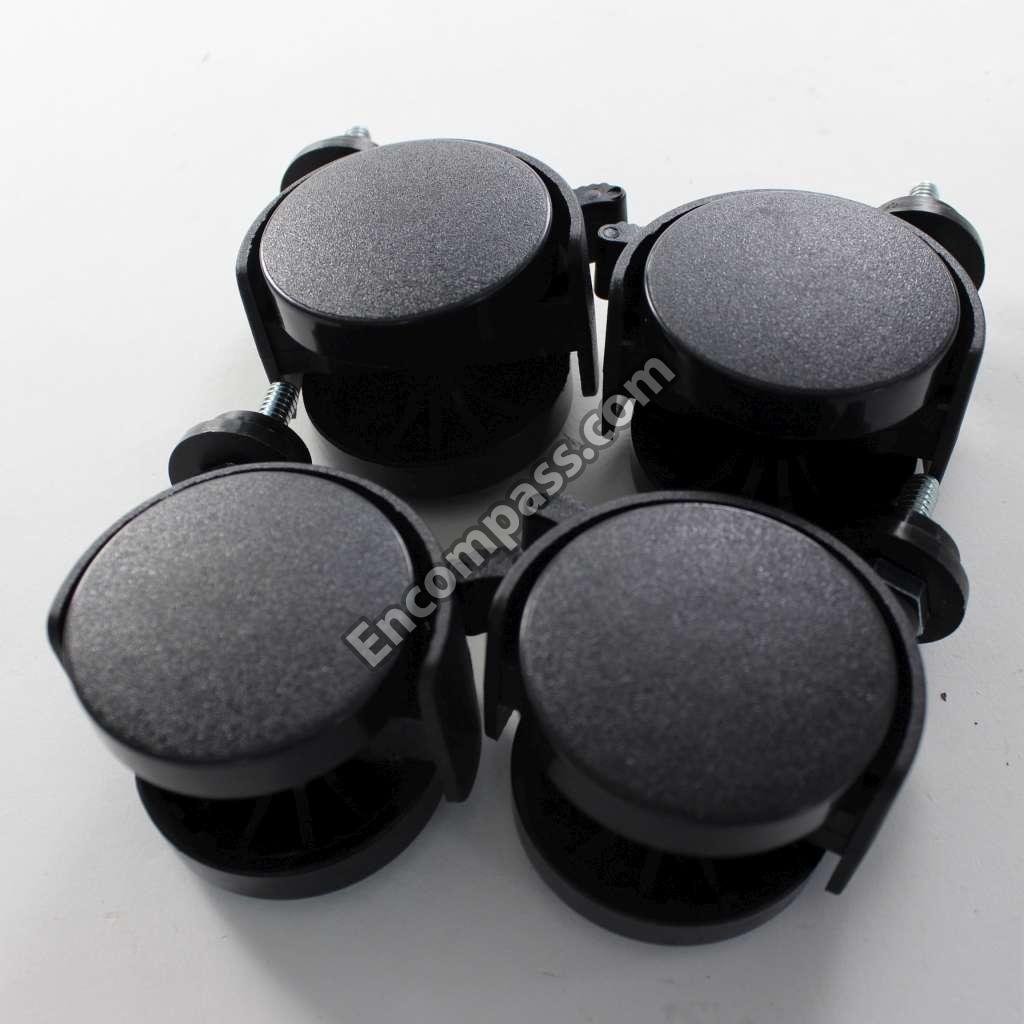

0030813258 0030813258 FOOT WHEEL/CASTER KIT (EXPL VIEW# 123)
WD-4250-18 WD-4250-18 GAS CELL COVER
WD-3100-53 WD-3100-53 GASKET
WH02X26898 WH02X26898 GASKET
WH41X27705 WH41X27705 HAIER COUPLER - INLET HOSE
WH02X26899 WH02X26899 HEXAGONAL TAPPING SCREW
WH01X26929 WH01X26929 HOOK
WH01X27837 WH01X27837 HOSE
WD-4050-24 WD-4050-24 HOT WATER PASTE
0030801451H 0030801451H INNER TUB COMPONENT
WH01X27826 WH01X27826 INNERDRAINHOSE
WD-5950-29 WD-5950-29 IRON WIRE (BLACK)

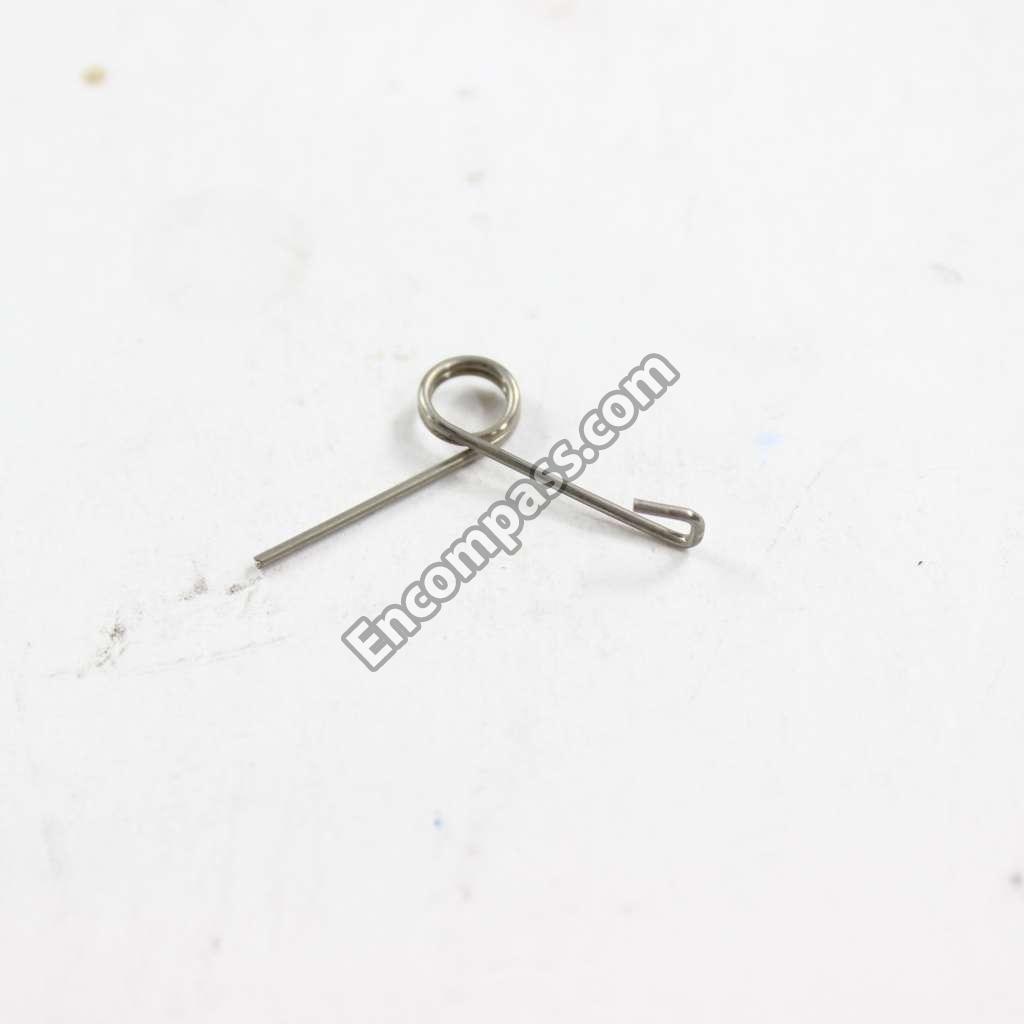

WH44X27390 WH44X27390 KICK SPRING
WD-4050-25 WD-4050-25 LABEL

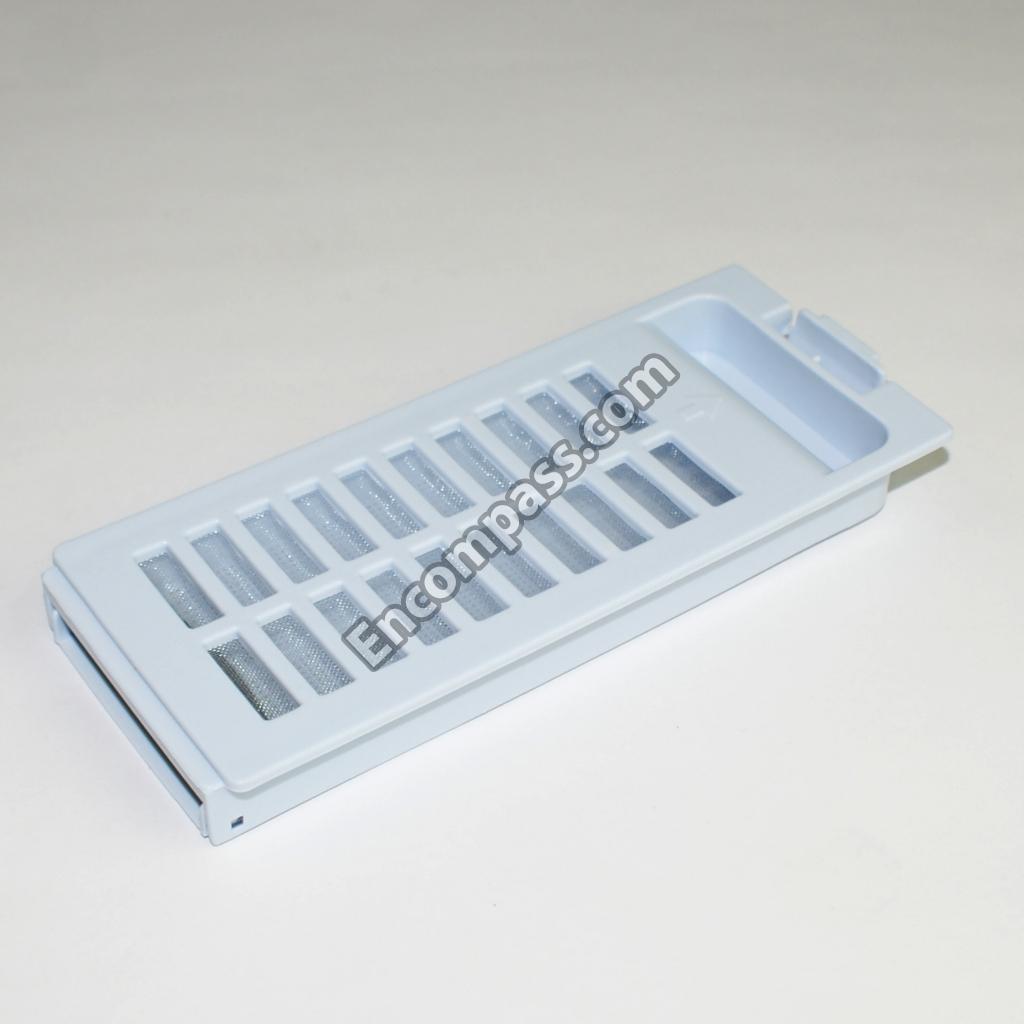

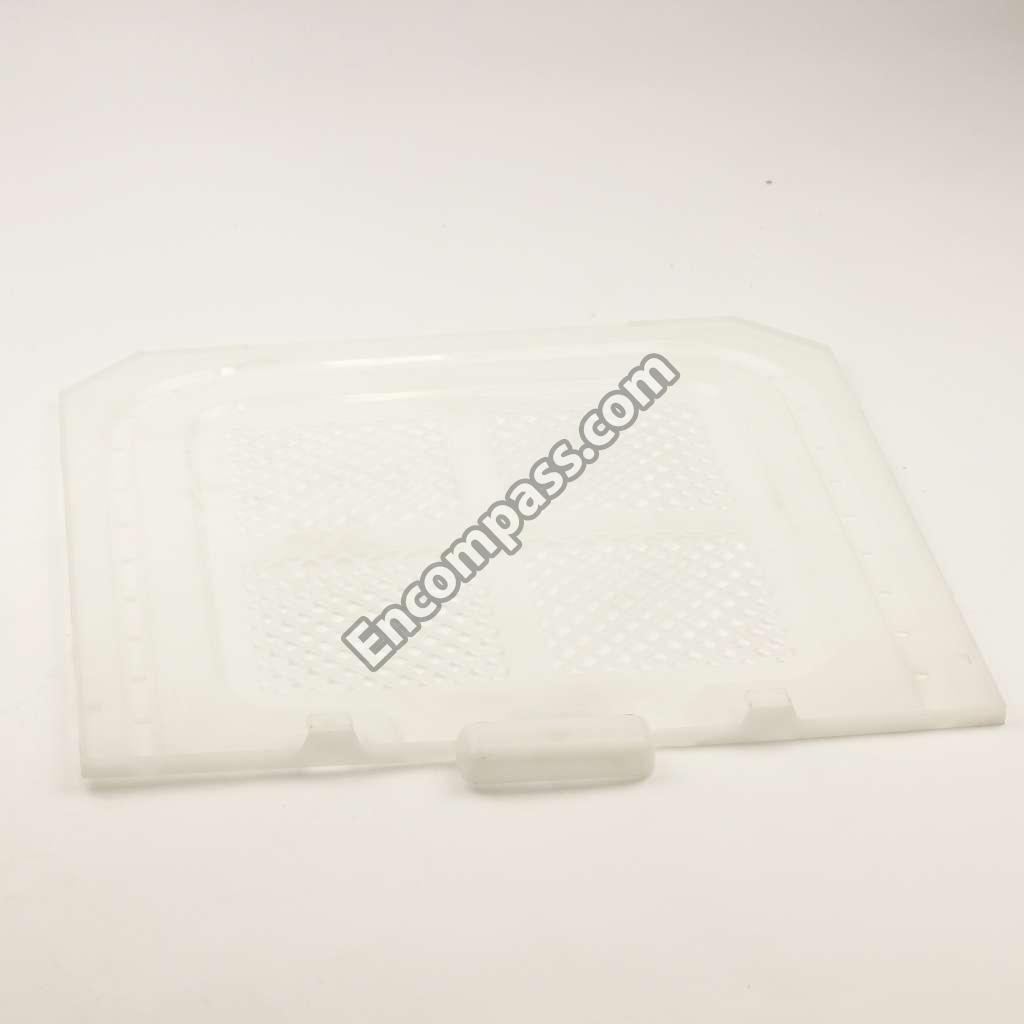

WD-2800-20 WD-2800-20 LINT FILTER
WD-1650-20 WD-1650-20 LOCKING BAND
WH07X27710 WH07X27710 LOCKING BAND
WH01X27678 WH01X27678 LONG LOCKING BAND
0030812635 0030812635 MANUAL

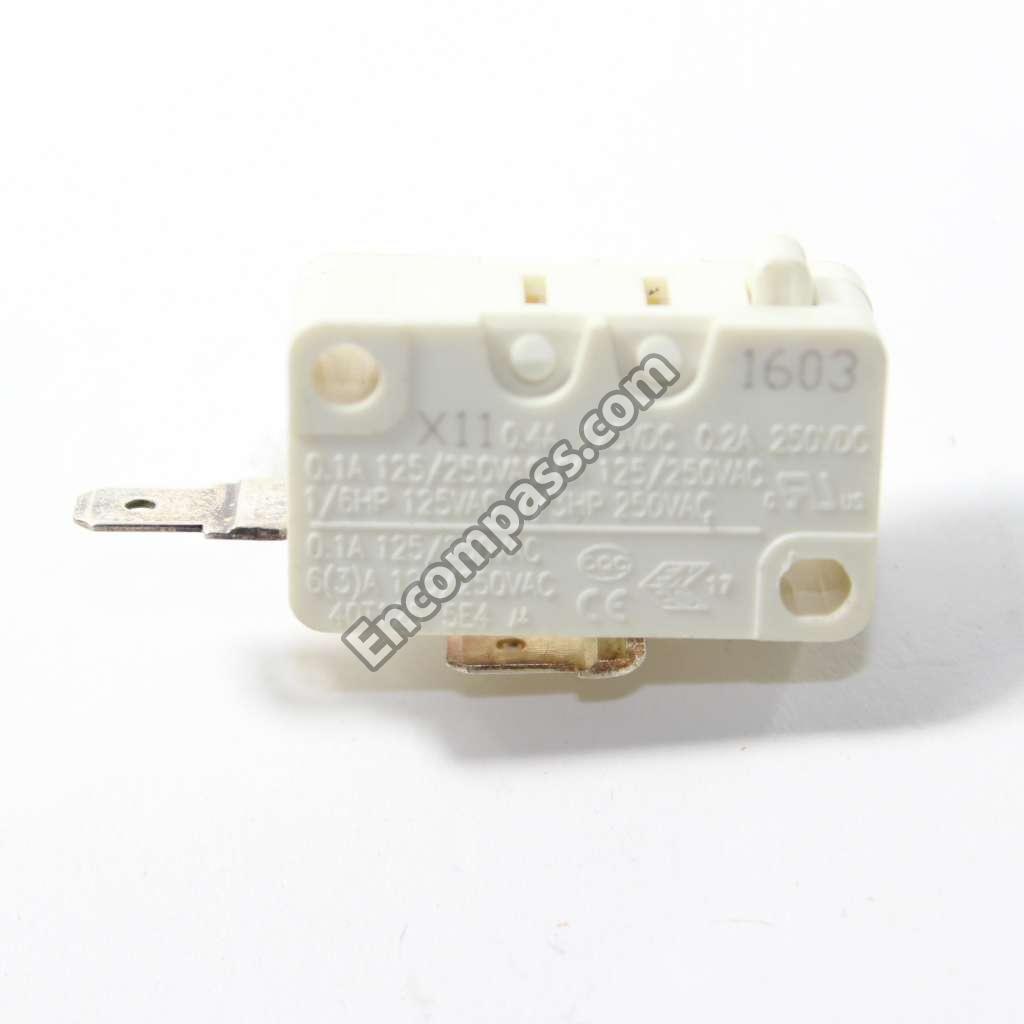

WH01X26181 WH01X26181 MICRO SWITCH

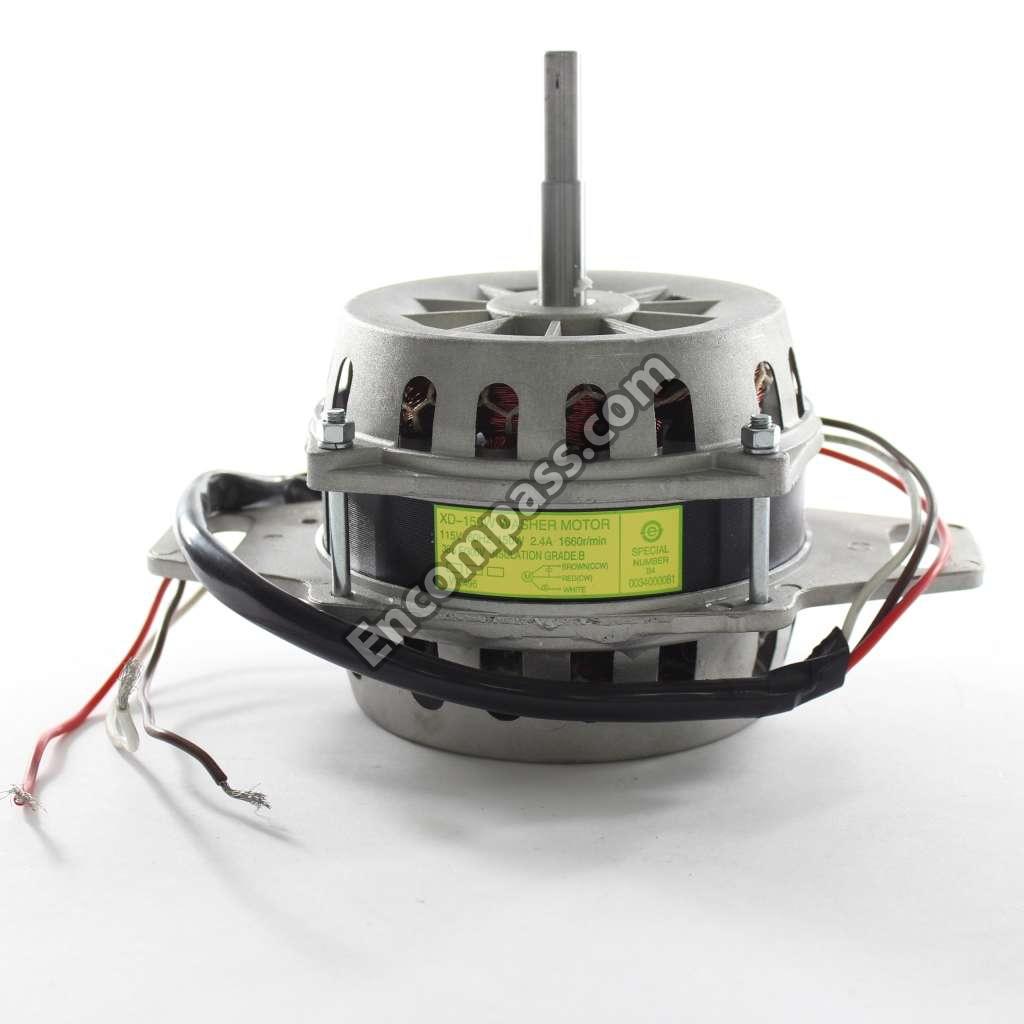

WH01X27827 WH01X27827 MOTOR

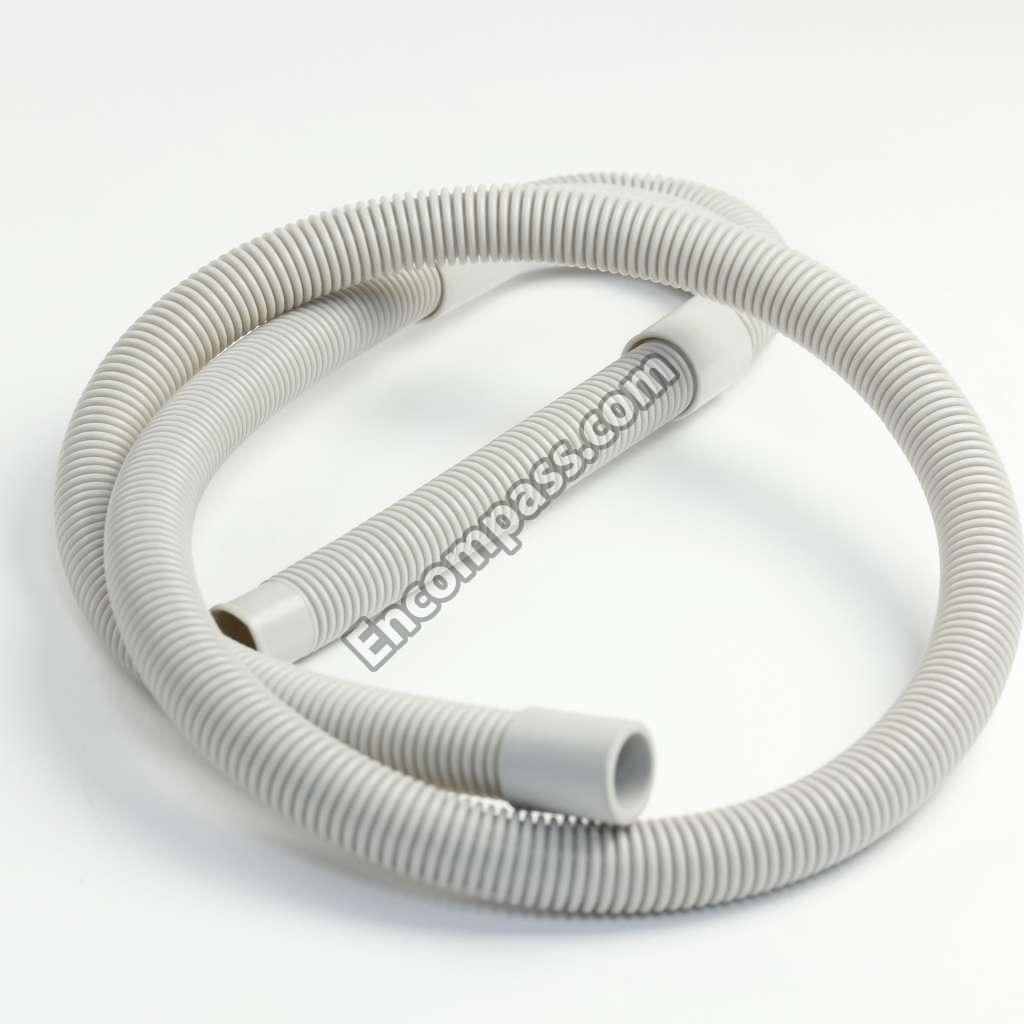

WH41X27715 WH41X27715 OUTER DRAIN HOSE PART
WH44X27403 WH44X27403 OUTER TUB COVER
00330101476A 00330101476A OUTERTUB
WD-5255-45 WD-5255-45 OVERFLOWPIPE
0030807670 0030807670 PACKING BOX
WH01X27831 WH01X27831 PIPE CLAMP
WH01X27686 WH01X27686 PIPE CLAMP
0030100854 0030100854 PIPE CLAMP

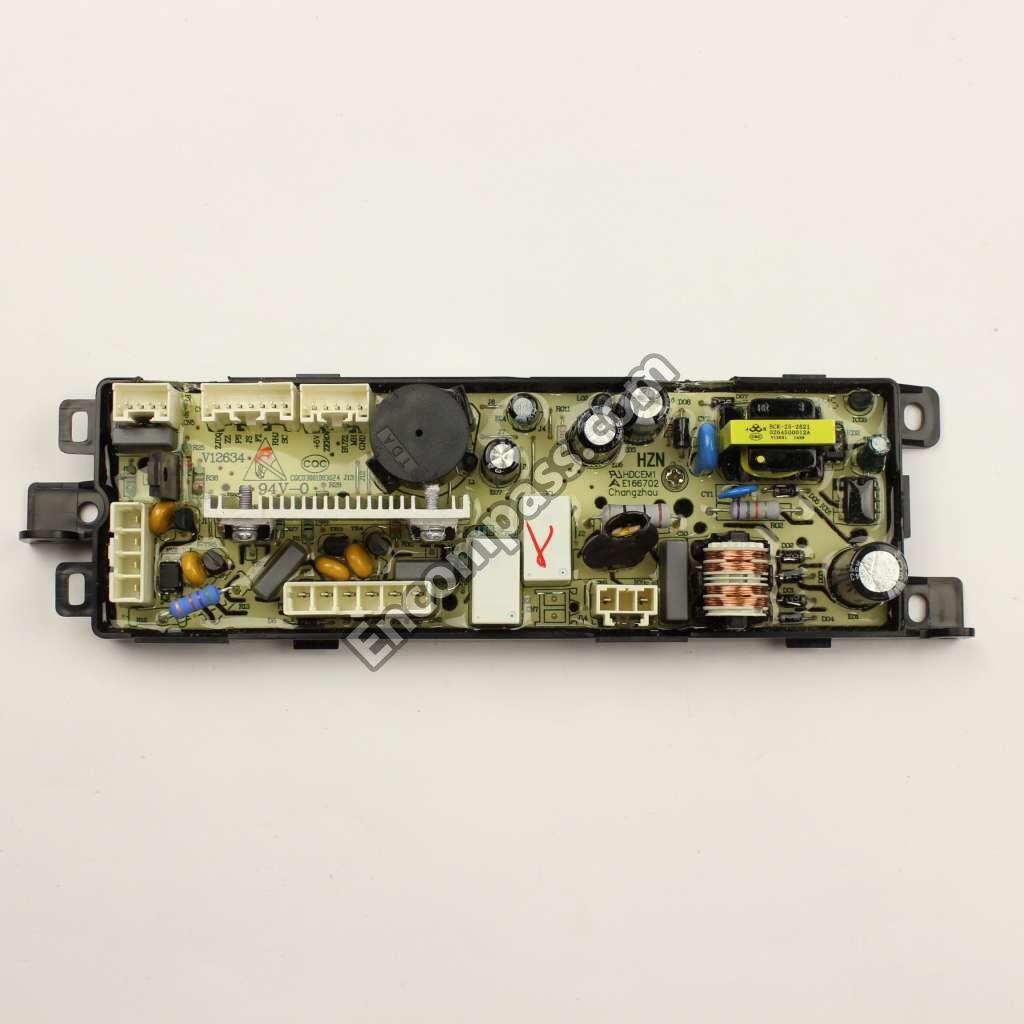

WH18X27381 WH18X27381 POWER BOARD
WH01X27829 WH01X27829 POWER CORD

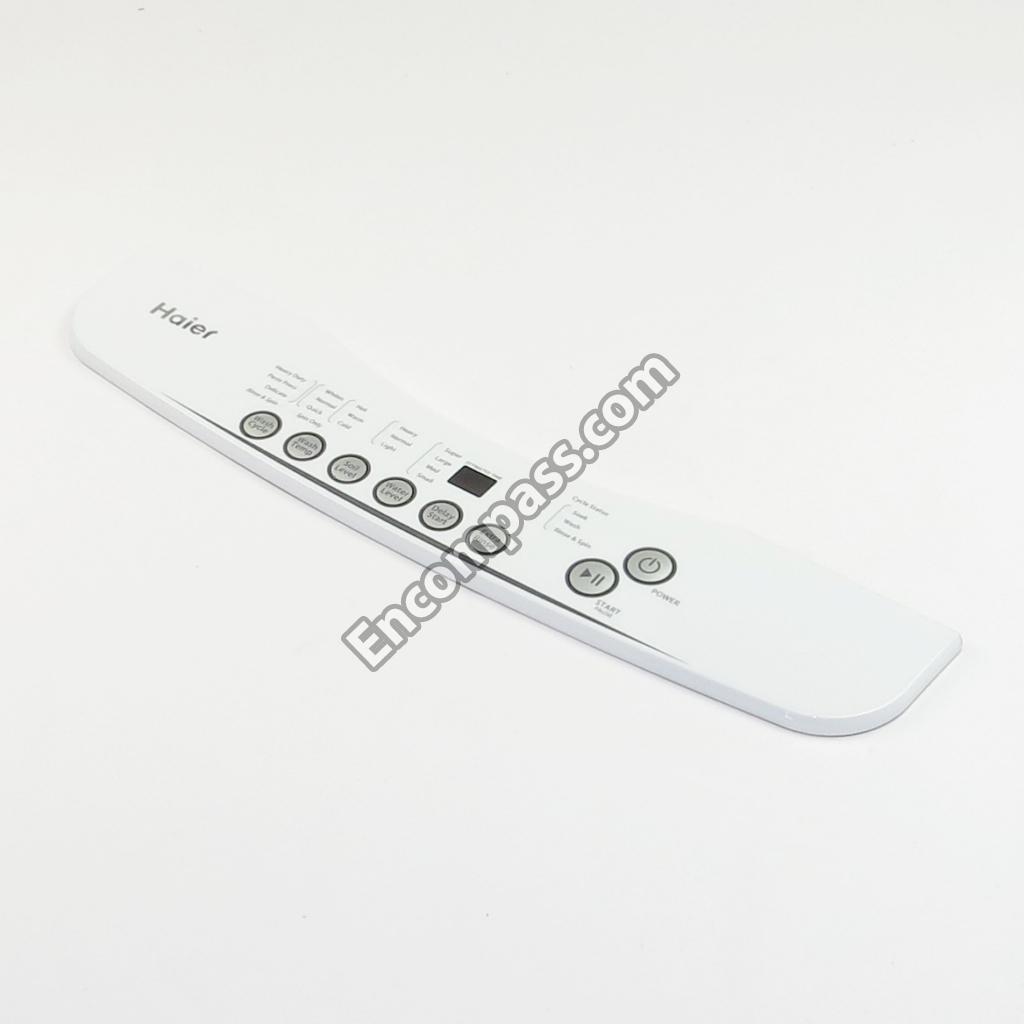

WH18X26198 WH18X26198 PRINT FRONT CONTROL BOARD
00330703009 00330703009 PROTECTFILM
WH01X27825 WH01X27825 PULSATOR
WH01X27828 WH01X27828 RADIATING PULLEY
WH38X27398 WH38X27398 RETARDER
0030508588G 0030508588G SAFEGUARD BOX
WH02X26923 WH02X26923 SCREW
WH02X26197 WH02X26197 SCREW
WH02X26236 WH02X26236 SCREWS
WH02X26514 WH02X26514 SELF-TAPPING SCREWS
WH02X26189 WH02X26189 SELF-TAPPING SCREWS
WH02X26900 WH02X26900 SMALL REED
0030204990 0030204990 SPATTER PROOF BOARD
WH01X26182 WH01X26182 STOP SWITCH
WH02X27266 WH02X27266 TAPPING SCREW
WH02X26927 WH02X26927 TAPPING SCREW
WH02X26188 WH02X26188 TAPPING SCREW
WH02X26155 WH02X26155 TAPPING SCREW
WH02X26905 WH02X26905 TAPPINGSCREW
WH02X26924 WH02X26924 TAPPINGSCREW
WH02X26904 WH02X26904 TAPPINGSCREW
WD-6150-164 WD-6150-164 TAPPINGSCREW
WH02X27685 WH02X27685 TAPPINGSCREW
003-00214400004000 003-00214400004000 TINFOIL

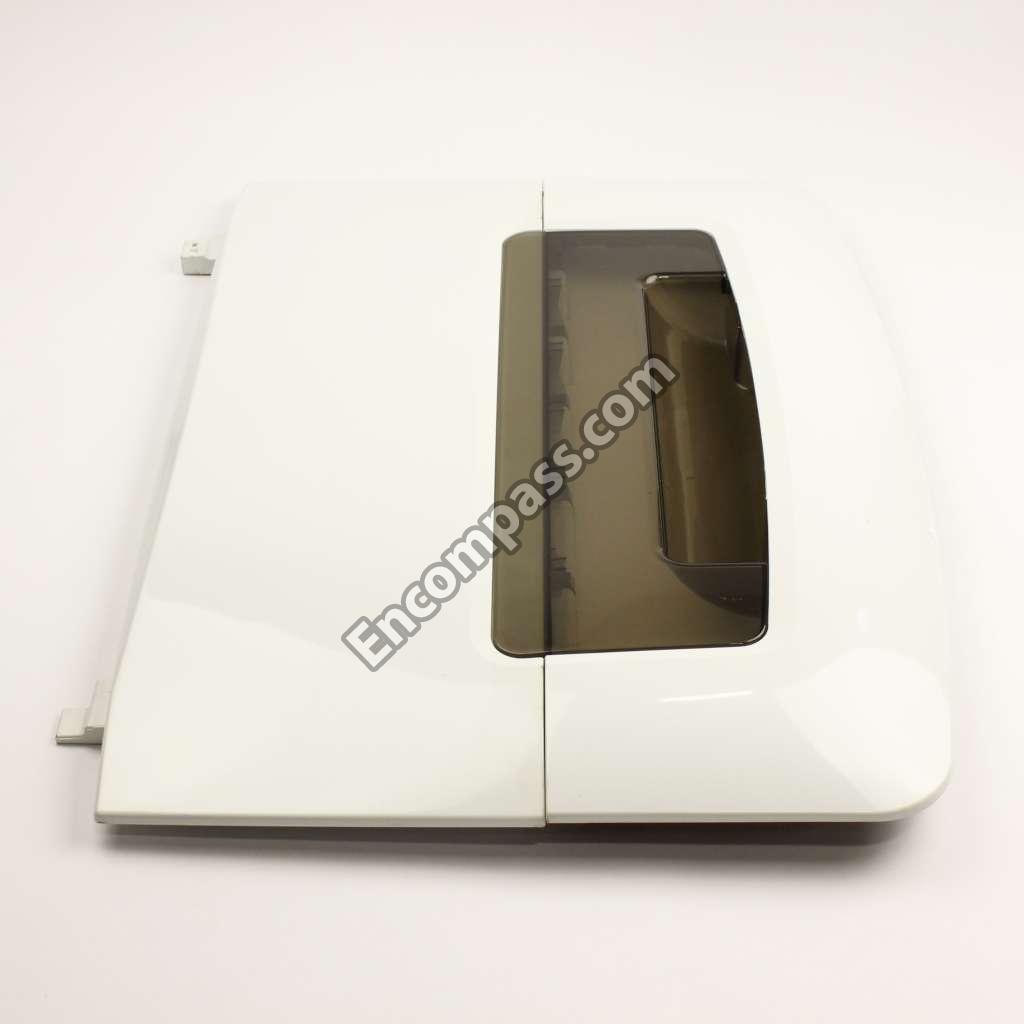

WH44X26180 WH44X26180 TOP LID
WH02X26903 WH02X26903 TOP LID SHAFT
0030101030 0030101030 U-SHIELD

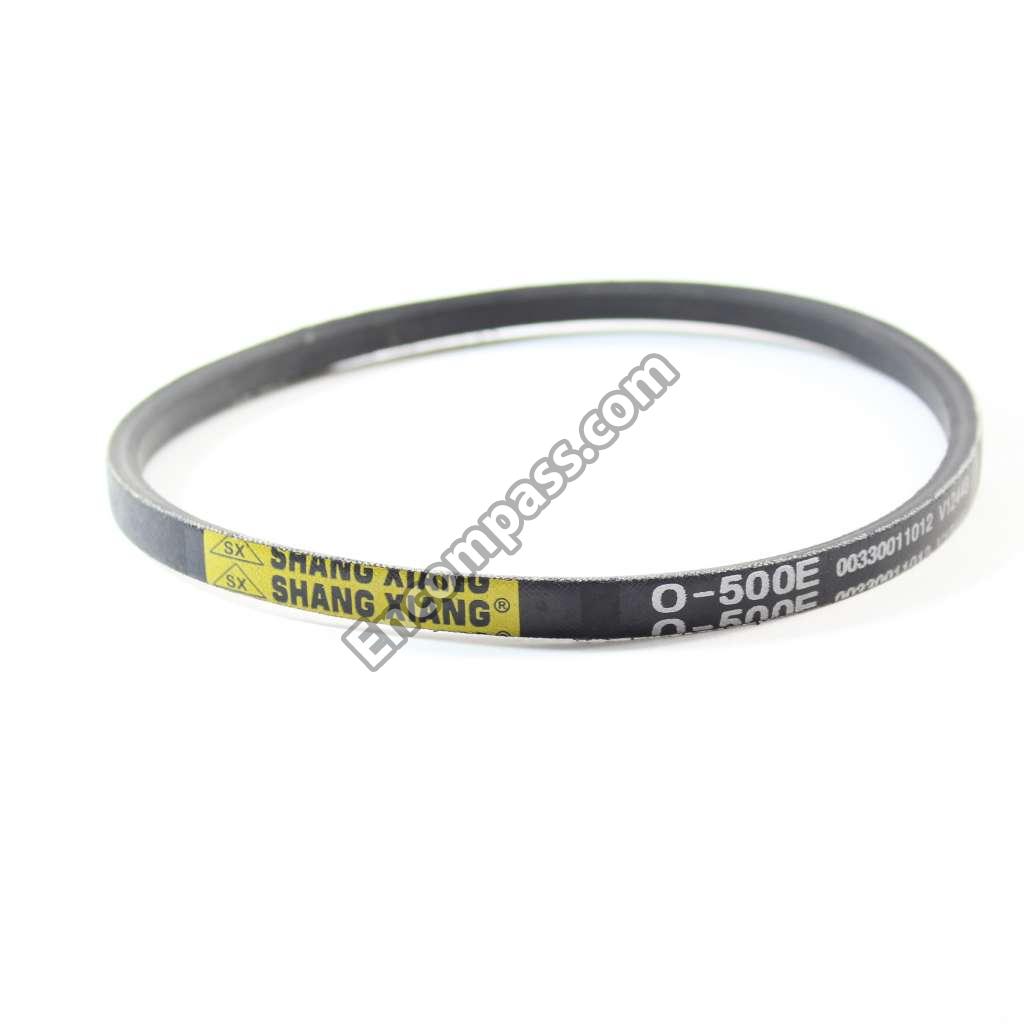

WH01X27838 WH01X27838 V-BELT
WH13X26177 WH13X26177 WARM VALVE
0030510975 0030510975 WARRANTY CARD
0030510008 0030510008 WARRANTY CARD
WH08X26187 WH08X26187 WATER ABSORPTION GASKET
WH41X27698 WH41X27698 WATER INLET PIPE COMPONENTS

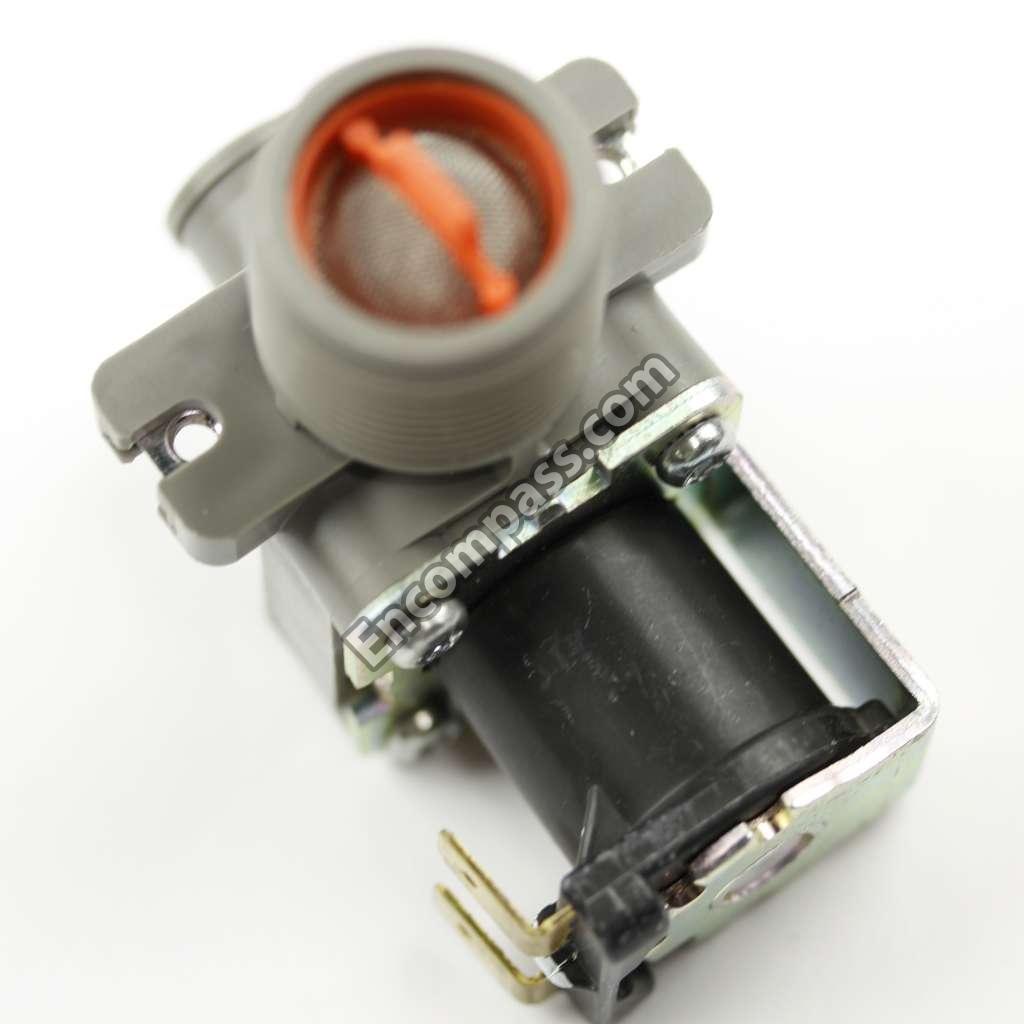

WH13X26636 WH13X26636 WATER INLET VALVE
WH12X26184 WH12X26184 WATER LEVEL SENSOR
WH12X26184 WH12X26184 WATER LEVEL SENSOR
0030201223B 0030201223B WATER LEVEL SENSOR BOX
0030300506 0030300506 WATER-FILLING PIPE
0030400285 0030400285 WIRE
0030205012 0030205012 WIRE HOLDER
0030400650XA 0030400650XA WIRE UNIT
WD-8070-22 WD-8070-22 WIRES MODULE
0030400040C 0030400040C WIRES MODULE A
