Model Image
Manufacturer

Haier

Model Number

HLT20E

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WD-0015-02 WD-0015-02 ADAPTER-DRAIN HOSE
WD-0020-01 WD-0020-01 AGITATOR
WD-0140-02 WD-0140-02 AXLE-HINGE [RIGHT]
WD-0150-04 WD-0150-04 BAFFLE-ROLLER
WH07X27710 WH07X27710 BELT-LOCKING
WD-0750-27 WD-0750-27 BOLT
WD-0750-24 WD-0750-24 BOLT-ASSY
WD-0850-23 WD-0850-23 BRACKET
WD-0850-47 WD-0850-47 BRACKET-DOOR SWITCH
WD-0850-22 WD-0850-22 BRACKET-PUMP
WD-1150-08 WD-1150-08 BUSHING-A
WH01X27841 WH01X27841 BUSHING-B
WD-1302-04 WD-1302-04 CABLE-ASSY
WD-1640-22 WD-1640-22 CLAMP
WH41X26959 WH41X26959 CLAMP
WH41X26954 WH41X26954 CLAMP
WD-1640-26 WD-1640-26 CLAMP
WD-1640-20 WD-1640-20 CLAMP-HOSE
WH02X26870 WH02X26870 CLAMP-TUBE
WD-1650-21 WD-1650-21 CLIP
WD-1650-20 WD-1650-20 CLIP - DRAIN HOSE
WD-1900-05 WD-1900-05 CORD-POWER
WD-1950-28 WD-1950-28 COVER-GAS CELL
WD-2015-09 WD-2015-09 CUSHION-BRACKET
WD-2240-03 WD-2240-03 DISPENSER-WATER SOFT
WH01X28077 WH01X28077 DRAIN PUMP
WD-3100-47 WD-3100-47 GASKET
WH08X27270 WH08X27270 GASKET-CABINET
WH08X26187 WH08X26187 GASKET-WATER ABSORPT
WE01X28010 WE01X28010 GUIDE-ALIGNMENT
WH01X27911 WH01X27911 HOSE - DRAIN (INNER)
WD-3570-39 WD-3570-39 HOSE - DRAIN CONNECT
WD-3570-37 WD-3570-37 HOSE-DRAIN
WD-3600-05 WD-3600-05 HOUSING-GEAR
WH01X27871 WH01X27871 INLET VALVE
WD-4000-34 WD-4000-34 KNOB
WD-4000-35 WD-4000-35 KNOB-SEQUENCER
WD-4150-07 WD-4150-07 LEG-ADJUSTABLE
WD-9999-23 WD-9999-23 MANUAL - USE & CARE
WD-9999-27 WD-9999-27 MANUAL - USE & CARE
WD-4600-21 WD-4600-21 NAMEPLATE
WD-4720-19 WD-4720-19 NUT
WD-4720-17 WD-4720-17 NUT-INNER TUB
WD-5200-16 WD-5200-16 PANEL-SIDE [L]
WD-5200-14 WD-5200-14 PANEL-SIDE [R]
WD-5200-17 WD-5200-17 PANEL-TOP
WD-5255-65 WD-5255-65 PIPE - CONNECTING
WD-5300-06 WD-5300-06 PLATE
WD-5300-07 WD-5300-07 PLATE - FLANGE
WH01X28077 WH01X28077 PUMP - DRAIN
WD-5645-05 WD-5645-05 RESERVOIR-LIQUID
WD-5800-010 WD-5800-010 RING-BALANCE [ASSY]
WD-5800-09 WD-5800-09 RING-KNOB
WD-5800-26 WD-5800-26 RING-O
WD-6000-02 WD-6000-02 ROLLER
WD-6150-33 WD-6150-33 SCREW
WH01X27834 WH01X27834 SCREW
WD-6150-44 WD-6150-44 SCREW
WD-6150-41 WD-6150-41 SCREW
WD-6150-139 WD-6150-139 SCREW
WD-6150-43 WD-6150-43 SCREW
WD-6150-35 WD-6150-35 SCREW
WH02X26514 WH02X26514 SCREW
WH02X26899 WH02X26899 SCREW
WH02X27266 WH02X27266 SCREW
WD-6150-102 WD-6150-102 SCREW
WD-6150-36 WD-6150-36 SCREW-BOLT WITH LOCK
WD-6150-137 WD-6150-137 SCREW-HEX
WD-6450-04 WD-6450-04 SHOCK-ABSORBER-[SMAL

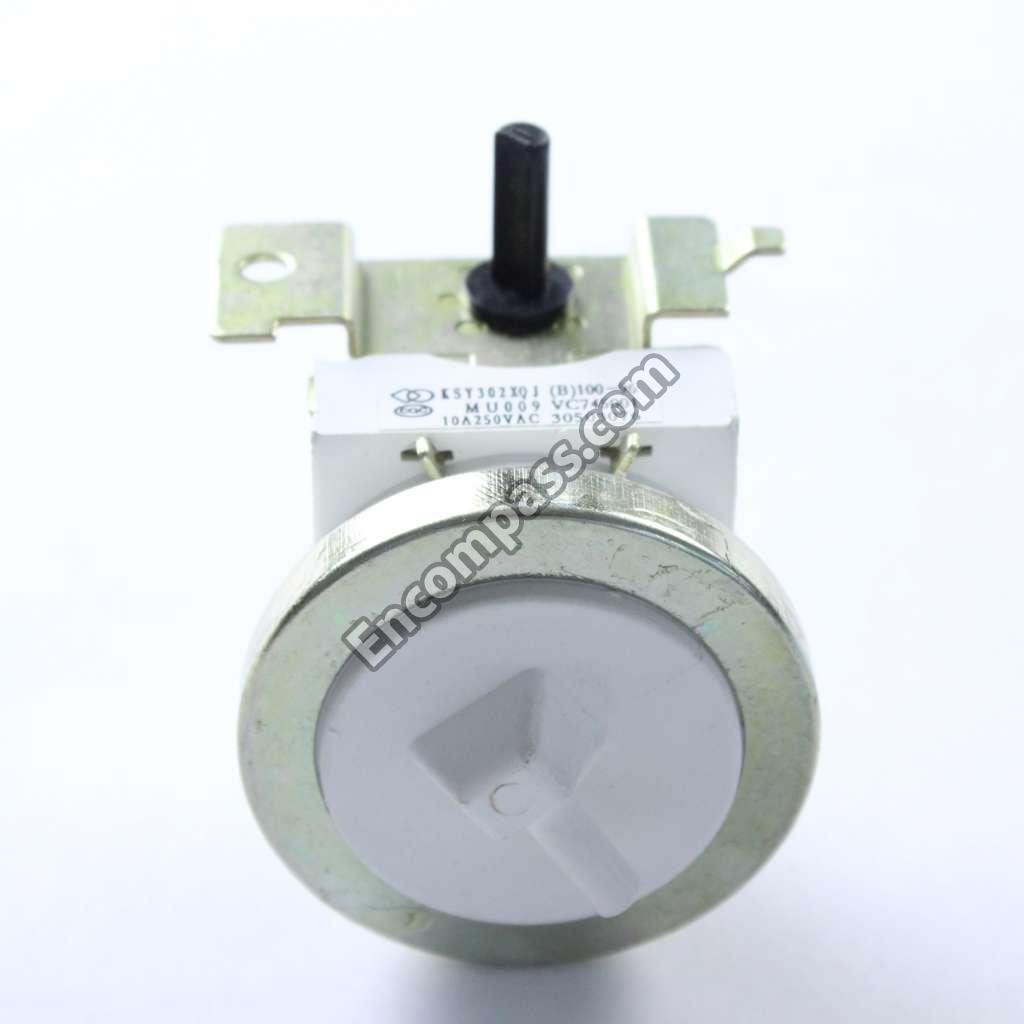

WD-7100-22 WD-7100-22 SWITCH - WATER LEVEL
WD-7100-51 WD-7100-51 SWITCH-TEMP SELECTIO
WD-7750-03 WD-7750-03 TUBE-OVERFLOW
WH01X27871 WH01X27871 VALVE - INLET
WD-7950-05 WD-7950-05 WASHER
