Model Image
Manufacturer

Haier

Model Number

HLTD500AEW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WD-4150-08 WD-4150-08 ADJUSTABLE FOOT
0180200167 0180200167 AIRPROOF COVER
0180300028 0180300028 AIRPROOF FELT
0030508588J 0030508588J AIRPROOF FELT
00330208001A 00330208001A AIRPROOF SPONGE
WE09X27688 WE09X27688 AIRPROOF WOOL FELT
0180100056 0180100056 BACK COVER PLATE
WD-2950-54 WD-2950-54 BACK DOOR PLATE
0030800477F 0030800477F BARREL ROLL COMPONENT
WE12X27366 WE12X27366 BELT
WE12X26355 WE12X26355 BELT SWITCH
WE04X27367 WE04X27367 BZCK-UP THERMOSTAT
WD-1650-13 WD-1650-13 C CLIP
WD-0550-04 WD-0550-04 CHURNING BLADE
WE01X26586 WE01X26586 CLAMP NUT
0180100064 0180100064 CLAPBOARD
WE10X27377 WE10X27377 CLAPING SLICE
WH18X27364 WH18X27364 COMPUTER SEQUENCER
WE19X27370 WE19X27370 COMPUTER SEQUENCER
WD-5300-82 WD-5300-82 CONNECT PLATE
0030206182A 0030206182A CONTROL PANEL
0180500316 0180500316 CONTROL PANEL FILM
WD-5200-133 WD-5200-133 CONTROL PLATE
WD-7950-05 WD-7950-05 DENTATION GASKET

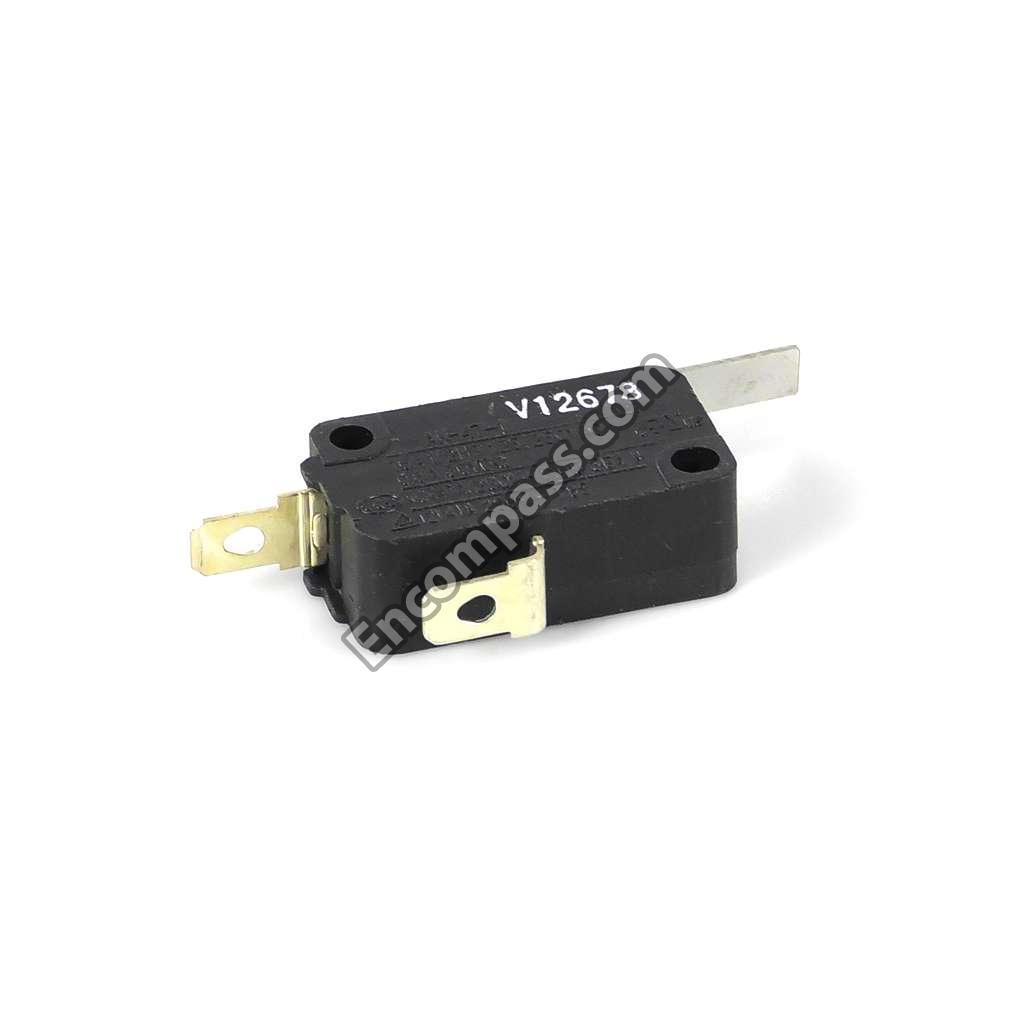

WE10X27374 WE10X27374 DOOR SWITCH
0180800270A 0180800270A EXAUST PIPE
WD-5255-73 WD-5255-73 EXHAUST CANISTER
WD-0850-23 WD-0850-23 FASTEN BUTTON
WD-6150-135 WD-6150-135 FASTEN SCREW
WD-6150-49 WD-6150-49 FASTEN SCREW
WE02X26576 WE02X26576 FASTEN SCREW
WD-6150-145 WD-6150-145 FASTEN SCREW
WD-6150-43 WD-6150-43 FASTEN SCREW
WD-6150-95 WD-6150-95 FASTEN SCREW
WE02X27388 WE02X27388 FASTEN WHEEL PARTS
0180100106 0180100106 FLAMEPROOF PLATE
0180100105 0180100105 FLAMEPROOF PLATE
0180100078 0180100078 FLAMEPROOF PLATE
0180100079 0180100079 FLAMEPROOF PLATE
WE01X27988 WE01X27988 FLANGE
WE01X27976 WE01X27976 FLANGE SURPORT
WE01X27974 WE01X27974 FLANGE-SURPORTED SEAT
WD-3100-34 WD-3100-34 FLAT GASKET
WD-7950-16 WD-7950-16 FLAT GASKET
WE01X27379 WE01X27379 FRICTIONAL SLICE
WD-2300-09 WD-2300-09 FRONT DOOR PLATE
0030805182J 0030805182J FRONT PLATE
WE01X27990 WE01X27990 GEMEL LEFT
WE01X28017 WE01X28017 GEMEL RIGHT
WD-6150-55 WD-6150-55 GREEN GROUNDING SCREW
WD-8070-25 WD-8070-25 GROUNDING CORD
WH02X26924 WH02X26924 GROUNDING SCREW
WD-3210-01 WD-3210-01 GROUNDING SLICE
0180400010A 0180400010A GUIDE CORD COMPONENT
WE01X27975 WE01X27975 HANDLE
WE01X27975 WE01X27975 HANDLE
WE01X28009 WE01X28009 HEAT LOOP
WE11X27362 WE11X27362 HEAT THREAD COMPONENT
00330308068C 00330308068C HEATER PLATE
WE04X27365 WE04X27365 HIGH LIMIT THERMOSTAT
WE04X26384 WE04X26384 HUMIDITY METAL BAR
WE01X27980 WE01X27980 IMPELLER
WE01X27980 WE01X27980 IMPELLER
0030810811 0030810811 KNOB COMPONENT
WE11X26351 WE11X26351 LAMP
0030202867 0030202867 LAMP COVER
WE11X26350 WE11X26350 LAMP HOLDER
0030202866 0030202866 LAMP RACK
WE01X27982 WE01X27982 LINT FILTER
WE01X27982 WE01X27982 LINT FILTER
WE01X27985 WE01X27985 LINT FILTER SUPPORT
WE01X27985 WE01X27985 LINT FILTER SURPORT
WE10X27373 WE10X27373 LOCK BODY
WE01X26391 WE01X26391 LOCKING BAND
0180800442 0180800442 MANUAL
WD-0850-68 WD-0850-68 MOTOR BRACKET
WD-4550-095 WD-4550-095 MOTOR COMPONENT
WE04X26348 WE04X26348 NTC1
WE01X28019 WE01X28019 NTC2
WE02X26366 WE02X26366 NUT
WD-4720-19 WD-4720-19 NUT
WE01X28010 WE01X28010 ORIENTATION BOLT
WD-5300-06 WD-5300-06 ORIENTATION PLATE
0030508411C 0030508411C PACKING BOX
WD-1945-04 WD-1945-04 RUBBER JOINT
WD-3200-03 WD-3200-03 RUBBER STOPPER
0030500489 0030500489 SAFEGUARD BOX
WE01X28020 WE01X28020 SEALED BAR
WD-7950-15 WD-7950-15 SPRINGINESS GASKET
WE01X27992 WE01X27992 STEEL BALL
WE01X27974 WE01X27974 SUPPORT A
WE01X27978 WE01X27978 SURPORTING BLOCK
WD-6150-139 WD-6150-139 TAPPING SCREW
WH02X26188 WH02X26188 TAPPING SCREW
WD-6150-245 WD-6150-245 TAPPING SCREW
WH02X26267 WH02X26267 TAPPING SCREW
WH02X26927 WH02X26927 TAPPING SCREW
WD-6150-244 WD-6150-244 TAPPING SCREW
WD-6150-210 WD-6150-210 TAPPING SCREW
WH01X27834 WH01X27834 TAPPING SCREW
WH02X27685 WH02X27685 TAPPING SCREW
WE04X27360 WE04X27360 THERMAL LIMITER
WD-0850-70 WD-0850-70 THREAD-PROTECTED BOARD I
WD-0850-71 WD-0850-71 THREAD-PROTECTED BOARD II
WE01X27977 WE01X27977 TIGHTEN CLIP
WE01X27979 WE01X27979 TIGHTEN SPRING
WD-6750-83 WD-6750-83 TIGHTEN SPRING LEFT
WD-6750-84 WD-6750-84 TIGHTEN SPRING RIGHT
0030808198A 0030808198A TRUNK
0030507625 0030507625 WARRANTY CARD
WD-3150-02 WD-3150-02 WINDOW SHADE
WE01X27385 WE01X27385 WOOL FELT I
WE01X27386 WE01X27386 WOOL FELT II
0030200405B 0030200405B WORM SHELL
00330308077C 00330308077C WORM SHELL COVER
