Model Image
Manufacturer

GE

Model Number

HMV1630HBSA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WB01X10298 WB01X10298 ASSEMBLY- KIT
SE-0250-013 SE-0250-013 BASE PLATE
MW-0850-64 MW-0850-64 BRACKET LAMP GLASS
256200700622 256200700622 CAPACITOR
MW-1870-04 MW-1870-04 CONTROL
WB27X30882 WB27X30882 CONTROL BOARD
WB02X30883 WB02X30883 COUPLER - TRAY
WB06X10931 WB06X10931 COVER - INTERIOR LAM
MW-1950-27 MW-1950-27 COVER - VENT MOTOR
WB06X10935 WB06X10935 DAMPER - VENT
251200900861 251200900861 DIODE

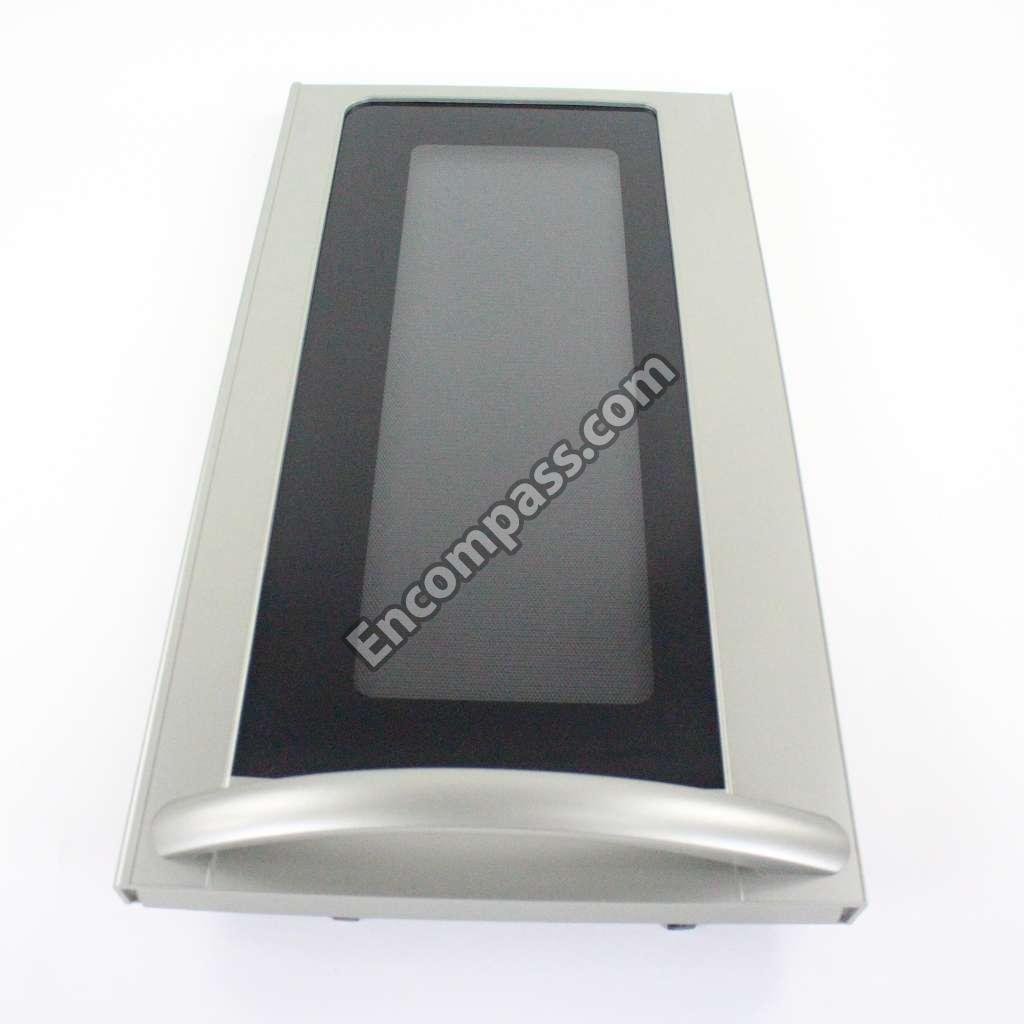

MW-2300-04 MW-2300-04 DOOR - ASSY
MW-2750-01 MW-2750-01 FAN - MOTOR

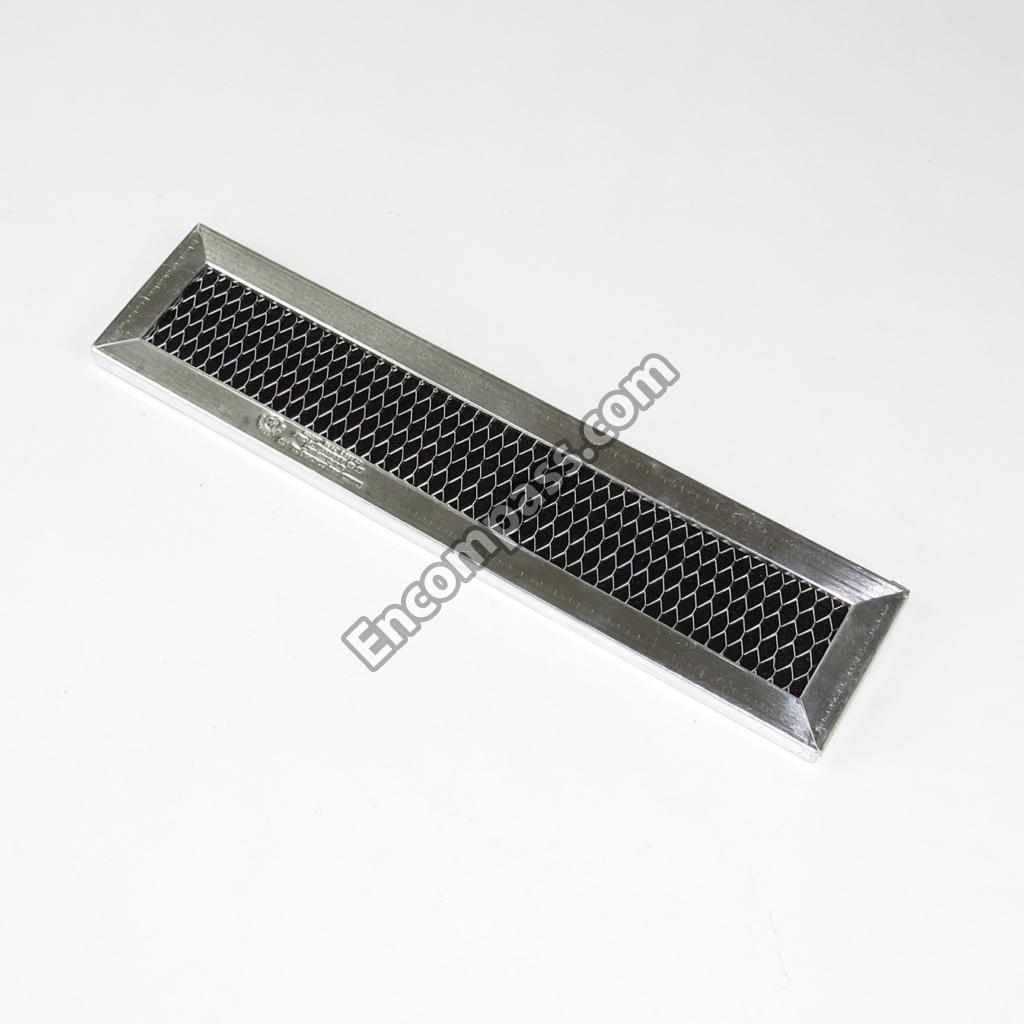

MW-2800-05 MW-2800-05 FILTER - CHARCOAL
WB06X10608 WB06X10608 FILTER - GREASE

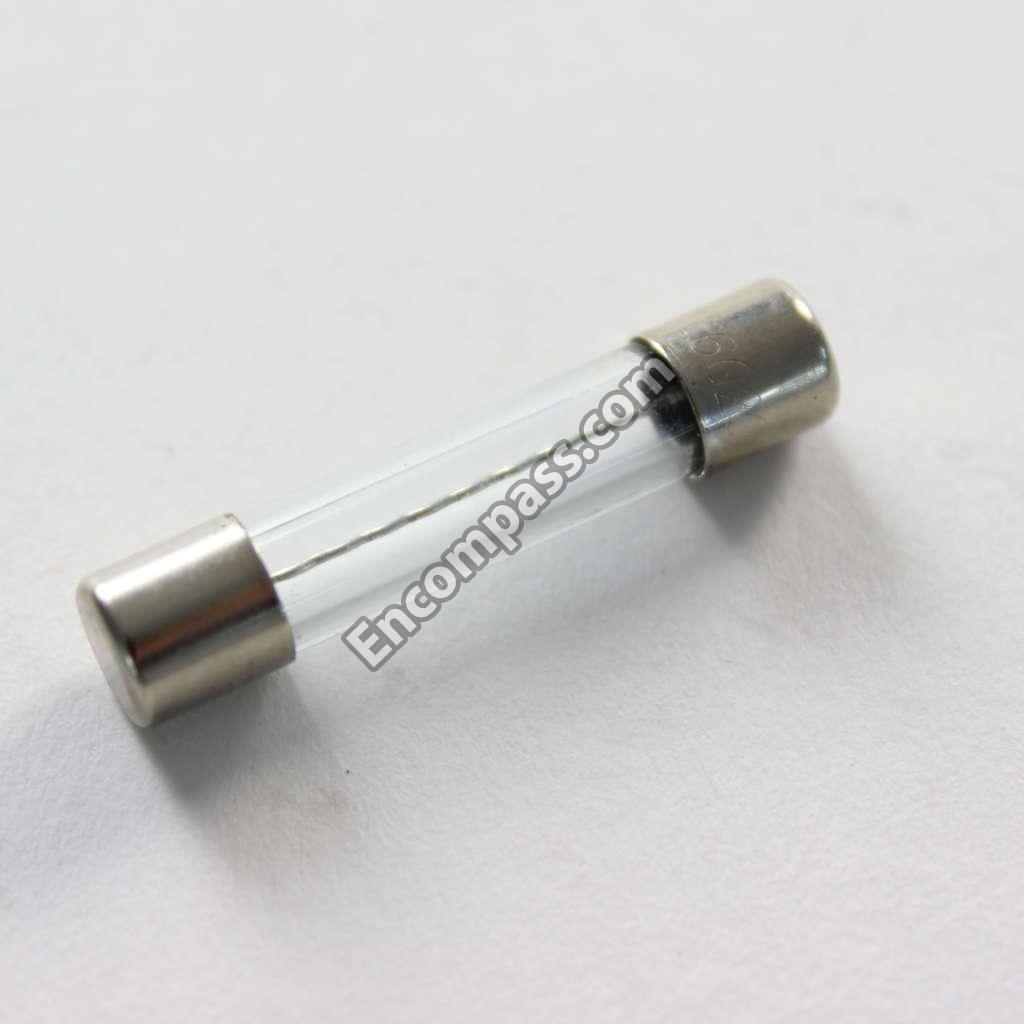

MW-3050-19 MW-3050-19 FUSE
MW-3110-01 MW-3110-01 GLASS - LAMP PROTECT
MW-3150-05 MW-3150-05 GRILL

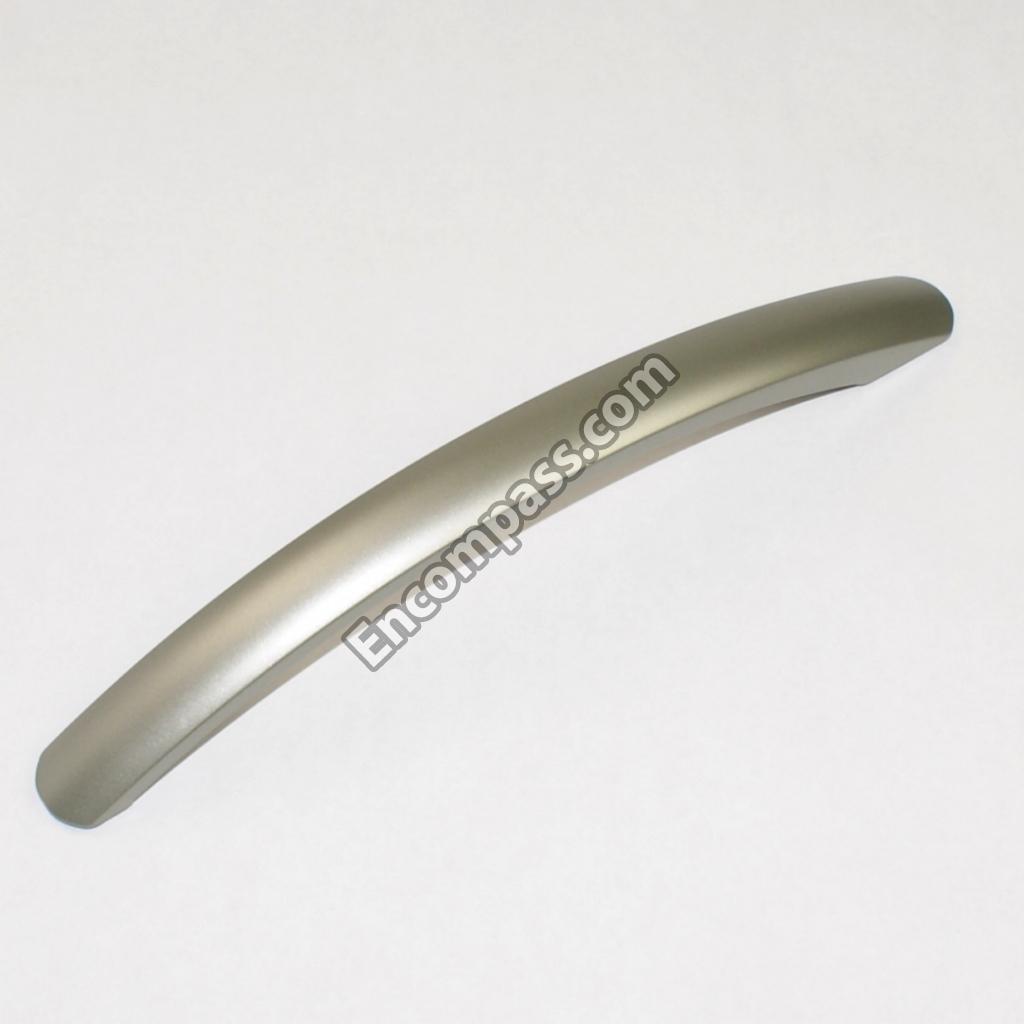

WB15X30879 WB15X30879 HANDLE
WB15X30879 WB15X30879 HANDLE
MW-4260-01 MW-4260-01 LIGHT - BULB
MW-4450-21 MW-4450-21 MAGNETRON
MW-4550-36 MW-4550-36 MOTOR - VENT
261300230900 261300230900 PLASTIC CONTROL PANEL (BLACK)
WB56X11009 WB56X11009 PLATE - MOUNTING

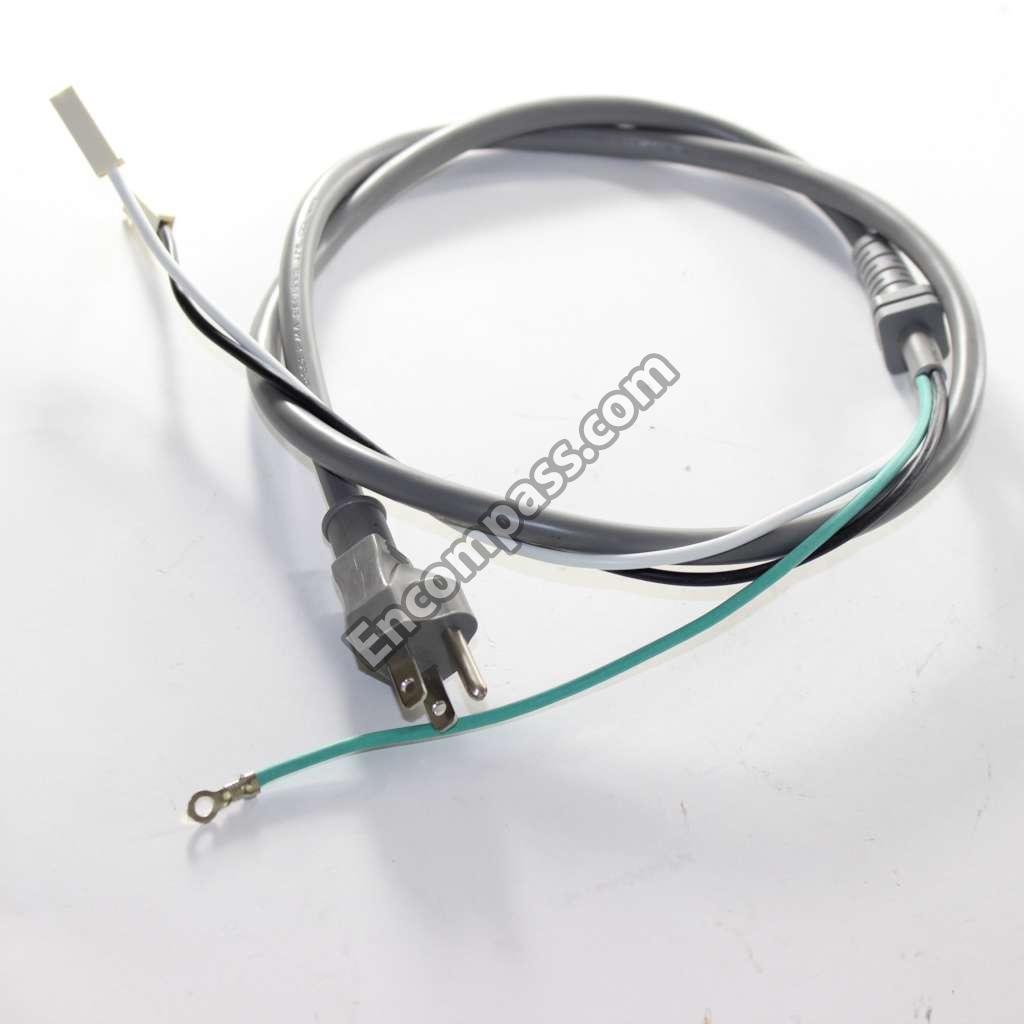

MW-5310-01 MW-5310-01 PLUG - POWER CORD
WB06X10929 WB06X10929 SOCKET - LIGHT
WB06X10625 WB06X10625 SUPPORT RING
WB27X11213 WB27X11213 THERMOSTAT
MW-7350-14 MW-7350-14 THERMOSTAT
251200200251 251200200251 TRANSFORMER
WB39X10032 WB39X10032 TRAY - GLASS

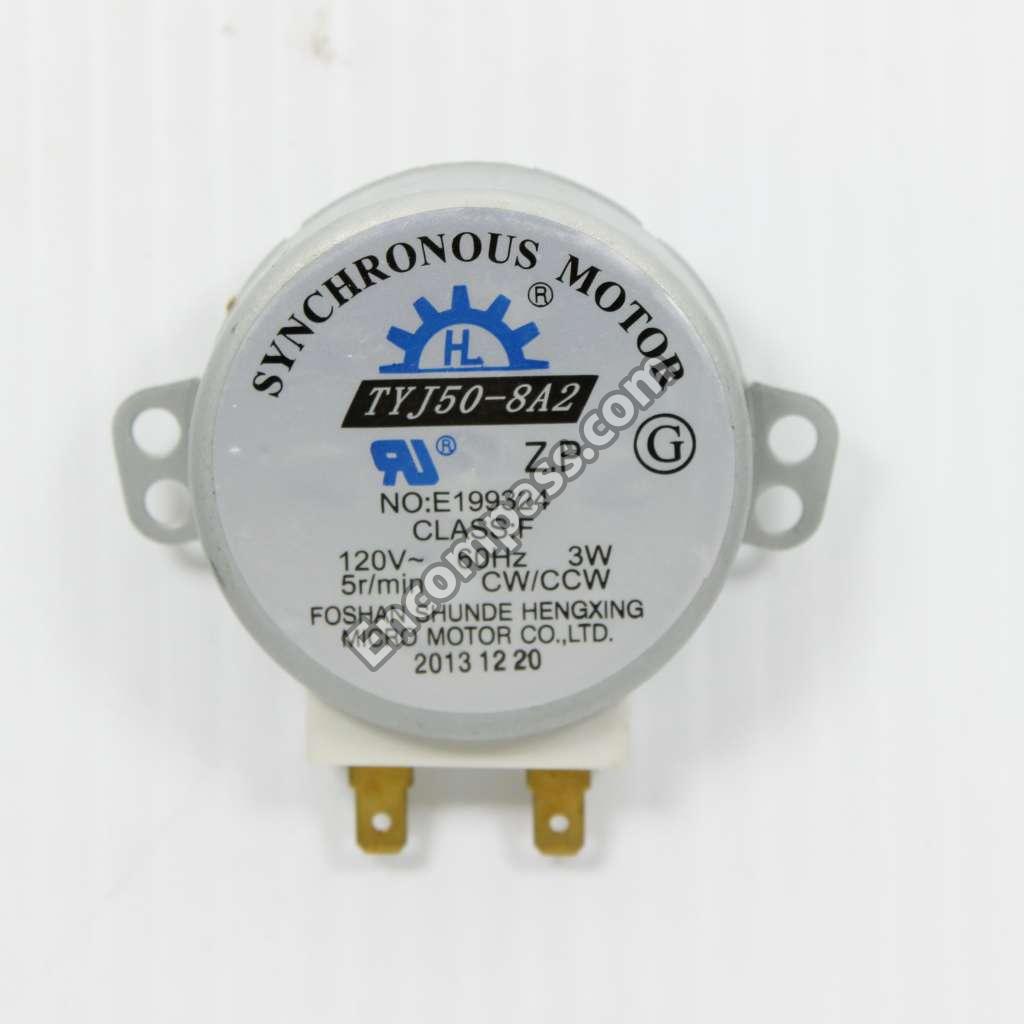

WB26X10176 WB26X10176 TURNTABLE MOTOR
MW-7900-02 MW-7900-02 VENT - PROTECTION GR

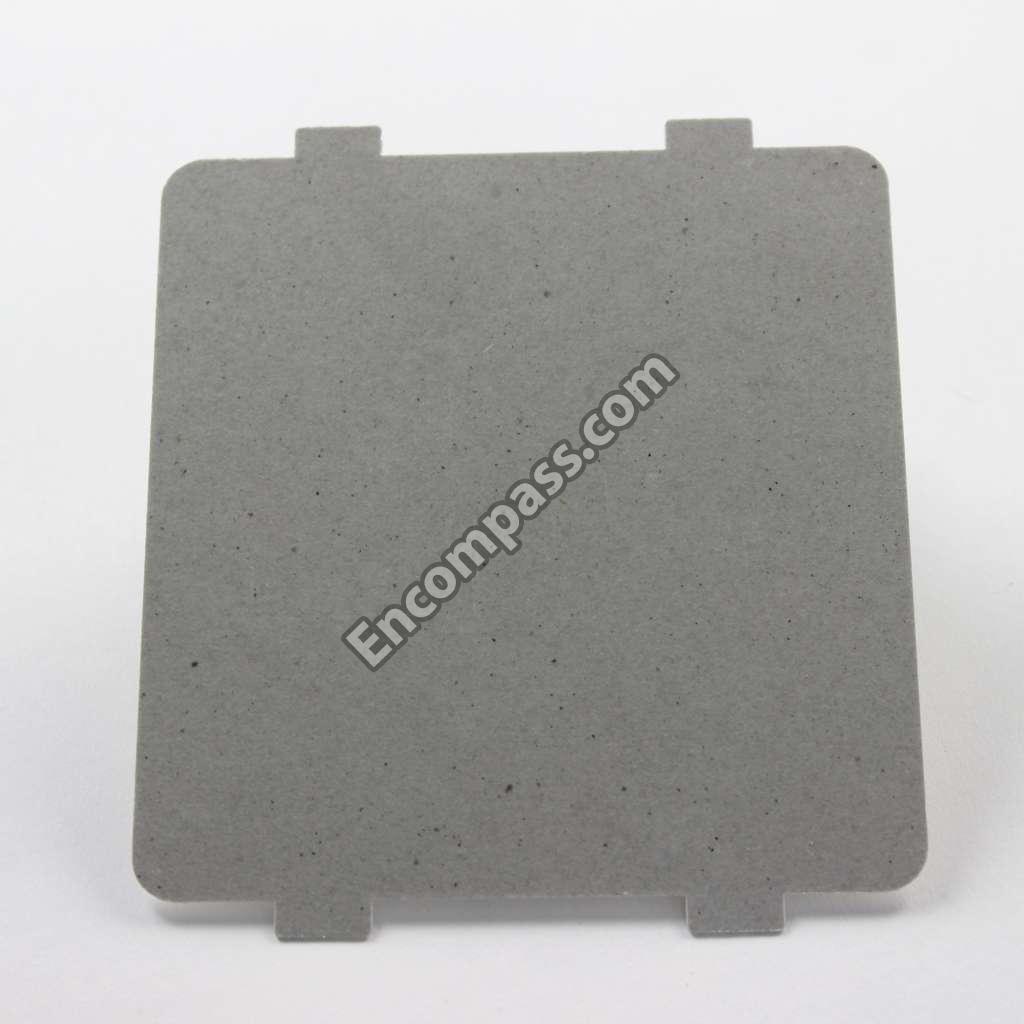

WB63X30875 WB63X30875 WAVEGUIDE COVER
