Model Image
Manufacturer

Haier

Model Number

HMV1652AHS

Description

1.6 Cu. Ft. Over-the-range Microwave

Interactive Exploded View

Parts List

Part Number Description
12270000008428 12270000008428 AIR DUCT
12270000008424 12270000008424 AIR DUCT
12270000008439 12270000008439 AIR DUCT
12270000004791 12270000004791 ASS'Y CAVITY
17270000A69540 17270000A69540 ASS'Y CONTROL

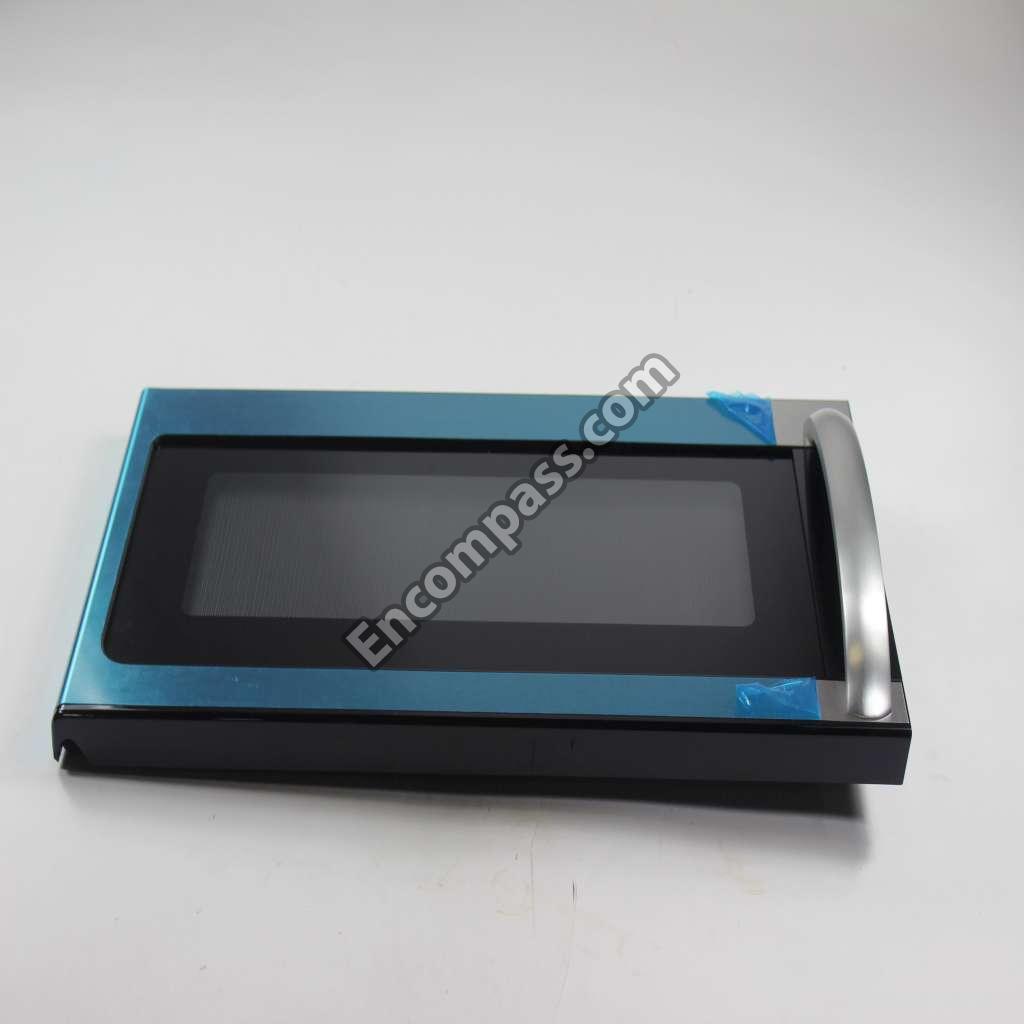

12270000A65248 12270000A65248 ASS'Y DOOR
12270000003799 12270000003799 ASS'Y DOOR FRAME
12170000005745 12170000005745 ASS'Y DOOR PANEL
WB02X28945 WB02X28945 ASS'Y KITS
WB02X28923 WB02X28923 ASS'Y NOISE FILTER
12270000006217 12270000006217 ASS'Y OTHER
WB36X28924 WB36X28924 ASS'Y OTHER
12170000004327 12170000004327 ASS'Y SWIVEL
17470000000245 17470000000245 ASS'Y THERMOSTAT
12270000005147 12270000005147 BASE PLATE
12270000006211 12270000006211 CAPACITOR HOLDER
12270000008276 12270000008276 CAVITY LAMP COVER
12170000002078 12170000002078 CONTROL PANEL GLASS

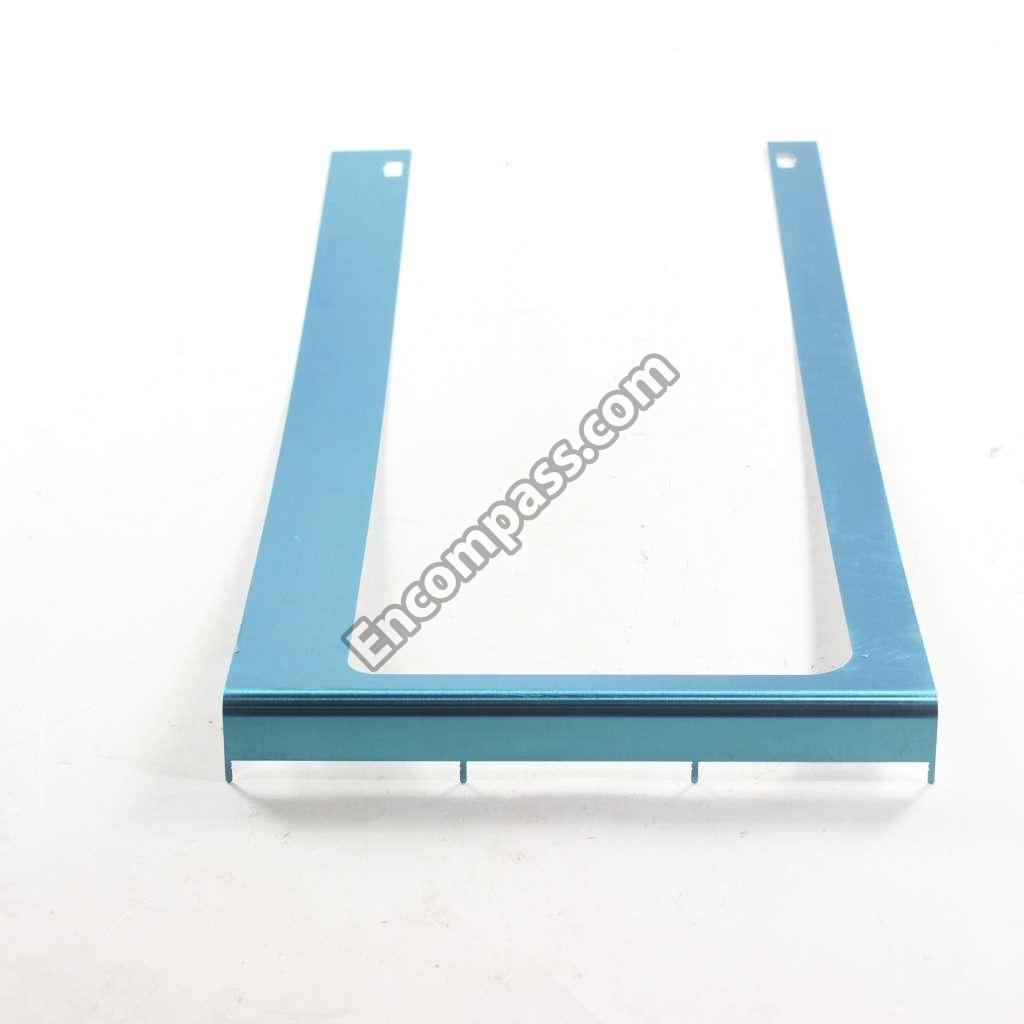

12270000001101 12270000001101 DOOR DECO.
12170000009510 12170000009510 DOOR FILM
12170000009489 12170000009489 DOOR FILM
12170000009547 12170000009547 DOOR GASKET
12570000000633 12570000000633 DOOR SCREEN
12170000004289 12170000004289 FAN GUIDE
12170000000210 12170000000210 FAN PIECE

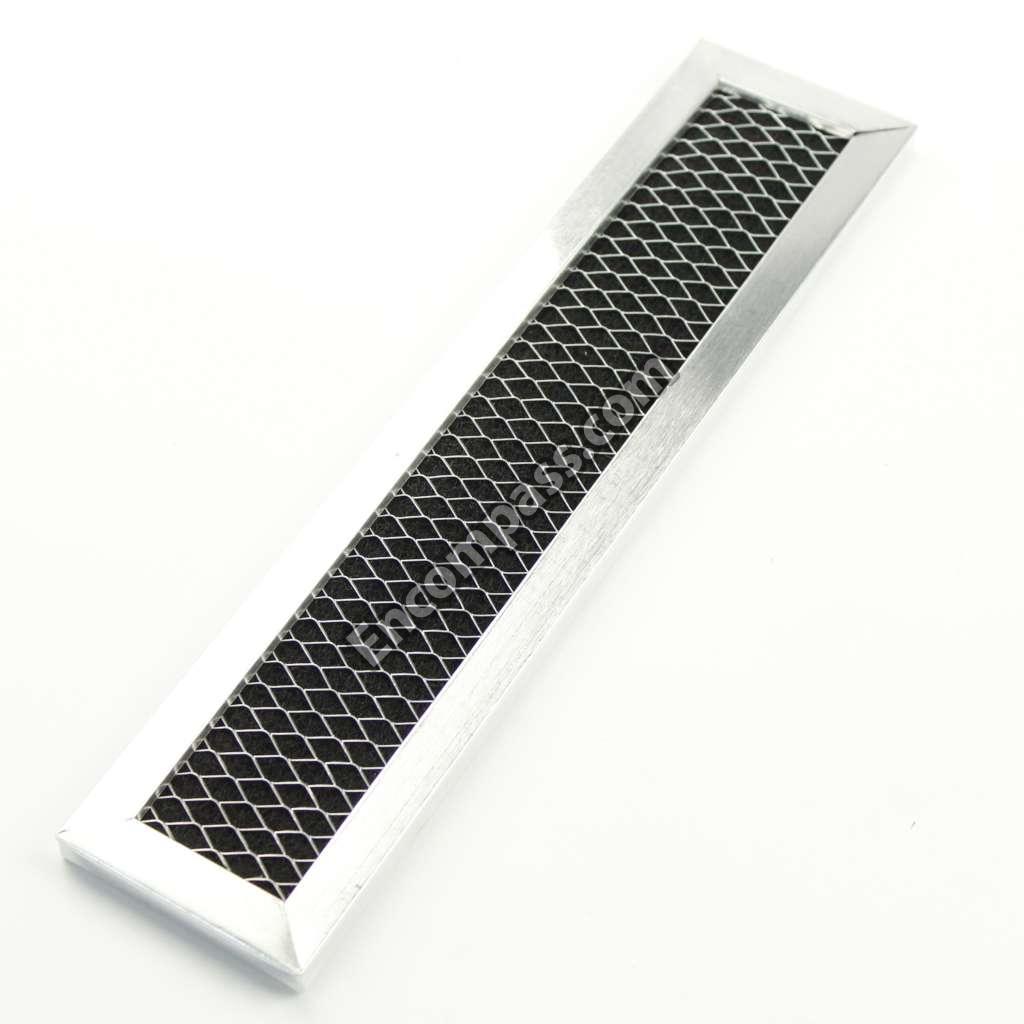

WB02X28929 WB02X28929 FILTER
12270000008415 12270000008415 FILTER
12170000000168 12170000000168 FIXING BRKT
WB63X28931 WB63X28931 GLASS TURNTABLE
WB26X28934 WB26X28934 H.V.CAPACITOR
WB26X28935 WB26X28935 H.V.DIODE
17470000000892 17470000000892 H.V.TRANSFORMER
12970000001011 12970000001011 HANDLE ASSEMBLY
WB02X28938 WB02X28938 INTERLOCK LEVER
17470000000702 17470000000702 LAMP
12270000000115 12270000000115 LAMP COVER
17470000000705 17470000000705 LAMP SOCKET
12170000003849 12170000003849 LATCH
WB10X25607 WB10X25607 LATCH BOARD
12970000000366 12970000000366 LATCH SPRING
WB26X28939 WB26X28939 MAGNETRON
17470000001405 17470000001405 MAIN WIRE HARNESS
12270000004191 12270000004191 MEMBRANE DECO.
17170000006960 17170000006960 MEMBRANE SWITCH CIRCUIT
12270000008124 12270000008124 METAL BRKT
12270000000192 12270000000192 METAL WIND GUIDE COVER
17470000002314 17470000002314 MICROSWITCH
17470000002311 17470000002311 MICROSWITCH
17470000002311 17470000002311 MICROSWITCH
12270000003545 12270000003545 MOUNTING PLATE
12270000003552 12270000003552 MOUNTING PLATE
12270000005962 12270000005962 OUTER CASE
17170000006781 17170000006781 PCB ASS'Y
12170000000656 12170000000656 PLASTIC AIR DUCT

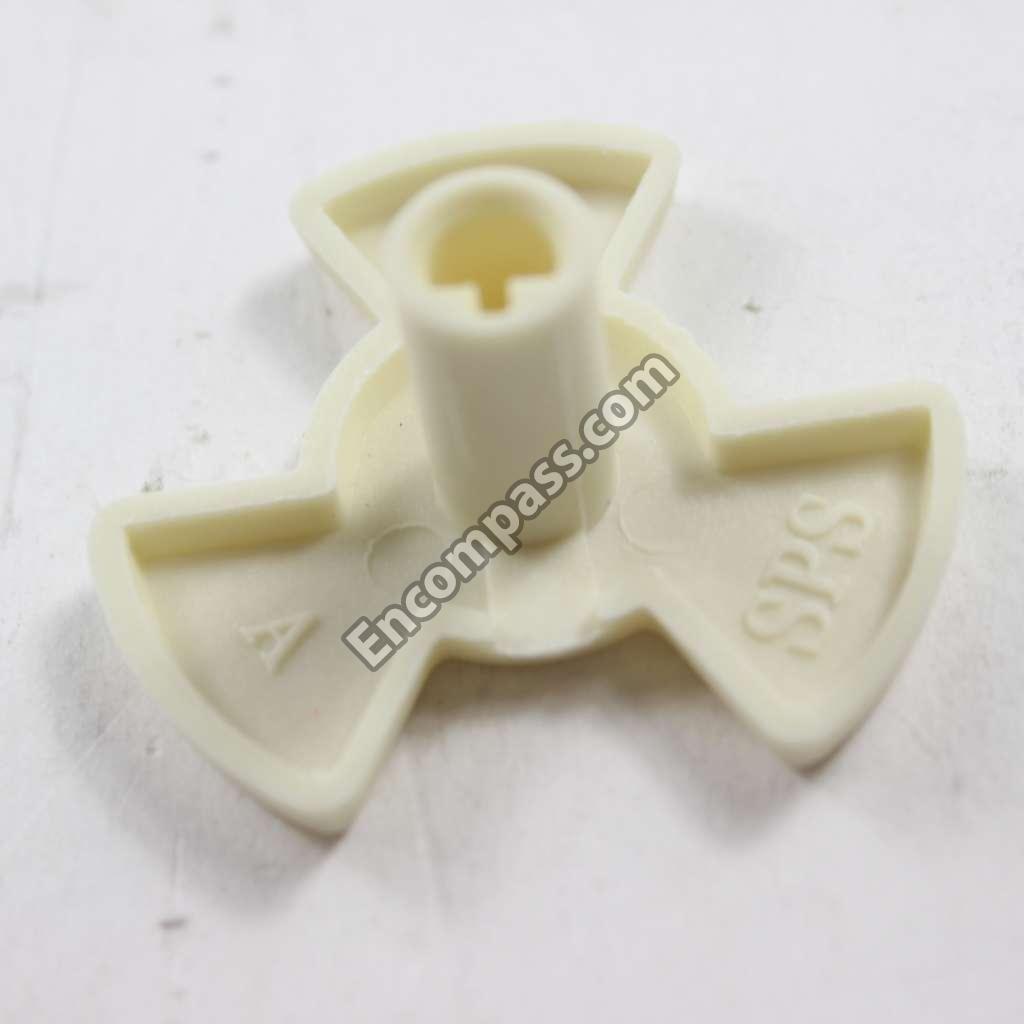

12170000000421 12170000000421 PLASTIC COUPLER
WB18X27450 WB18X27450 POWER CORD
11002017000366 11002017000366 SHADED-POLE MOTOR
12270000000118 12270000000118 SHIELDER
12670000000441 12670000000441 SHOCKPROOF BLOCK
12670000000424 12670000000424 SHOCKPROOF BLOCK
11002012004164 11002012004164 SINGLE PHASE ASYNCHRONOUS MOTOR
WB24X28925 WB24X28925 STARTING CAPACITOR
11201004000002 11201004000002 SYNCHRONOUS MOTOR
11201004000002 11201004000002 TEMPERATURE SENSOR
17470000001505 17470000001505 THERMOSTAT
17470000001505 17470000001505 THERMOSTAT

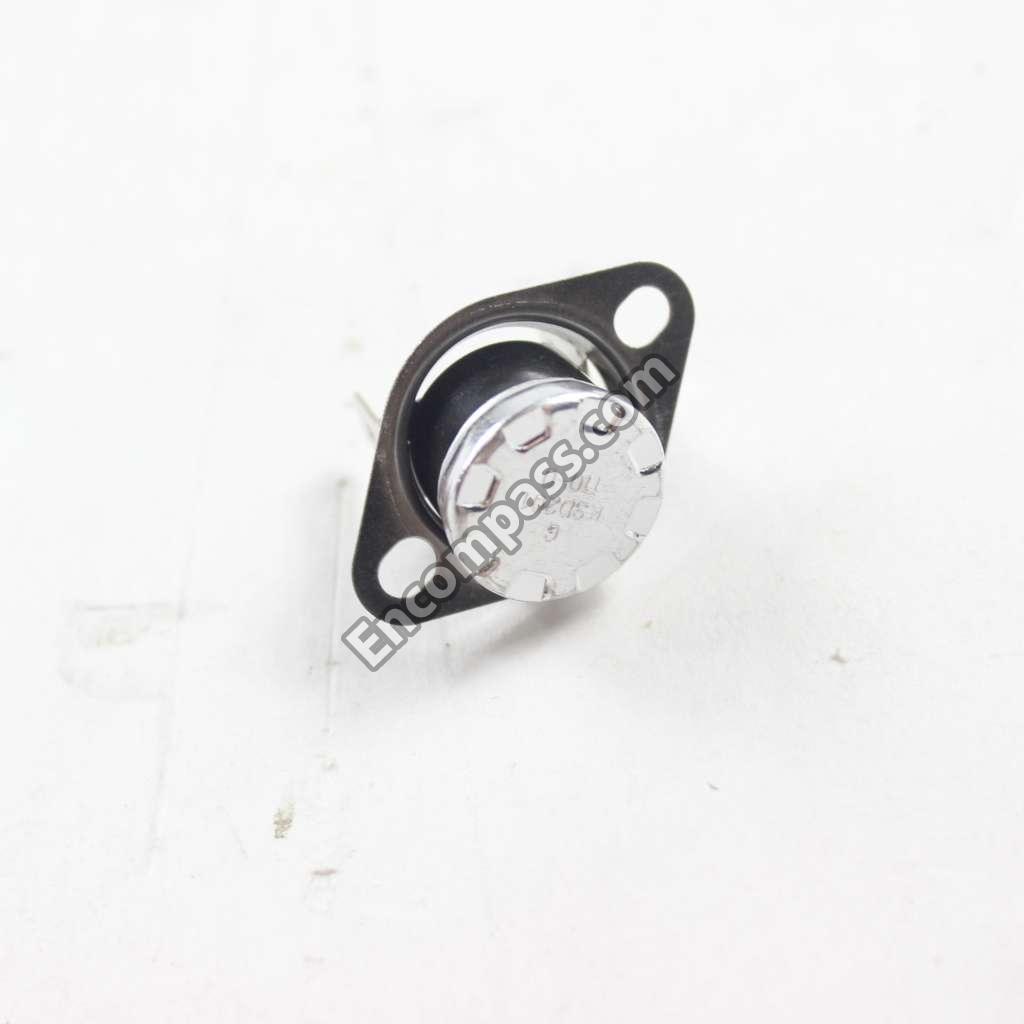

17470000001508 17470000001508 THERMOSTAT
12270000003390 12270000003390 VENT GRILLE
12170000000699 12170000000699 VENT GRILLE
12270000000691 12270000000691 VENT GRILLE DECO.
12270000008282 12270000008282 VENT MOTOR COVER
WB02X25611 WB02X25611 WAVE GUIDE COVER
