Model Image
Manufacturer

GE

Model Number

HPD10XCRLW

Description

10,000 Btu Portable Air Conditioner

Interactive Exploded View

Parts List

Part Number Description

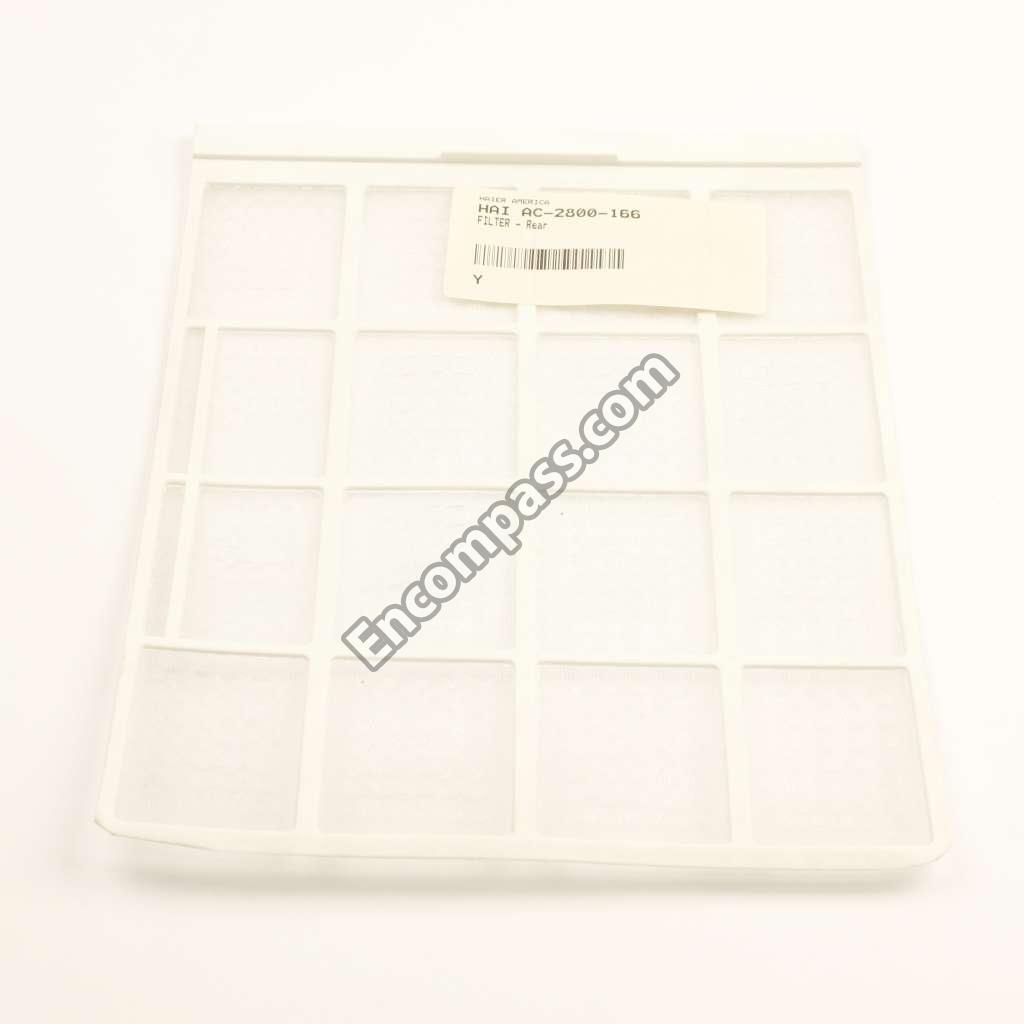

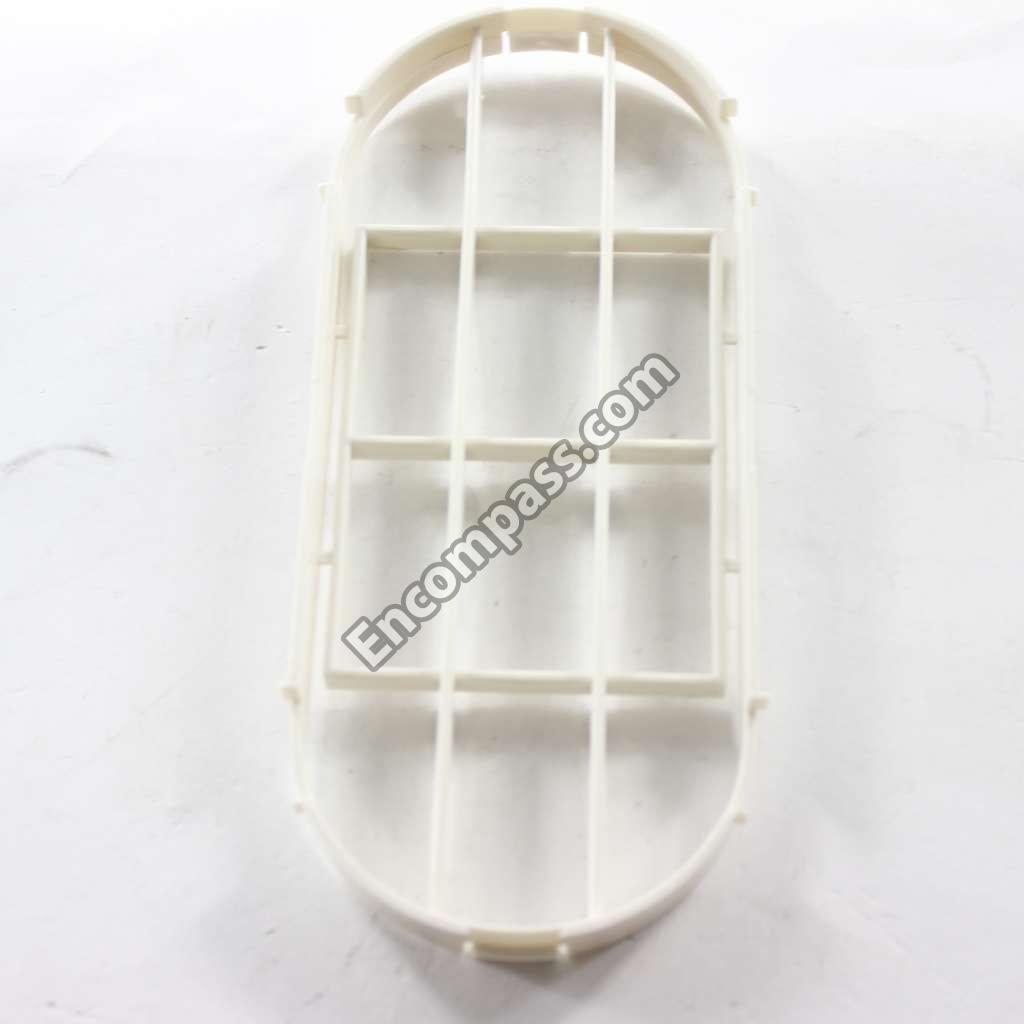

WJ85X23407 WJ85X23407 AIR FILTER
WJ85X23408 WJ85X23408 AIR FILTER

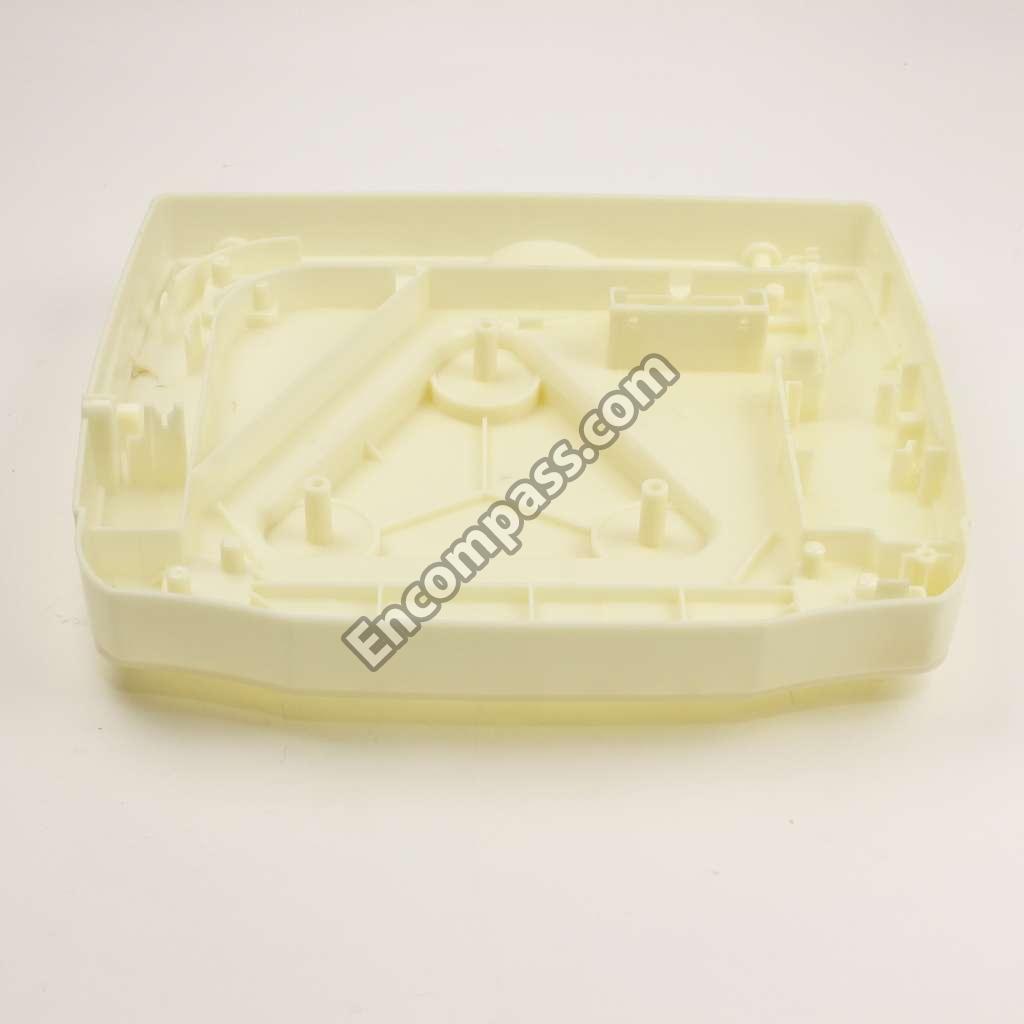

AC-0255-023 AC-0255-023 BASE PAN
A2535-020 A2535-020 BATTEY

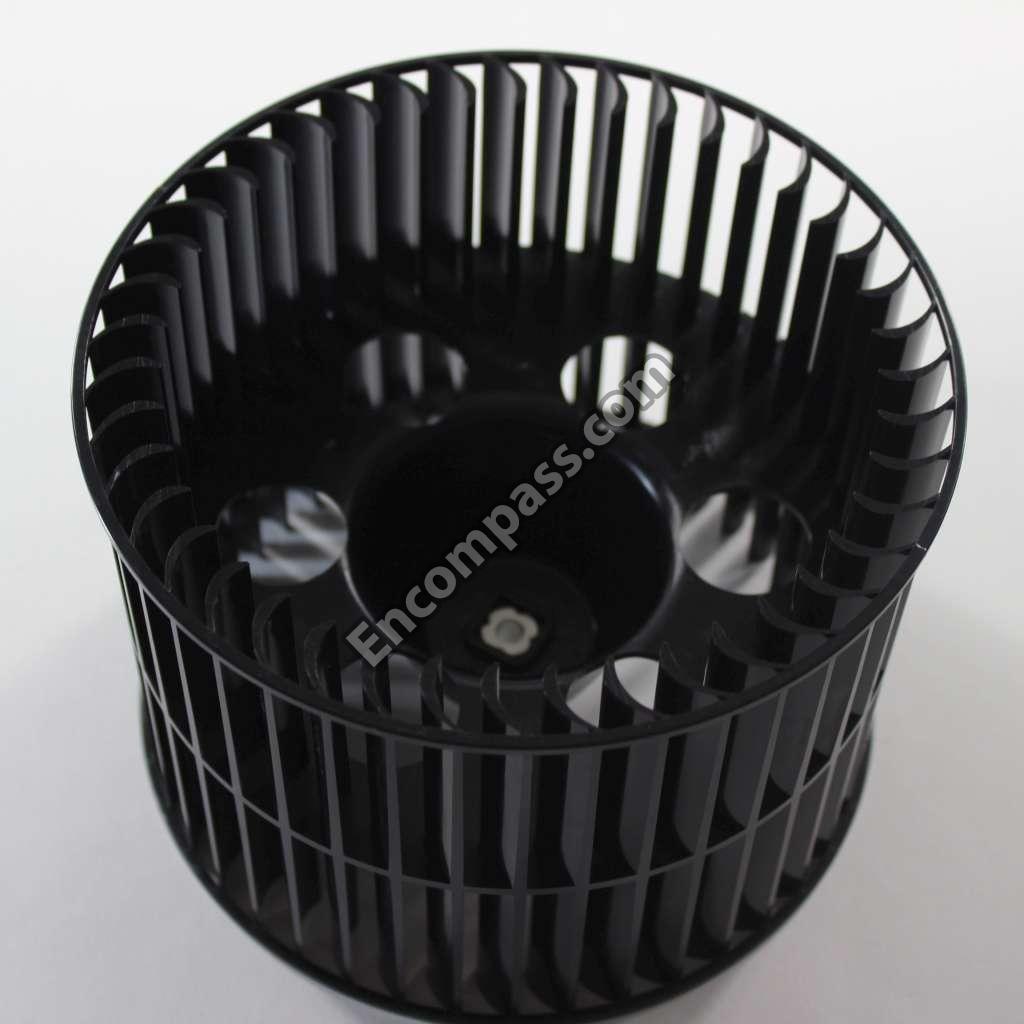

WJ88X22262 WJ88X22262 BLOWER WHEEL
A5304-640-A-22 A5304-640-A-22 BLOWER WHEEL
A2558-830-SY A2558-830-SY CAPCITOR (11UF/250V) FOR MOTOR

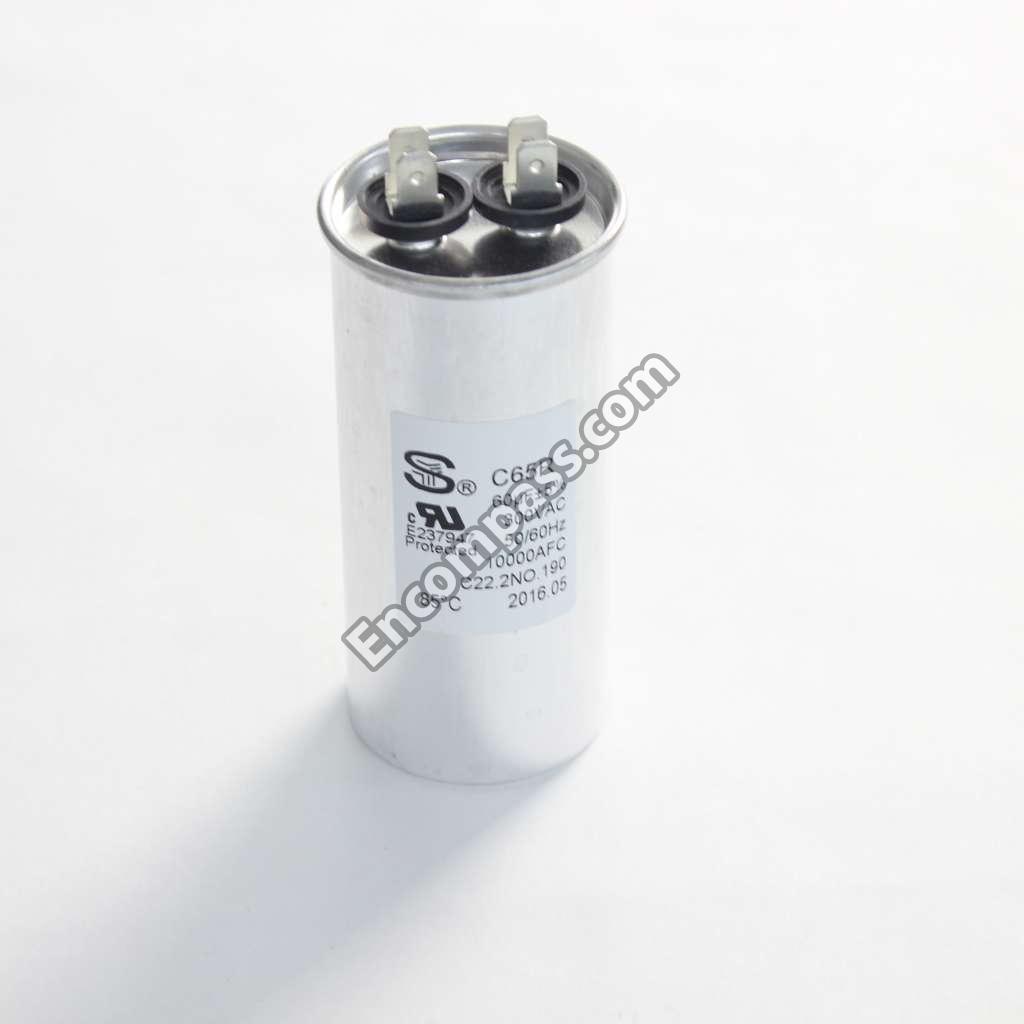

A2558-800-XD A2558-800-XD CAPCITOR (30UF/300V) FOR COMPRESSOR
A6204-470 A6204-470 CAPILARY TUBE
A3203--680 A3203--680 COMPRESSOR ASS'Y (39H086-A2)

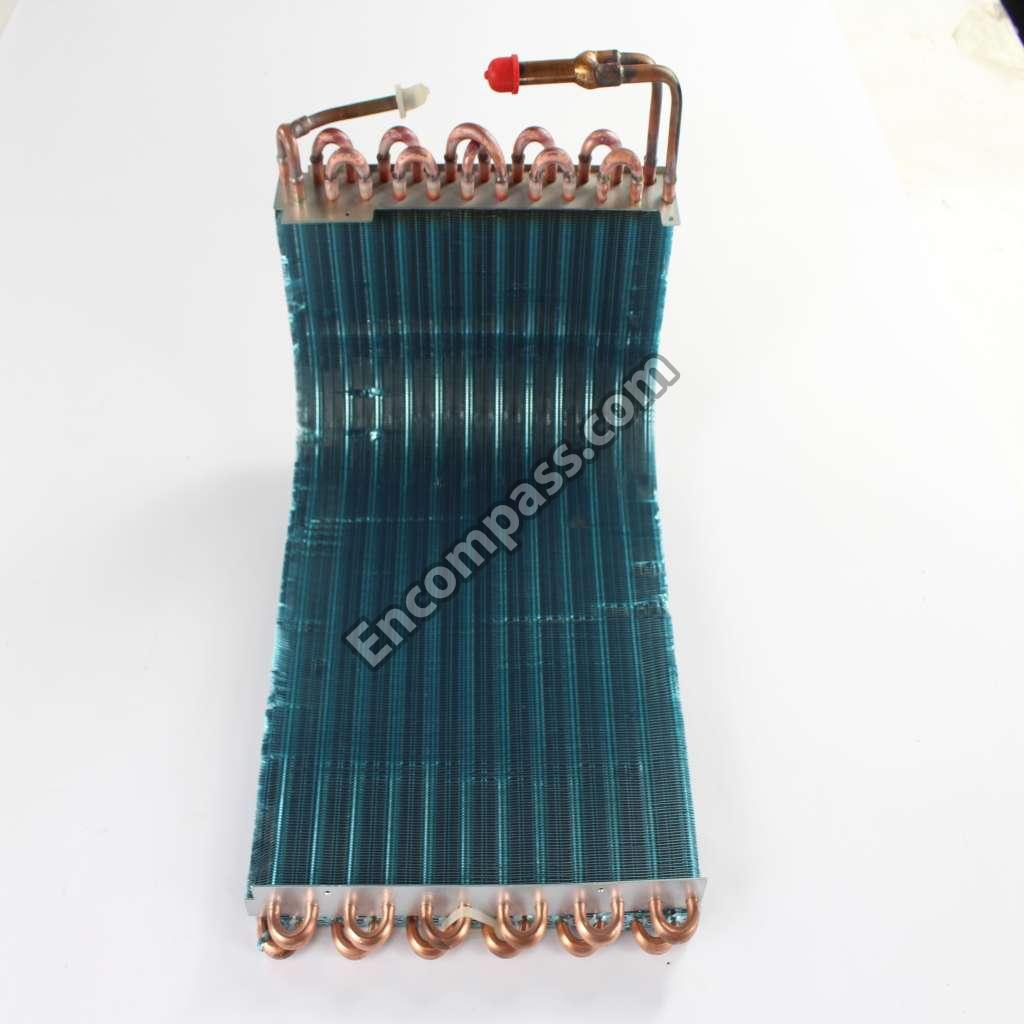

A3423-021 A3423-021 CONDENSER ASS'Y
WJ53X22306 WJ53X22306 CONTROL BOARD

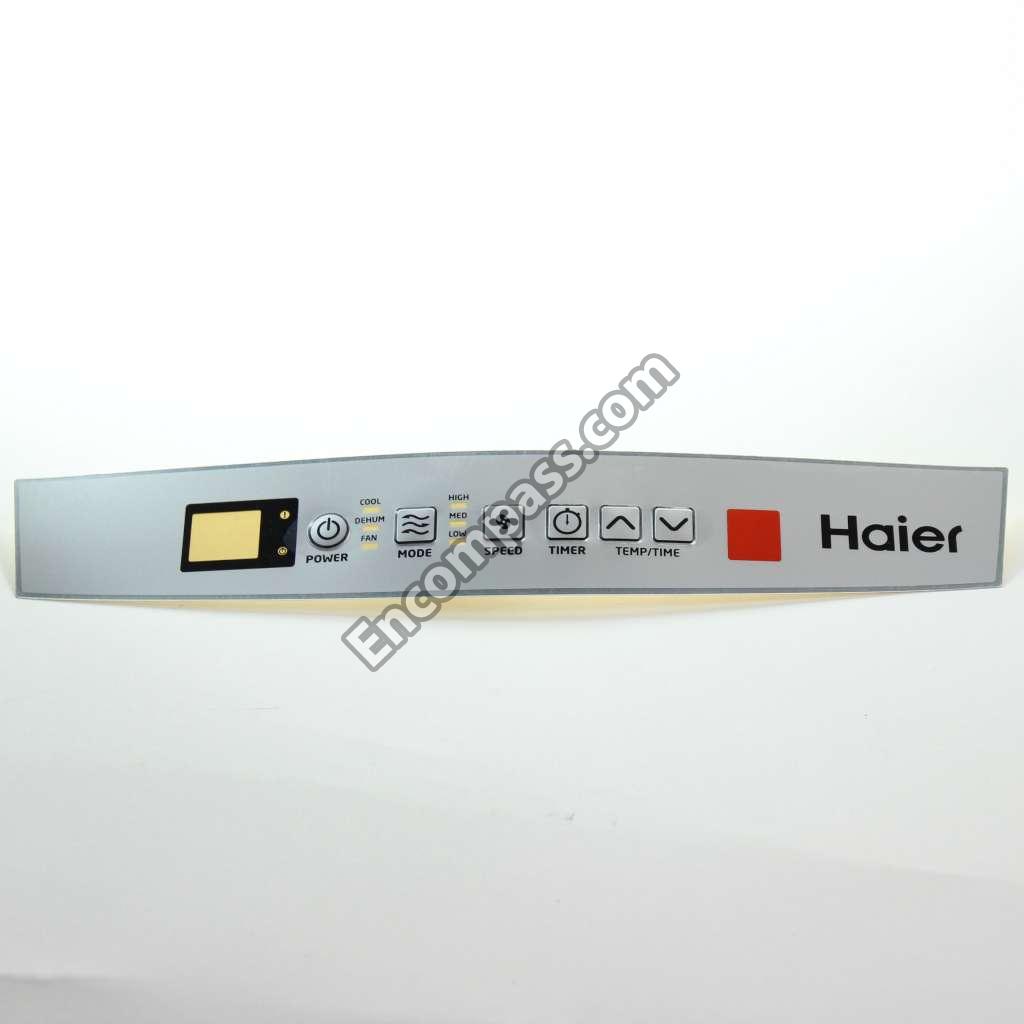

A6931-133-R9 A6931-133-R9 CONTROL PANEL
AC-5300-620 AC-5300-620 CONTROL PLATE

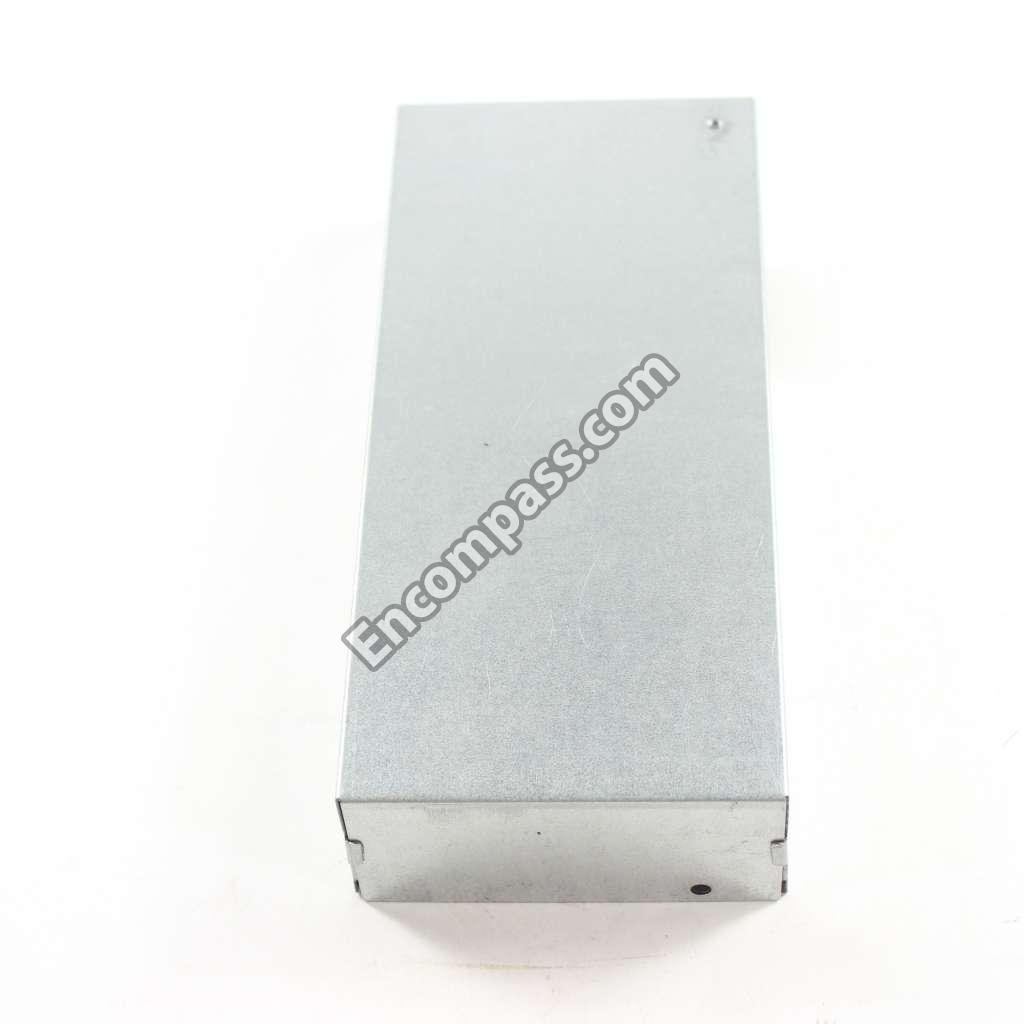

AC-1950-471 AC-1950-471 COVER
AC-1950-344 AC-1950-344 COVER
AC-1950-472 AC-1950-472 COVER

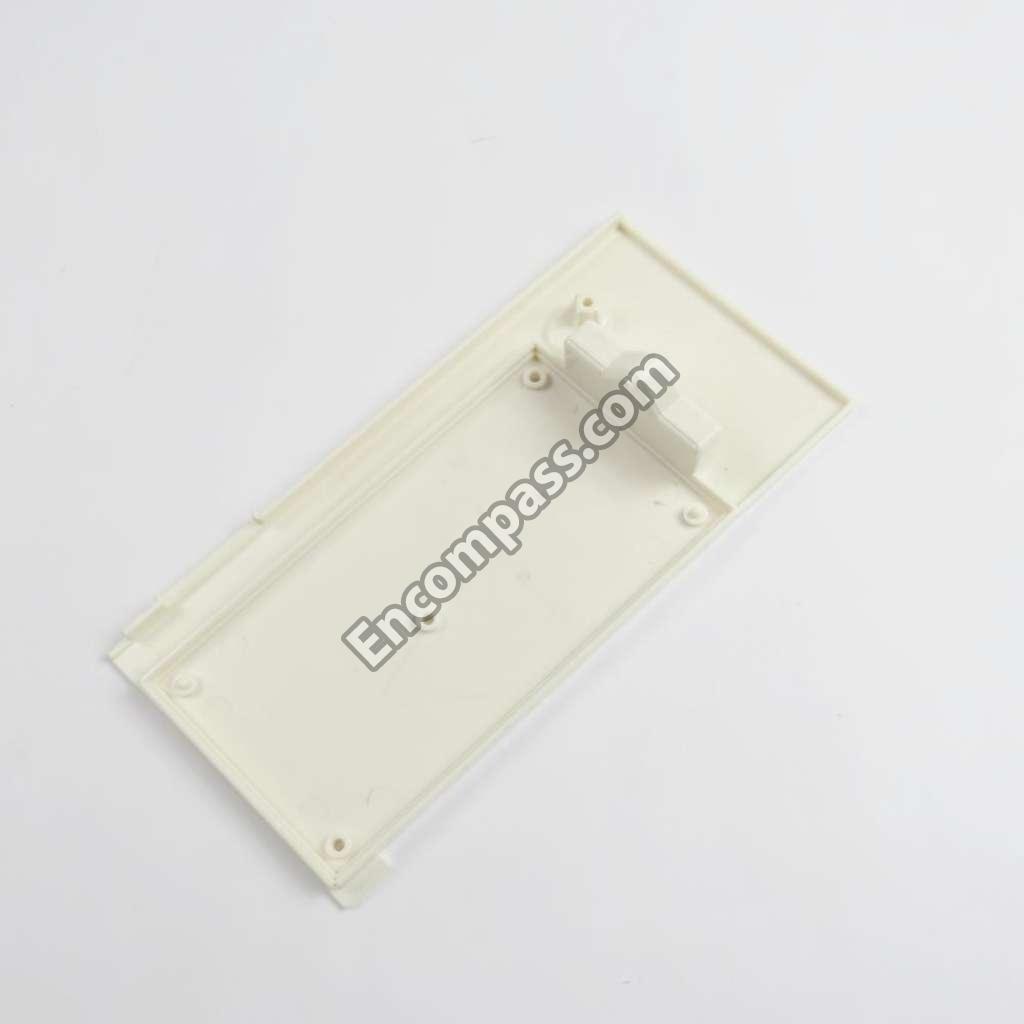

WJ86X23647 WJ86X23647 COVER
AC-4550-413 AC-4550-413 DC FAN MOTOR

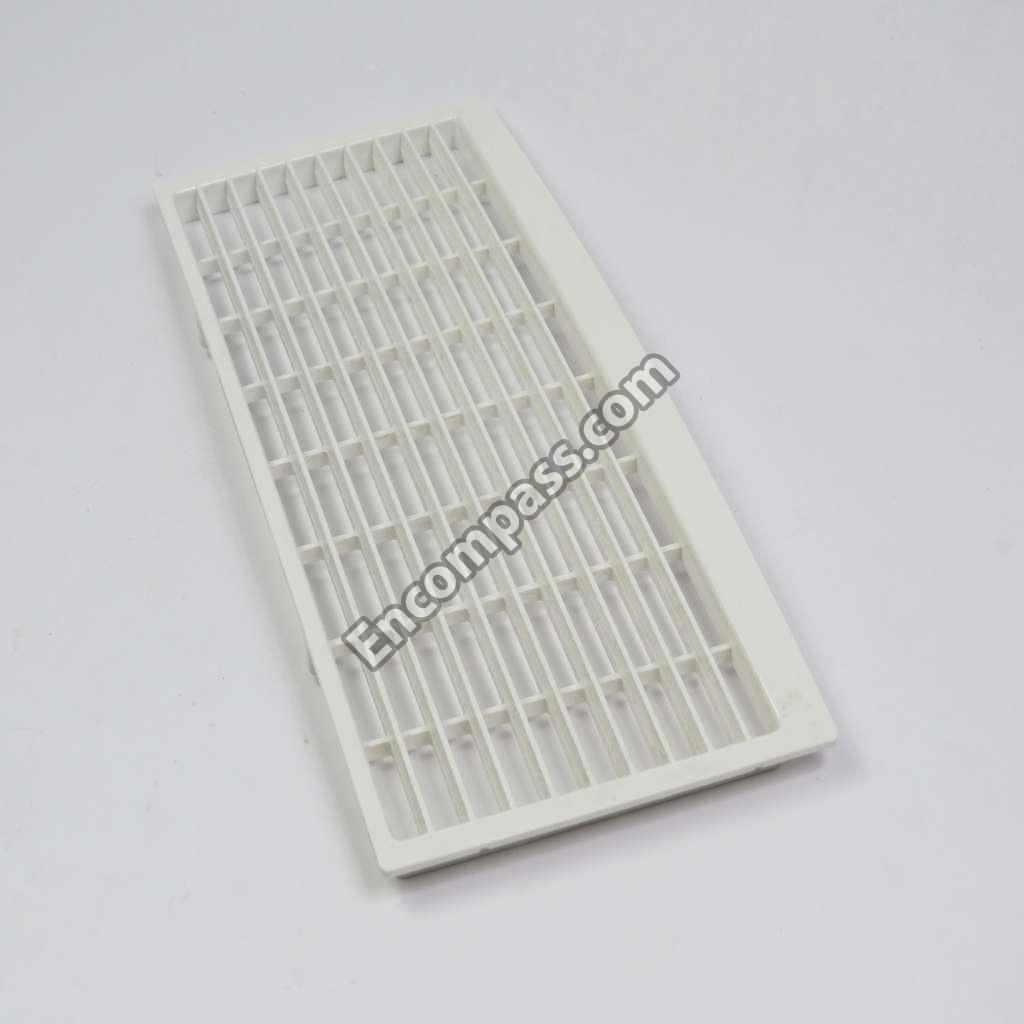

A4239-610-R-11 A4239-610-R-11 DISCHARGE GRILLE
AC-3150-182 AC-3150-182 DISCHARGE GRILLE
WJ71X23749 WJ71X23749 DISCHARGE GRILLE

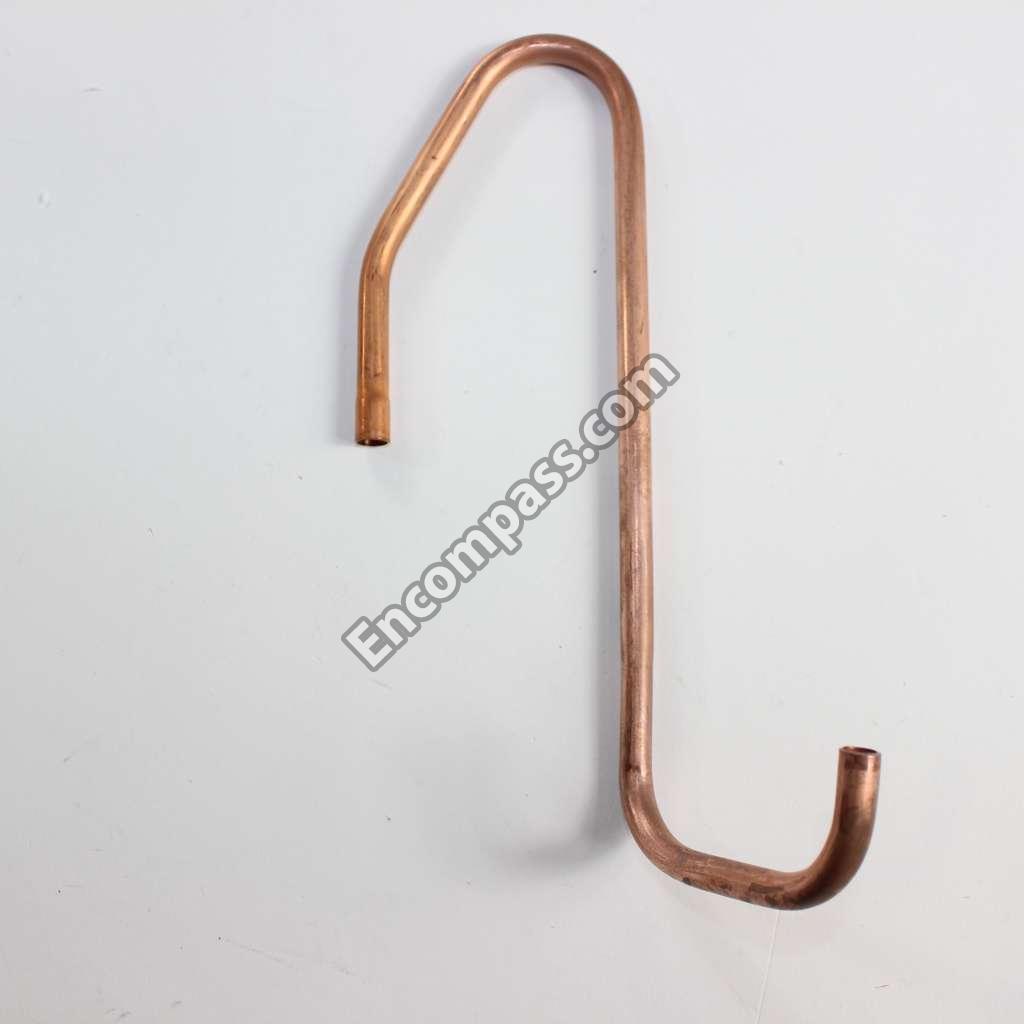

A6210-050 A6210-050 DISCHARGE PIPE
AC-1950-470 AC-1950-470 DRAIN BUCKET COVER

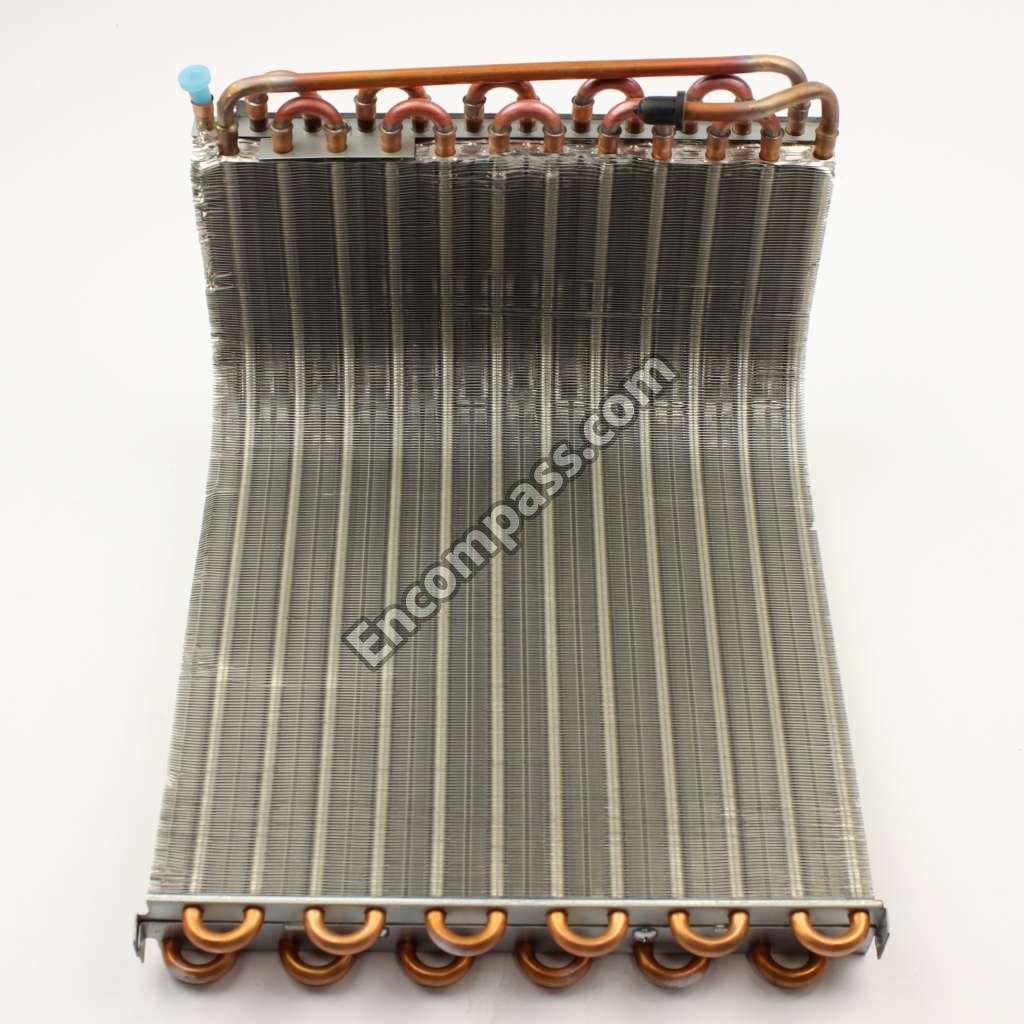

A3419-950 A3419-950 EVAPORATOR ASS'Y
A5302-050-AH-22 A5302-050-AH-22 FAN CASING
AC-3600-047 AC-3600-047 FAN CASING
A5302-240-A-22 A5302-240-A-22 FAN CASING
A5302-230-A-22 A5302-230-A-22 FAN CASING

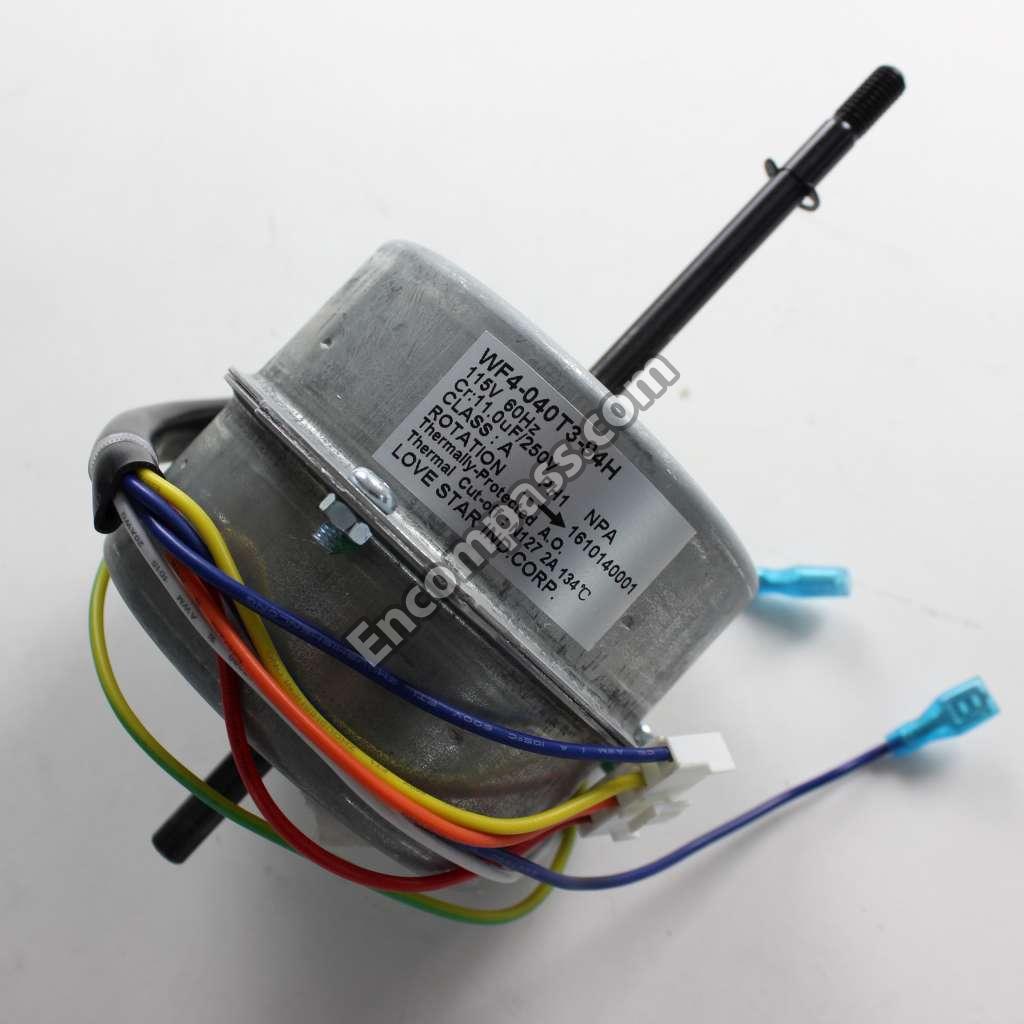

A3021-420 A3021-420 FAN MOTOR(WF4-040T3-94H)
AC-3500-168 AC-3500-168 FIXTURE
AC-5310-17 AC-5310-17 FIXTURE
AC-5200-621 AC-5200-621 FIXTURE
AC-3500-189 AC-3500-189 FIXTURE
A4239-320-A-BS A4239-320-A-BS FIXTURE
AC-2855-014 AC-2855-014 FLOAT
AC-3500-188 AC-3500-188 FXITURE
AC-3350-048 AC-3350-048 HANDLE
AC-3350-049 AC-3350-049 HANDLE

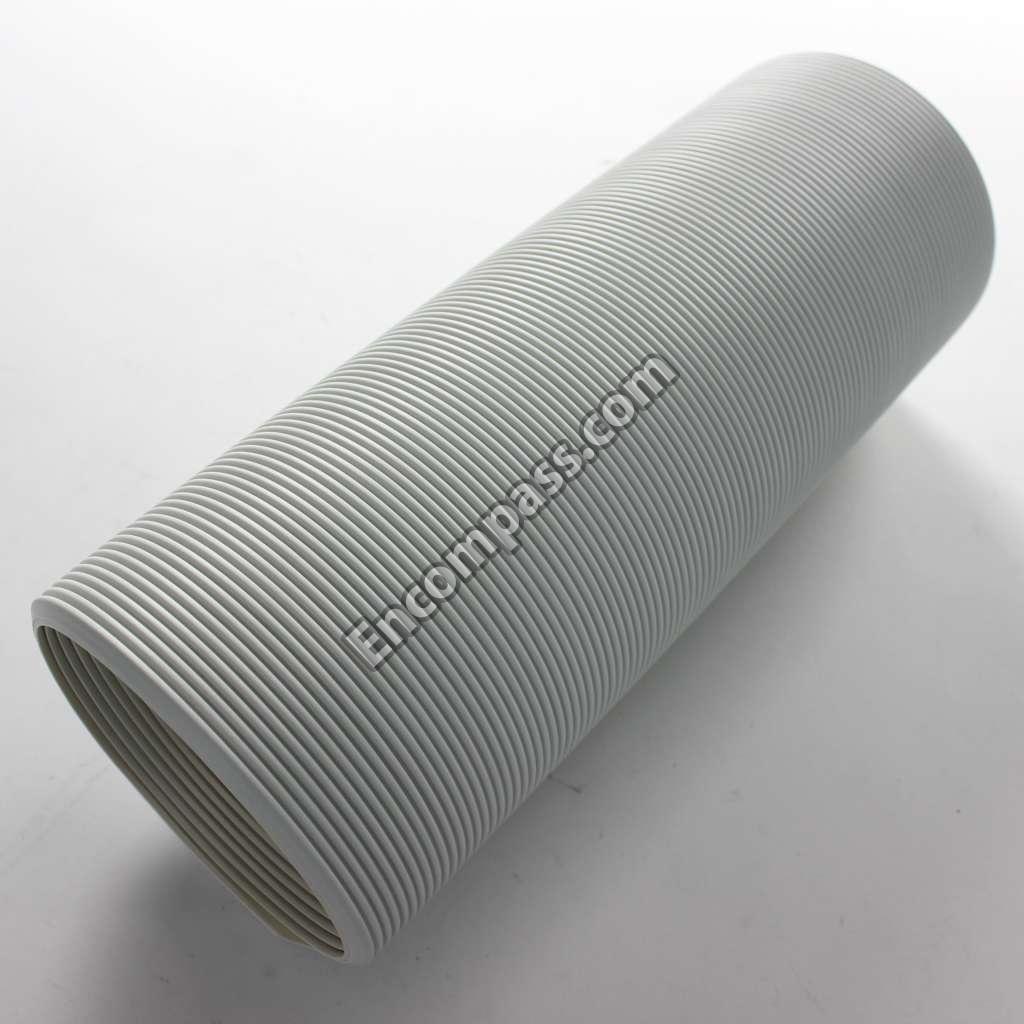

A6200-370-BS A6200-370-BS HEAT EXHAUST HOSE
WJ86X22316 WJ86X22316 INCREASER
AC-7100-095 AC-7100-095 MICRO SWITCH
A2553-290-01 A2553-290-01 PC BOARD
WJ76X22283 WJ76X22283 PLATE ( 252.5MM )
WJ76X22281 WJ76X22281 PLATE ( 505MM )
WJ76X22282 WJ76X22282 PLATE ( 505MM )

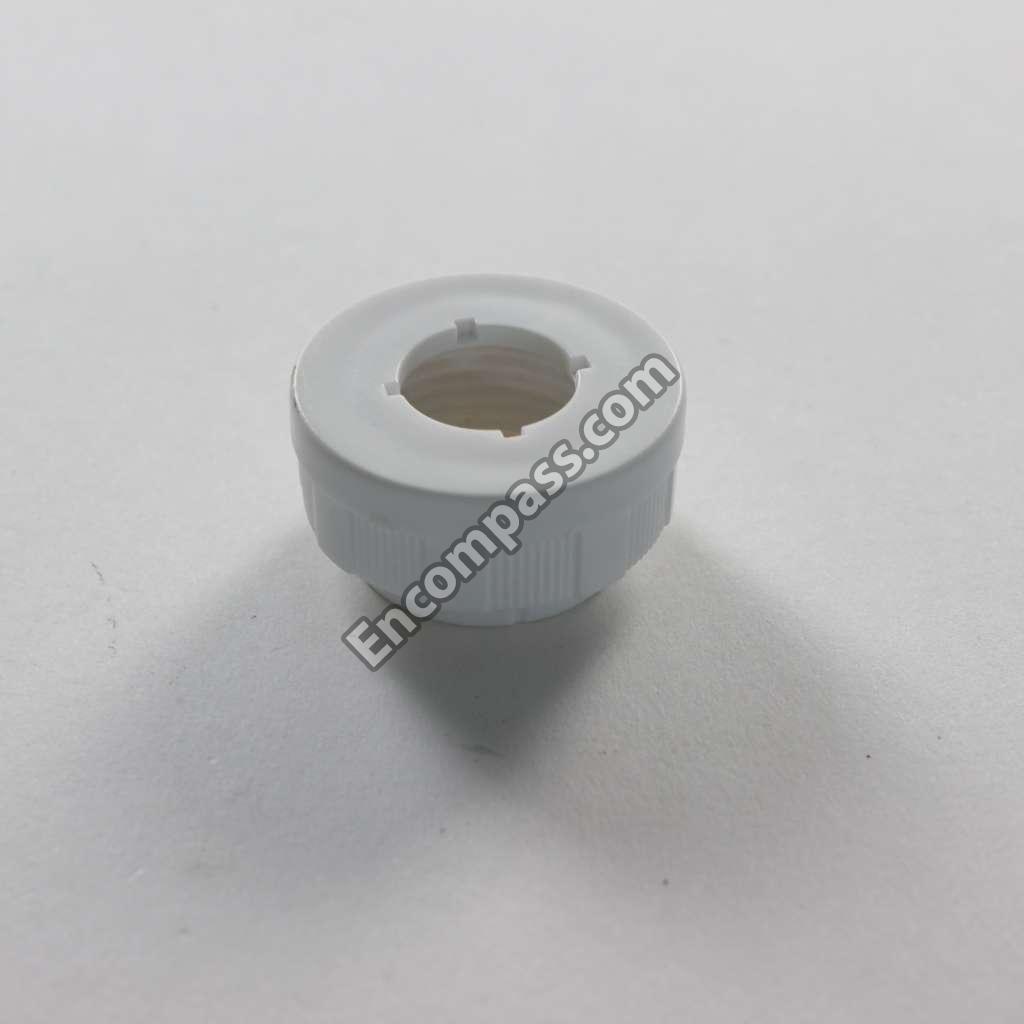

WJ01X24008 WJ01X24008 PLUG
WJ01X23783 WJ01X23783 PLUG

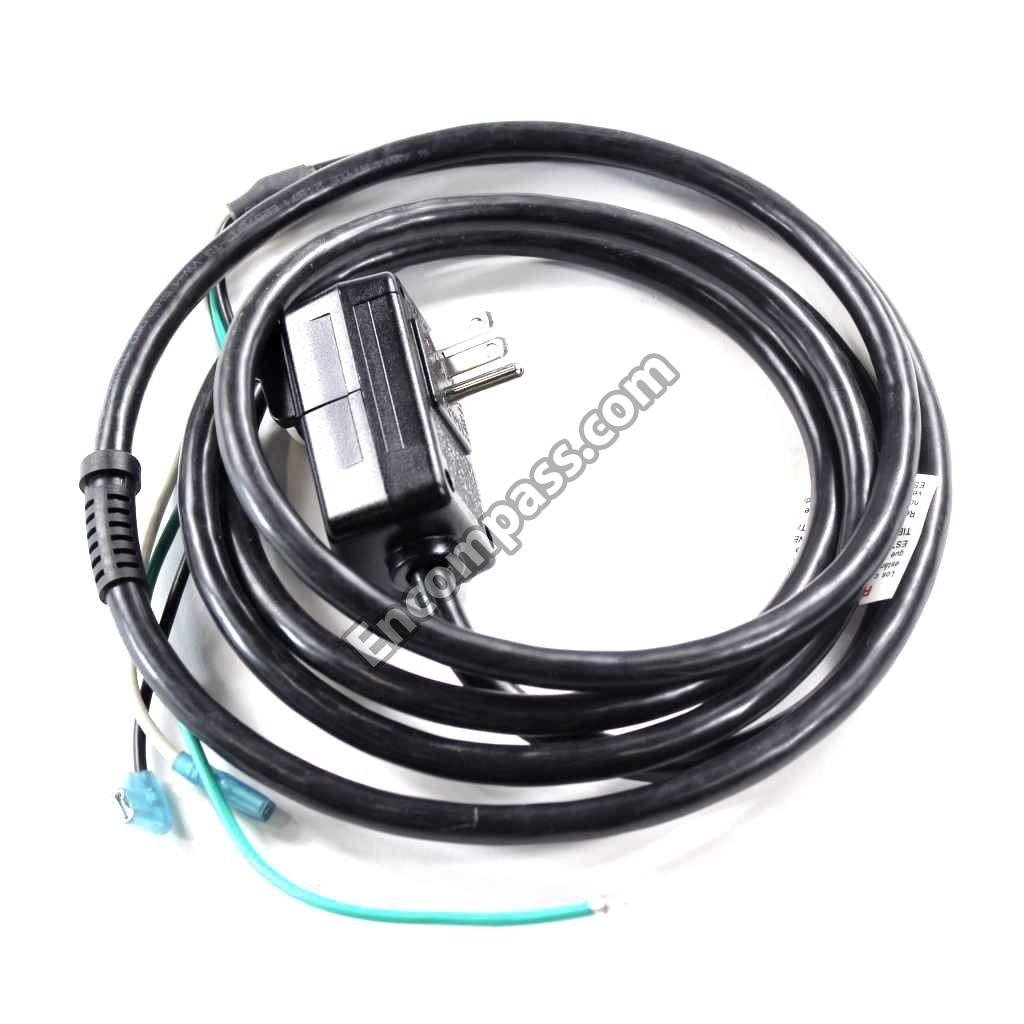

A3718-370 A3718-370 POWER SUPPLY CORD COMPLETE
AC-1300-098 AC-1300-098 REAR COVER
A4202-335-A-FN A4202-335-A-FN REAR PANEL
WJ26X22286 WJ26X22286 REMOTE CONTROL
D5600-142 D5600-142 RUBBER
AC-6100-090 AC-6100-090 SCREEN
WJ26X22287 WJ26X22287 SENSOR
WJ01X22288 WJ01X22288 SOFT CAP
WJ01X22289 WJ01X22289 SOFT CAP
AC-6955-013 AC-6955-013 STRIKE
AC-6955-014 AC-6955-014 STRIKE
AC-6955-015 AC-6955-015 STRIKE
A5806-130 A5806-130 STRIKE
A6232-331 A6232-331 SUCTION PIPE
A4206-670-A-22 A4206-670-A-22 TOP COVER PLATE
AC-1950-469 AC-1950-469 TOP COVER PLATE
WJ01X22291 WJ01X22291 TURING WHEEL
AC-2800-150 AC-2800-150 Y TUBE
