Model Image
Manufacturer

Haier

Model Number

HPF12XHMLP

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

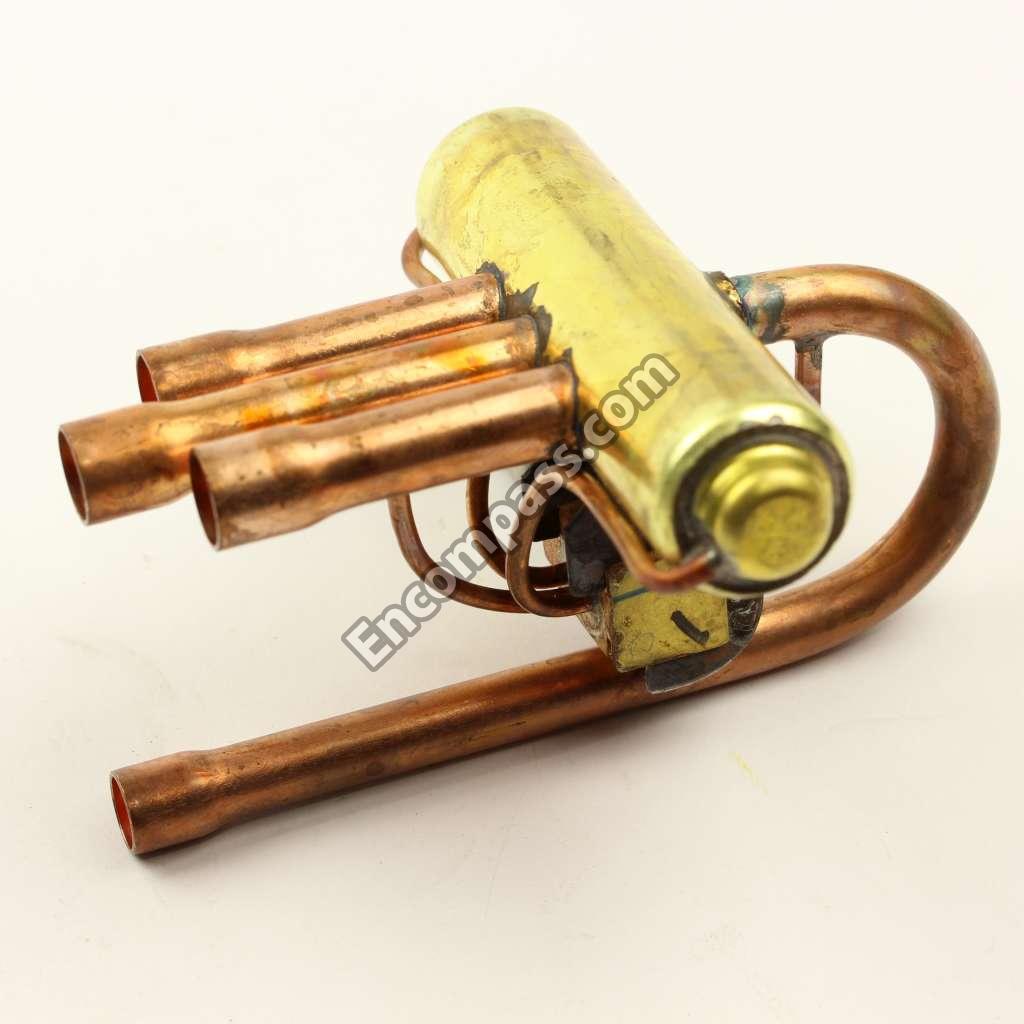

AC-7800-177 AC-7800-177 4-WAY REVERSING VALVE ASS'Y
WJ71X22298 WJ71X22298 AIR FILTER
A4251-570-H-FD A4251-570-H-FD BAR
WJ76X24143 WJ76X24143 BASE PAN
AC-0344-13 AC-0344-13 BEARING
AC-0344-26 AC-0344-26 BEARING
WJ73X24144 WJ73X24144 BLADE
WJ88X22300 WJ88X22300 BLOWER WHEEL
AC-0750-43 AC-0750-43 BOLT
AC-1150-03 AC-1150-03 BUSHING
WJ20X24139 WJ20X24139 CAPCITOR (4UF/250V) FOR MOTOR

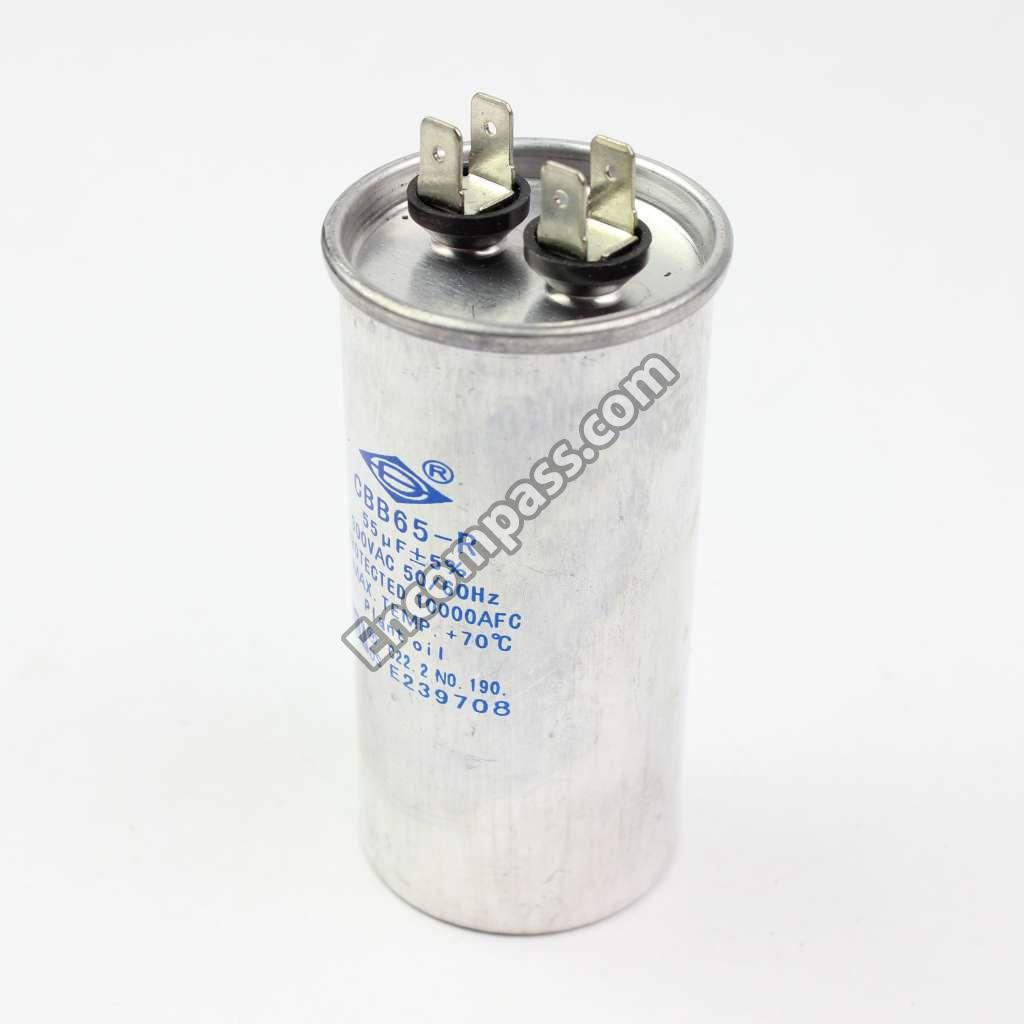

A2510-240 A2510-240 CAPCITOR (55UF/300V) FOR COMPRESSOR
WJ20X24140 WJ20X24140 CAPCITOR (9UF/250V) FOR MOTOR
AC-7750-32 AC-7750-32 CAPILARY TUBE
AC-1750-215 AC-1750-215 COMPRESSOR ASS'Y (44N100 A2)

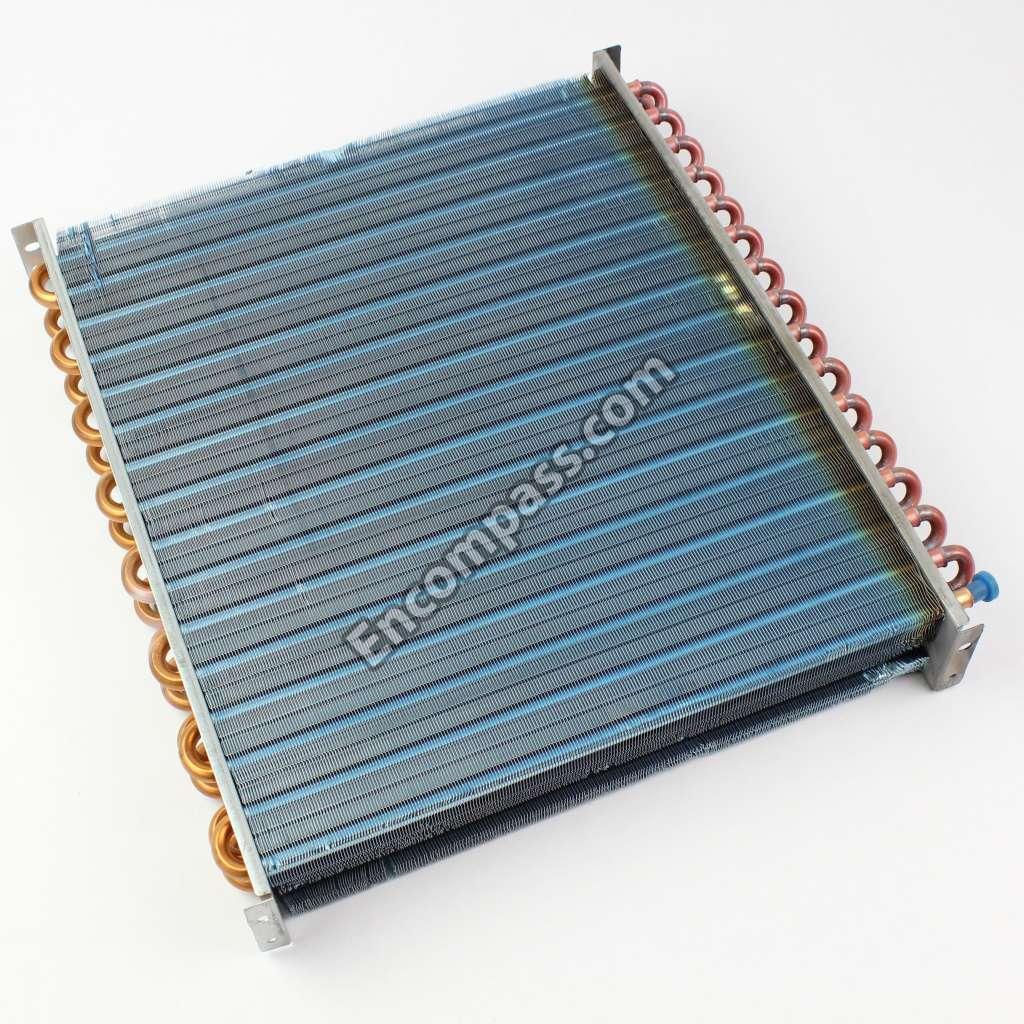

A3422-582 A3422-582 CONDENSER ASS'Y
AC-5255-496 AC-5255-496 CONNECTOR PIPE
AC-7750-222 AC-7750-222 CONNECTOR PIPE
A6931-136-O8 A6931-136-O8 CONTORL PLATE
AC-5210-139 AC-5210-139 CONTROL BOARD
AC-1950-473 AC-1950-473 COVER
AC-1950-340 AC-1950-340 COVER
AC-3500-173 AC-3500-173 COVER
WJ86X23647 WJ86X23647 COVER
WJ71X22295 WJ71X22295 CROSS FLOW FAN
A4230-270-A-G A4230-270-A-G DECORATING PLATE
AC-3150-185 AC-3150-185 DISCHARGE GRILLE
AC-5255-495 AC-5255-495 DISCHARGE PIPE
AC-1950-233 AC-1950-233 DRAIN BUCKET COVER
WJ01X23783 WJ01X23783 DRAIN PLUG
WJ01X24009 WJ01X24009 DRAIN PLUG

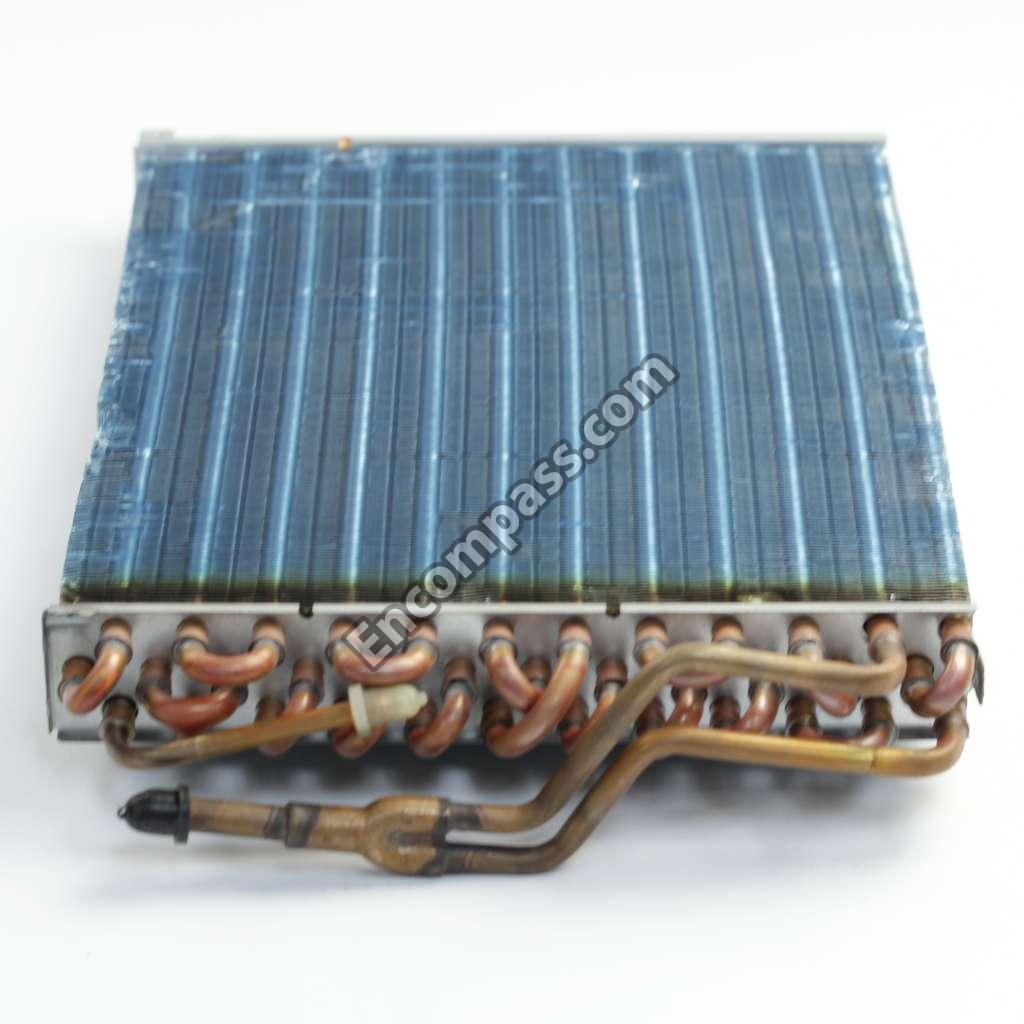

A3419-462 A3419-462 EVAPORATOR ASS'Y
WJ76X24142 WJ76X24142 FAN CASING
AC-3600-048 AC-3600-048 FAN CASING
AC-1480-59 AC-1480-59 FAN CASING
AC-3500-170 AC-3500-170 FAN CASING
WJ88X22344 WJ88X22344 FAN MOTOR
WJ98X24146 WJ98X24146 FAN MOTOR
AC-4550-345 AC-4550-345 FAN MOTOR (WT-15T1-03)
AC-0850-158 AC-0850-158 FIX METAL
AC-0850-126 AC-0850-126 FIX METAL
WJ71X24006 WJ71X24006 FIXTURE
AC-3500-167 AC-3500-167 FIXTURE
AC-1950-351 AC-1950-351 FIXTURE
AC-5310-17 AC-5310-17 FIXTURE
WJ71X23749 WJ71X23749 FIXTURE
AC-4250-203 AC-4250-203 FLOAT
AC-2855-02 AC-2855-02 FLOAT
WJ43X22313 WJ43X22313 FOAM
WJ43X22296 WJ43X22296 FOAM
AC-1300-102 AC-1300-102 FRONT PANEL
AC-3105-05 AC-3105-05 GEAR WHEEL
WJ35X23750 WJ35X23750 HEAT EXHAUST HOSE
WJ01X23646 WJ01X23646 HEAT EXHAUST HOSE CONNECTOR
WJ35X23750 WJ35X23750 HOSE-EXHAUST
WJ85X23424 WJ85X23424 INTAKE GRILLE
WJ27X22317 WJ27X22317 MICRO SWITCH
AC-5210-177 AC-5210-177 PC BOARD
AC-5300-621 AC-5300-621 PLATE
WJ65X23752 WJ65X23752 PLATE (252.5MM )
WJ65X23782 WJ65X23782 PLATE (505MM )
WJ65X23757 WJ65X23757 PLATE (505MM )
WJ35X22320 WJ35X22320 POWER SUPPLY CORD COMPLETE
AC-1300-099 AC-1300-099 REAR PANEL
WJ26X23994 WJ26X23994 REMOTE CONTROL ASS'Y
AC-3200-12 AC-3200-12 RUBBER
WJ01X23760 WJ01X23760 SCREW - COMPLETE BAG
WJ26X22348 WJ26X22348 SENSOR FOR EVA-COPPER
WJ26X22322 WJ26X22322 SENSOR FOR ROOM TEMPERATURE
WJ01X22288 WJ01X22288 SOFT CAP
WJ01X22289 WJ01X22289 SOFT CAP
AC-5300-171 AC-5300-171 STRIKE
A5806-130 A5806-130 STRIKE
AC-3250-07 AC-3250-07 STRIKE-L
AC-3250-08 AC-3250-08 STRIKE-R
AC-7750-224 AC-7750-224 SUCTION PIPE
AC-7270-03 AC-7270-03 TERMINAL BLOCK
WJ01X22325 WJ01X22325 TURING WHEEL
AC-4440-82 AC-4440-82 VAN AIR DEFLEETOR
A4244-150-H-BA A4244-150-H-BA VAN AIR DEFLEETOR
AC-7950-13 AC-7950-13 WASHER
AC-7750-293 AC-7750-293 Y TUBE
