Model Image
Manufacturer

GE

Model Number

HPND14XCT

Description

Portable Air Conditioner - Dual Hose

Interactive Exploded View

Parts List

Part Number Description
WJ71X22334 WJ71X22334 AIR FILTER
A4251-490-H-FD A4251-490-H-FD BAR
A4805-06A-A-11 A4805-06A-A-11 BASE PAN

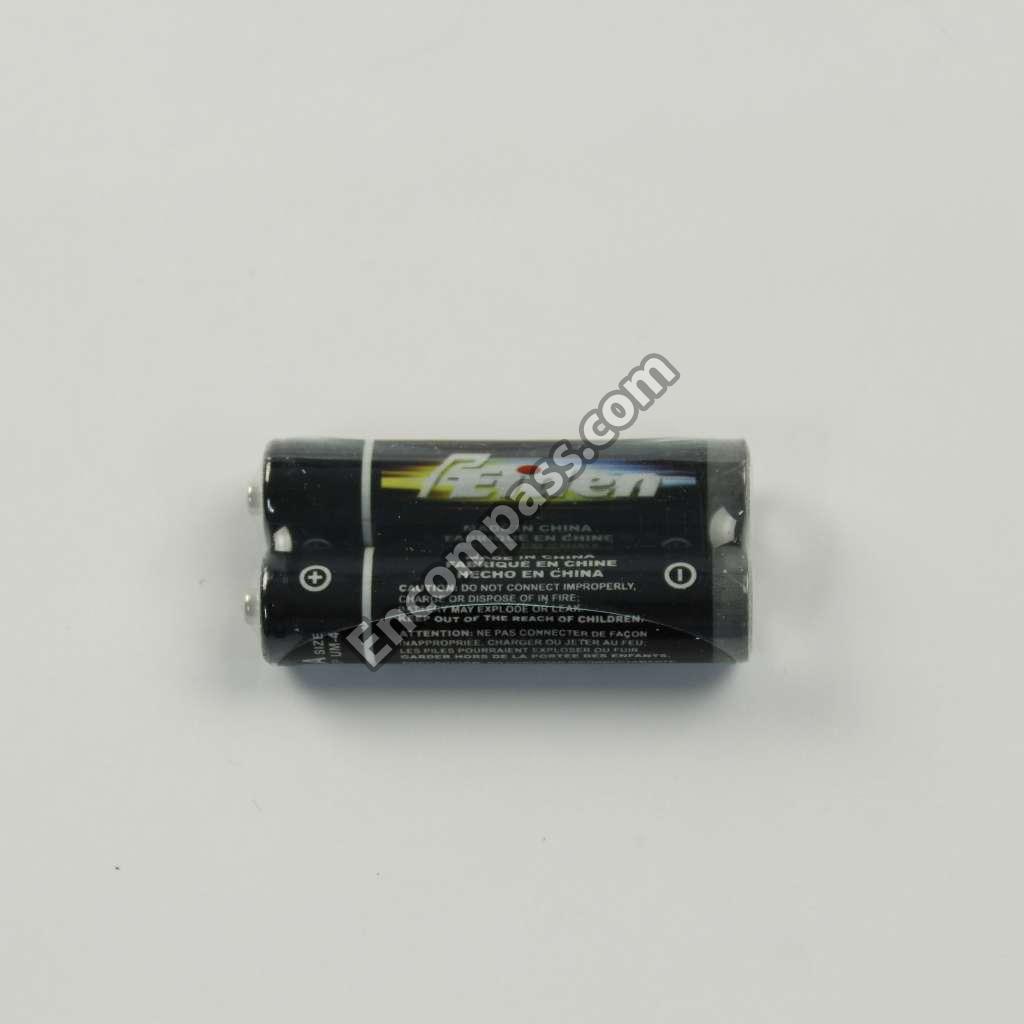

A2535-020 A2535-020 BATTERY
AC-0344-13 AC-0344-13 BEARING
WJ88X22300 WJ88X22300 BLOWER WHEEL

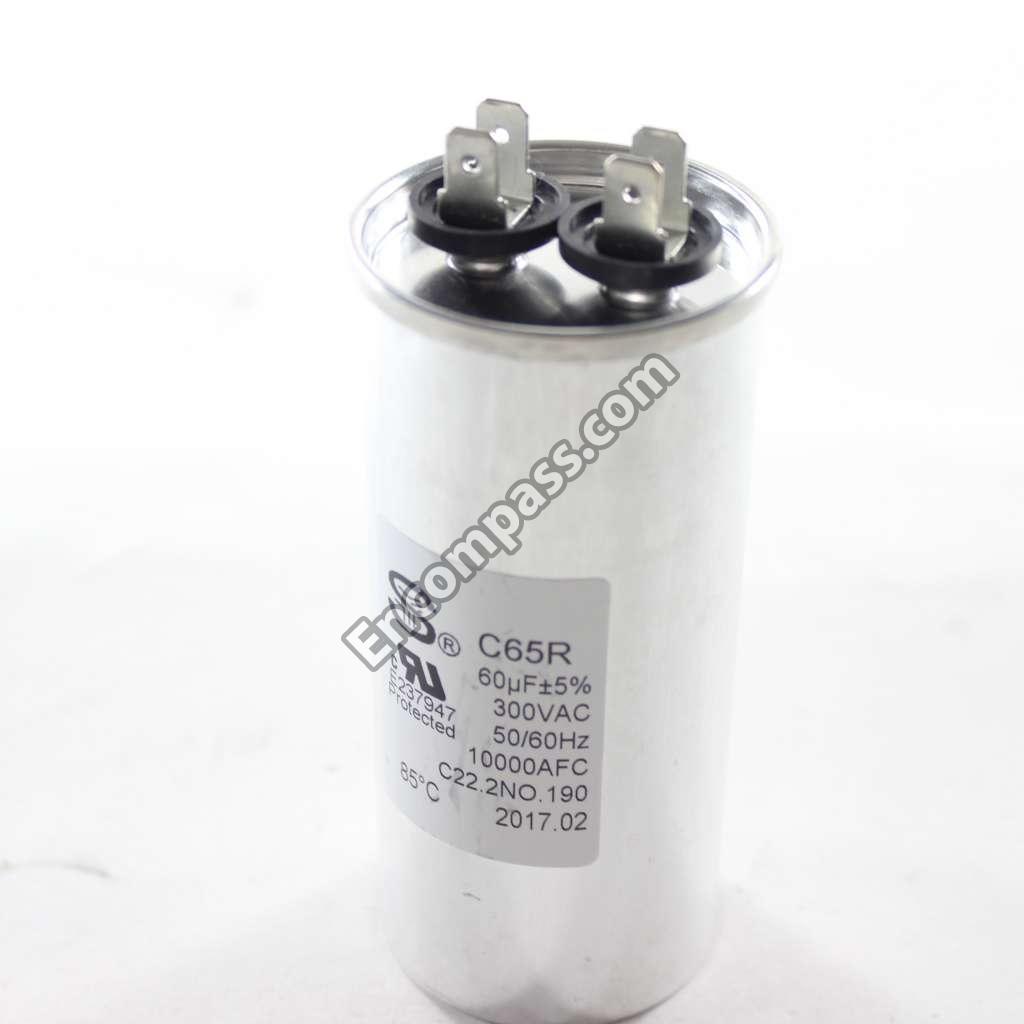

A2558-800-SY A2558-800-SY CAPCITOR (60UF/300V) FOR COMPRESSOR

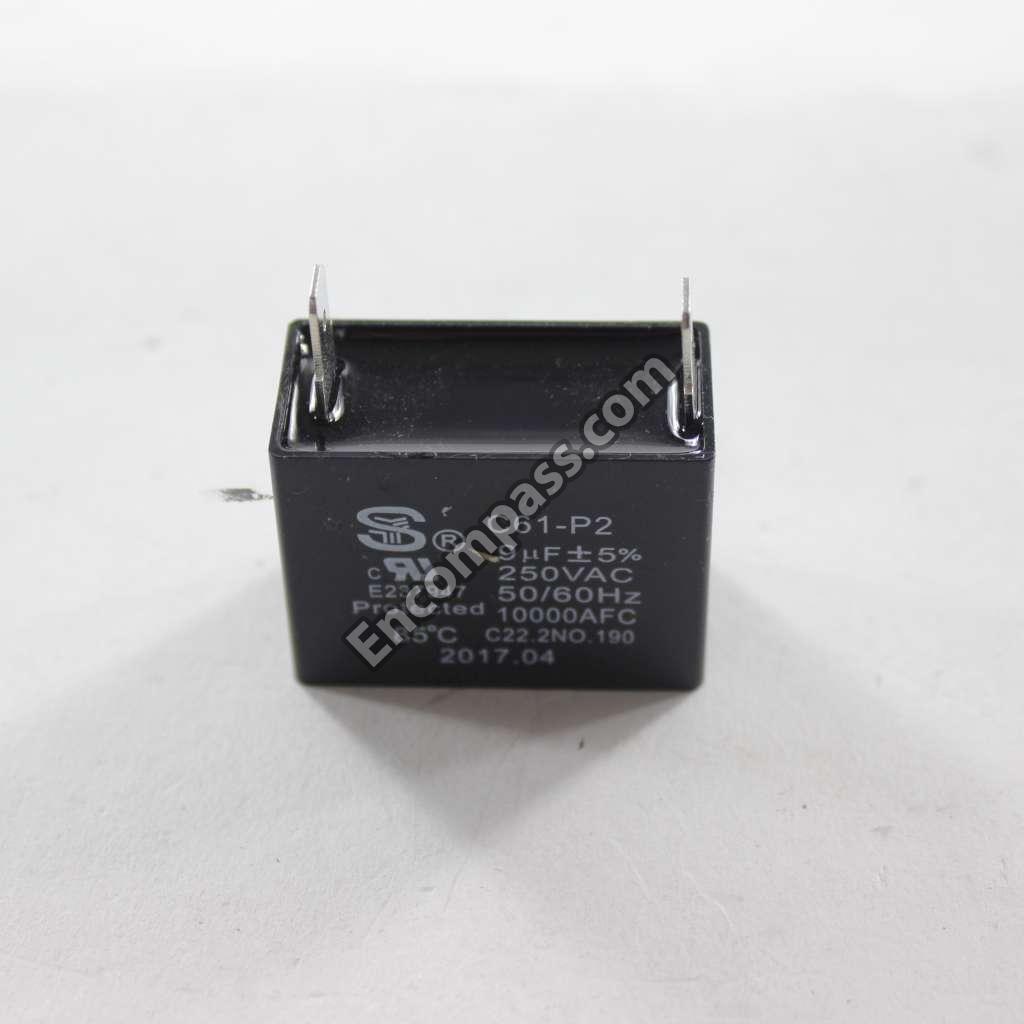

A2510-680 A2510-680 CAPCITOR (9UF/250V) FOR MOTOR
A2558-180 A2558-180 CAPCITOR(7UF/250V) FOR MOTOR
AC-1405-67 AC-1405-67 CAPILARY TUBE
A3203-900 A3203-900 COMPRESSOR ASS'Y (44110-A2)
A3422-551 A3422-551 CONDENSER ASS'Y
AC-3899-05 AC-3899-05 CONTORL PLATE

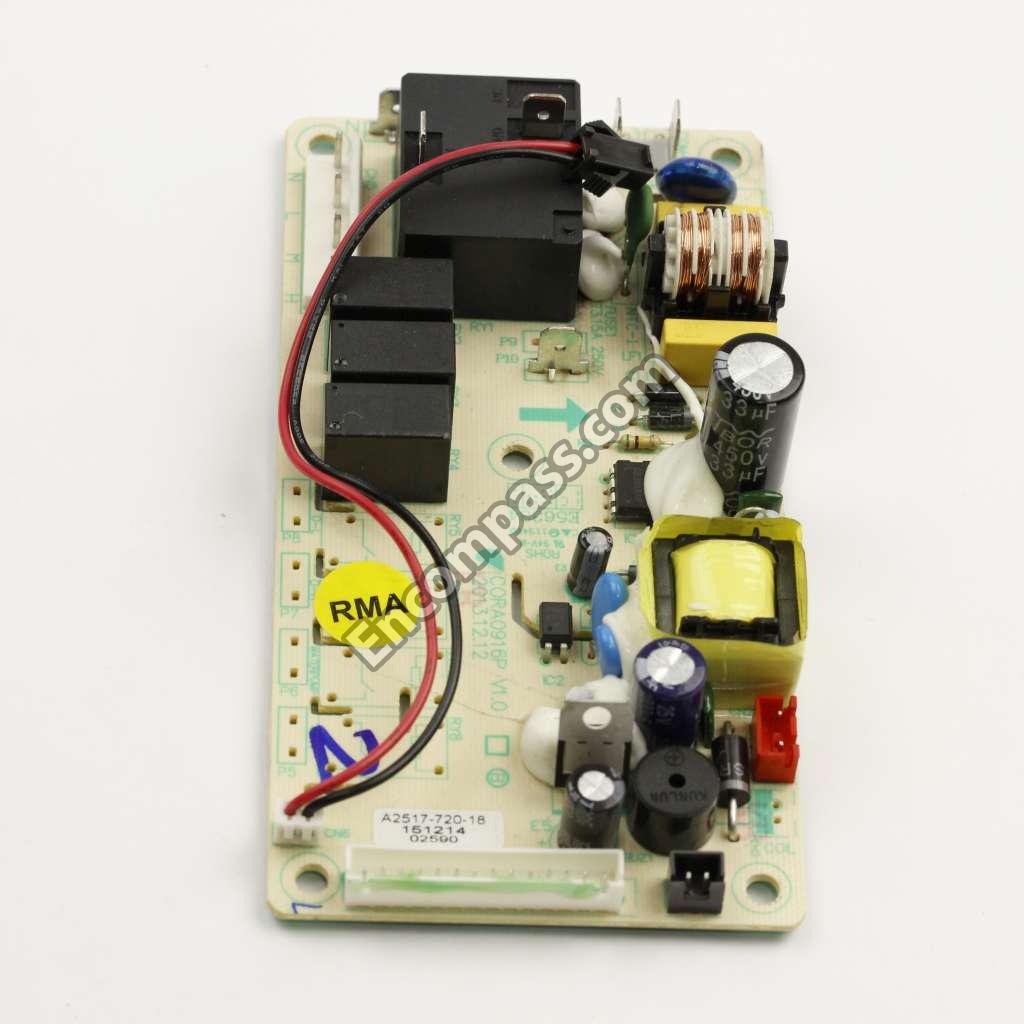

WJ53X22306 WJ53X22306 CONTROL BOARD

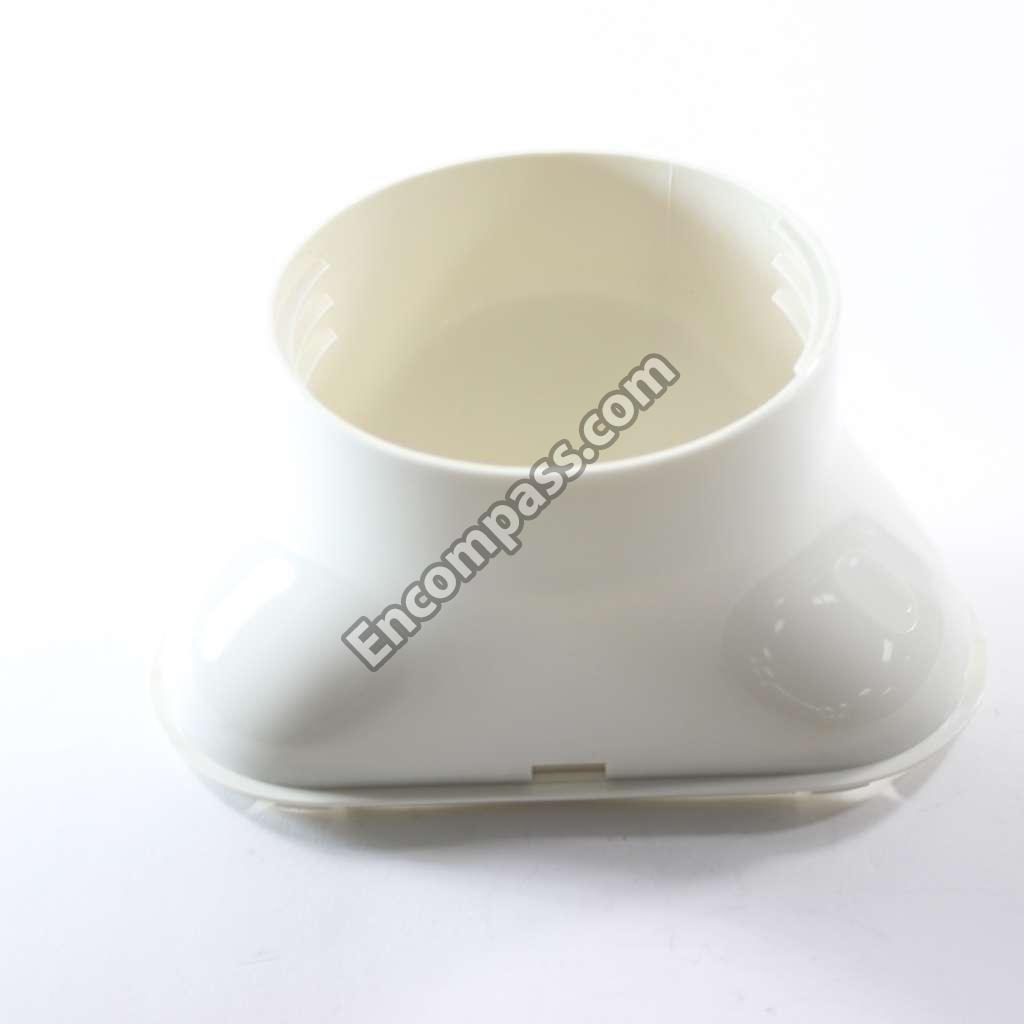

WJ86X23647 WJ86X23647 COVER
AC-1950-340 AC-1950-340 COVER
AC-3500-173 AC-3500-173 COVER
AC-1950-473 AC-1950-473 COVER
WJ71X22295 WJ71X22295 CROSS FLOW FAN
A4230-196-A-22 A4230-196-A-22 DECORATING PLATE
AC-2100-29 AC-2100-29 DISCHARGE GRILLE
WJ71X23648 WJ71X23648 DISCHARGE GRILLE ASSY
WJ71X22328 WJ71X22328 DISCHARGE GRILLE ASSY
A6210-240 A6210-240 DISCHARGE PIPE
A2553-400-02 A2553-400-02 DISPLAY BOARD
AC-1950-233 AC-1950-233 DRAIN BUCKET COVER
WJ01X23783 WJ01X23783 DRAIN PLUG
D7306-160-A-DL D7306-160-A-DL DRAIN PLUG
A3420-101 A3420-101 EVAPORATOR ASS'Y

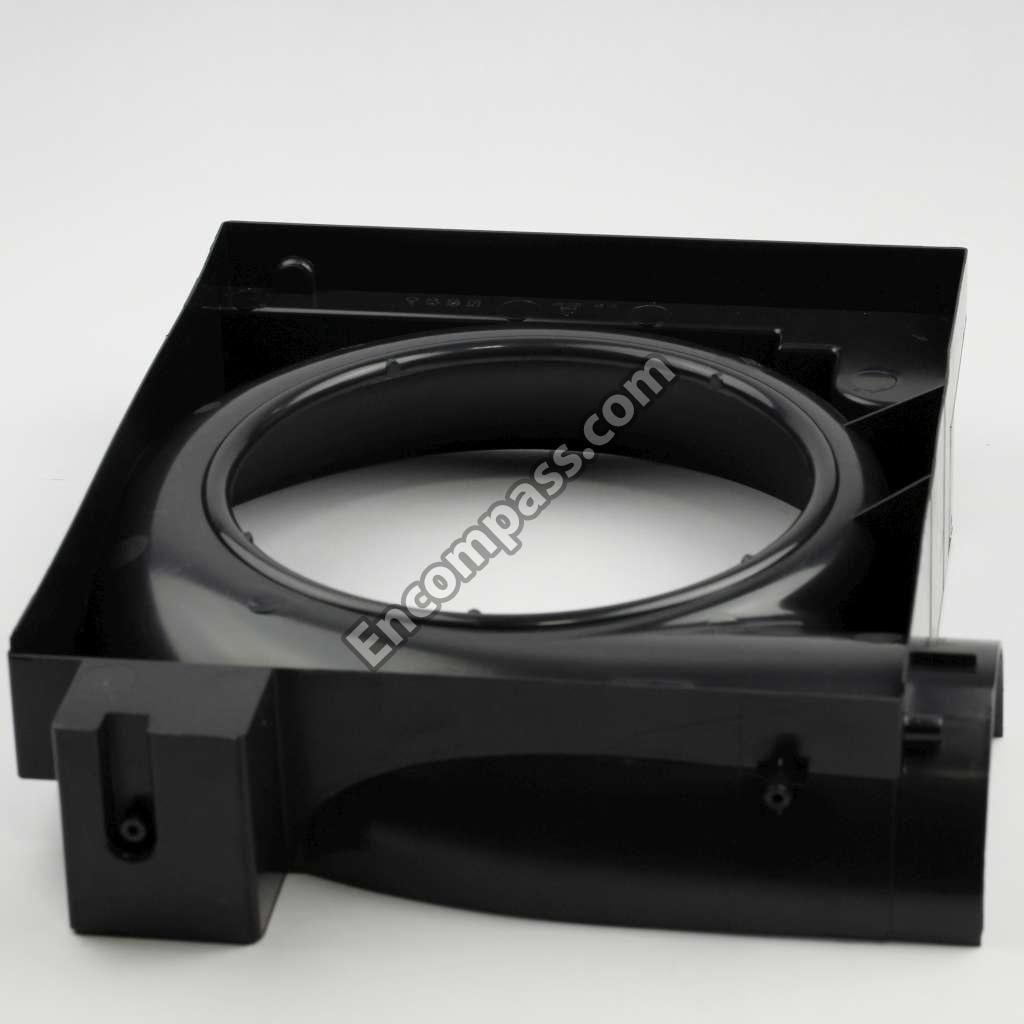

AC-3500-170 AC-3500-170 FAN CASING
AC-1480-59 AC-1480-59 FAN CASING
AC-3600-048 AC-3600-048 FAN CASING
WJ76X24142 WJ76X24142 FAN CASING
AC-4550-415 AC-4550-415 FAN MOTOR (LS-53T1-4P)

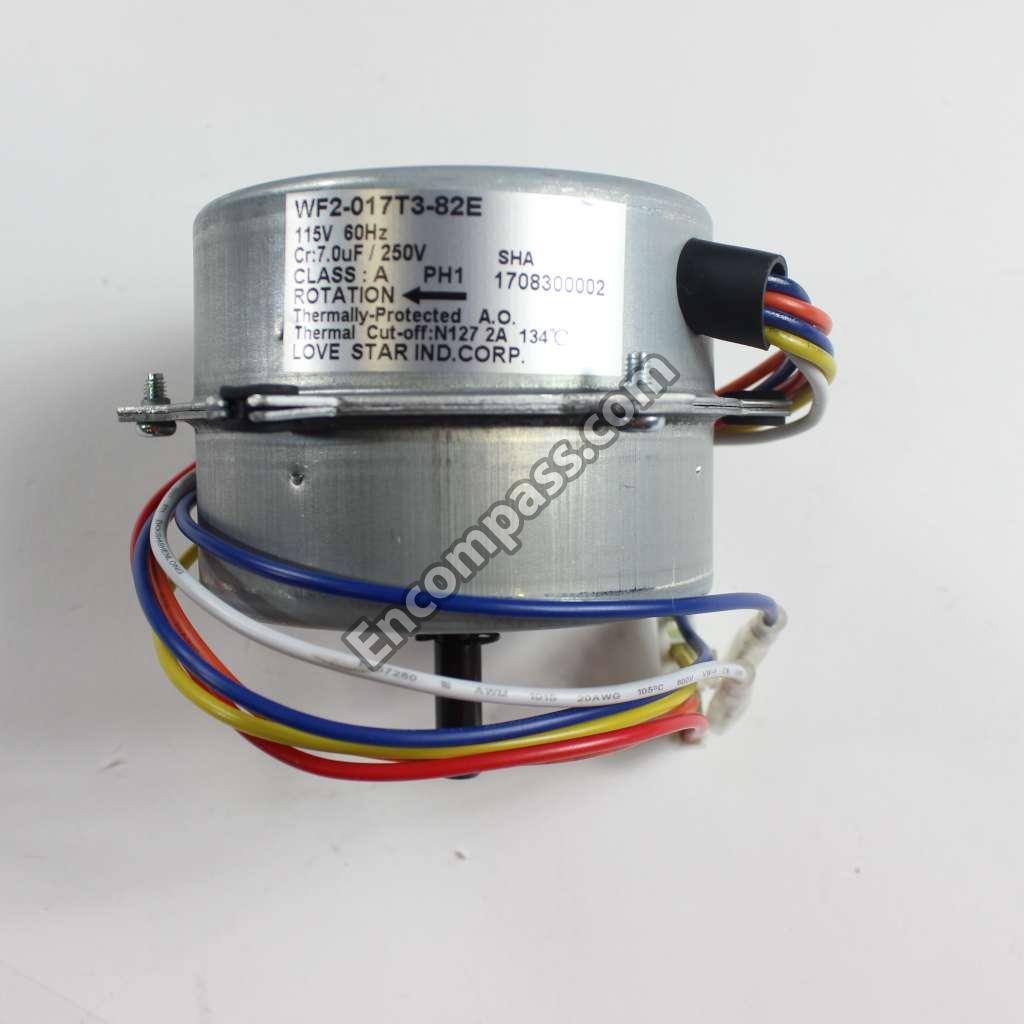

A3021-190 A3021-190 FAN MOTOR (WF2-017T3-82E)
AC-3500-167 AC-3500-167 FIXTURE
AC-3500-164 AC-3500-164 FIXTURE
AC-3500-165 AC-3500-165 FIXTURE
AC-3500-166 AC-3500-166 FIXTURE
AC-1950-351 AC-1950-351 FIXTURE
WJ71X24006 WJ71X24006 FIXTURE
AC-5310-17 AC-5310-17 FIXTURE
AC-2855-02 AC-2855-02 FLOAT
WJ43X22313 WJ43X22313 FOAM
WJ43X22296 WJ43X22296 FOAM
AC-5200-457 AC-5200-457 FRONT PANEL
WJ86X22316 WJ86X22316 HEAT EXHAUST HOSE
WJ86X22330 WJ86X22330 HEAT EXHAUST HOSE
WJ86X22315 WJ86X22315 HEAT EXHAUST HOSE
WJ86X22314 WJ86X22314 HEAT EXHAUST HOSE
WJ71X23997 WJ71X23997 INTAKE GRILLE
WJ27X22317 WJ27X22317 MICRO SWITCH
AC-5300-621 AC-5300-621 MIDDLE PLATE
WJ26X22318 WJ26X22318 PC BOARD

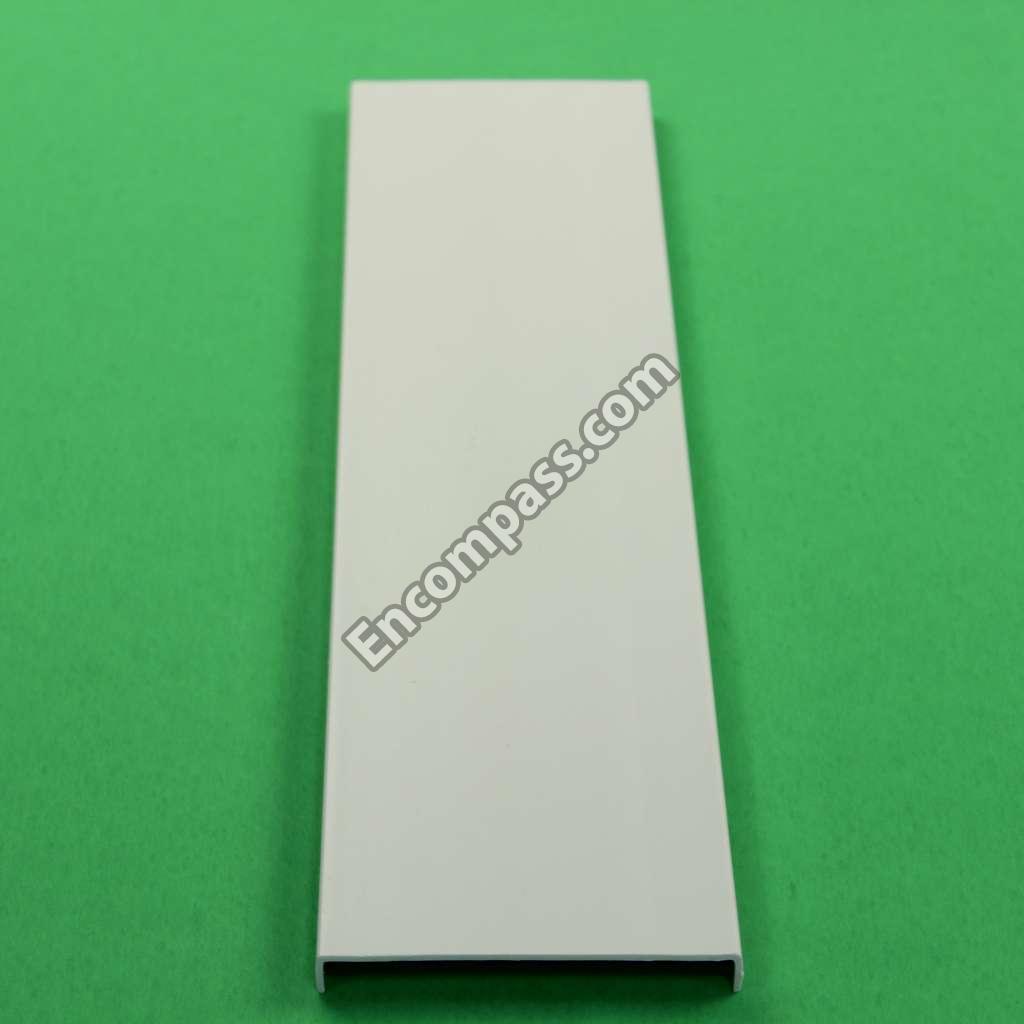

WJ76X22283 WJ76X22283 PLATE (252.5MM)
WJ76X22282 WJ76X22282 PLATE (505MM)
WJ76X22319 WJ76X22319 PLATE (505MM)
WJ35X22320 WJ35X22320 POWER SUPPLY CORD COMPLETE
A4220-080-A-DL A4220-080-A-DL REAR PANEL

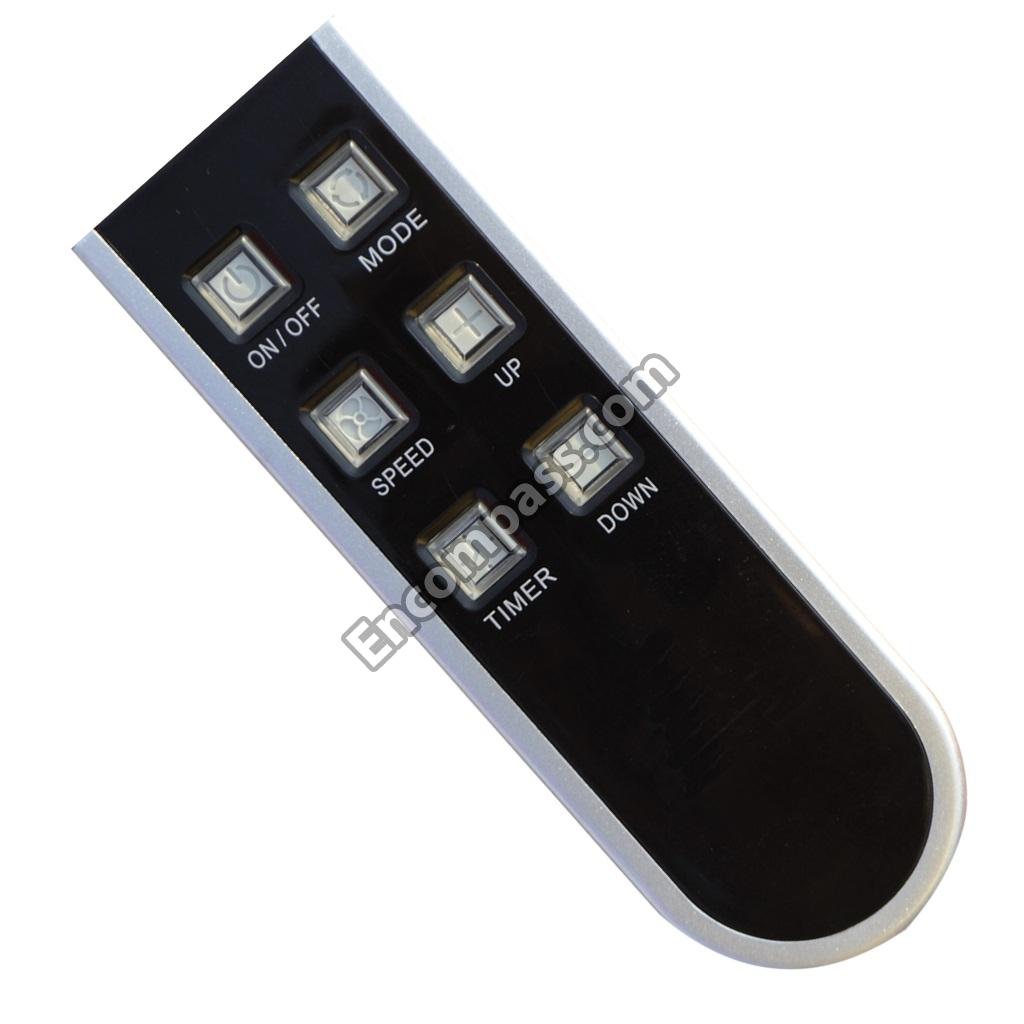

WJ26X22321 WJ26X22321 REMOTE CONTROL ASSY
A5600-200 A5600-200 RUBBER

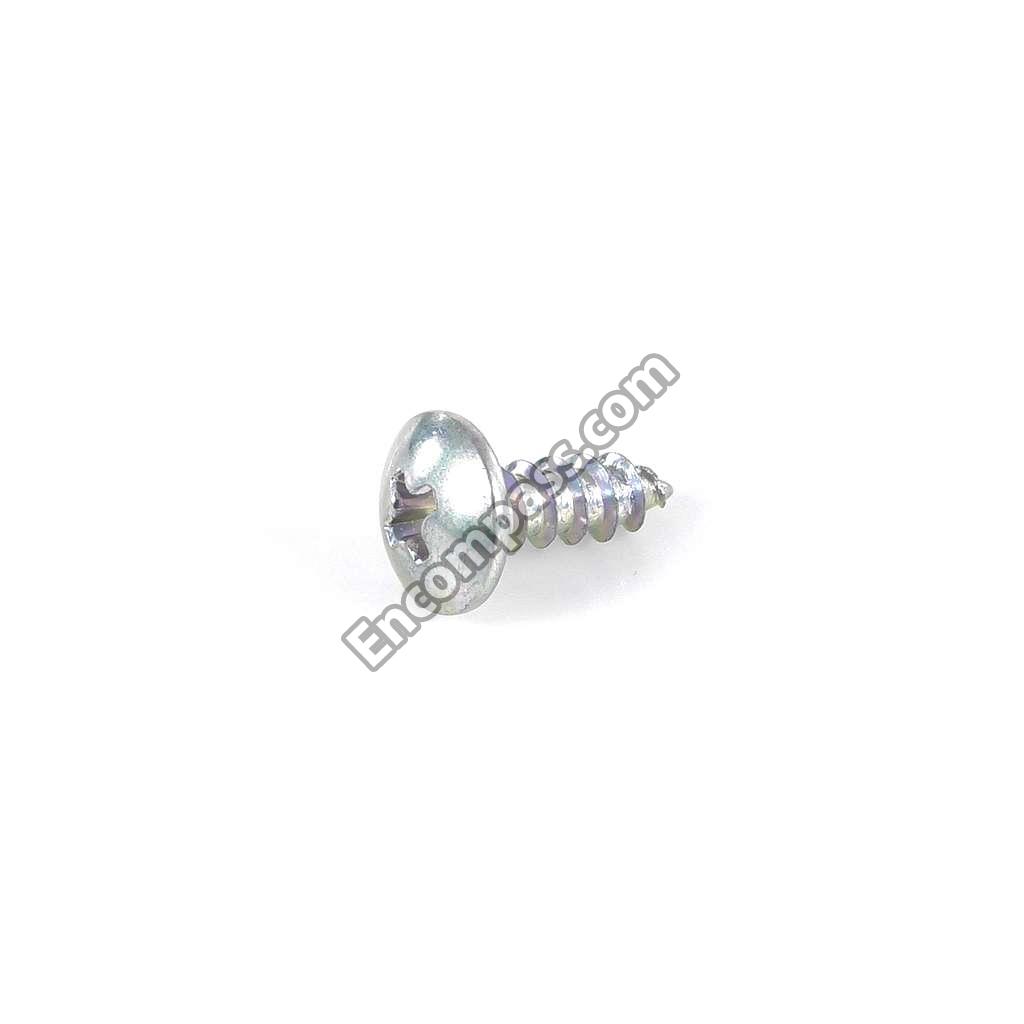

WJ01X22331 WJ01X22331 SCREW

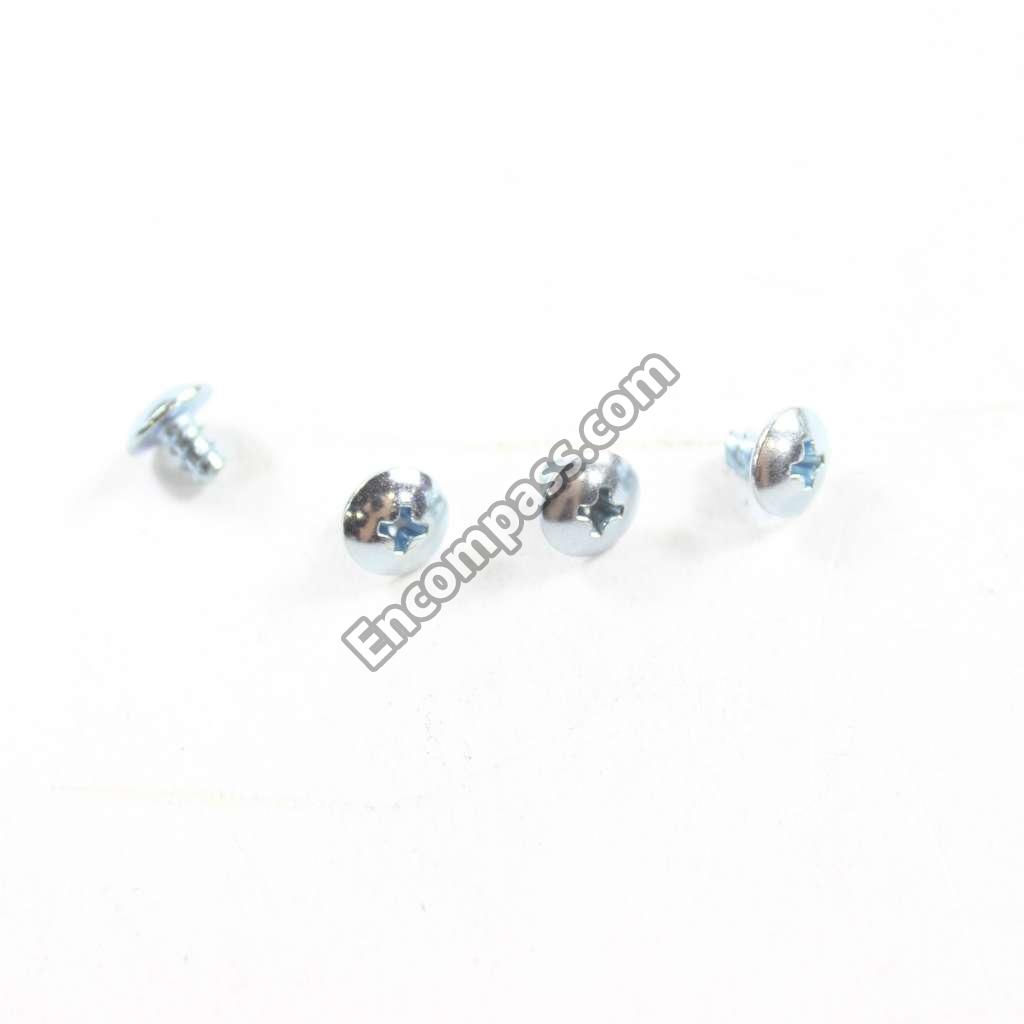

WTN4_6GFP WTN4_6GFP SCREW
WJ26X22322 WJ26X22322 SENSOR FOR ROOM TEMP
WJ01X22289 WJ01X22289 SOFT CAP
WJ01X22288 WJ01X22288 SOFT CAP
AC-6955-11 AC-6955-11 STRIKE
AC-6955-10 AC-6955-10 STRIKE
A5806-130 A5806-130 STRIKE
A6232-690 A6232-690 SUCTION PIPE
AC-4250-203 AC-4250-203 TANK LID
AC-0595-03 AC-0595-03 TERMINAL BLOCK
WJ01X22325 WJ01X22325 TURING WHEEL
A4243-990-A-HV A4243-990-A-HV VAN AIR DEFLECTOR
AC-4440-66 AC-4440-66 VAN AIR DEFLECTOR

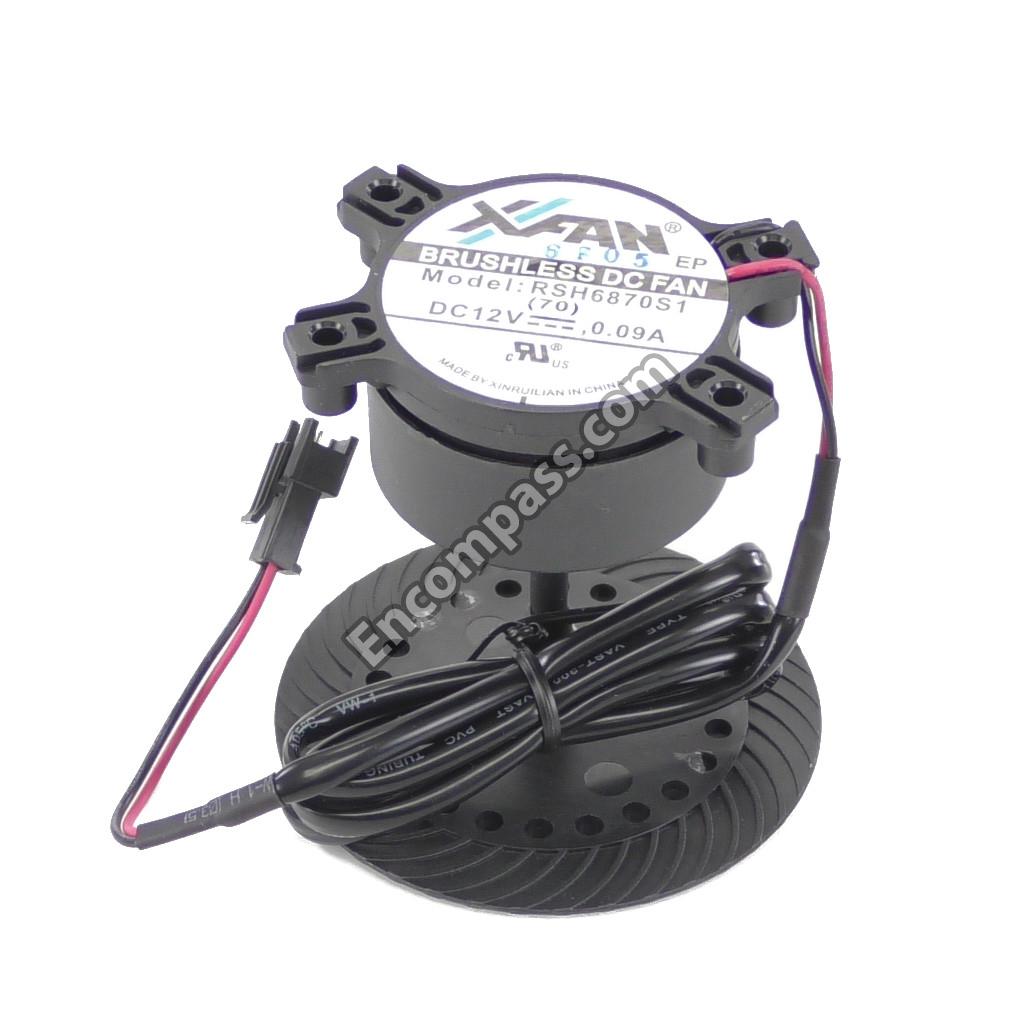

WJ94X22292 WJ94X22292 WATER MOTOR (RSH6870S1)
A6212-190 A6212-190 Y TUBE
