Model Image
Manufacturer

GE

Model Number

HPNDF13XCRP3

Description

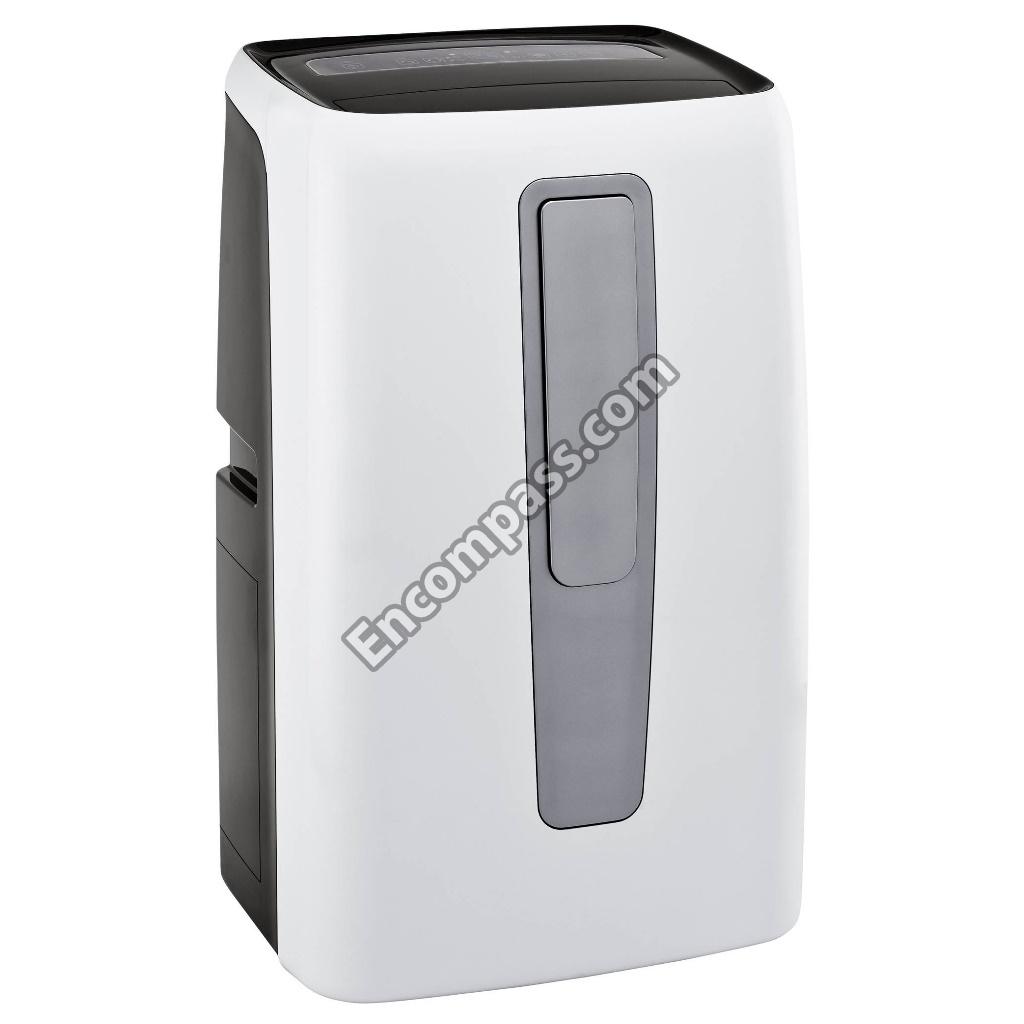

12,000 Btu Portable Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
WJ71X22298 WJ71X22298 AIR FILTER
AC-0200-36 AC-0200-36 BAR
A4805-06A-A-11 A4805-06A-A-11 BASE PAN
AC-0344-13 AC-0344-13 BEARING
WJ88X22300 WJ88X22300 BLOWER WHEEL
WJ86X23647 WJ86X23647 CAP

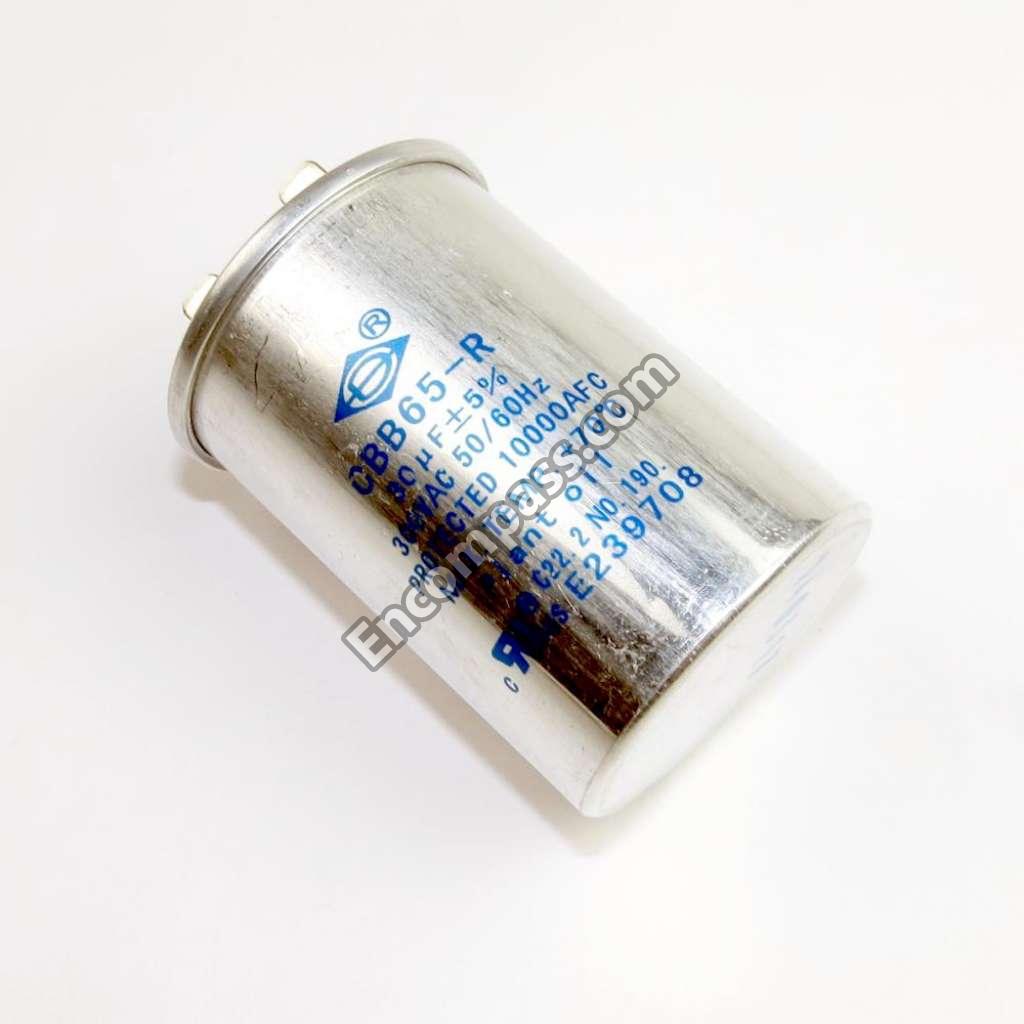

A2510-180 A2510-180 CAPACITOR(30UF/300V)FOR COMPRESSOR (11)

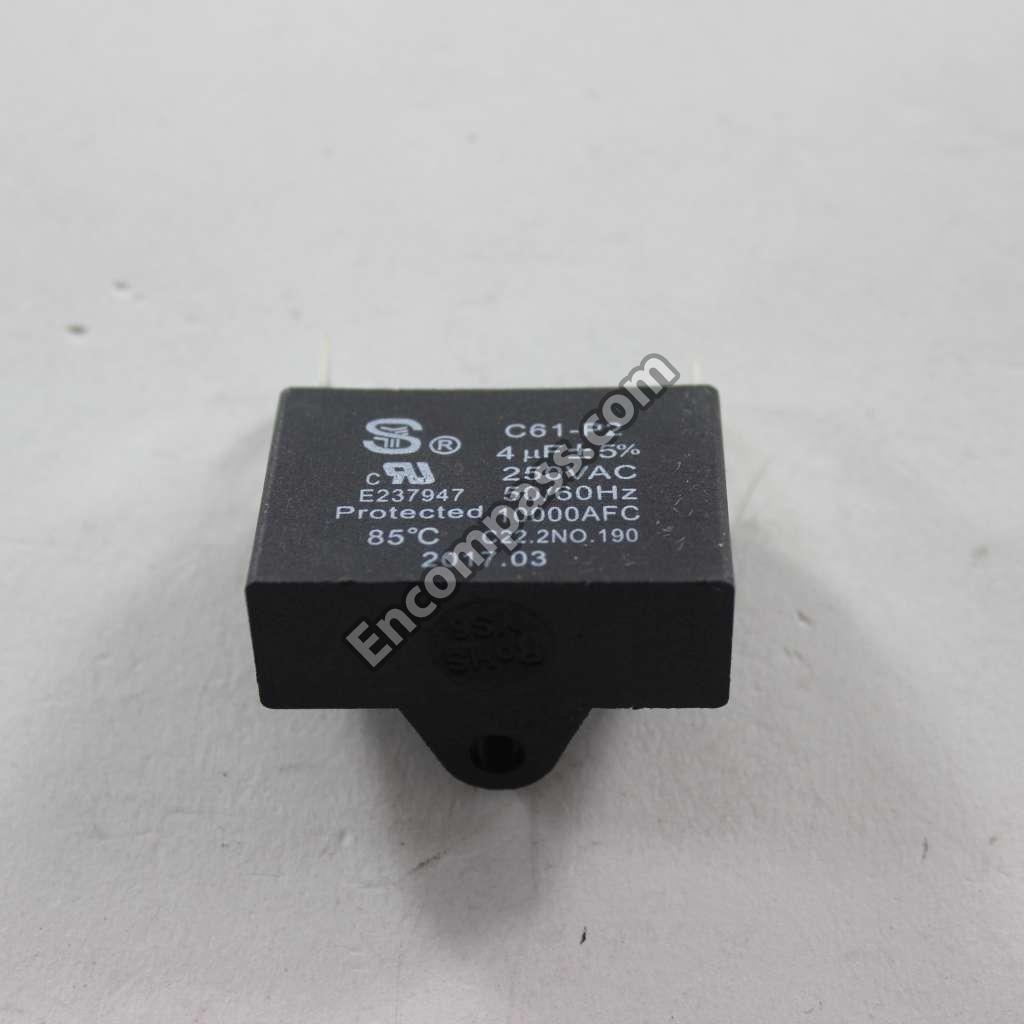

A2510-610 A2510-610 CAPACITOR(4UF/250)FOR FAN MOTOR(33)
A2510-080 A2510-080 CAPACITOR(8UF/250V)FOR FAN MOTOR(23)
A6204-470 A6204-470 CAPILARY TUBE
A3203-670 A3203-670 COMPRESSOR ASS'Y(39H092-A2)
A3423-170 A3423-170 CONDENSER ASS'Y
AC-3899-05 AC-3899-05 CONTORL PLATE
WJ53X22306 WJ53X22306 CONTROL BOARD
AC-1950-473 AC-1950-473 COVER
AC-3500-173 AC-3500-173 COVER
AC-1950-340 AC-1950-340 COVER
WJ71X22295 WJ71X22295 CROSS FLOW FAN
A4230-196-A-22 A4230-196-A-22 DECORATING PLATE
AC-2100-29 AC-2100-29 DISCHARGE GRILLE
WJ71X22328 WJ71X22328 DISCHARGE GRILLE ASS'Y
A6209-710 A6209-710 DISCHARGE PIPE

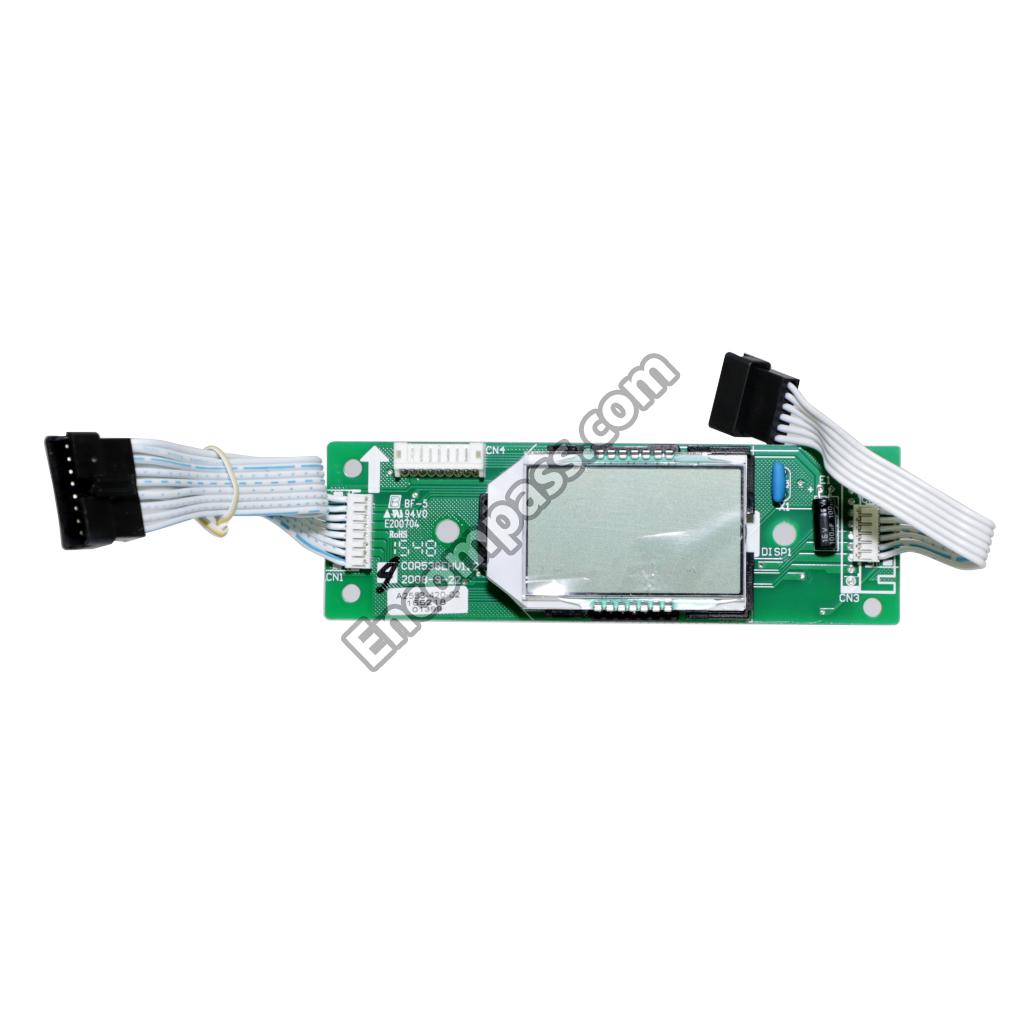

WJ26X22308 WJ26X22308 DISPLAY BOARD
AC-1950-233 AC-1950-233 DRAIN BUCKET COVER
A3419-931 A3419-931 EVAPORATOR ASS'Y
WJ76X24142 WJ76X24142 FAN CASING
AC-1480-59 AC-1480-59 FAN CASING
AC-3500-170 AC-3500-170 FAN CASING

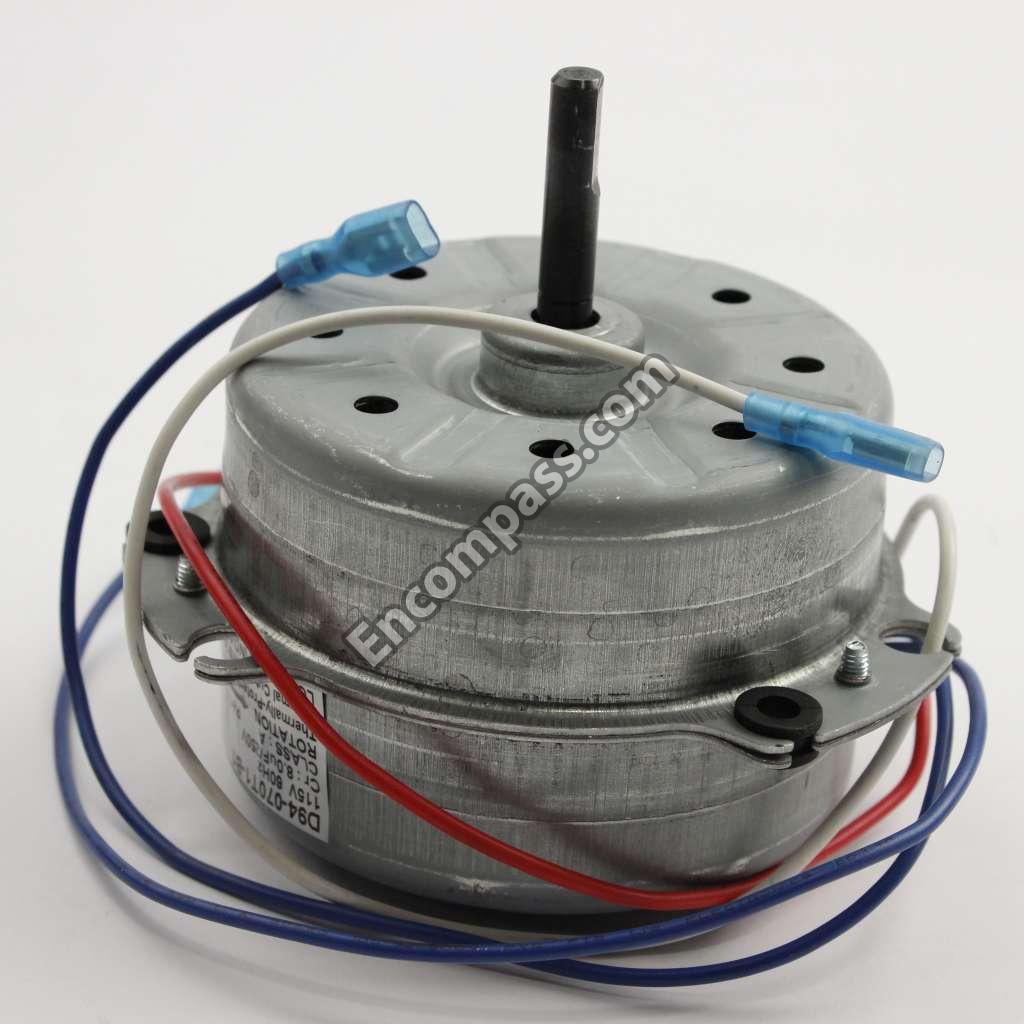

A3021-010 A3021-010 FAN MOTOR(D94-070T1-B1)
WJ98X24146 WJ98X24146 FAN MOTOR(LS-16T3-02)
WJ94X22292 WJ94X22292 FAN MOTOR(RSH6870S1)
AC-5310-17 AC-5310-17 FIX TURE
WJ71X24006 WJ71X24006 FIX TURE
AC-1950-351 AC-1950-351 FIX TURE
AC-3500-166 AC-3500-166 FIX TURE
AC-3500-165 AC-3500-165 FIX TURE
AC-3500-164 AC-3500-164 FIX TURE
AC-3500-167 AC-3500-167 FIX TURE
AC-2855-02 AC-2855-02 FLOAT
WJ43X22296 WJ43X22296 FOAM
WJ43X22313 WJ43X22313 FOAM
AC-5200-457 AC-5200-457 FRONT PANEL
WJ86X22314 WJ86X22314 HEAT EXHAUST HOSE
WJ01X23646 WJ01X23646 HEAT EXHAUST HOSE CONNECTOR
WJ85X23424 WJ85X23424 INTAKE GRILLE
WJ27X22317 WJ27X22317 MICRO SWITCH
WJ26X22318 WJ26X22318 PC BOARD
AC-5300-621 AC-5300-621 PLATE
WJ76X22319 WJ76X22319 PLATE
WJ76X22282 WJ76X22282 PLATE
WJ76X22283 WJ76X22283 PLATE
WJ01X24009 WJ01X24009 PLUG
WJ01X23783 WJ01X23783 PLUG
WJ35X22320 WJ35X22320 POWER SUPPLY CORD COMPLETE
A4220-080-A-G A4220-080-A-G REAR PANEL
WJ26X22321 WJ26X22321 REMOTE CONTROL ASS'Y
AC-3200-12 AC-3200-12 RUBBER

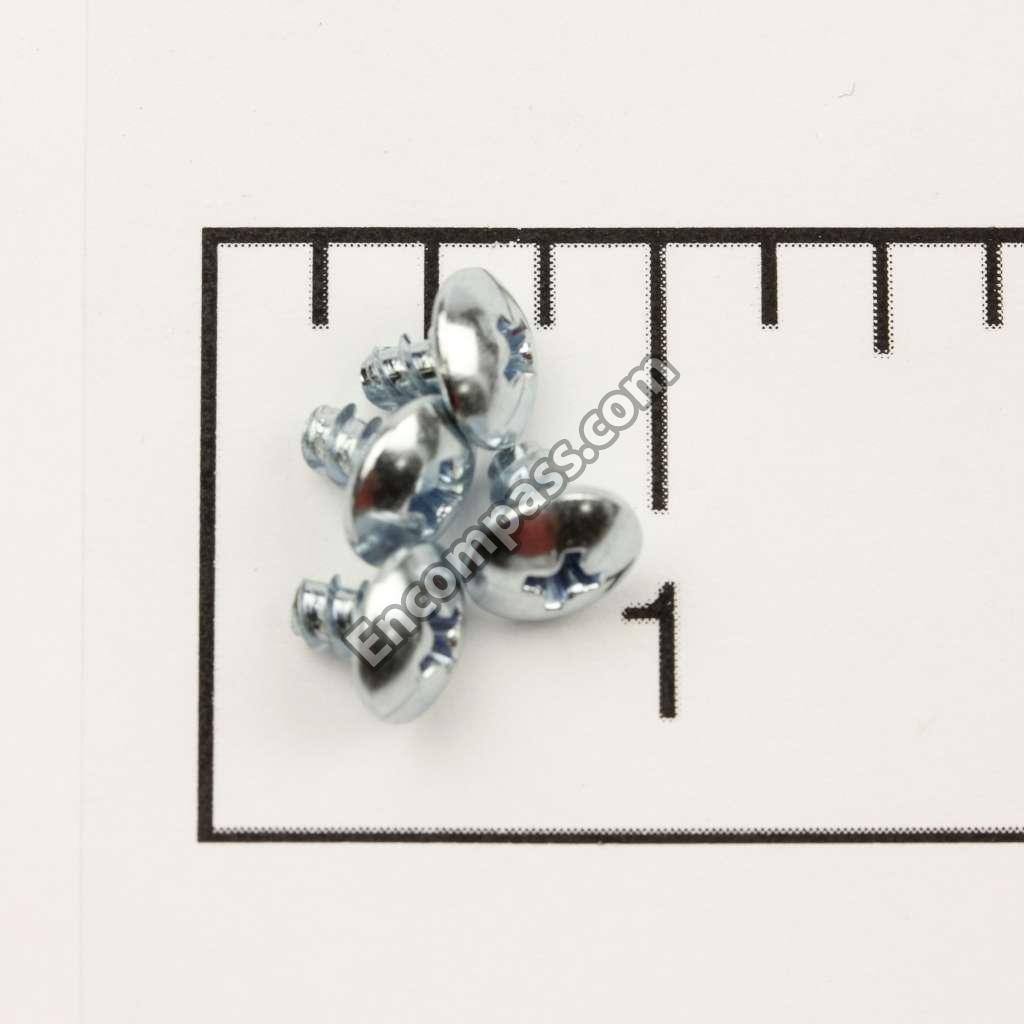

WJ01X22332 WJ01X22332 SCREW
WJ01X22331 WJ01X22331 SCREW
WJ26X22322 WJ26X22322 SENSOR(FOR INDOOR)
WJ01X22288 WJ01X22288 SOFT CAP
WJ01X22289 WJ01X22289 SOFT CAP
A5806-130 A5806-130 STRIKE
AC-6955-10 AC-6955-10 STRIKE
AC-6955-11 AC-6955-11 STRIKE
A6232-590 A6232-590 SUCTION PIPE
AC-4250-203 AC-4250-203 TANK LID
AC-0595-03 AC-0595-03 TERMINAL BLOCK
WJ01X22325 WJ01X22325 TURING WHEEL
AC-4440-66 AC-4440-66 VAN-AIR DEFLECTOR
AC-2100-30 AC-2100-30 VAN-AIR DEFLECTOR
AC-7750-293 AC-7750-293 Y TUBE
