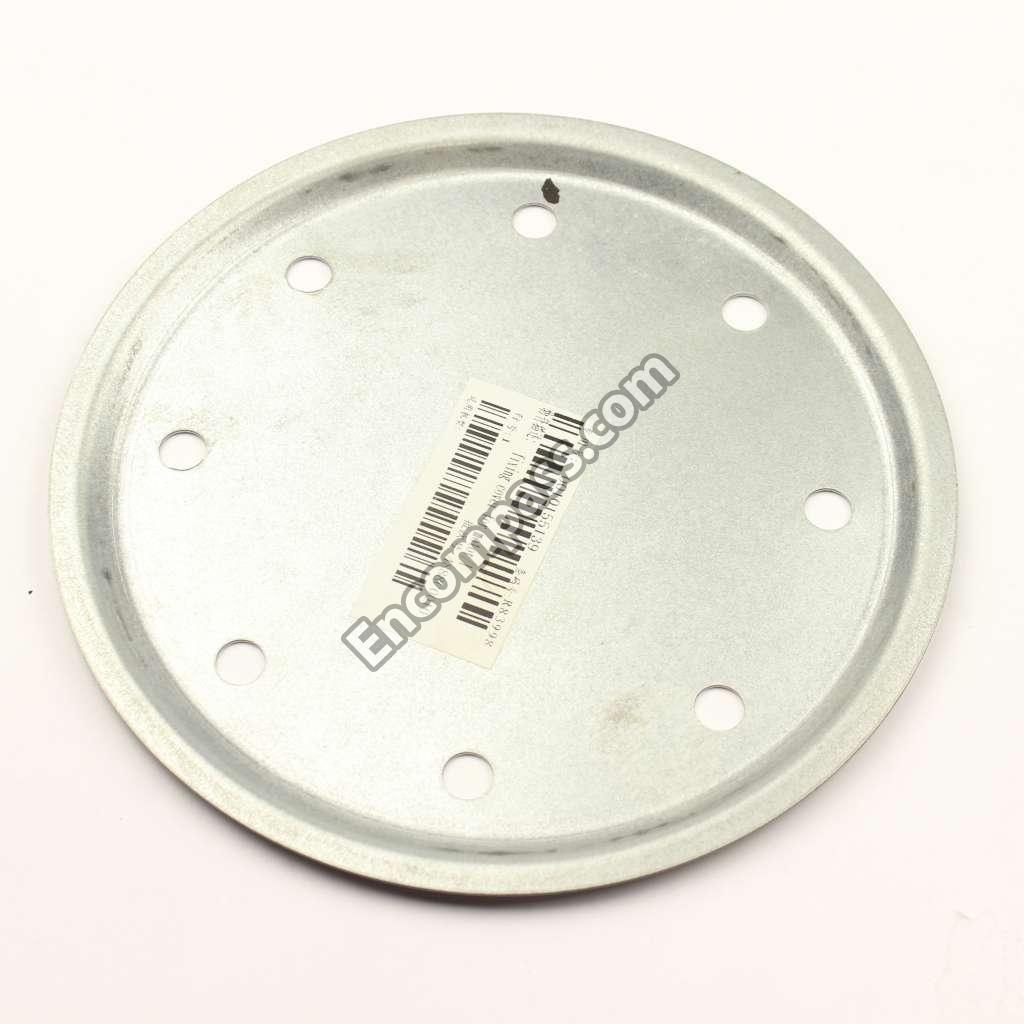

Model Image
Manufacturer

Haier

Model Number

HR24D2VAR

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0011-01 AC-0011-01 ACCUMULATOR
AC-0250-16 AC-0250-16 BASE-EARTHING
AC-1302-24 AC-1302-24 CABLE
WJ26X23803 WJ26X23803 CAPACITOR-COMPRESSOR
AC-1650-43 AC-1650-43 CLIP-CAPACITOR
AC-1650-36 AC-1650-36 CLIP-WIRE
WJ98X24054 WJ98X24054 COMPRESSOR-H21J19BAB
AC-1800-128 AC-1800-128 CONDENSER-ASSY
WJ35X24057 WJ35X24057 CONTACTOR-AC
AC-1950-276 AC-1950-276 COVER-ELECTRICAL
AC-1950-271 AC-1950-271 COVER-LOWER ELECTRIC
AC-1950-272 AC-1950-272 COVER-MOTOR
AC-1950-275 AC-1950-275 COVER-SIDE PANEL
AC-1950-273 AC-1950-273 COVER-WIRE
WJ76X24059 WJ76X24059 FAN-AXIAL
AC-3200-08 AC-3200-08 GROMMET-#3
AC-4550-253 AC-4550-253 MOTOR
AC-4720-65 AC-4720-65 NUT-TOP COVER
WJ26X24064 WJ26X24064 P.C.B.-OUTDOOR
AC-5200-381 AC-5200-381 PANEL-BOTTOM
AC-5200-382 AC-5200-382 PANEL-ELECTRICAL
AC-5200-383 AC-5200-383 PANEL-FRONT
AC-5200-384 AC-5200-384 PANEL-LEFT
AC-5200-385 AC-5200-385 PANEL-RIGHT
AC-5255-386 AC-5255-386 PIPE-AIR DISCHARGE 1
AC-5255-387 AC-5255-387 PIPE-AIR DISCHARGE 2
AC-5255-383 AC-5255-383 PIPE-AIR DISCHARGE 3
AC-5255-378 AC-5255-378 PIPE-AIR SUCTION 1
AC-5255-384 AC-5255-384 PIPE-AIR SUCTION 2
AC-5255-385 AC-5255-385 PIPE-AIR SUCTION 3
AC-5270-21 AC-5270-21 PISTON-057
AC-5270-22 AC-5270-22 PISTON-065
AC-5310-07 AC-5310-07 PLUG
WJ26X24066 WJ26X24066 SENSOR-AMBIENT TEMP
WJ26X24067 WJ26X24067 SENSOR-COIL TEMP
AC-6500-43 AC-6500-43 SHROUD-FAN
AC-7100-14 AC-7100-14 SWITCH-HIGH PRESSURE
WJ27X24068 WJ27X24068 SWITCH-LOW PRESSURE
AC-7800-63 AC-7800-63 VALVE-CHECKING (ASSY
WJ53X24044 WJ53X24044 VALVE-FOUR-WAY
AC-7800-49 AC-7800-49 VALVE-PIPE STOP
AC-7800-17 AC-7800-17 VALVE-STOP LIQUID
