Model Image
Manufacturer

Haier

Model Number

HR30C1VAR

Description

Hr30c1var:12 Seer Heat Pump Ou

Interactive Exploded View

Parts List

Part Number Description
AC-0011-02 AC-0011-02 ACCUMULATOR-LIQUID
AC-0850-76 AC-0850-76 BRACKET

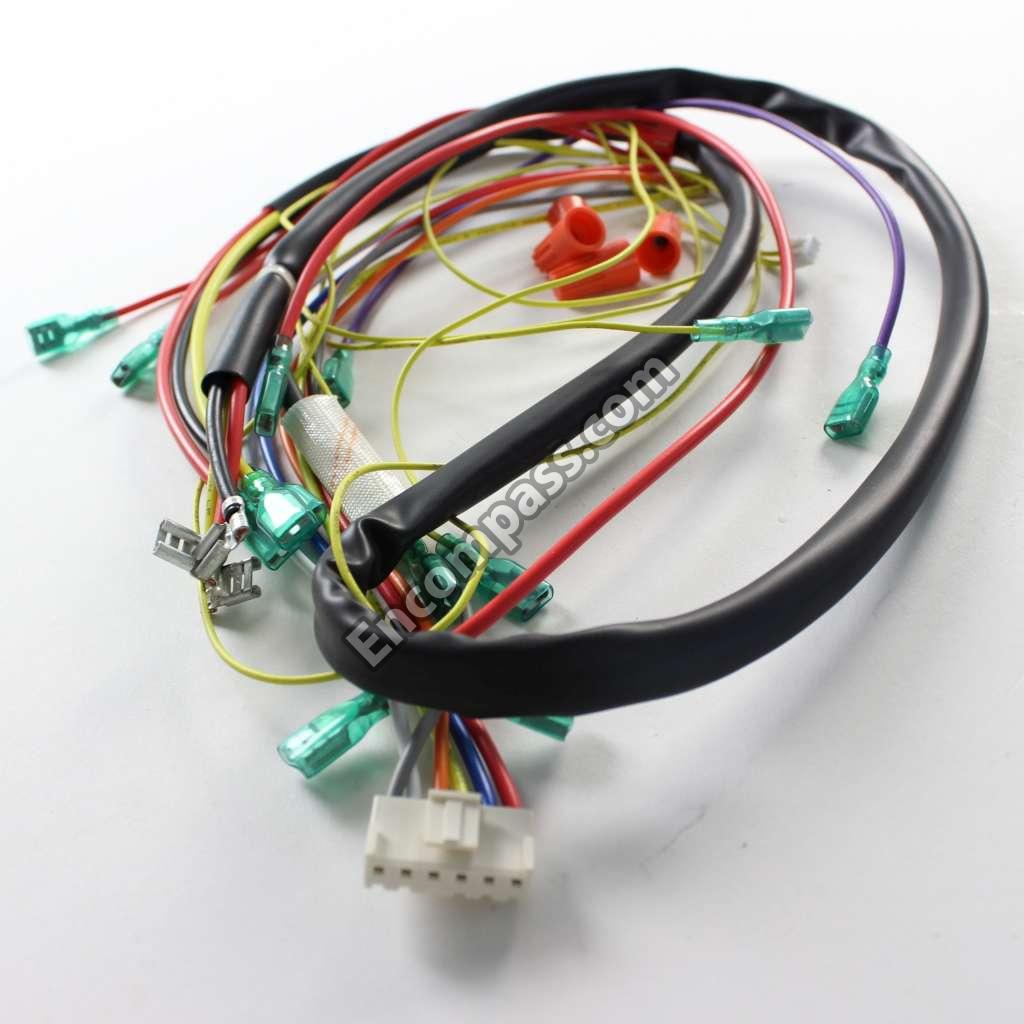

WJ35X24043 WJ35X24043 CABLE-ASSY [OUTDOOR]
AC-1302-22 AC-1302-22 CABLE-ASSY [OUTDOOR]
WJ26X23803 WJ26X23803 CAPACITOR-COMPRESSOR
AC-1650-43 AC-1650-43 CLIP-CAPACITOR
AC-1650-36 AC-1650-36 CLIP-WIRE
AC-1650-46 AC-1650-46 CLIP-WIRE
AC-1750-185 AC-1750-185 COMPRESSOR-(H20J293A
AC-1800-95 AC-1800-95 CONDENSER
AC-1858-01 AC-1858-01 CONTACTOR-AC
AC-1950-77 AC-1950-77 COVER-CONTROL BOX
AC-2015-187 AC-2015-187 CUSHION-#1
AC-2015-186 AC-2015-186 CUSHION-#2
AC-2400-04K AC-2400-04K DRIER-FILTER KIT
AC-3200-10 AC-3200-10 GROMMET
AC-3200-08 AC-3200-08 GROMMET-#3
WJ26X24064 WJ26X24064 P.C.B.-OUTDOOR
AC-5150-33 AC-5150-33 PAN-BOTTOM ASSY.
AC-5200-317 AC-5200-317 PANEL-ACCESS
AC-5255-275 AC-5255-275 PIPE-AIR INLET
AC-5255-304 AC-5255-304 PIPE-AIR RETURN
AC-5255-306 AC-5255-306 PIPE-AIR RETURN
AC-5255-277 AC-5255-277 PIPE-AIR RETURN 2
AC-5255-254 AC-5255-254 PIPE-DISCHARGE (ASSY
AC-5270-03 AC-5270-03 PISTON
AC-5270-15 AC-5270-15 PISTON-081
AC-5300-206 AC-5300-206 PLATE-LEFT
AC-5300-207 AC-5300-207 PLATE-RIGHT
AC-5310-07 AC-5310-07 PLUG
AC-6150-53 AC-6150-53 SCREW-W/WASHER
AC-6190-08 AC-6190-08 SEAL-FOR DRIER KIT
WJ26X24066 WJ26X24066 SENSOR-AMBIENT TEMP
WJ26X24067 WJ26X24067 SENSOR-COIL TEMP
AC-7100-14 AC-7100-14 SWITCH-HIGH PRESSURE
WJ27X24068 WJ27X24068 SWITCH-LOW PRESSURE
AC-7800-63 AC-7800-63 VALVE-CHECKING (ASSY
WJ53X24044 WJ53X24044 VALVE-FOUR-WAY
AC-7800-17 AC-7800-17 VALVE-STOP LIQUID
