Model Image
Manufacturer

Haier

Model Number

HR60D1VAR

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0011-02 AC-0011-02 ACCUMULATOR-LIQUID
AC-0850-98 AC-0850-98 BRACKET
AC-0850-76 AC-0850-76 BRACKET
AC-0850-47 AC-0850-47 BRACKET-HEAT EXCHANG
AC-0850-39 AC-0850-39 BRACKET-HEAT EXCHANG

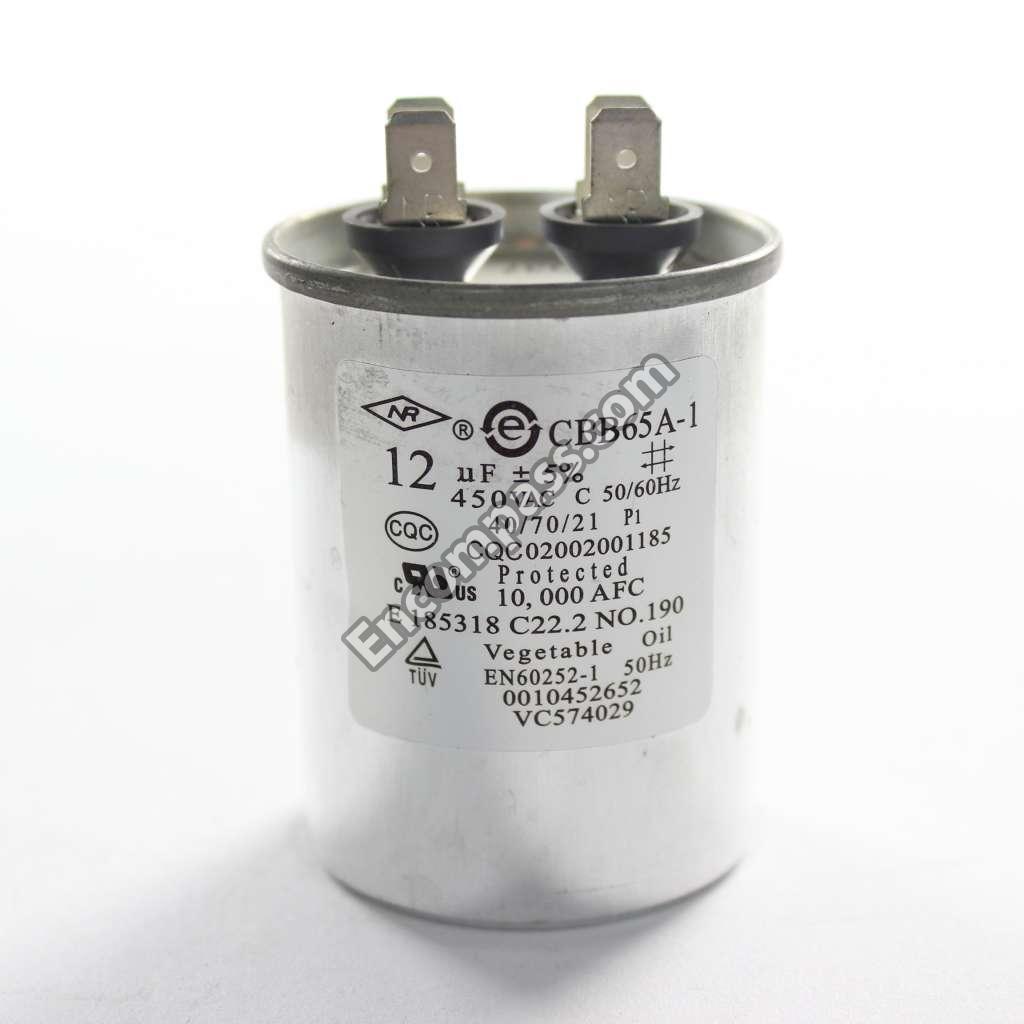

AC-1400-228 AC-1400-228 CAPACITOR-COMPRESSOR
AC-1400-79 AC-1400-79 CAPACITOR-FAN MOTOR
AC-1480-19 AC-1480-19 CASING
AC-1650-43 AC-1650-43 CLIP-CAPACITOR
AC-1650-36 AC-1650-36 CLIP-WIRE
AC-1650-46 AC-1650-46 CLIP-WIRE

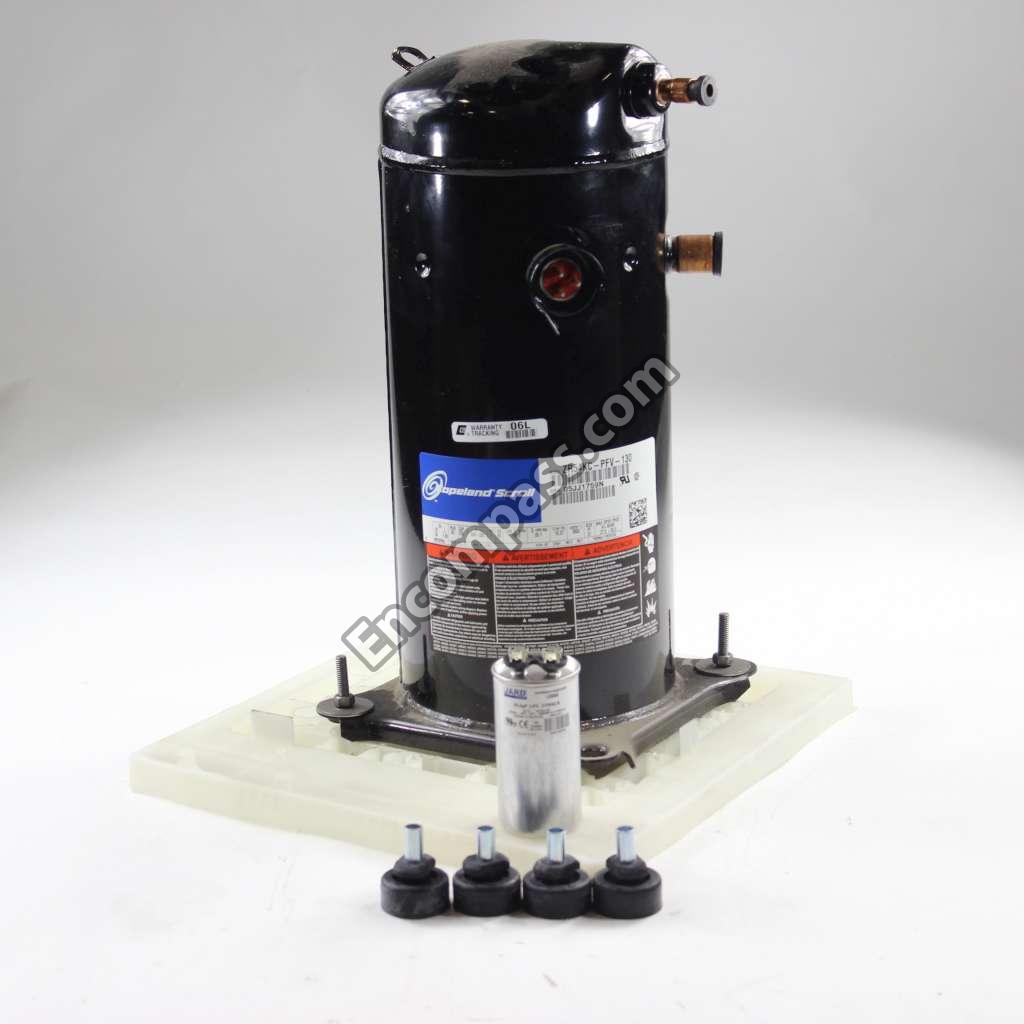

AC-1750-295K AC-1750-295K COMPRESSOR-COMPRESSO
AC-1858-02 AC-1858-02 CONTACTOR-AC
AC-1950-77 AC-1950-77 COVER-CONTROL BOX
AC-1950-227 AC-1950-227 COVER-TOP
AC-2015-187 AC-2015-187 CUSHION-#1
AC-2015-186 AC-2015-186 CUSHION-#2
AC-2400-03 AC-2400-03 DRIER
WJ73X24045 WJ73X24045 FAN BLADE 02/14/12
AC-3150-74 AC-3150-74 GRILL
AC-3200-10 AC-3200-10 GROMMET
AC-3200-08 AC-3200-08 GROMMET-#3

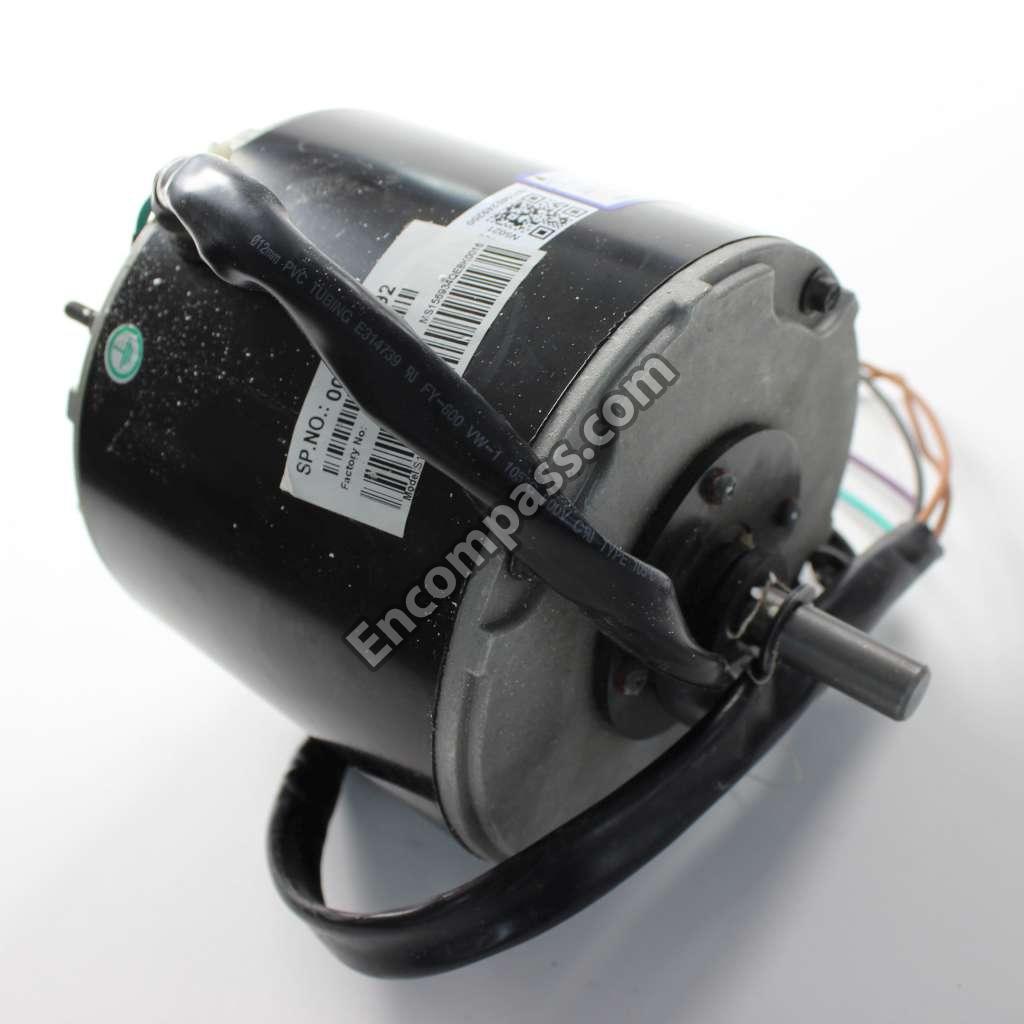

WJ94X24062 WJ94X24062 MOTOR-FAN
WJ26X24064 WJ26X24064 P.C.B.-OUTDOOR
AC-5150-33 AC-5150-33 PAN-BOTTOM ASSY.
AC-5200-136 AC-5200-136 PANEL-ACCESS
AC-5255-270 AC-5255-270 PIPE-AIR INLET
AC-5255-272 AC-5255-272 PIPE-AIR RETURN
AC-5255-273 AC-5255-273 PIPE-AIR RETURN
AC-5255-278 AC-5255-278 PIPE-AIR RETURN 3
AC-5255-293 AC-5255-293 PIPE-CONNECTING
AC-5270-15 AC-5270-15 PISTON-081
AC-5310-07 AC-5310-07 PLUG
AC-6150-52 AC-6150-52 SCREW
WJ26X24066 WJ26X24066 SENSOR-AMBIENT TEMP
WJ26X24067 WJ26X24067 SENSOR-COIL TEMP
AC-7100-14 AC-7100-14 SWITCH-HIGH PRESSURE
WJ27X24068 WJ27X24068 SWITCH-LOW PRESSURE
AC-7800-63 AC-7800-63 VALVE-CHECKING (ASSY
AC-7800-50 AC-7800-50 VALVE-PIPE STOP
AC-7800-17 AC-7800-17 VALVE-STOP LIQUID
