Manufacturer
Haier
Model Number
HRT18R1AWW
Description
18.1-cu.-ft. Top Mount Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

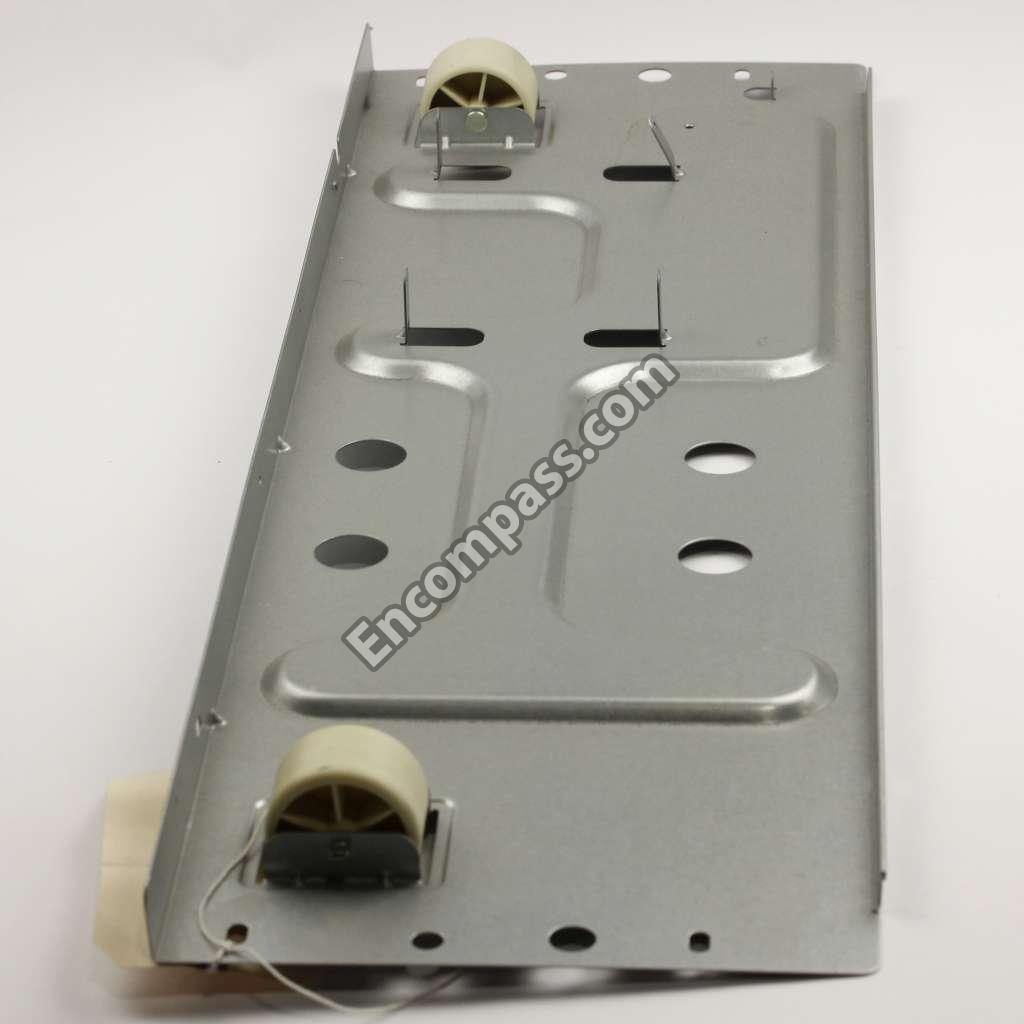

18 COMPRESSOR BASE ASSEMBLY |
|
|

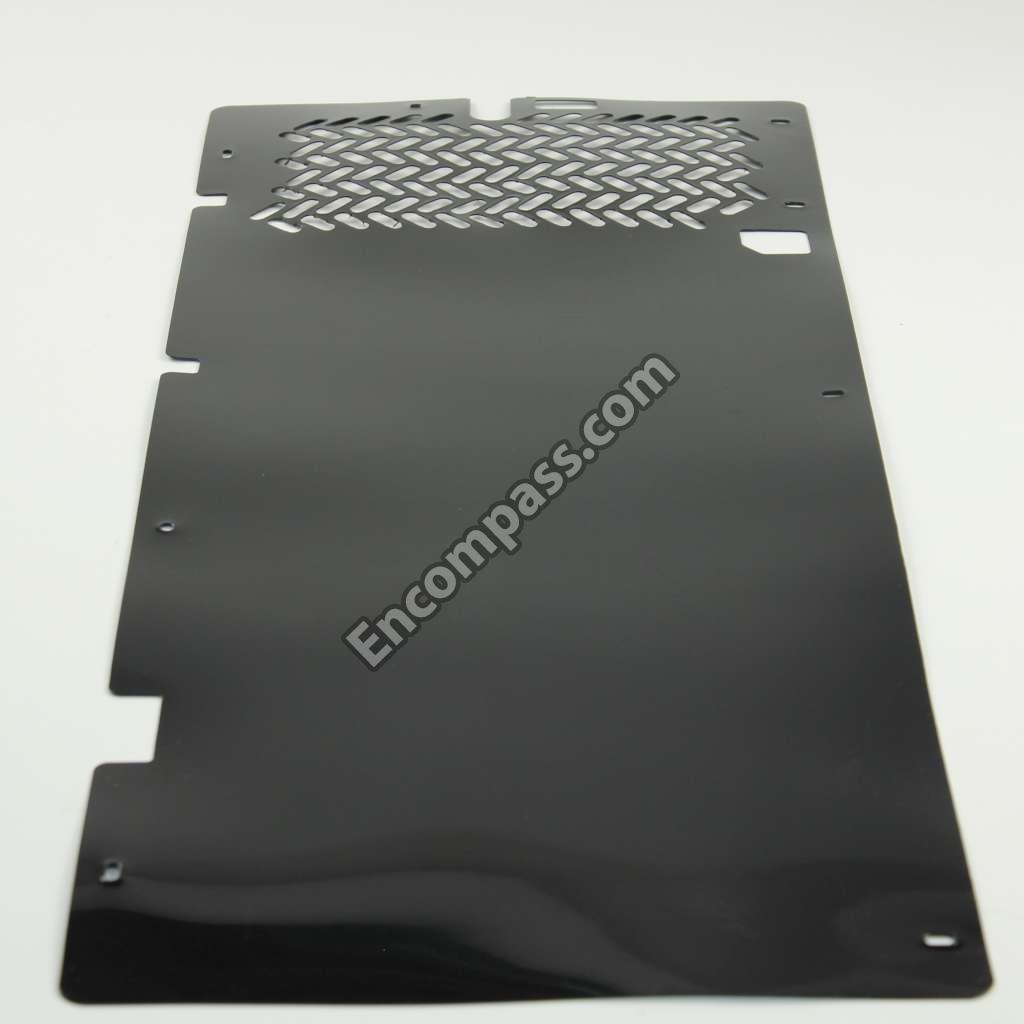

18 COMPRESSOR COVER |
|
|
18 CRISPER BIN OPAQUE |
|
|

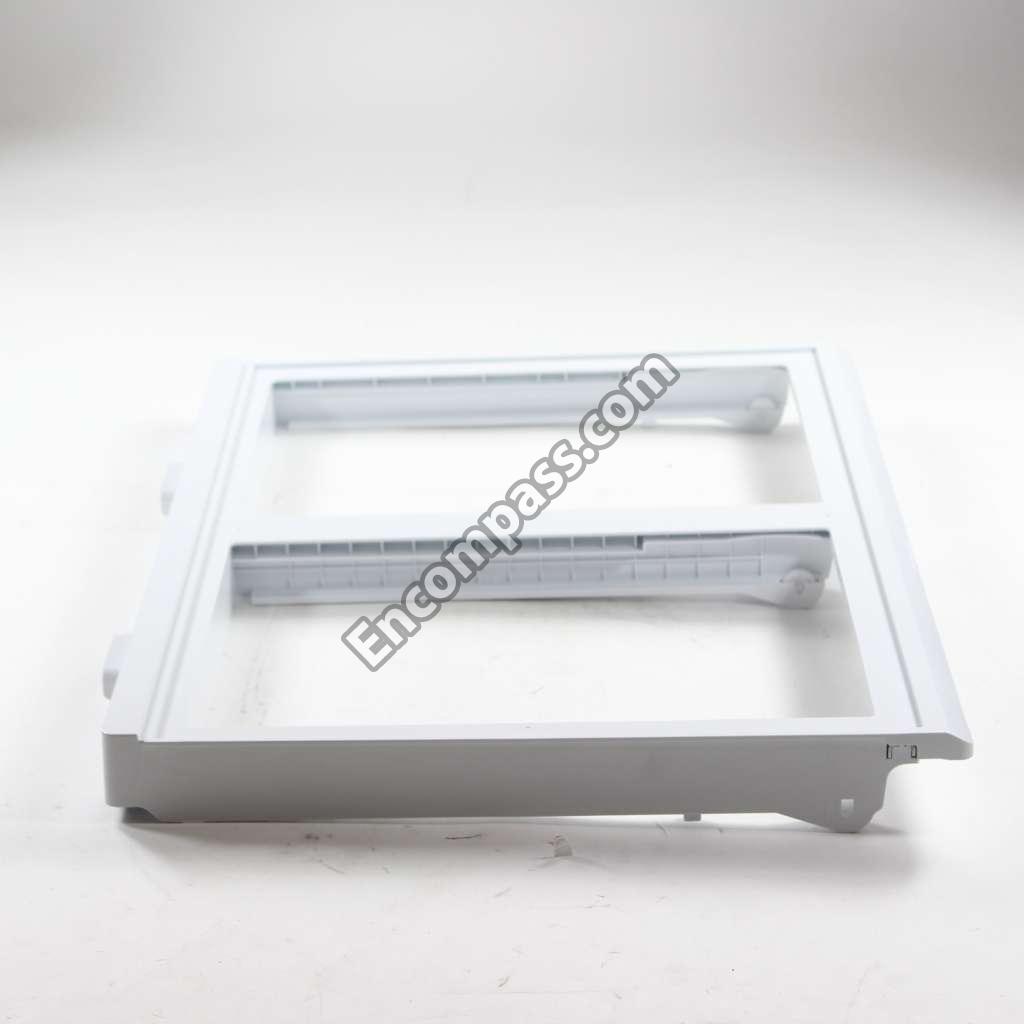

18 CRISPER COVER ASSEMBLY - 2015 |
|
|

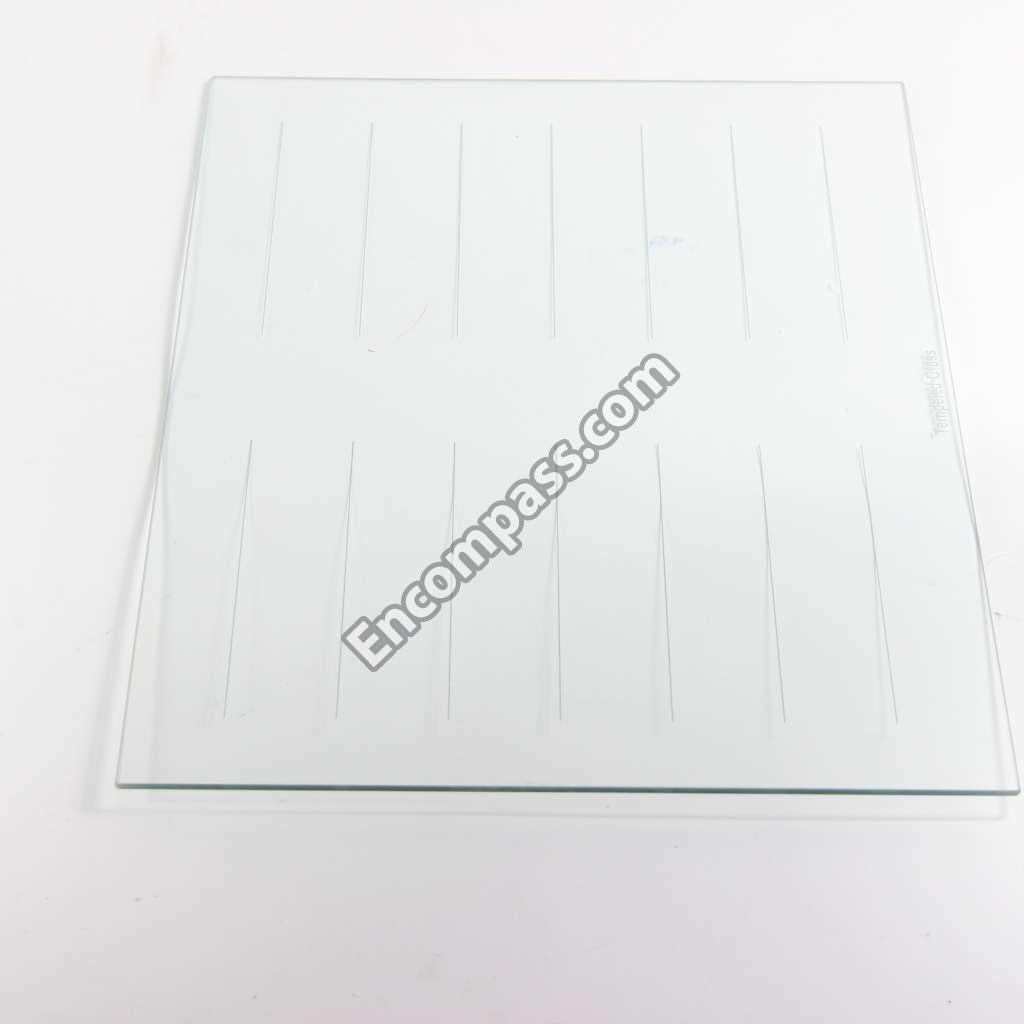

18 CRISPER GLASS |
|
|
18 DAIRY LID CLEAR |
|
|
18 EVAP/HEATER ASSEMBLY |
|
|
18 EVAPORATOR COVER W/ SEAL |
|
|
18 EVAPORATOR DRIP PAN |
|
|
18 F/W FF WIRE SHELF - CHROME |
|
|
18 F/W FZ WIRE SHELF - CHROME |
|
|
18 FF DOOR GALLON BIN WHITE |
|
|
18 FF DOOR WHITE TEXTURED FW |
|
|

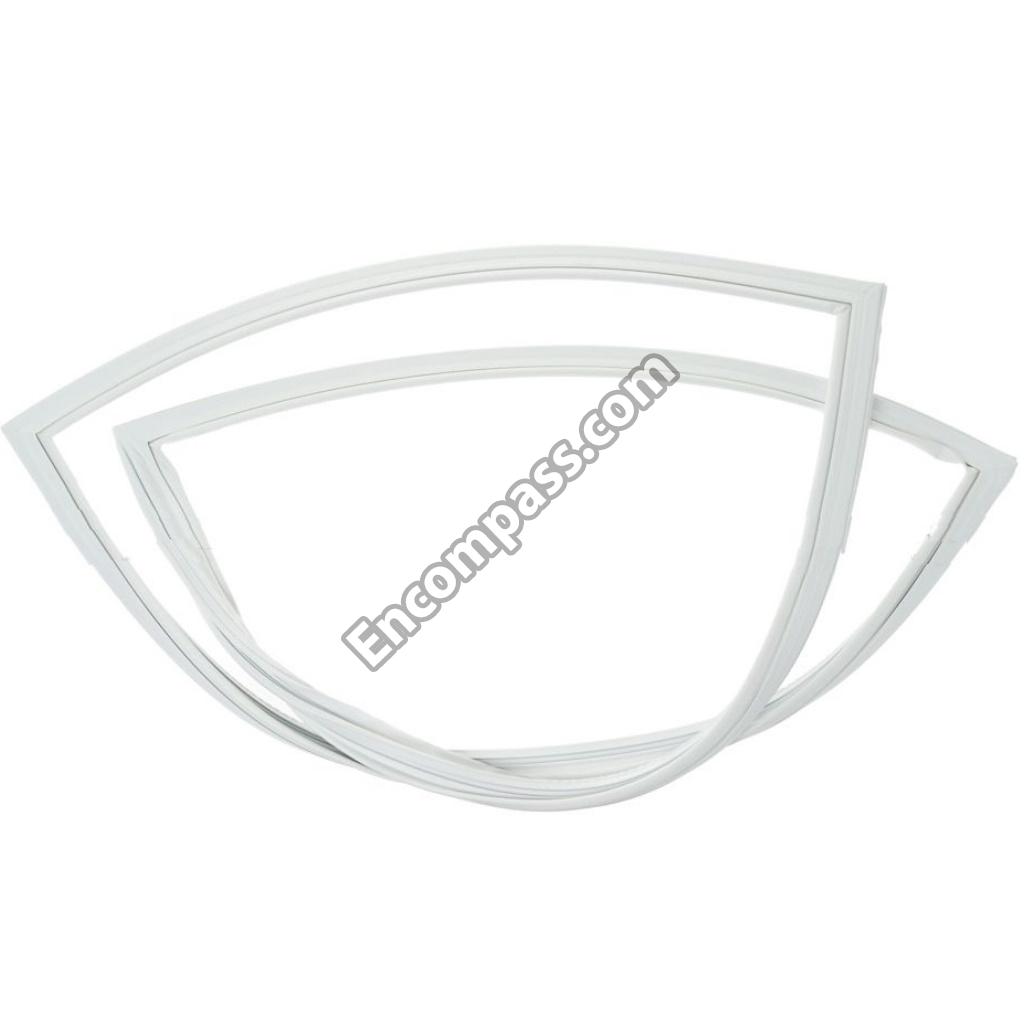

18 FF GASKET WHITE |
|
|
18 FZ DOOR RACK WHITE |
|
|
18 FZ DOOR WHITE TEXTURED FW |
|
|
18 FZ GASKET WHITE |
|
|
18 KICKPLATE WHITE |
|
|
18/21 FF/FZ DOOR RACK WHITE |
|
|
180V CAPACITOR |
|
|
ADAPTIVE DEFROST CONTROL |
|
|
BALE STRAP |
|
|
BOTTOM HINGE ASSY--WHITE |
|
|
BOTTOM HINGE UNPAINTED |
|
|
CENTER HINGE PIN |
|
|
CENTER HINGE SHIM |
|
|
CENTER HINGE UNPAINTED |
|
|
CIRCULAR CONDENSER W/ SCREWS |
|
|
COIL COVER PLUG |
|
|
COLD CONTROL HARNESS SOCKET |
|
|
COLD CONTROL HEAT SHIELD |
|
|
COLD CONTROL HOUSING - 2015 |
|
|
COLD CONTROL KNOB |
|
|
COMPRESSOR JUMPER CABLE |
|
|
COMPRESSOR WASHER |
|
|
CONDENSER FAN BLADE |
|
|
CONDENSER FAN BRACKET |
|
|
CONDENSER MOTOR |
|
|
CRISPER COVER IDLER WHEEL |
|
|
CRISPER HUMIDITY SLIDE - LEFT |
|
|
CRISPER HUMIDITY SLIDE - RIGHT |
|
|
DEFROST THERMOSTAT |
|
|
DOOR CAP LEFT CORNER WHITE |
|
|
DOOR CAP RIGHT CORNER WHITE |
|
|
DOOR SCREW PLUG WHITE |
|
|
DOOR THIMBLE WHITE |
|
|
DRAIN PAN |
|
|
DRAIN TUBE EXTENSION |
|
|
DRIER |
|
|
EM3Z60HLT COMPRESSOR |
|
|
EVAPORATOR COVER SCREW/WASHER |
|
|
EVAPORATOR MOTOR - AC |
|
|
EVAPORATOR MOTOR FAN BLADE |
|
|
EVAPORATOR MOTOR INNER BRACKET - AC |
|
|
EVAPORATOR MOTOR JUMPER WIRE |
|
|
EVAPORATOR MOTOR OUTER BRACKET - AC |
|
|
FAN TOWER ASSEMBLY - 2015 |
|
|
FAN TOWER KNOB |
|
|
FF DOOR STOP UNPAINTED |
|
|
FZ DOOR STOP UNPAINTED |
|
|
GROUND SCREW #8-32 X 3/8" |
|
|
GROUND SCREW STAR WASHER |
|
|
GROUND WIRE |
|
|
HANDLE WHITE 2015 |
|
|
HINGE PIN WASHER |
|
|
HITCH PIN |
|
|
ICE MAKER SOCKET COVER |
|
|
IM DEFROST CABLE |
|
|
IM POWER CORD |
|
|
KIT-AIR CHUTE COLD CONTROL |
|
|
LEFT FRONT ROLLER ASSEMBLY |
|
|
LEVELING LEG |
|
|
LIGHT BULB 40W |
|
|
LIGHT SWITCH |
|
|
NAME BADGE 2015 |
|
|
RIGHT FRONT ROLLER ASSEMBLY |
|
|
SCREW #8 X 3/8" |
|
|
SCREW #8 X 5/8" |
|
|
SCREW #8 X 9/16" |
|
|
SCREW #8-32 X 3/8" |
|
|
SCREW 1/4" X 3/4" |
|
|
SCREW 3.9MM X 11MM |
|
|
SCREW 3.9MM X 16MM |
|
|
SCREW DOVE TAIL |
|
|
SCREW M6 X 16MM |
|
|
SCREW PH ST 3.9X19 |
|
|
SCREW ST T15 M5X16 |
|
|
SINGLE LIGHT SOCKET |
|
|
STRAIN RELIEF POWER CORD |
|
|
SUCTION CONNECTION TUBE |
|
|
THERMOSTAT |
|
|
THERMOSTAT SLEEVE |
|
|
THIMBLE PLUG WHITE |
|
|
TOP HINGE |
|
|
TOP HINGE COVER WHITE |
|
|
TSD W/O BALE STRAP |
|
|
WASHERS |
