Model Image
Manufacturer

Haier

Model Number

HRTS18SADB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RF-0150-08 RF-0150-08 BAFFLE-CONDENSER FAN
RF-0500-59 RF-0500-59 BIN-1 (FULL WIDTH) B
RF-0550-21 RF-0550-21 BLADE-CONDENSER
WR14X29896 WR14X29896 BRACKET-EVAP FAN [A]
WR14X29891 WR14X29891 BRACKET-EVAP FAN [B]
WR02X27461 WR02X27461 CAP-DOOR (BLACK/LEFT
WR02X27460 WR02X27460 CAP-DOOR (BLACK/RIGH
WR87X27279 WR87X27279 CAPACITOR 12MFD
WR02X27362 WR02X27362 CASTER-LEFT FRONT
WR02X27363 WR02X27363 CASTER-RIGHT FRONT
WR01X29897 WR01X29897 CLIP
RF-1650-08 RF-1650-08 CLIP-CABLE
RF-1650-09 RF-1650-09 CLIP-CONDENSER
WR01X29822 WR01X29822 CLIP-HUMIDITY
WR87X27283 WR87X27283 COMPRESSOR - EGX70HL
RF-1900-111 RF-1900-111 CORD-CORD
RF-1950-696 RF-1950-696 COVER
RF-1950-252 RF-1950-252 COVER-BULB
RF-1950-218 RF-1950-218 COVER-SCREW HOLE
WR13X27459 WR13X27459 COVER-TOP HINGE BLAC
WR09X29895 WR09X29895 DEFROST HEATER
RF-2260-03 RF-2260-03 DIVIDER-SHELF PARTIT
RF-2300-492 RF-2300-492 DOOR-FZ BLACK
RF-2300-491 RF-2300-491 DOOR-RF
WR87X27294 WR87X27294 DRIER
WR01X27675 WR01X27675 FOOT-ADJUSTABLE
WR14X29856 WR14X29856 GASKET - FREEZER DOO
RF-3100-111 RF-3100-111 GASKET - REFRIG DOOR
WR09X29895 WR09X29895 HEATER - DEFROST
WR13X29812 WR13X29812 HINGE-BOTTOM
WR13X29903 WR13X29903 HINGE-TOP
RF-4000-92 RF-4000-92 KNOB-THERMOSTAT
RF-4600-79 RF-4600-79 NAMEPLATE - HAIER
RF-5150-06 RF-5150-06 PAN - EVAP DEFROST
RF-5300-103 RF-5300-103 PLATE - ALUMINUM
WR02X27458 WR02X27458 PLUG-HINGE HOLE
RF-5310-60 RF-5310-60 PLUG-WATER LINE
WR01X28362 WR01X28362 SCREW
WR01X29890 WR01X29890 SHIM
WR01X29893 WR01X29893 SHIM-BOTTOM
WR13X27290 WR13X27290 SHIM-CENTER
0060115449A 0060115449A STOP-DOOR
WR23X27351 WR23X27351 SWITCH - INTERIOR LI
RF-7350-54 RF-7350-54 THERMOSTAT-ASSY
WR09X27357 WR09X27357 TIMER
RF-7600-63 RF-7600-63 TRAY-ICE STORAGE
RF-7750-15 RF-7750-15 TUBE
RF-7950-37 RF-7950-37 WASHER-RUBBER
WR01X29890 WR01X29890 WASHERS

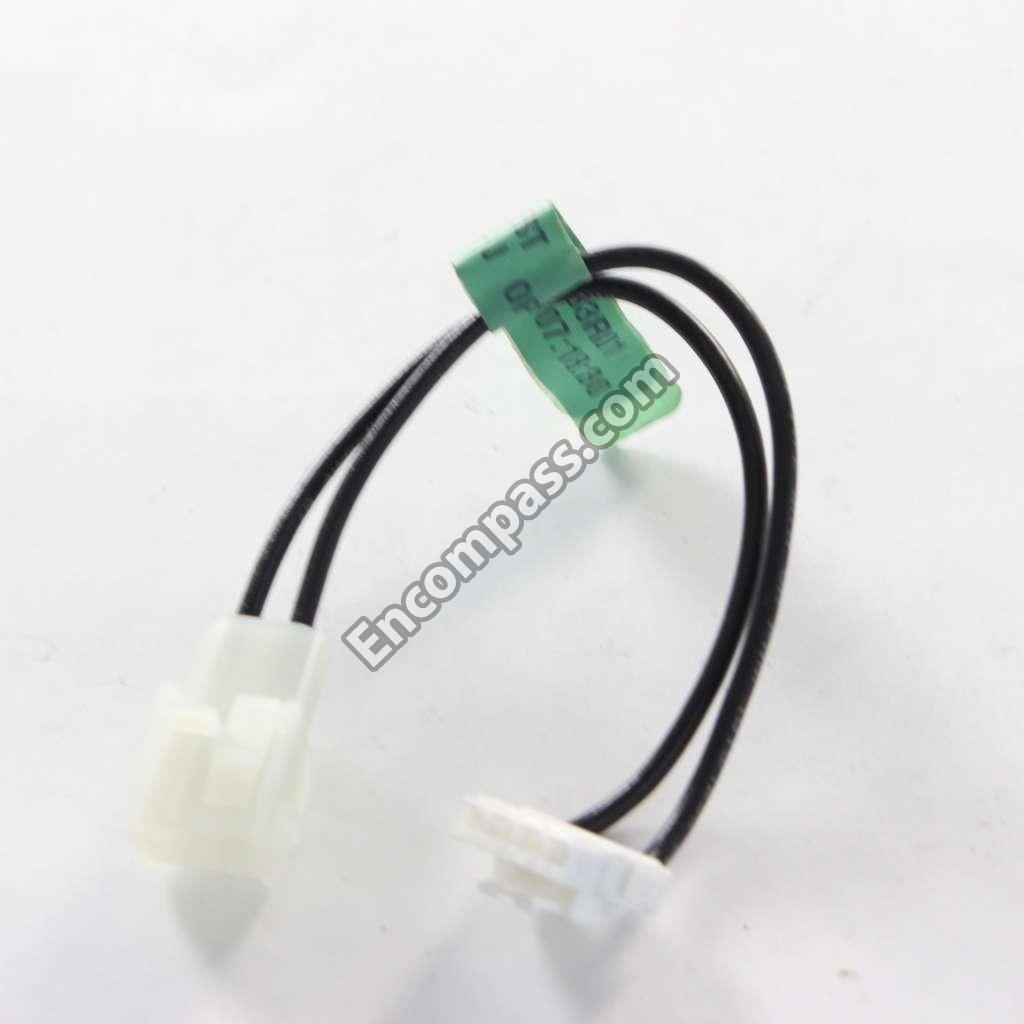

RF-8070-37 RF-8070-37 WIRE - JUMP
