Model Image
Manufacturer

GE

Model Number

HSU18C13

Description

Hsu-18c13:18k Split, Digital W

Interactive Exploded View

Parts List

Part Number Description
WJ73X23304 WJ73X23304 BEARING
AC-0595-63 AC-0595-63 BLOCK
AC-0595-25 AC-0595-25 BLOCK-TERMINAL
AC-0595-24 AC-0595-24 BLOCK-TERMINAL
AC-0668-119 AC-0668-119 BOARD-BACK
AC-0668-19 AC-0668-19 BOARD-MOTOR
AC-0800-47 AC-0800-47 BOX-ELECTRIC
AC-0800-115 AC-0800-115 BOX-ELECTRIC ASSY
AC-1400-243 AC-1400-243 CAPACITOR-COMPRESSOR
WJ20X23530 WJ20X23530 CAPACITOR-FAN MOTOR
AC-1405-16 AC-1405-16 CAPILLARY-ASSY
AC-1470-50 AC-1470-50 CASE
AC-1470-29 AC-1470-29 CASE-REAR ASSY.
AC-1750-171 AC-1750-171 COMPRESSOR
AC-1800-112 AC-1800-112 CONDENSER
AC-1900-35 AC-1900-35 CORD-POWER
AC-1950-128 AC-1950-128 COVER-SERVICE
AC-2015-190 AC-2015-190 CUSHION

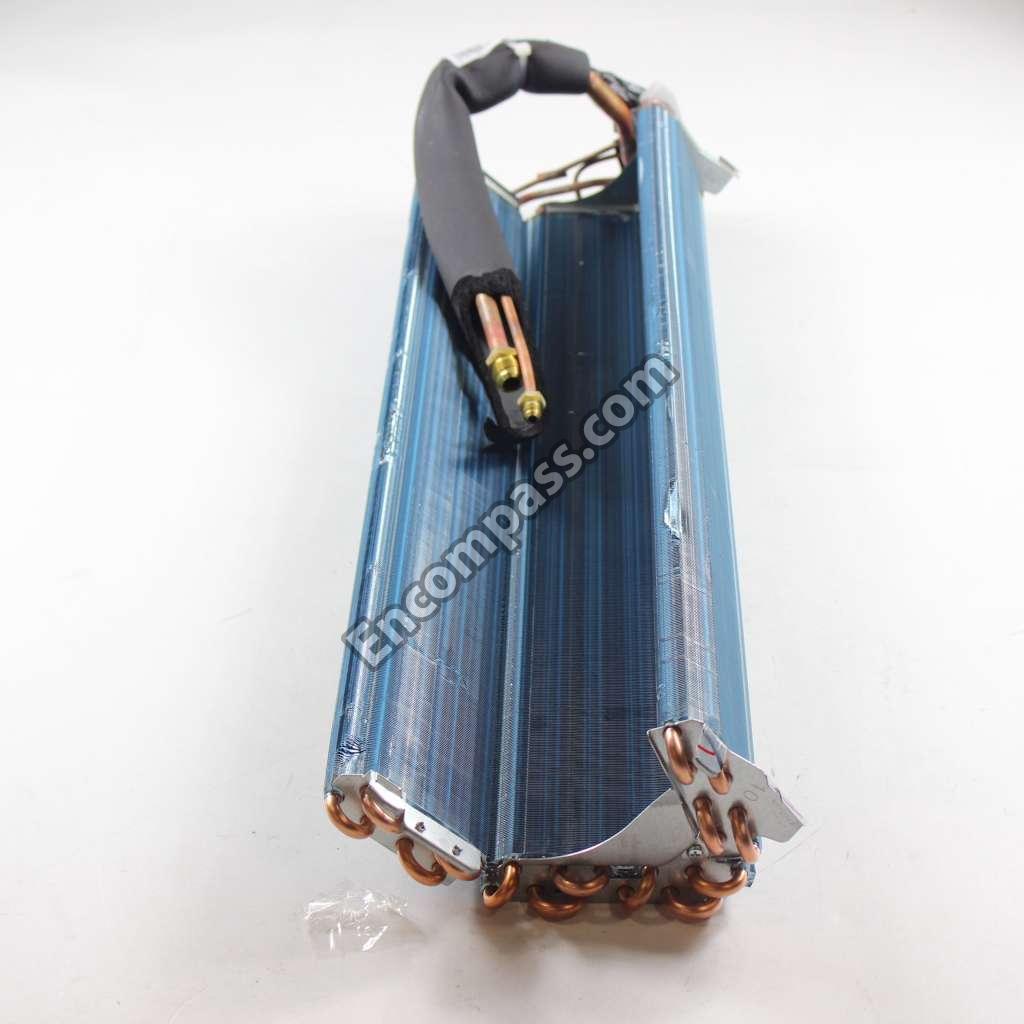

AC-2650-88 AC-2650-88 EVAPORATOR
WJ73X23190 WJ73X23190 FAN-AXIAL
WJ73X23495 WJ73X23495 FAN-CROSS FLOW
AC-2800-24 AC-2800-24 FILTER-AIR
AC-2850-12 AC-2850-12 FLAP
AC-2850-06 AC-2850-06 FLAP-BOTTOM
AC-3105-02 AC-3105-02 GEAR-ASSY
AC-3150-87 AC-3150-87 GRILL-FRONT
WJ53X23032 WJ53X23032 HOSE-DRAIN
WJ01X23511 WJ01X23511 HOSE-DRAIN
WJ94X23611 WJ94X23611 MOTOR-EVAPORATOR

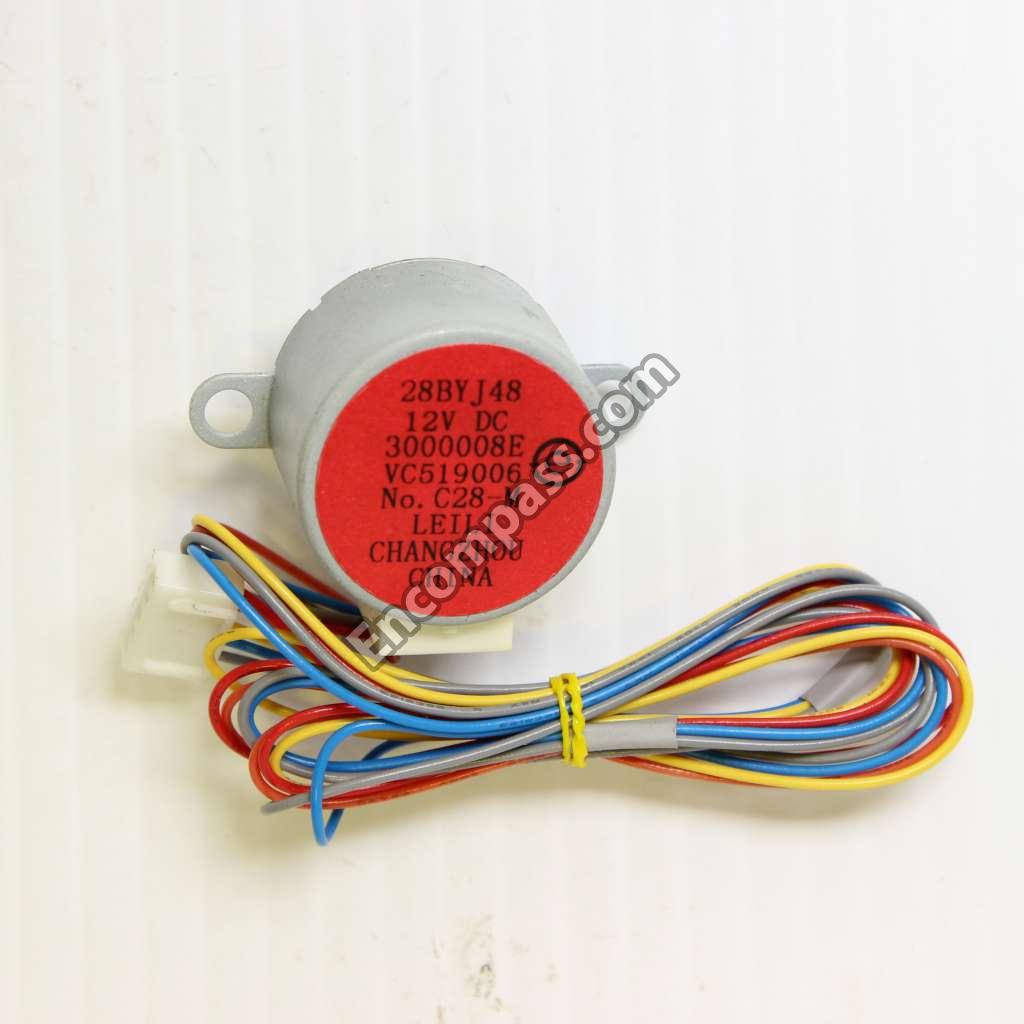

AC-4550-86 AC-4550-86 MOTOR-SWING
AC-4720-20 AC-4720-20 NUT
AC-5210-83 AC-5210-83 P.C.B.-MAIN BOARD
AC-5210-79 AC-5210-79 P.C.B.-RECEIVER
AC-5150-27 AC-5150-27 PAN-DRAIN
AC-5200-362 AC-5200-362 PANEL-FRONT
AC-5200-122 AC-5200-122 PANEL-TOP
AC-5300-300 AC-5300-300 PLATE-BACK
AC-5300-301 AC-5300-301 PLATE-BOTTOM ASSY
WJ65X23038 WJ65X23038 PLATE-MOUNTING
AC-5620-35 AC-5620-35 REMOTE
AC-6150-29 AC-6150-29 SCREW
WJ26X24092 WJ26X24092 SENSOR
AC-7000-48 AC-7000-48 SUPPORT-LEFT
AC-7000-16 AC-7000-16 SUPPORT-PIPING
AC-7750-144 AC-7750-144 TUBE-DISCHARGE
AC-7750-145 AC-7750-145 TUBE-SUCTION
AC-7800-91 AC-7800-91 VALVE-SERVICE (3)
AC-7800-77 AC-7800-77 VALVE-STOP
AC-8070-12 AC-8070-12 WIRE
