Model Image
Manufacturer

GE

Model Number

HSU18HE03

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WJ01X23601 WJ01X23601 BAG-SCREW
AC-0344-04 AC-0344-04 BEARING
AC-0550-15 AC-0550-15 BLADE-LONG (1)
WJ26X23528 WJ26X23528 BLOCK-TERMINAL
AC-0595-27 AC-0595-27 BLOCK-TERMINAL
AC-0800-62 AC-0800-62 BOX-ELECTRIC
AC-0800-60 AC-0800-60 BOX-ELECTRIC
AC-0850-11 AC-0850-11 BRACKET-FAN MOTOR
AC-1302-03 AC-1302-03 CABLE-ASSY

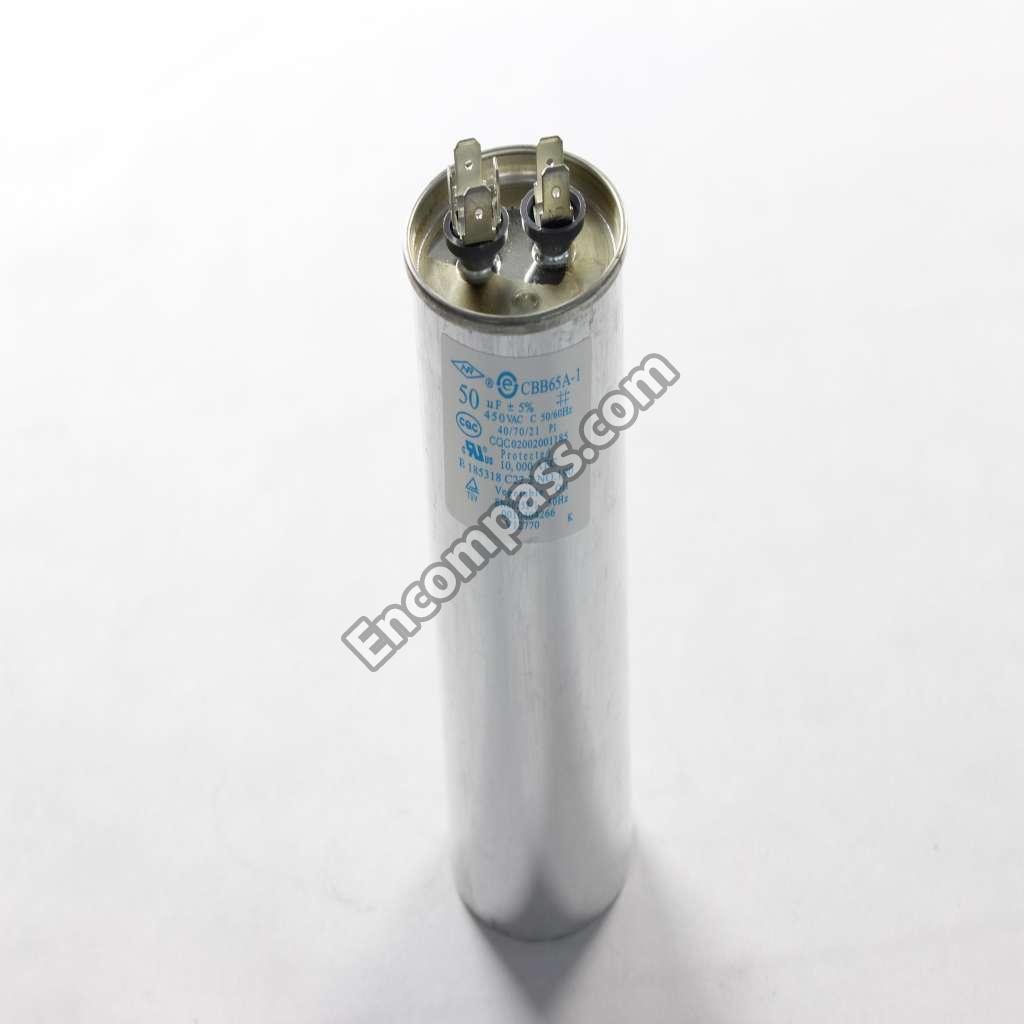

AC-1400-121 AC-1400-121 CAPACITOR-50UF 450V
WJ20X23530 WJ20X23530 CAPACITOR-FAN MOTOR
AC-1750-67 AC-1750-67 COMPRESSOR
AC-1950-91 AC-1950-91 COVER
AC-1950-101 AC-1950-101 COVER
AC-2015-103 AC-2015-103 CUSHION
AC-2015-98 AC-2015-98 CUSHION
AC-2750-49 AC-2750-49 FAN-CROSS FLOW
AC-2800-25 AC-2800-25 FILTER-AIR
AC-2800-31 AC-2800-31 FILTER-AIR
AC-2850-16 AC-2850-16 FLAP
AC-3150-34 AC-3150-34 GRILL-FRONT
WJ71X23339 WJ71X23339 GRILL-REAR
WJ01X24200 WJ01X24200 HANDLE
AC-3570-08 AC-3570-08 HOSE-DRAIN
AC-3845-12 AC-3845-12 INSULATION-PIPE 1
AC-4550-60 AC-4550-60 MOTOR-FAN
AC-4550-59 AC-4550-59 MOTOR-FAN
AC-4550-89 AC-4550-89 MOTOR-SWING
AC-4550-91 AC-4550-91 MOTOR-SYNCHRO
AC-4720-22 AC-4720-22 NUT
AC-4720-28 AC-4720-28 NUT
AC-4720-41 AC-4720-41 NUT
AC-5200-163 AC-5200-163 PANEL
AC-5200-173 AC-5200-173 PANEL-FRONT
AC-5200-154 AC-5200-154 PANEL-SIDE [LEFT]
WJ71X23710 WJ71X23710 PANEL-TOP
AC-5255-162 AC-5255-162 PIPE-DISCHARGE
AC-5300-117 AC-5300-117 PLATE-ASSY.
AC-5300-85 AC-5300-85 PLATE-BOTTOM
AC-5620-14 AC-5620-14 REMOTE
AC-5620-29 AC-5620-29 REMOTE
AC-5950-23 AC-5950-23 ROD
AC-6150-36 AC-6150-36 SCREW
AC-6150-34 AC-6150-34 SCREW
AC-6150-37 AC-6150-37 SCREW
AC-6150-11 AC-6150-11 SCREW
AC-6250-09 AC-6250-09 SENSOR-TUBE TEMPERAT
AC-7800-16 AC-7800-16 VALVE-4-WAY
AC-7800-14 AC-7800-14 VALVE-4-WAY
AC-7800-31 AC-7800-31 VALVE-SERVICE
AC-7800-98 AC-7800-98 VALVE-THREE WAY STOP
