Model Image
Manufacturer

Haier

Model Number

HSU18VC7W

Description

Hsu18vc7-w:18k Btu Split Ac Ou

Interactive Exploded View

Parts List

Part Number Description
AC-0850-137 AC-0850-137 BRACKET-HEAT EXCHANG
WJ65X23529 WJ65X23529 BRACKET-MOTOR
AC-1302-18 AC-1302-18 CABLE
AC-1400-243 AC-1400-243 CAPACITOR-COMPRESSOR
WJ20X23530 WJ20X23530 CAPACITOR-FAN MOTOR
AC-1405-24 AC-1405-24 CAPILLARY-ASSY
WJ71X23714 WJ71X23714 CASING
AC-1650-16 AC-1650-16 CLIP-CAPACITOR
AC-1750-190 AC-1750-190 COMPRESSOR
AC-1800-140 AC-1800-140 CONDENSER-ASSY

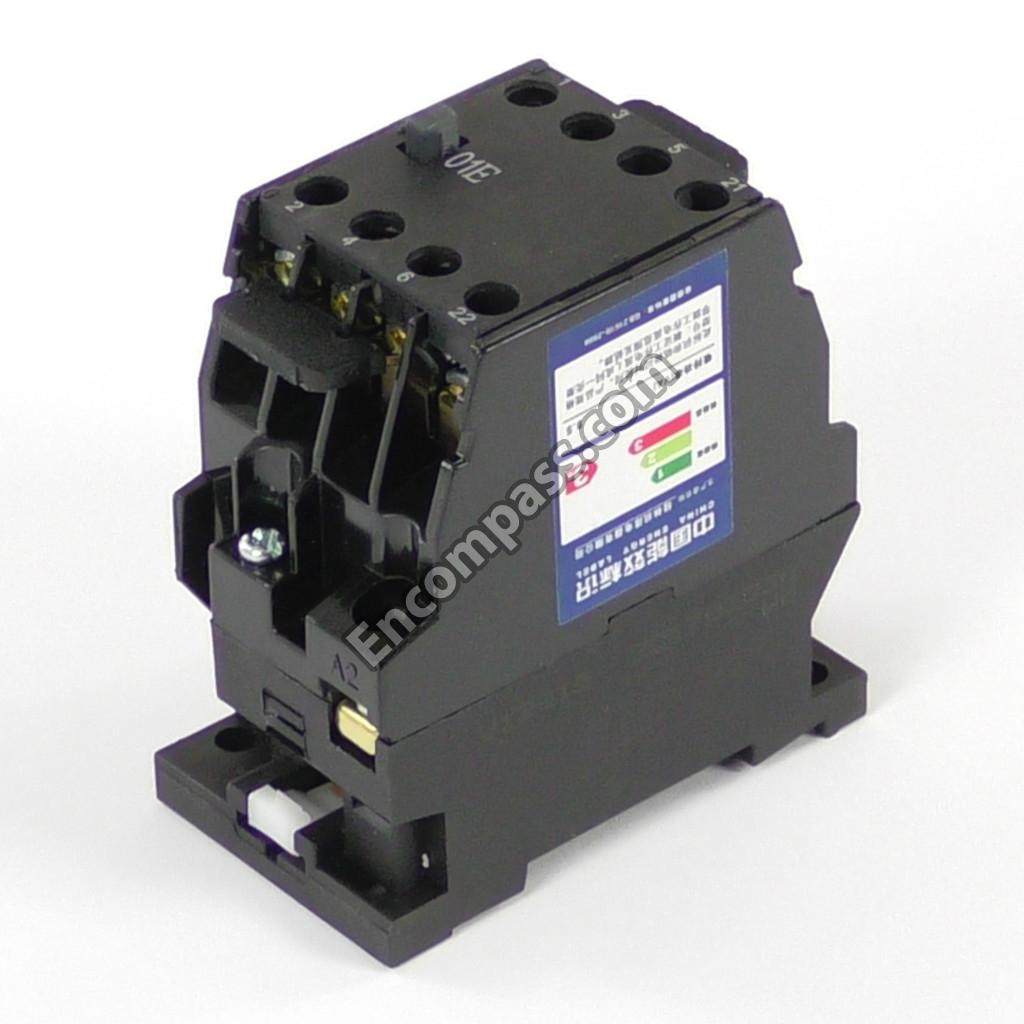

WJ26X23828 WJ26X23828 CONTACTOR-AC
AC-1950-168 AC-1950-168 COVER
WJ71X23480 WJ71X23480 COVER-TERMINAL
WJ73X23306 WJ73X23306 FAN-AXIAL
AC-3150-71 AC-3150-71 GRILL-FRONT
WJ71X23340 WJ71X23340 GRILL-REAR
WJ01X24200 WJ01X24200 HANDLE
AC-4550-266 AC-4550-266 MOTOR-OUTDOOR
AC-4720-63 AC-4720-63 NUT
AC-5200-412 AC-5200-412 PANEL-LEFT SIDE
AC-5200-411 AC-5200-411 PANEL-TOP ASSY
AC-5255-416 AC-5255-416 PIPE-3
AC-5255-417 AC-5255-417 PIPE-DISCHARGING
AC-5255-418 AC-5255-418 PIPE-SUCTION
WJ01X23342 WJ01X23342 REMOTE CONTROL
WJ27X22626 WJ27X22626 VALVE-2 WAY
AC-7800-101 AC-7800-101 VALVE-3 WAY
