Model Image
Manufacturer

GE

Model Number

HSU18VCA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WJ26X23823 WJ26X23823 BLOCK-TERMINAL
AC-0595-47 AC-0595-47 BLOCK-TERMINAL
AC-0800-102 AC-0800-102 BOX-CONTROL
AC-0850-11 AC-0850-11 BRACKET-FAN MOTOR
AC-1350-02 AC-1350-02 CAP-END
WJ20X23956 WJ20X23956 CAPACITOR-55UF 450V
WJ20X23530 WJ20X23530 CAPACITOR-FAN MOTOR
AC-1750-126 AC-1750-126 COMPRESSOR
AC-1950-224 AC-1950-224 COVER
WJ71X23480 WJ71X23480 COVER-TERMINAL
AC-2015-195 AC-2015-195 CUSHION-RUBBER
AC-2350-01 AC-2350-01 DRAIN
AC-2650-89 AC-2650-89 EVAPORATOR
AC-2650-90 AC-2650-90 EVAPORATOR

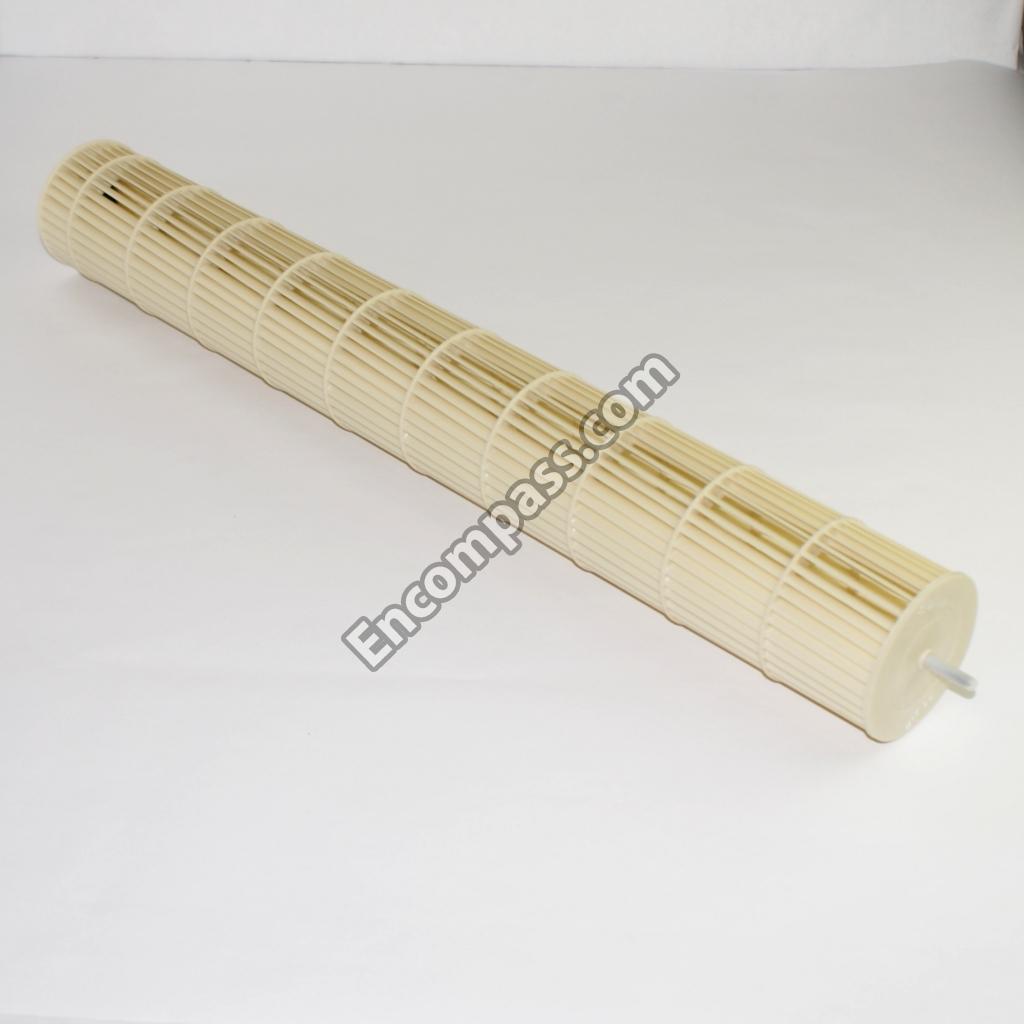

WJ73X23495 WJ73X23495 FAN CROSS FLOW 02/14/12
AC-3150-34 AC-3150-34 GRILL-FRONT
WJ71X23340 WJ71X23340 GRILL-REAR
WJ01X24200 WJ01X24200 HANDLE
AC-3363-10 AC-3363-10 HARNESS-WIRE
WJ01X23511 WJ01X23511 HOSE-DRAIN
AC-4338-01K AC-4338-01K LINK-AXES ASSEMBLY
AC-4440-31 AC-4440-31 LOUVER
WJ94X23834 WJ94X23834 MOTOR-FAN
AC-4550-268 AC-4550-268 MOTOR-INDOOR

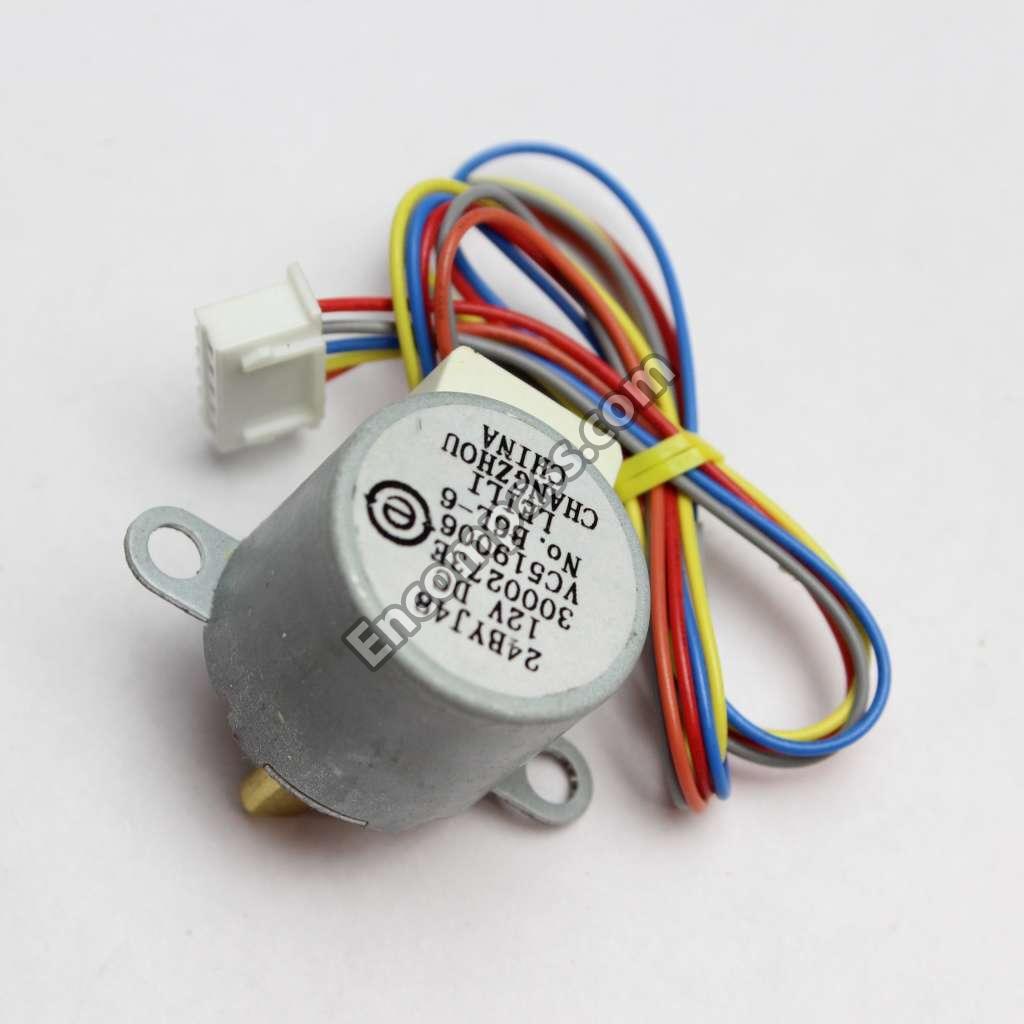

AC-4550-264 AC-4550-264 MOTOR-STEP
AC-5200-163 AC-5200-163 PANEL
AC-5200-173 AC-5200-173 PANEL-FRONT
AC-5200-200 AC-5200-200 PANEL-FRONT
WJ26X23827 WJ26X23827 PANEL-INDICATING
AC-5200-154 AC-5200-154 PANEL-SIDE [LEFT]
WJ71X23710 WJ71X23710 PANEL-TOP
AC-5300-133 AC-5300-133 PLATE-BOTTOM
AC-5300-137 AC-5300-137 PLATE-SUPPORT
AC-5620-26 AC-5620-26 REMOTE

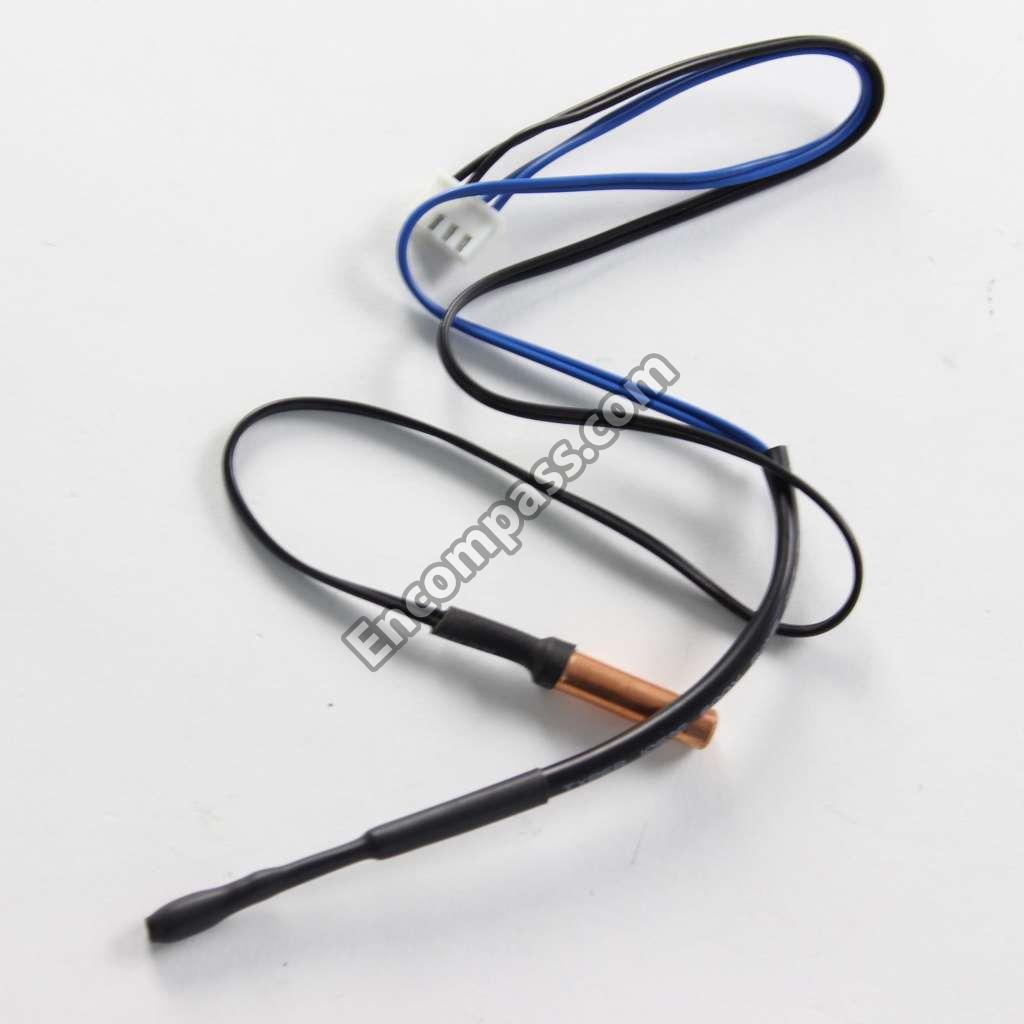

WJ26X24092 WJ26X24092 SENSOR
AC-7000-23 AC-7000-23 SUPPORT-LEFT
AC-7000-24 AC-7000-24 SUPPORT-RIGHT
AC-7750-136 AC-7750-136 TUBE-CAPILLARY
AC-7750-73 AC-7750-73 TUBE-INSULATION
AC-7800-98 AC-7800-98 VALVE-THREE WAY STOP
AC-7810-01 AC-7810-01 VANE
