Model Image
Manufacturer

GE

Model Number

HSU18VHGDBG

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WJ85X23275 WJ85X23275 AIR FILTER 1
WJ85X23273 WJ85X23273 AIR FILTER 2
WJ01X23311 WJ01X23311 AIR PURIFYING
AC-0320-01 AC-0320-01 BATTERY
WJ73X23304 WJ73X23304 BEARING
AC-1950-441 AC-1950-441 BEARING COVER ASSY.
AC-1950-439 AC-1950-439 BOLT COVER
A0010829401 A0010829401 CASING
WJ73X23292 WJ73X23292 CROSS FLOW FAN
WJ76X23300 WJ76X23300 DISPLAY PANEL ASSY.
WJ01X23519 WJ01X23519 DRAIN HOSE
WJ53X23032 WJ53X23032 DRAIN HOSE
AC-5150-104 AC-5150-104 DRAIN PAN
AC-0800-198 AC-0800-198 ELECTRICAL BOX
AC-1950-374 AC-1950-374 ELECTRICAL BOX COVER
AC-1950-438 AC-1950-438 ELECTRICAL BOX COVER
WJ26X23302 WJ26X23302 ELECTRICAL BOX PROTECTOR BOARD
AC-2950-103 AC-2950-103 FRAME ASSY.
AC-5800-04 AC-5800-04 GUARD RING
WJ94X23836 WJ94X23836 INDOOR MOTOR

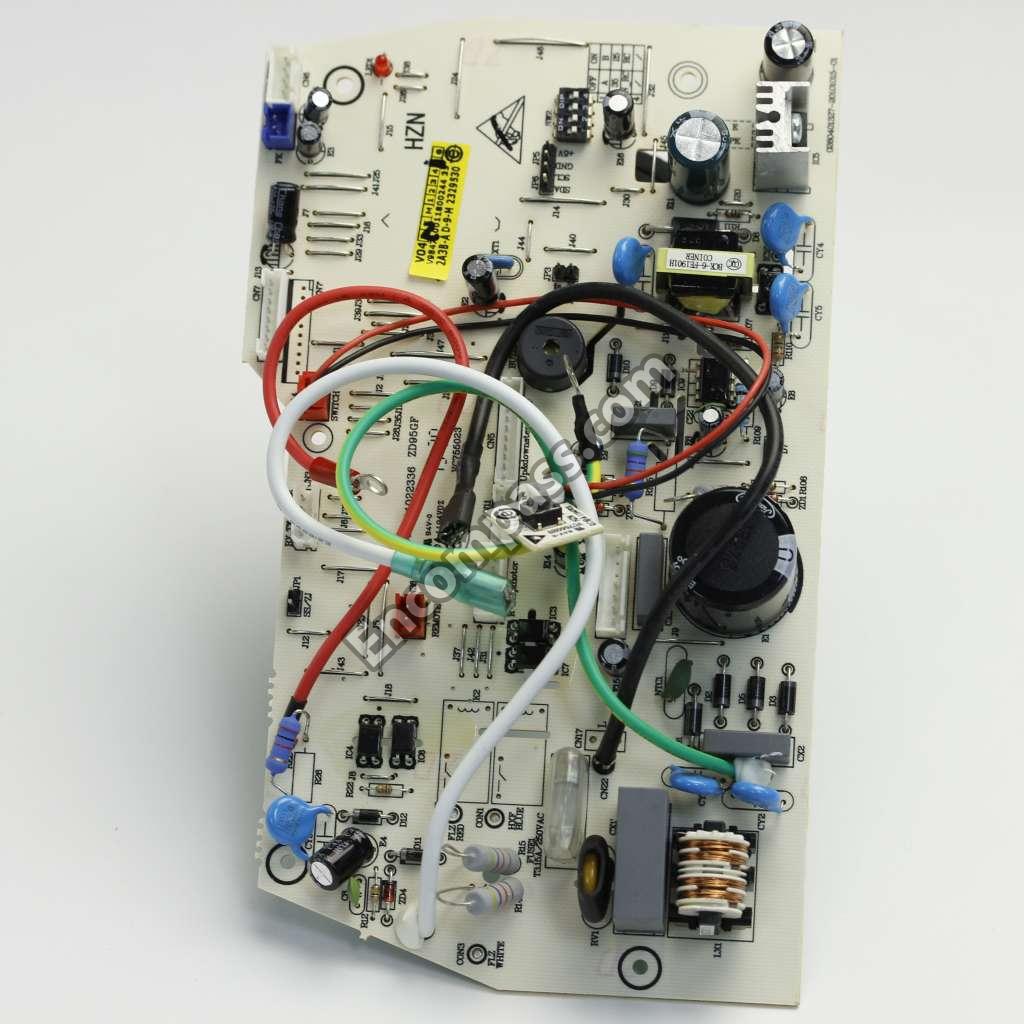

WJ26X23318 WJ26X23318 INDOOR PCB
AC-1950-440 AC-1950-440 MOTOR COVER
WJ65X23325 WJ65X23325 MOUNTING PLATE
WJ71X23356 WJ71X23356 PANEL
AC-2850-06 AC-2850-06 PIPE CLIP
WJ26X23341 WJ26X23341 RECEIVER PCB
WJ01X23342 WJ01X23342 REMOTE CONTROLLER
AC-0750-30 AC-0750-30 SCREWS ASSY.

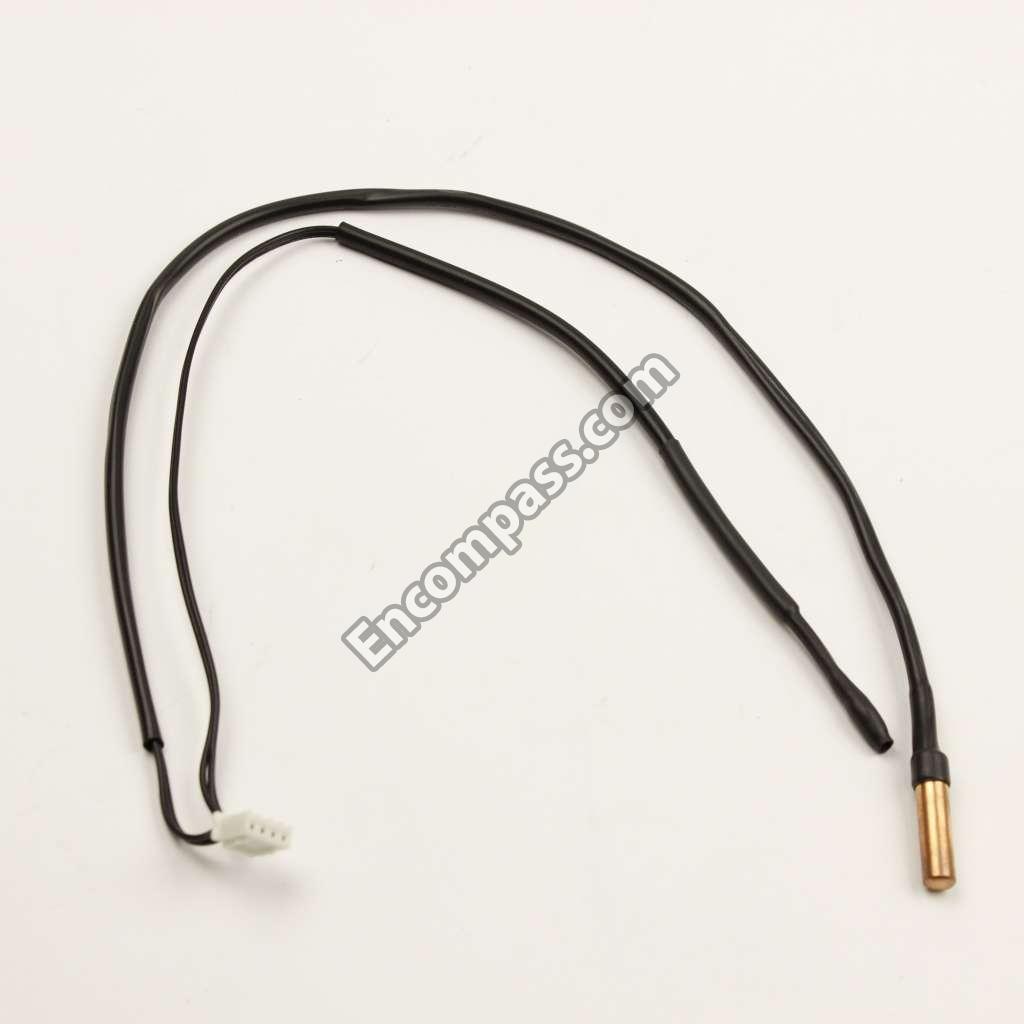

WJ26X23344 WJ26X23344 SENSOR
AC-1950-376 AC-1950-376 SERVICE COVER
WJ94X23058 WJ94X23058 STEPPER MOTOR
WJ26X23043 WJ26X23043 TERMINAL BLOCK
AC-0550-33 AC-0550-33 TOP BLADE
AC-0550-32 AC-0550-32 UNDER BLADE
AC-1950-381 AC-1950-381 WIRE COVER
