Model Image
Manufacturer

Haier

Model Number

HSU22LEA13W

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0550-30 AC-0550-30 BLADE
AC-0595-68 AC-0595-68 BLOCK-TERMINAL
AC-0668-133 AC-0668-133 BOARD-ELECTRICAL BOX
AC-0800-150 AC-0800-150 BOX-ELECTRICAL
AC-0850-87 AC-0850-87 BRACKET
AC-0850-170 AC-0850-170 BRACKET-FAN MOTOR
AC-1110-02 AC-1110-02 BUNDLE-WIRING
WJ20X23830 WJ20X23830 CAPACITOR-COMPRESSOR
WJ20X23530 WJ20X23530 CAPACITOR-FAN MOTOR
AC-1405-63 AC-1405-63 CAPILLARY-ASSEMBLY
AC-1480-64 AC-1480-64 CASING
AC-1480-66 AC-1480-66 CASING-FRONT
AC-1750-249 AC-1750-249 COMPRESSOR
AC-1800-190 AC-1800-190 CONDENSER-ASSEMBLY

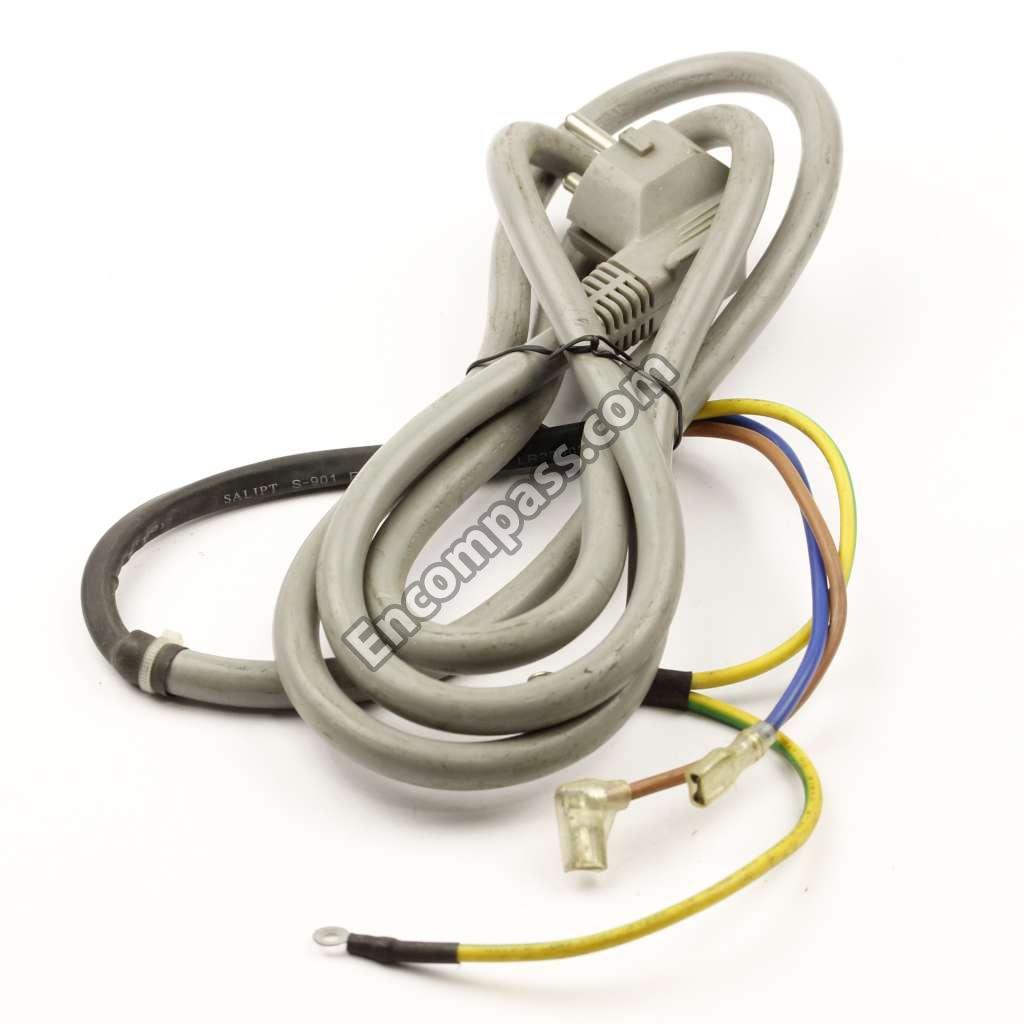

AC-1900-67 AC-1900-67 CORD-POWER
AC-1950-366 AC-1950-366 COVER-BOARD FOR ELEC
AC-1950-367 AC-1950-367 COVER-BOARD FOR WIRI
AC-1950-364 AC-1950-364 COVER-DISPLAY BOX
AC-1950-369 AC-1950-369 COVER-ELECTRICAL BOX
AC-1950-365 AC-1950-365 COVER-NEGATIVE ION G
AC-1950-371 AC-1950-371 COVER-TERMINAL
AC-1950-370 AC-1950-370 COVER-TOP
AC-1950-368 AC-1950-368 COVER-WIRING
AC-2650-165 AC-2650-165 EVAPORATOR-ASSEMBLY
AC-2750-131 AC-2750-131 FAN-AXIAL
WJ73X23495 WJ73X23495 FAN-CROSS FLOW
WJ85X23276 WJ85X23276 FILTER-AIR, LEFT
WJ85X23277 WJ85X23277 FILTER-AIR, RIGHT
AC-2950-101 AC-2950-101 FRAME-ASSEMBLY
AC-3107-03 AC-3107-03 GENERATOR-NEGATIVE I
WJ71X23612 WJ71X23612 GRILL-INLET
AC-3350-37 AC-3350-37 HANDLE
AC-4100-01 AC-4100-01 LATCH
AC-4120-01 AC-4120-01 LED-ASSEMBLY, DISPLA
AC-4550-331 AC-4550-331 MOTOR-OUTDOOR
AC-4720-73 AC-4720-73 NUT-FLARE, LEFT
AC-5210-164 AC-5210-164 P.C.B.-INDOOR
AC-5210-163 AC-5210-163 P.C.B.-RECEIVER
AC-5150-103 AC-5150-103 PAN-DRAIN
WJ71X23620 WJ71X23620 PANEL-DISPLAYING PAN
AC-5300-182 AC-5300-182 PLATE-SLIDE[RIGHT]
AC-5480-02 AC-5480-02 PURIFIER-ASSEMBLY
AC-5620-67 AC-5620-67 REMOTE
AC-7000-61 AC-7000-61 SUPPORT-FRONT PANEL
WJ27X23358 WJ27X23358 TRANSFORMER
AC-7750-273 AC-7750-273 TUBE-DISCHARGE
AC-7750-274 AC-7750-274 TUBE-SUCTION
AC-7800-115 AC-7800-115 VALVE-2-WAY
AC-7800-114 AC-7800-114 VALVE-3-WAY
