Model Image
Manufacturer

Haier

Model Number

HSU24VC7W

Description

Hsu24vc7-w:22k Btu Split Ac Ou

Interactive Exploded View

Parts List

Part Number Description
AC-0800-64 AC-0800-64 BOX-ELECTRIC
AC-1400-121 AC-1400-121 CAPACITOR-50UF 450V
AC-1400-104 AC-1400-104 CAPACITOR-ID MOTOR

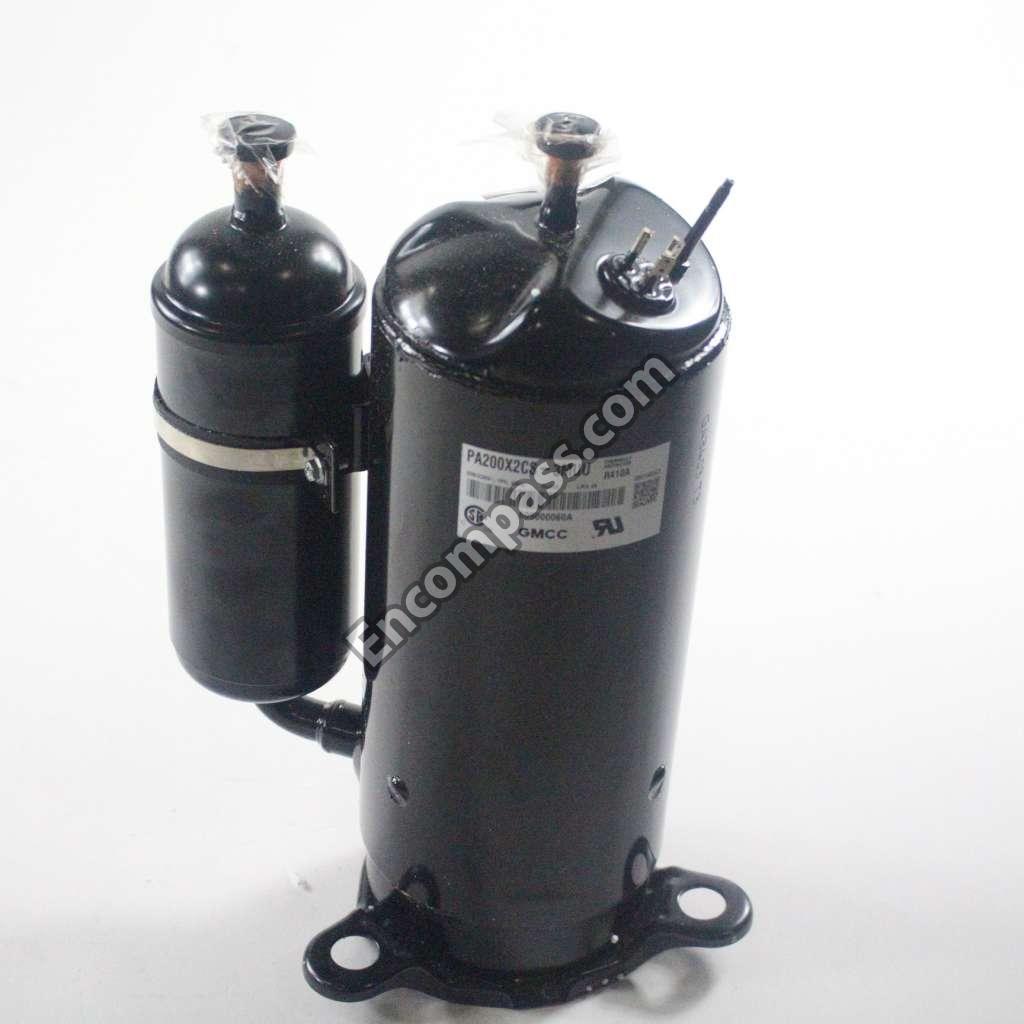

WJ98X23822 WJ98X23822 COMPRESSOR
AC-1800-139 AC-1800-139 CONDENSER
WJ26X23828 WJ26X23828 CONTACTOR-AC
AC-1950-160 AC-1950-160 COVER-TOP
AC-2750-34 AC-2750-34 FAN-AXIAL
WJ65X23798 WJ65X23798 FRAME-MOTOR
AC-4550-265 AC-4550-265 MOTOR
AC-5200-409 AC-5200-409 PANEL-FRONT
AC-5255-415 AC-5255-415 PIPE-DISCHARGING
AC-5255-414 AC-5255-414 PIPE-SUCTION
WJ01X23342 WJ01X23342 REMOTE CONTROL
WJ53X23268 WJ53X23268 VALVE-2 WAY
WJ53X23269 WJ53X23269 VALVE-3-WAY STOP
