Model Image
Manufacturer

Haier

Model Number

HT21TS45SB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
0060115394 0060115394 BALE STRAP (USE WITH COMPRESSOR EM3Z60HLT)
RF-0250-045 RF-0250-045 BASE
WR60X27274 WR60X27274 BLADE-CONDENSER
WR60X27275 WR60X27275 BLADE-EVAPORATOR FAN
WR02X27276 WR02X27276 BRACKET-CONDENSER FAN
WR02X27277 WR02X27277 BRACKET-INNER
WR02X27278 WR02X27278 BRACKET-OUTER
RF-1050-057 RF-1050-057 BULB
WR02X27453 WR02X27453 BUSHING
WR55X29240 WR55X29240 CABLE-DEFROST
RF-1302-107 RF-1302-107 CABLE-JUMPER
WR02X27461 WR02X27461 CAP-LEFT (BLACK)
WR02X27460 WR02X27460 CAP-RIGHT (BLACK)
WR87X27279 WR87X27279 CAPACITOR
WR02X27362 WR02X27362 CASTER-LEFT FRONT
WR02X27363 WR02X27363 CASTER-RIGHT FRONT
WR87X27283 WR87X27283 COMPRESSOR - EGX70HLC (SEE BULLETIN)
WR01X27346 WR01X27346 CONTROL-LEFT HUMIDITY ADJUSTER
WR01X27347 WR01X27347 CONTROL-RIGHT HUMIDITY ADJUST
RF-1950-711 RF-1950-711 COVER-AIR SEAL

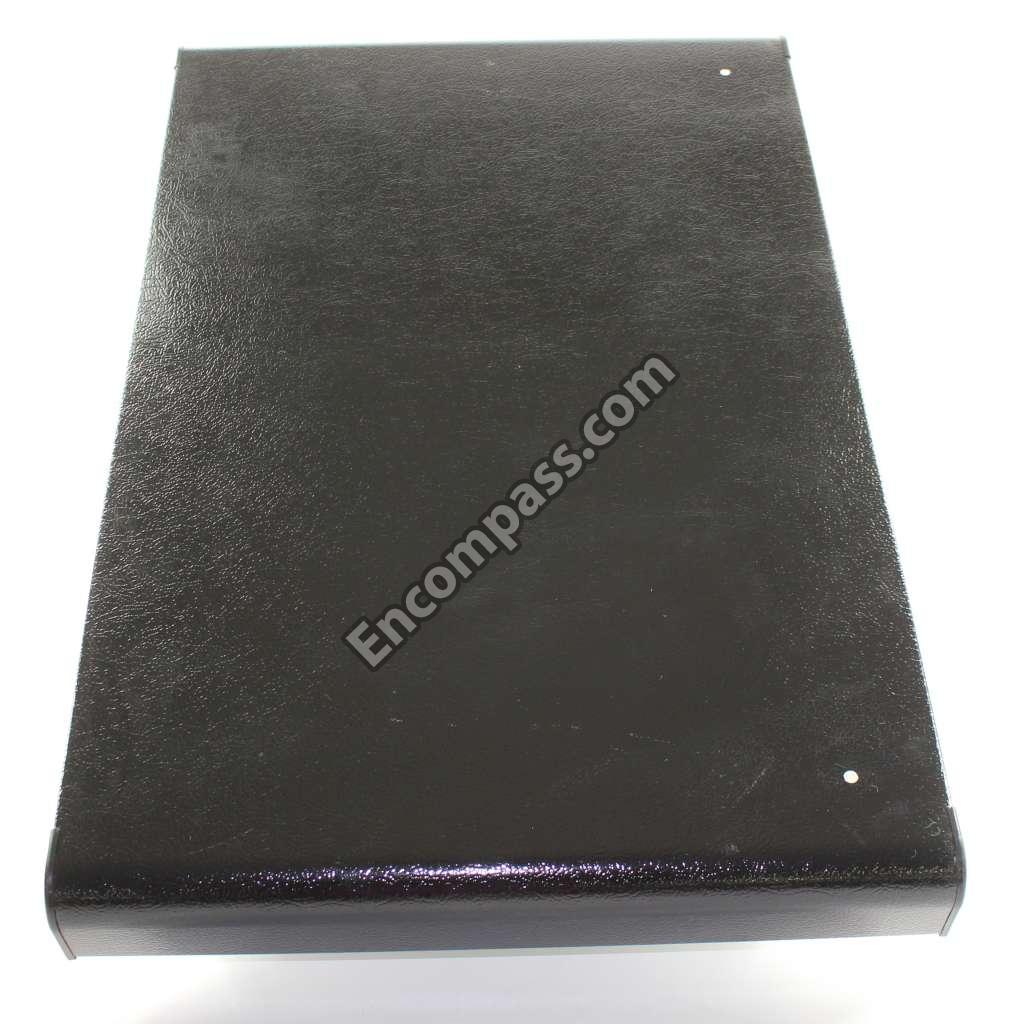

RF-1950-715 RF-1950-715 COVER-COMPRESSOR
0060830915 0060830915 COVER-EVAPORATOR COVER
WR02X27443 WR02X27443 COVER-LENSE
WR13X27459 WR13X27459 COVER-TOP HINGE BLACK
RF-2300-712 RF-2300-712 DOOR-FREEZER
RF-2300-711 RF-2300-711 DOOR-FRESH FOOD
WR87X27294 WR87X27294 DRIER
WR17X27464 WR17X27464 EVAPORATOR- DRIP PAN
WR87X27417 WR87X27417 EVAPORATOR-AND HEATER ASSEMBLY
WR01X27675 WR01X27675 FOOT-ADJUSTABLE
0060115449A 0060115449A FREEZER DOOR STOP
WR71X27391 WR71X27391 FREEZER GLASS ENCAPSULATED SHELF
WR01X27349 WR01X27349 FRESH FOOD DOOR STOP
WR14X29311 WR14X29311 GASKET-FREEZER
WR14X29310 WR14X29310 GASKET-FRESH FOOD
WR74X27447 WR74X27447 GRILL-KICKPLATE
WR01X27361 WR01X27361 GUIDE-WHEEL
WR12X29885 WR12X29885 HANDLE-DOOR

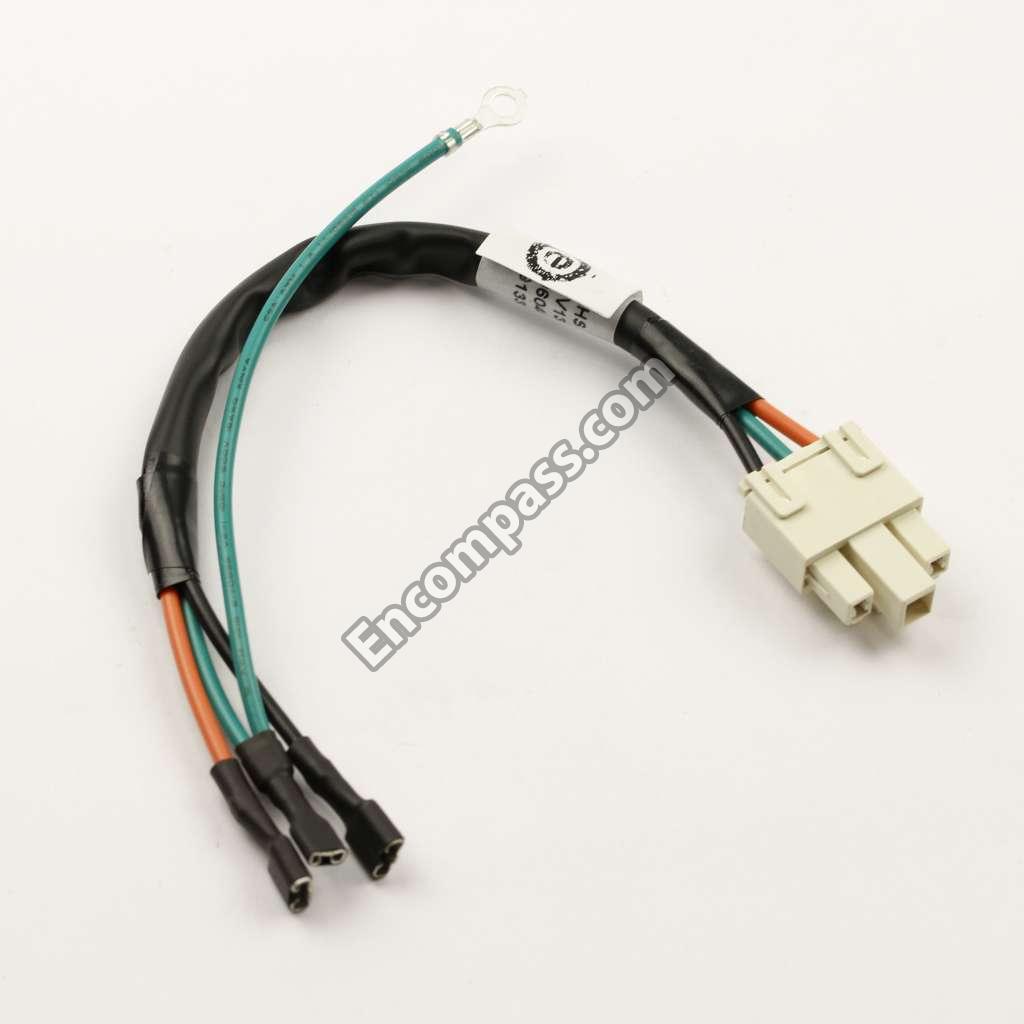

RF-3363-011 RF-3363-011 HARNESS FOR COLD CONTROL TSTAT
RF-3450-359 RF-3450-359 HINGE-BOTTOM
WR13X27307 WR13X27307 HINGE-MIDDLE
WR13X27308 WR13X27308 HINGE-TOP
WR14X27309 WR14X27309 HOUSING-COLD CONTROL
WR30X29907 WR30X29907 ICE MAKER KIT (HI5MK)
WR01X27316 WR01X27316 KIT-AIR CHUTE F/COLD CONTROL
RF-4000-115 RF-4000-115 KNOB- REFRIGERATOR COLD CONTROL
WR02X27311 WR02X27311 KNOB-FREEZER AIR VENT CONTROL
WR71X29834 WR71X29834 LID-DAIRY
WR60X27314 WR60X27314 MOTOR-EVAPORATOR
RF-4600-79 RF-4600-79 NAMEPLATE - HAIER
WR14X27317 WR14X27317 PAN-CONDENSATE
WR02X27458 WR02X27458 PLUG-HINGE HOLE
WR01X27320 WR01X27320 PLUG-HOLE
WR02X27445 WR02X27445 PLUG-SCREW HOLE
WR71X29829 WR71X29829 RACK-FRESH FOOD DOOR
RF-5500-076 RF-5500-076 RACK-LARGE
WR71X27449 WR71X27449 RACK-SMALL
WR14X27345 WR14X27345 REFLECTOR-HEAT SHIELD
WR01X27333 WR01X27333 SCREW FOR HANDLE
WR01X27334 WR01X27334 SCREW-DOVETAIL
RF-6190-015 RF-6190-015 SEAL-EVAPORATOR COVER
WR71X27385 WR71X27385 SHELF-GLASS COVER FOR CRISPER
WR01X29893 WR01X29893 SHIM - BOTTOM HINGE
WR13X27290 WR13X27290 SHIM-CENTER
RF-6600-014 RF-6600-014 SOCKET-LIGHT
0060704520HAR 0060704520HAR SUCTION CONN TUBE (USE WITH COMPRESSOR EGX70HLC)
WR23X27351 WR23X27351 SWITCH-INTERIOR LIGHT ON/OFF
WR09X28006 WR09X28006 THERMOSTAT
WR09X27353 WR09X27353 THERMOSTAT
0060402415 0060402415 TIMER-DEFROST
WR09X27357 WR09X27357 TSD WITH BALE STRAP (USE WITH COMPRESSOR EGX70HLC)
WR02X27297 WR02X27297 TUBE-DRAIN TUBE EXTENSION
WR01X29890 WR01X29890 WASHER
WR01X29890 WR01X29890 WASHERS
WR57X29872 WR57X29872 WATER VALVE
WR57X29872 WR57X29872 WATER VALVE & BRACKET ASSY
RF-8070-052 RF-8070-052 WIRE-JUMPER FOR EVAP MOTOR
