Model Image
Manufacturer

GE

Model Number

HTE08WNAWW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WR01X29913 WR01X29913 AXLE-HINGE PIN
RF-0150-02 RF-0150-02 BAFFLE-AIR [ASSY]

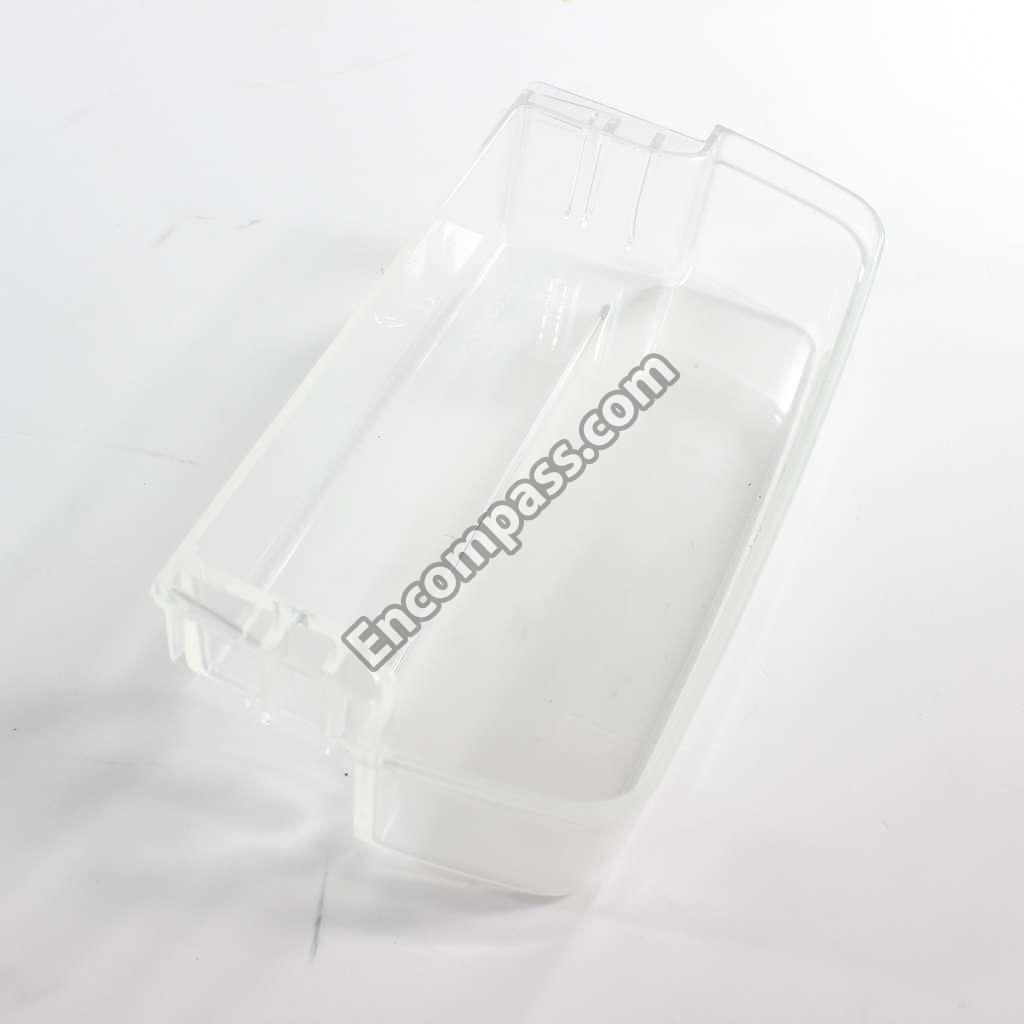

RF-0200-26 RF-0200-26 BAR-BOTTLE [SMALL]
RF-1640-06 RF-1640-06 CLAMP-CABLE
RF-1650-09 RF-1650-09 CLIP-CONDENSER
RF-1750-51 RF-1750-51 COMPRESSOR-W/ACCESSO
RF-1950-111 RF-1950-111 COVER-BULB
RF-1950-134 RF-1950-134 COVER-TOP HINGE
RF-2015-03 RF-2015-03 CUSHION-RUBBER
RF-2015-04 RF-2015-04 CUSHION-RUBBER
WR09X29895 WR09X29895 DEFROST HEATER
RF-2400-26 RF-2400-26 DRIER

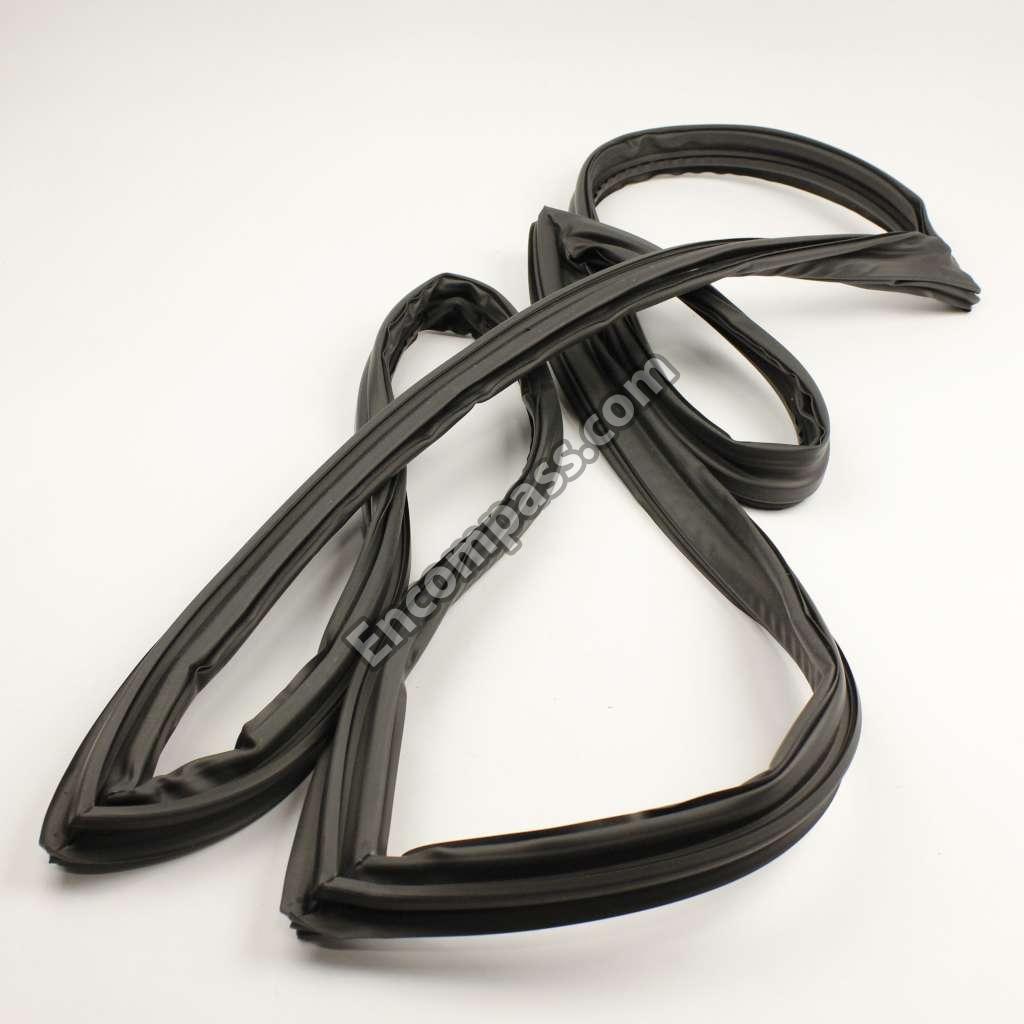

RF-3100-83 RF-3100-83 GASKET-FREEZER DOOR
RF-3200-02 RF-3200-02 GROMMET
RF-3400-07 RF-3400-07 HEATER - DEFROST #1
WR13X27778 WR13X27778 HINGE-TOP
RF-4000-33 RF-4000-33 KNOB-THERMOSTAT
RF-5100-25 RF-5100-25 PAD-E SHAPE CABINET
RF-5300-10 RF-5300-10 PLATE
RF-5300-11 RF-5300-11 PLATE-ALUMINUM
RF-5300-12 RF-5300-12 PLATE-COMPRESSOR
RF-5310-23 RF-5310-23 PLUG-HINGE HOLE (WHI
RF-5310-24 RF-5310-24 PLUG-HINGE HOLE (WHI
RF-6150-117 RF-6150-117 SCREW
RF-6150-62 RF-6150-62 SCREW
RF-6150-84 RF-6150-84 SCREW
WR01X27682 WR01X27682 SCREW
WR01X27790 WR01X27790 SCREW
RF-6150-114 RF-6150-114 SCREW
RF-6150-74 RF-6150-74 SCREW
RF-6150-115 RF-6150-115 SCREW
WR01X28375 WR01X28375 SCREW
RF-6150-20 RF-6150-20 SCREW-HINGE [PHILLIP
RF-6350-110 RF-6350-110 SHELF-WIRE
RF-7350-58 RF-7350-58 THERMOSTAT
RF-7600-86 RF-7600-86 TRAY-COMPRESSOR DRIP
RF-7600-67 RF-7600-67 TRAY-ICE CUBE
RF-7750-27 RF-7750-27 TUBE
RF-7750-14 RF-7750-14 TUBE-CONDENSATION
RF-7950-48 RF-7950-48 WASHER-PADDED
RF-7950-35 RF-7950-35 WASHER-RUBBER
