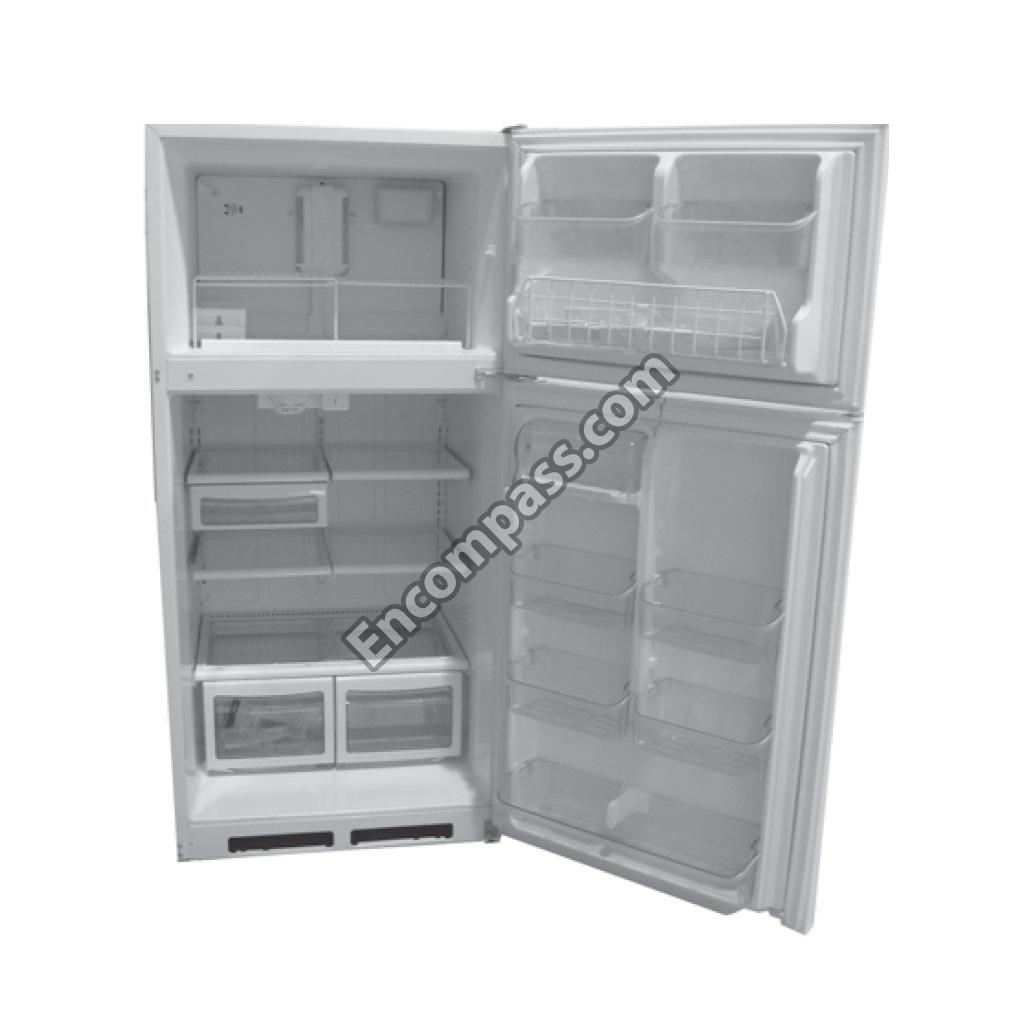

Model Image
Manufacturer

Haier

Model Number

HTF18GAALVS

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RF-0150-08 RF-0150-08 BAFFLE-CONDENSER FAN
RF-0550-21 RF-0550-21 BLADE-CONDENSER
WR60X29904 WR60X29904 BLADE-EVAP FAN (G.E.
RF-0850-157 RF-0850-157 BRACKET - COMPRESSOR
WR14X29896 WR14X29896 BRACKET-EVAP FAN [A]
WR14X29891 WR14X29891 BRACKET-EVAP FAN [B]
RF-1050-51 RF-1050-51 BULB - LIGHT
RF-1302-27 RF-1302-27 CABLE-THERMOSTAT
WR87X27279 WR87X27279 CAPACITOR 12MFD
WR02X27362 WR02X27362 CASTER-LEFT FRONT
WR02X27363 WR02X27363 CASTER-RIGHT FRONT
WR01X29897 WR01X29897 CLIP
RF-1650-09 RF-1650-09 CLIP-CONDENSER
RF-1800-70 RF-1800-70 CONDENSER-ASSY
RF-1900-77 RF-1900-77 CORD-POWER ASSY
WR01X29234 WR01X29234 COVER
RF-1950-422 RF-1950-422 COVER-CABLE
RF-1950-B6 RF-1950-B6 COVER-EVAPORATOR
RF-1950-218 RF-1950-218 COVER-SCREW HOLE
RF-1950-219 RF-1950-219 COVER-SCREW HOLE
WR13X27459 WR13X27459 COVER-TOP HINGE BLAC
RF-2260-03 RF-2260-03 DIVIDER-SHELF PARTIT
RF-2300-537 RF-2300-537 DOOR
RF-2400-26 RF-2400-26 DRIER
WR01X27675 WR01X27675 FOOT-ADJUSTABLE
WR14X29856 WR14X29856 GASKET - FREEZER DOO
RF-3100-111 RF-3100-111 GASKET - REFRIG DOOR
WR13X29812 WR13X29812 HINGE-BOTTOM
WR13X29903 WR13X29903 HINGE-TOP
RF-3600-55 RF-3600-55 HOUSING-THERMOSTAT
RF-4000-92 RF-4000-92 KNOB-THERMOSTAT
RF-5300-23 RF-5300-23 PLATE
WR02X27458 WR02X27458 PLUG-HINGE HOLE
RF-6050-05 RF-6050-05 RUBBER-ISOLATION BUS
WR01X29890 WR01X29890 SHIM
WR01X29893 WR01X29893 SHIM-BOTTOM
WR13X27290 WR13X27290 SHIM-CENTER
WR23X27351 WR23X27351 SWITCH
RF-7600-63 RF-7600-63 TRAY-ICE STORAGE
RF-7950-37 RF-7950-37 WASHER-RUBBER
WR01X29890 WR01X29890 WASHERS
