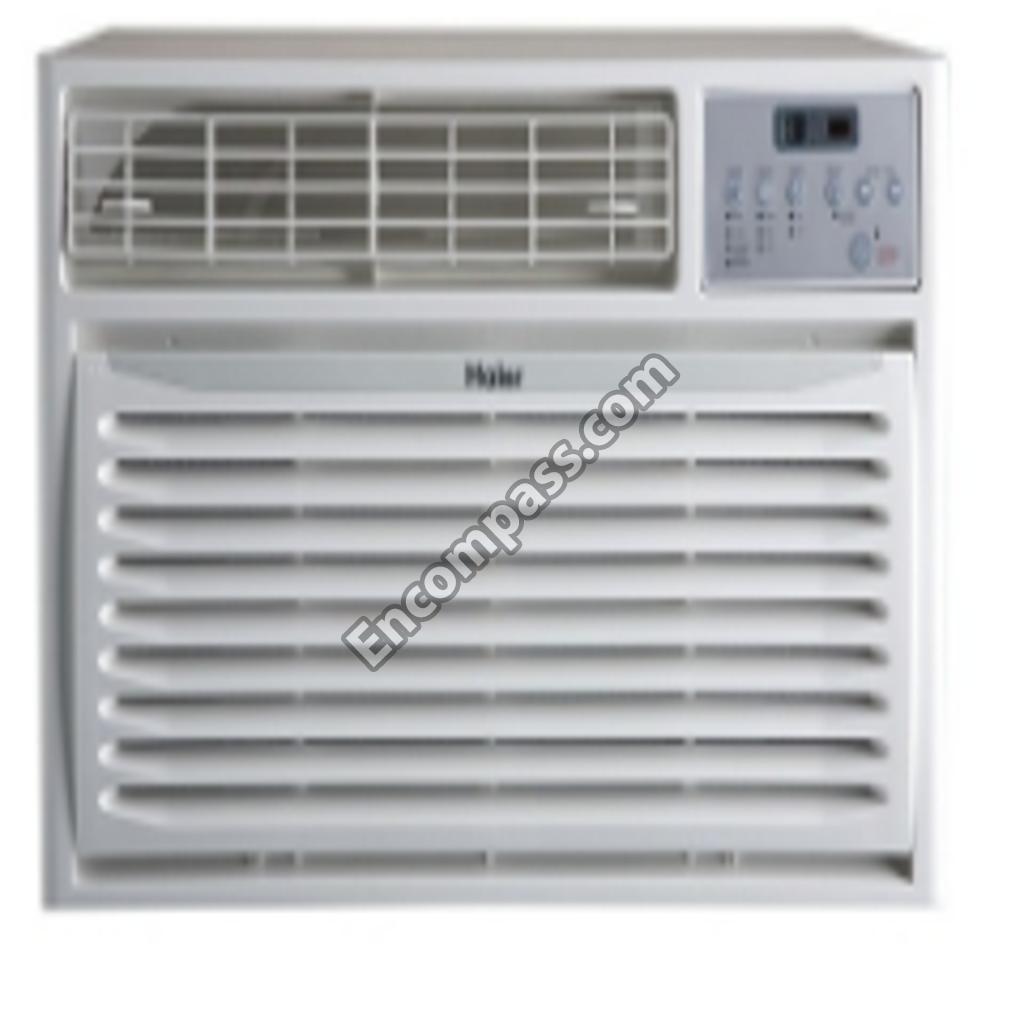

Model Image
Manufacturer

Haier

Model Number

HTWR10XCK

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0668-142 AC-0668-142 BOARD
AC-0800-118 AC-0800-118 BOX-ELECTRICAL
AC-0850-212 AC-0850-212 BRACKET
AC-1300-096 AC-1300-096 CABINET
WJ20X21774 WJ20X21774 CAPACITOR-COMPRESSOR
AC-1480-084 AC-1480-084 CASING
AC-1480-083 AC-1480-083 CASING
AC-3600-039 AC-3600-039 CASING
AC-1620-048 AC-1620-048 CHASSIS
WJ03X10093 WJ03X10093 CLAMP-CAPACITOR
AC-1750-237 AC-1750-237 COMPRESSOR
AC-1800-235 AC-1800-235 CONDENSER

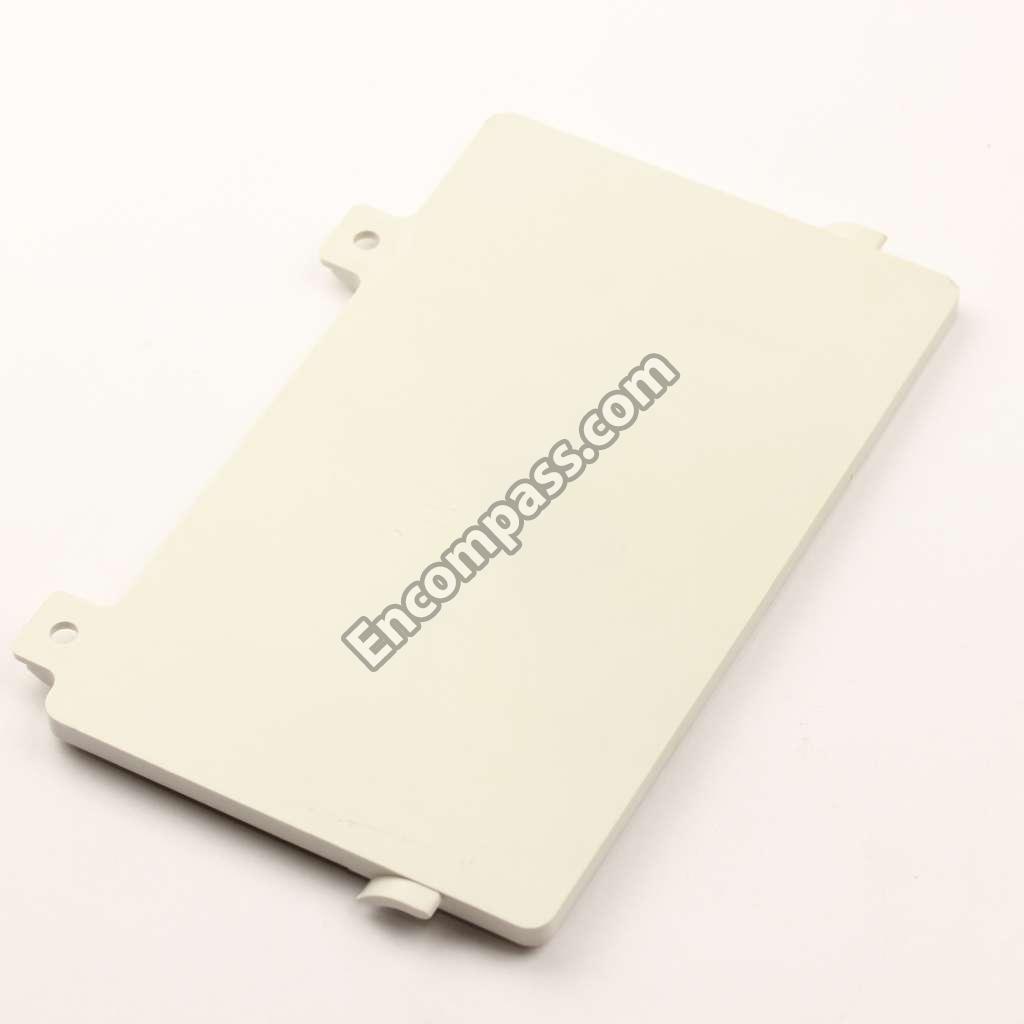

AC-1950-282 AC-1950-282 COVER-ELECTRICAL BOX
AC-2650-205 AC-2650-205 EVAPORATOR
AC-2750-136 AC-2750-136 FAN
AC-2750-138 AC-2750-138 FAN

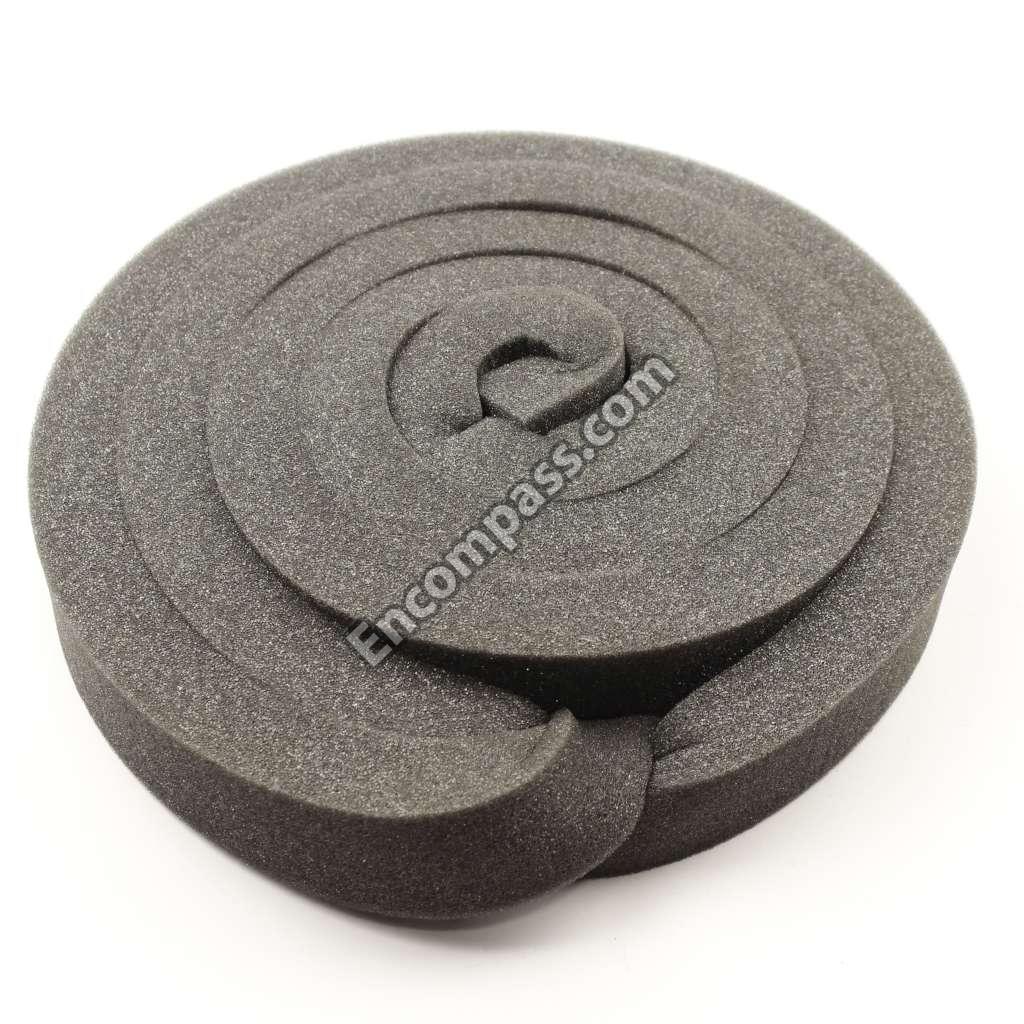

WJ66X22860 WJ66X22860 FOAM
WJ65X22384 WJ65X22384 FOAM
AC-2868-036 AC-2868-036 FOAM
WJ65X22382 WJ65X22382 FRAME
WJ86X22381 WJ86X22381 FRAME
AC-3500-187 AC-3500-187 HOLDER
AC-4550-403 AC-4550-403 MOTOR
AC-5210-226 AC-5210-226 P.C.B.
AC-5210-77 AC-5210-77 P.C.B.

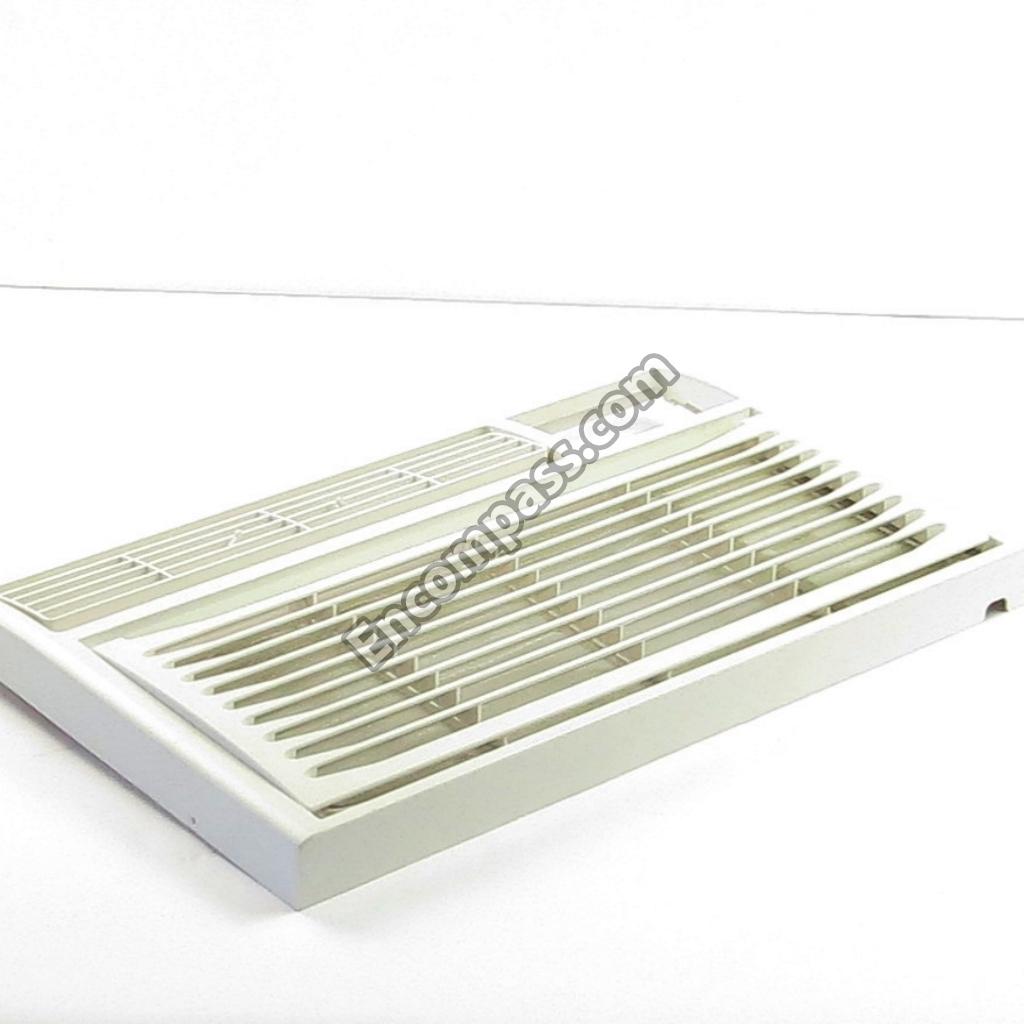

WJ71X21783 WJ71X21783 PANEL
WJ76X20093 WJ76X20093 PARTITION
AC-5211-072 AC-5211-072 PARTITION
AC-6650-002 AC-6650-002 SPACER
WJ27X23476 WJ27X23476 TRANSFORMER
AC-7750-327 AC-7750-327 TUBE
AC-7950-014 AC-7950-014 WASHER
