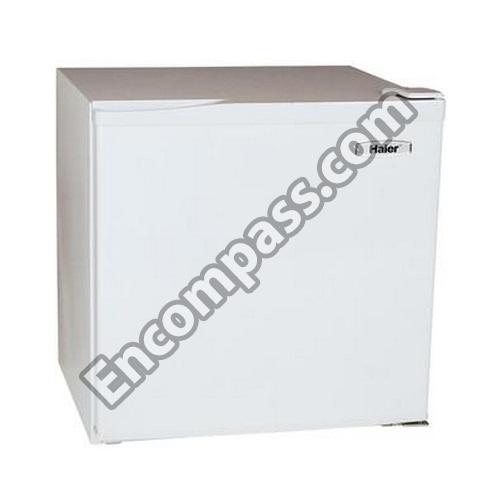

Model Image
Manufacturer

Haier

Model Number

HUM013EA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RF-0010-74 RF-0010-74 ACCESSORIES-COMPRESS
WR01X29913 WR01X29913 AXLE-HINGE PIN
RF-0595-04 RF-0595-04 BLOCK-THERMOSTAT BOX
RF-0850-61 RF-0850-61 BRACKET-SHELF
RF-1302-19 RF-1302-19 CABLE-GROUNDING
RF-1450-77 RF-1450-77 CARTON
RF-1650-36 RF-1650-36 CLIP-CABLE
RF-1750-49 RF-1750-49 COMPRESSOR-W/ACCESSO
RF-1900-31 RF-1900-31 CORD-POWER
RF-2650-102 RF-2650-102 EVAPORATOR
RF-3450-128 RF-3450-128 HINGE-UPPER
RF-4000-27 RF-4000-27 KNOB-THERMOSTAT
RF-4310-06 RF-4310-06 LINER - RETURN TUBE
RF-9999-A7 RF-9999-A7 MANUAL - USE & CARE
RF-5100-07 RF-5100-07 PAD-RETURN TUBE
RF-6095-01 RF-6095-01 SCRAPER - FROST REMO
RF-6150-28 RF-6150-28 SCREW-COMBINATION
RF-6150-26 RF-6150-26 SCREW-HEX HEAD TAPPI
RF-6150-20 RF-6150-20 SCREW-HINGE [PHILLIP
RF-6150-06 RF-6150-06 SCREW-PHILLIPS COUNT
RF-6150-13 RF-6150-13 SCREW-PHILLIPS TAPPI

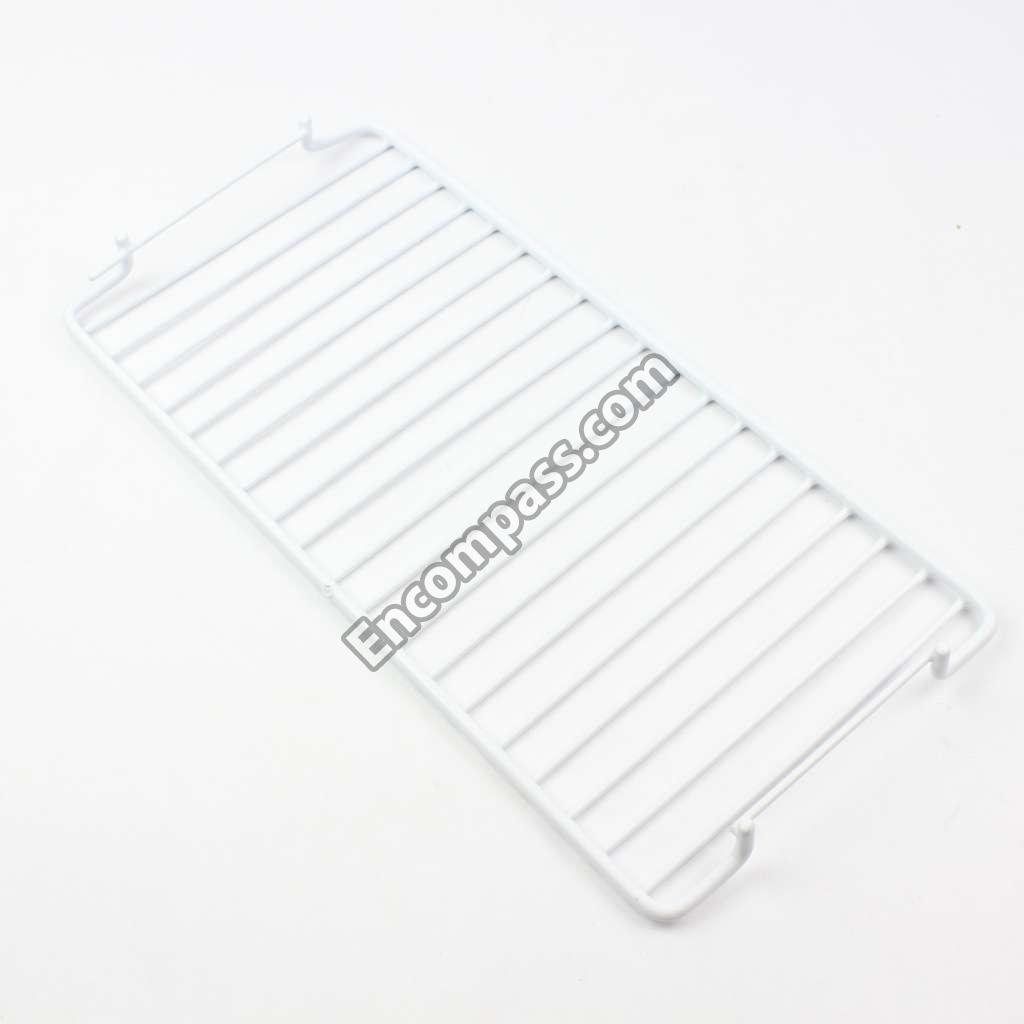

RF-6350-224 RF-6350-224 SHELF
RF-7950-48 RF-7950-48 SHIM-WASHER (INSIDE

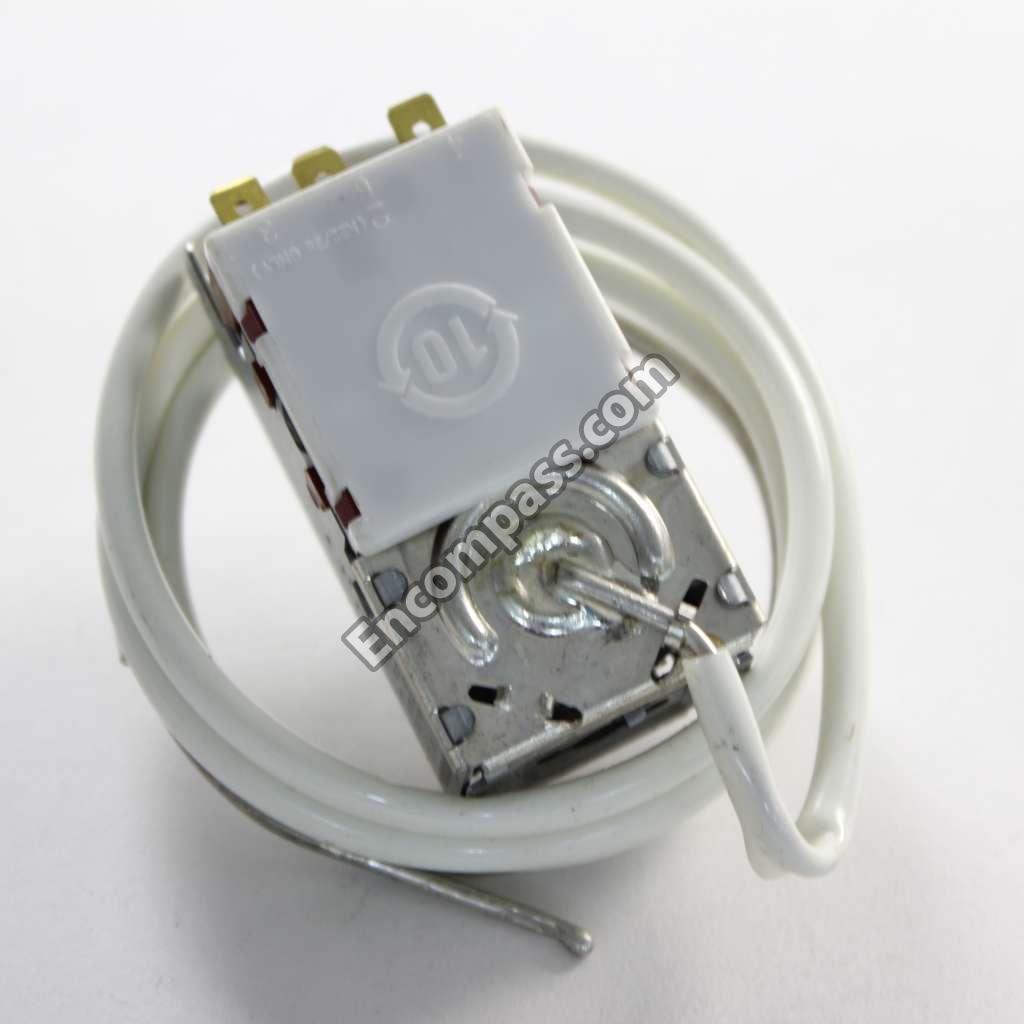

RF-7350-91 RF-7350-91 THERMOSTAT
WR02X27688 WR02X27688 TRAY-ICE
RF-7750-05 RF-7750-05 TUBE - INJECTION
RF-7750-14 RF-7750-14 TUBE-CONDENSATION
RF-7950-07 RF-7950-07 WASHER-RUBBER
RF-7950-09 RF-7950-09 WASHER-STOP
