Model Image
Manufacturer

GE

Model Number

HUM030PA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WR01X29913 WR01X29913 AXLE-HINGE PIN
RF-0500-55 RF-0500-55 BIN-CRISPER (LARGE)
RF-0850-72 RF-0850-72 BRACKET-CONDENSER
RF-0850-36 RF-0850-36 BRACKET-RIGHT
RF-1302-26 RF-1302-26 CABLE-GROUNDING
RF-1950-132 RF-1950-132 COVER-SCREW
RF-1950-133 RF-1950-133 COVER-SCREW
RF-2650-101 RF-2650-101 EVAPORATOR-FREEZER

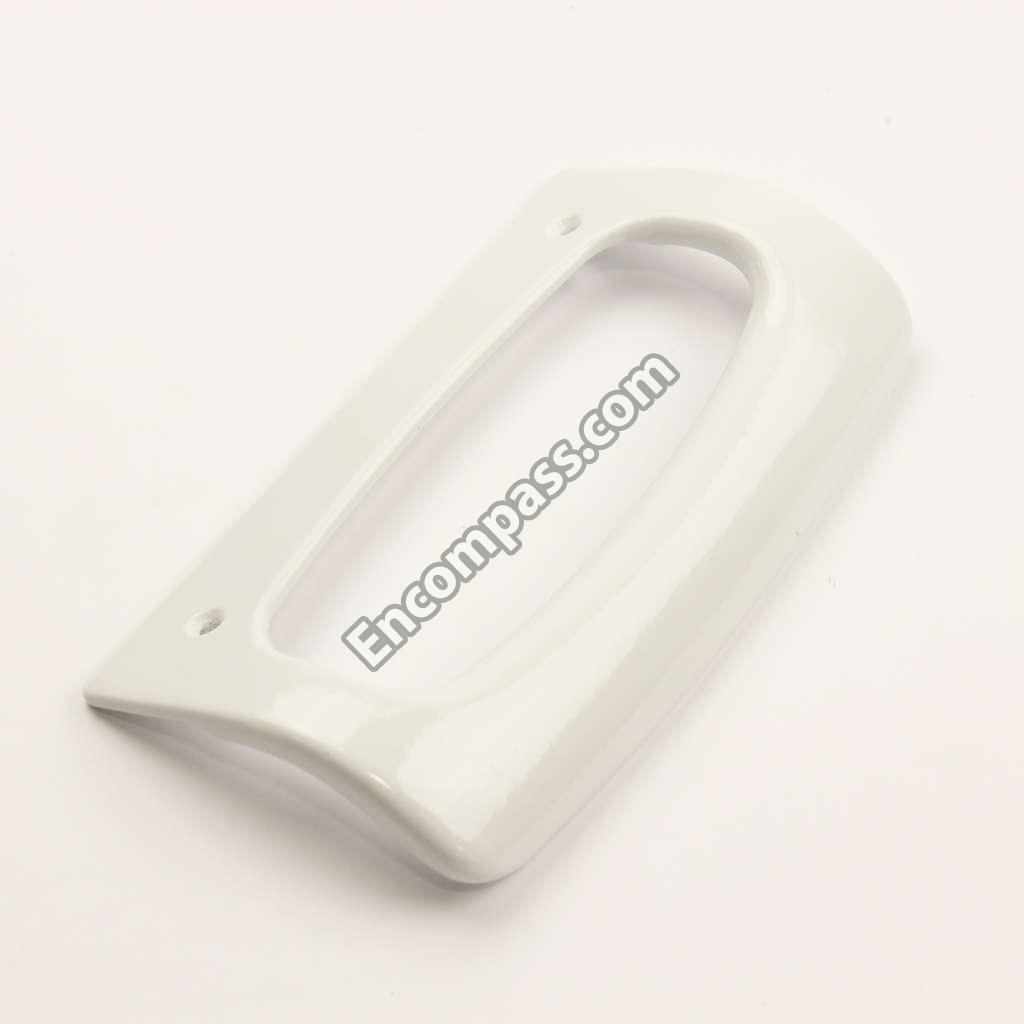

RF-3350-57 RF-3350-57 HANDLE
RF-3450-117 RF-3450-117 HINGE-UPPER
RF-4310-07 RF-4310-07 LINER-TUBE
RF-5100-25 RF-5100-25 PAD-E SHAPE CABINET
RF-5100-39 RF-5100-39 PAD-TUBE
RF-5255-05 RF-5255-05 PIPE-CONDENSER
RF-5310-21 RF-5310-21 PLUG-HANDLE HOLE
RF-5310-40 RF-5310-40 PLUG-HINGE HOLE
RF-6050-09 RF-6050-09 RUBBER-VIBRATION
WR01X27790 WR01X27790 SCREW
RF-6150-147 RF-6150-147 SCREW
RF-6150-67 RF-6150-67 SCREW
WR01X27682 WR01X27682 SCREW
RF-6150-62 RF-6150-62 SCREW
RF-6150-77 RF-6150-77 SCREW
RF-6150-221 RF-6150-221 SCREW-SELF TAPPING
RF-7950-48 RF-7950-48 SHIM-WASHER (INSIDE
RF-7000-18 RF-7000-18 SUPPORT-FRONT STRIP
RF-7350-93 RF-7350-93 THERMOSTAT
RF-7600-97 RF-7600-97 TRAY
WR02X27688 WR02X27688 TRAY-ICE
WR87X28553 WR87X28553 TUBE-DISCHARGE
RF-7950-50 RF-7950-50 WASHER
RF-7950-06 RF-7950-06 WASHER-SPRING
