Haier

Model Number

HVTS18DABB

Description

Hvts18dabb:18 Bottle Dual Zone

Interactive Exploded View

Parts List

Part Number Description
RF-0850-151 RF-0850-151 BRACKET-FAN
RF-1200-14 RF-1200-14 BUTTON
RF-1300-280 RF-1300-280 CABINET
RF-1950-512 RF-1950-512 COVER - BACK
RF-1950-516 RF-1950-516 COVER - DISPLAY PANE
RF-1950-514 RF-1950-514 COVER - DIVIDE TRAY
RF-1950-517 RF-1950-517 COVER - INNER FAN
RF-1950-513 RF-1950-513 COVER - LIGHT
RF-1950-515 RF-1950-515 COVER-TOP HINGE

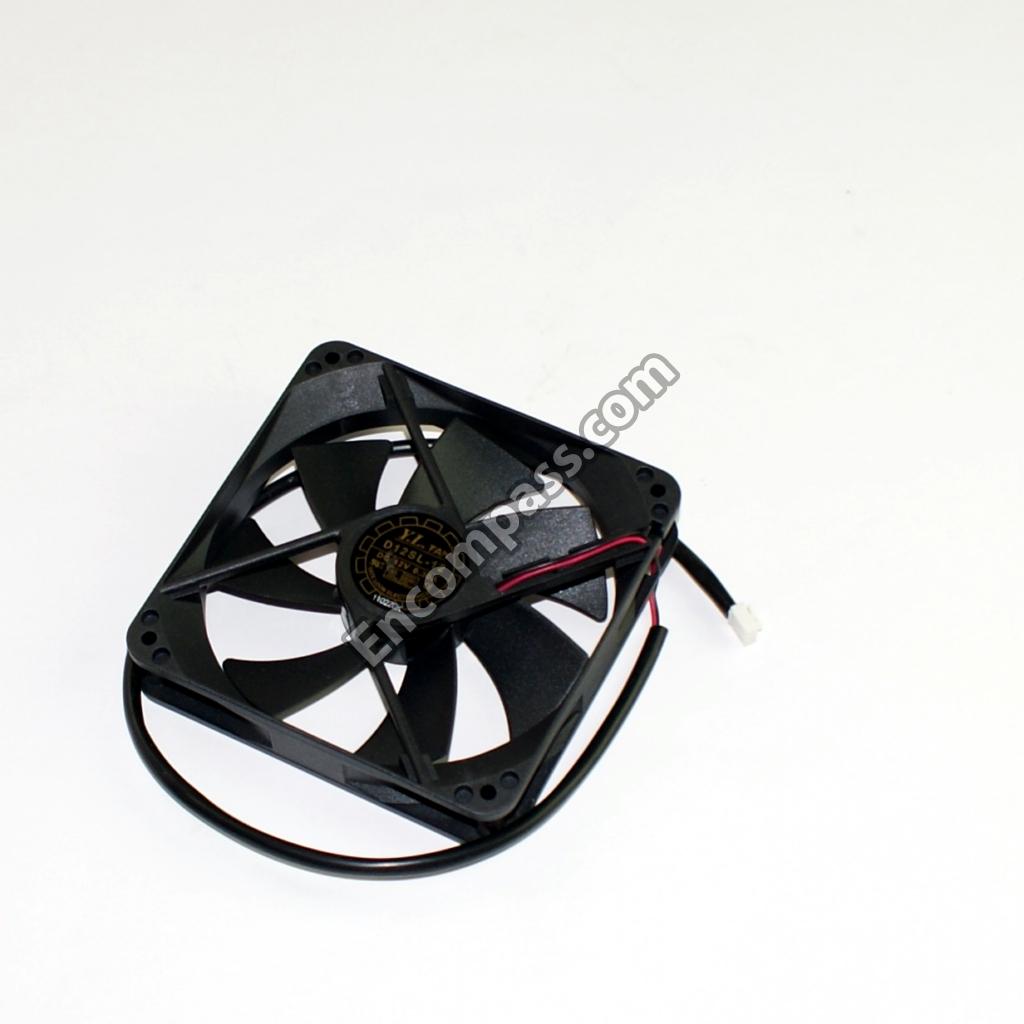

RF-2750-45 RF-2750-45 FAN-BOTTOM 120DC

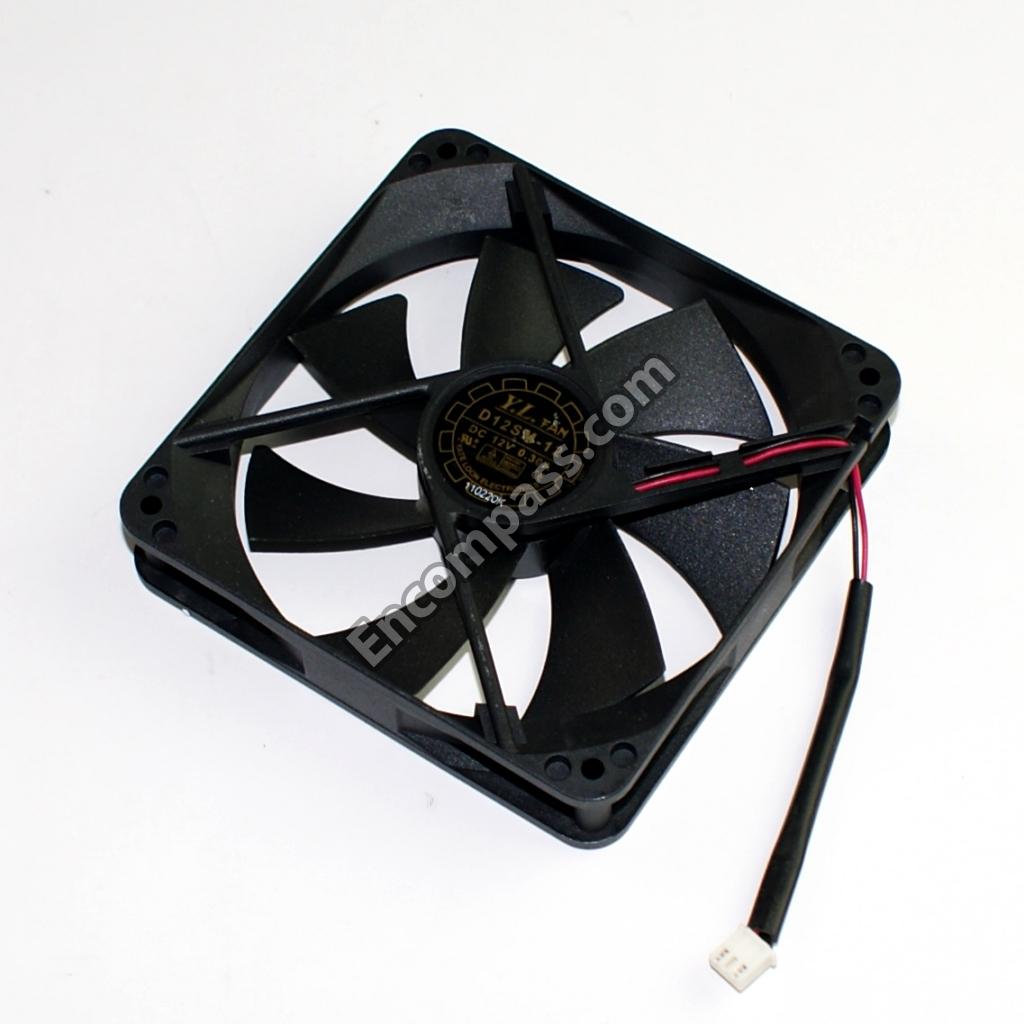

RF-2750-44 RF-2750-44 FAN-TOP 120DC
RF-2900-34 RF-2900-34 FOOT-BOTTOM BACK
RF-2900-33 RF-2900-33 FOOT-WITH BOLT
RF-3150-25 RF-3150-25 GRILL - VENT
RF-3450-267 RF-3450-267 HINGE-BOTTOM ASSY
RF-3450-266 RF-3450-266 HINGE-TOP
RF-9999-336 RF-9999-336 MANUAL - USE & CARE
RF-9999-335 RF-9999-335 MANUAL - USE & CARE
RF-5210-57 RF-5210-57 P.C.B.-LED
RF-6350-358 RF-6350-358 SHELF
