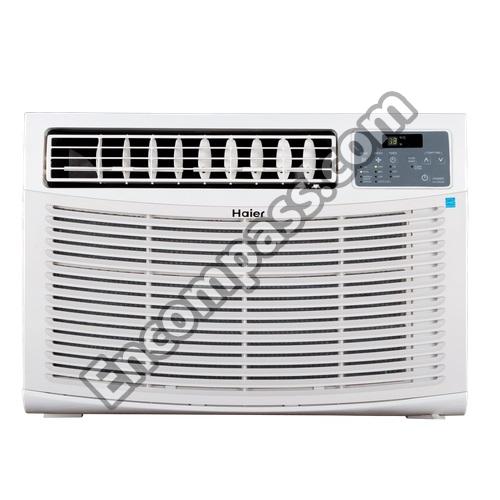

Model Image
Manufacturer

Haier

Model Number

HWE18VCN

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-2750-153 AC-2750-153 AXIAL FAN
AC-3300-047 AC-3300-047 BOTTOM GUIDE
AC-6150-49 AC-6150-49 BOTTOM SCREW
AC-0850-154 AC-0850-154 BRACKET
AC-0850-155 AC-0850-155 BRACKET FOR FAN MOTOR
WJ03X10093 WJ03X10093 CAPACITOR CLAMP
A0010719057 A0010719057 CAPILLARY GROUP
WJ73X10214 WJ73X10214 CENTRIFUGAL FAN
A0010719053 A0010719053 COMPRESSOR
WJ20X10193 WJ20X10193 COMPRESSOR AND FAN CAPACITOR
AC-1800-252 AC-1800-252 CONDENSER ASSY.
AC-4440-65 AC-4440-65 COVER BOARD OF HORIZONTAL LOUVER
A0010207646 A0010207646 DIAL
AC-2650-216 AC-2650-216 EVAPORATOR ASSY.
A0010716893 A0010716893 EVAPORATOR GAS-OUT PIPE ASSY
A0010716898 A0010716898 EVAPORATOR LIQUID-IN PIPE
A0010716897 A0010716897 EVAPORATOR LIQUID-IN PIPE
A0010716899 A0010716899 EVAPORATOR LIQUID-IN PIPE
A0010205201B A0010205201B FRESH AIR STAFF
AC-0255-14 AC-0255-14 L ANGLE
WJ65X23970 WJ65X23970 LEFT FRAME
AC-0750-35 AC-0750-35 LONG BOLT
AC-4550-384 AC-4550-384 MOTOR
A0010205204 A0010205204 PARTITION PLATE OF EVAPORATOR ASSY.
A0011800333B A0011800333B PCB
A0011800279F A0011800279F PCB
AC-5211-074 AC-5211-074 REAR PARTITION BOARD
WJ26X22480 WJ26X22480 REMOTE CONTROL
WJ65X23971 WJ65X23971 RIGHT FRAME
WJ01X10438 WJ01X10438 SCREW
AC-6150-086 AC-6150-086 SCREW
AC-6150-15 AC-6150-15 SCREW
AC-3100-28 AC-3100-28 SEAL PAD 1
AC-1950-335 AC-1950-335 SUPPORTING SHAFT
AC-1950-466 AC-1950-466 THE COVER FOR REAR PARTITION BOARD
AC-3300-046 AC-3300-046 TOP RAIL
WJ27X22872 WJ27X22872 TRANSFORMER
