Model Image
Manufacturer

GE

Model Number

HWE24VCN

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

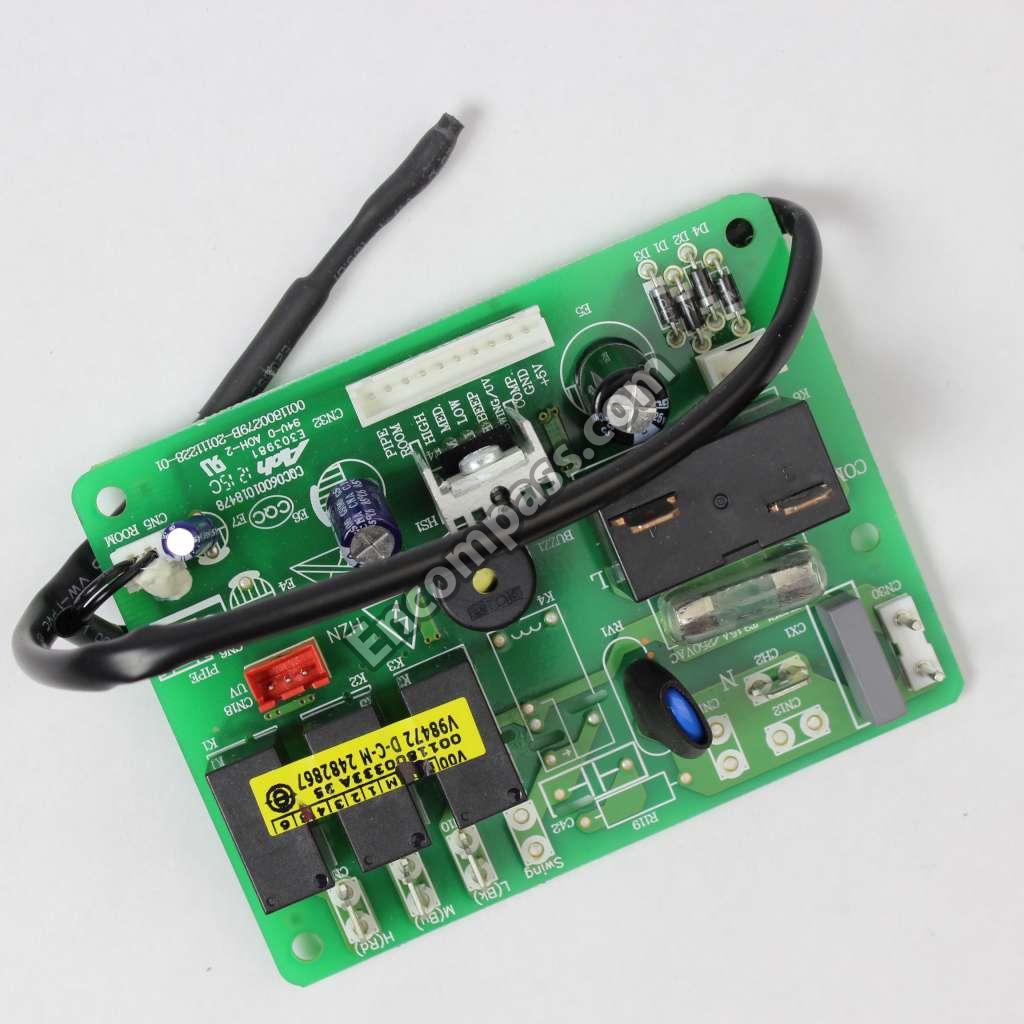

WJ26X23983 WJ26X23983 AIO PCB
AC-7100-37 AC-7100-37 AIR EXCHANGE SWITCH
A0010401514D A0010401514D ASYNCHRONOUS MOTOR
WJ73X10211 WJ73X10211 AXIAL FAN
AC-0850-154 AC-0850-154 BRACKET
AC-1650-16 AC-1650-16 CAPACITOR CLAMP
WJ73X10212 WJ73X10212 CENTRIFUGAL FAN
A0010101285 A0010101285 CHASSIS ASSY.
WJ98X10316 WJ98X10316 COMPRESSOR
WJ20X20134 WJ20X20134 COMPRESSOR AND FAN CAPACITOR
A0010713929 A0010713929 CONDENSER ASSY.
AC-5950-29 AC-5950-29 CONNECT POLE
AC-0800-49 AC-0800-49 ELECTRICAL BOX
AC-2650-32 AC-2650-32 EVAPORATOR ASSY.
A0010201602 A0010201602 FRESH AIR DOOR
A0010203770 A0010203770 INLET GRILLE
AC-0255-14 AC-0255-14 L ANGLE
AC-2950-42 AC-2950-42 LEFT FRAME
AC-0750-35 AC-0750-35 LONG BOLT
AC-5200-249 AC-5200-249 OPERATION PANEL
AC-6998-11 AC-6998-11 PARTITION PLATE OF EVAPORATOR
AC-5300-60 AC-5300-60 REAR PARTITION PLATE
WJ26X22480 WJ26X22480 REMOTE CONTROL
WJ01X10438 WJ01X10438 SCREW
AC-6150-086 AC-6150-086 SCREW
AC-6150-15 AC-6150-15 SCREW
AC-1470-22 AC-1470-22 SCROLL CASE
AC-3100-28 AC-3100-28 SEAL PAD 1
AC-5200-261 AC-5200-261 SIDE PARTITION PLATE
AC-4440-40 AC-4440-40 SUBORDINATE VERTICAL VANE
WJ57X10047 WJ57X10047 SUCTION TUBE
AC-0668-23 AC-0668-23 TOP COVER BOARD
WJ27X22872 WJ27X22872 TRANSFORMER
AC-3300-17 AC-3300-17 UPPER GUIDE
A0010713942 A0010713942 VENT-PIPE
A0010401509A A0010401509A WIRE BUNCH
