Model Image
Manufacturer

GE

Model Number

HWF05XC7

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

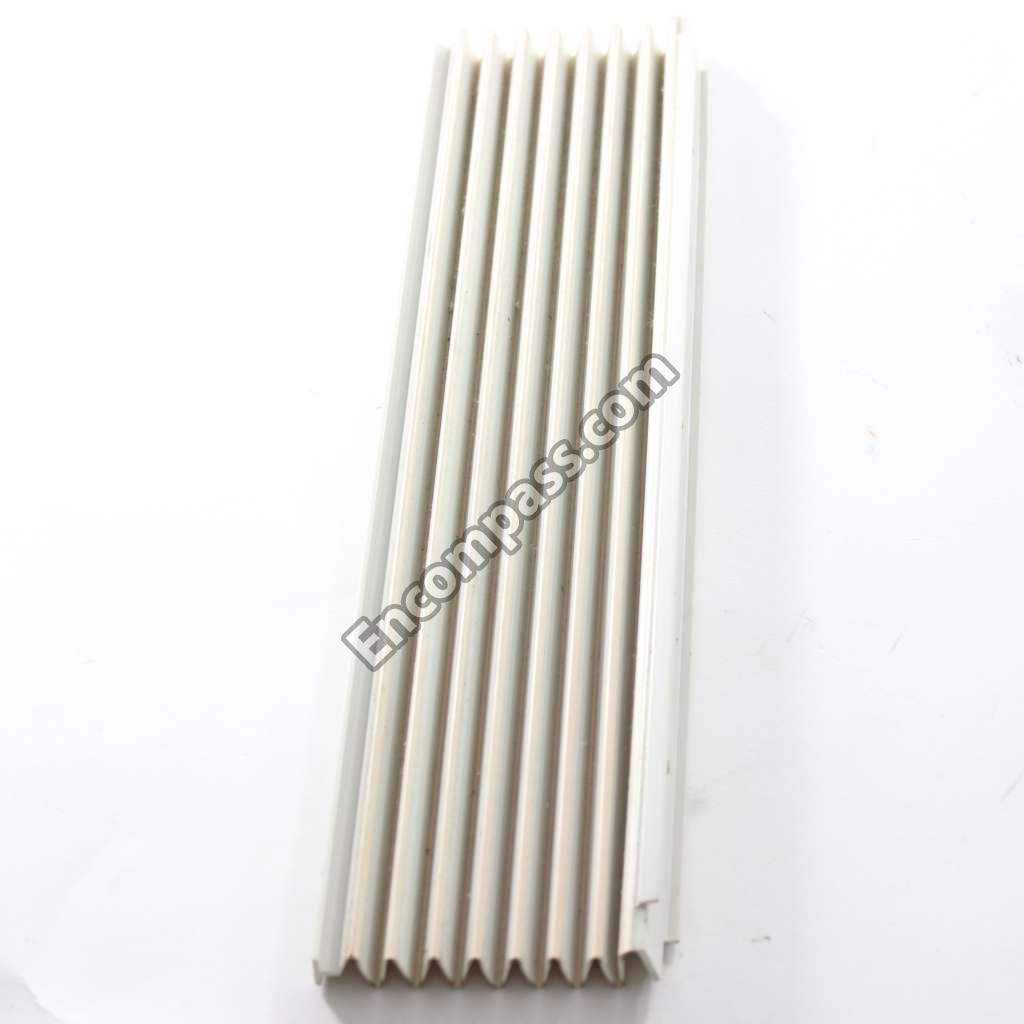

WJ86X23969 WJ86X23969 GE ACCORDIAN LEFT FRAME ONLY
WJ86X23981 WJ86X23981 GE ACCORDIAN RIGHT FRAME ONLY
AC-2950-12 AC-2950-12 Haier ACCORDIAN MIDDLE PART
AC-0255-14 AC-0255-14 Haier BRACE-ANGLE
AC-1300-43 AC-1300-43 Haier CABINET
AC-1470-43 AC-1470-43 Haier CASE-SCROLL (LOWER)
AC-1470-42 AC-1470-42 Haier CASE-SCROLL (UPPER)
AC-1620-11 AC-1620-11 Haier CHASSIS-ASSY
AC-1750-25 AC-1750-25 Haier COMPRESSOR
WJ73X10209 WJ73X10209 GE FAN-CENTRIFUGAL
AC-2950-45 AC-2950-45 Haier FRAME-ACCORDIAN SCRE
WJ43X22906 WJ43X22906 GE GASKET
WJ86X23967 WJ86X23967 GE GUIDE-UPPER
AC-4000-26 AC-4000-26 Haier KNOB
AC-4550-146 AC-4550-146 Haier MOTOR
AC-5200-262 AC-5200-262 Haier PANEL-CONTROL
AC-5200-251 AC-5200-251 Haier PANEL-EVAP. PARTITIO
AC-5200-250 AC-5200-250 Haier PANEL-FRONT
WJ71X23984 WJ71X23984 GE PANEL-FRONT
AC-5200-252 AC-5200-252 Haier PANEL-REAR PARTITION
AC-5950-28 AC-5950-28 Haier ROD-CONNECTING
AC-6150-15 AC-6150-15 Haier SCREW-25MM WOOD
WJ01X10438 WJ01X10438 GE SCREW-SHORT 13/32"
WR09X29313 WR09X29313 GE SWITCH
WR09X29314 WR09X29314 GE THERMOSTAT
AC-7750-93 AC-7750-93 Haier TUBE-CAPILLARY
