Model Image
Manufacturer

GE

Model Number

HWR05XCLL

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WJ20X10192 WJ20X10192 CAPACITOR-COMPRESSOR
AC-1405-106 AC-1405-106 CAPILLARY

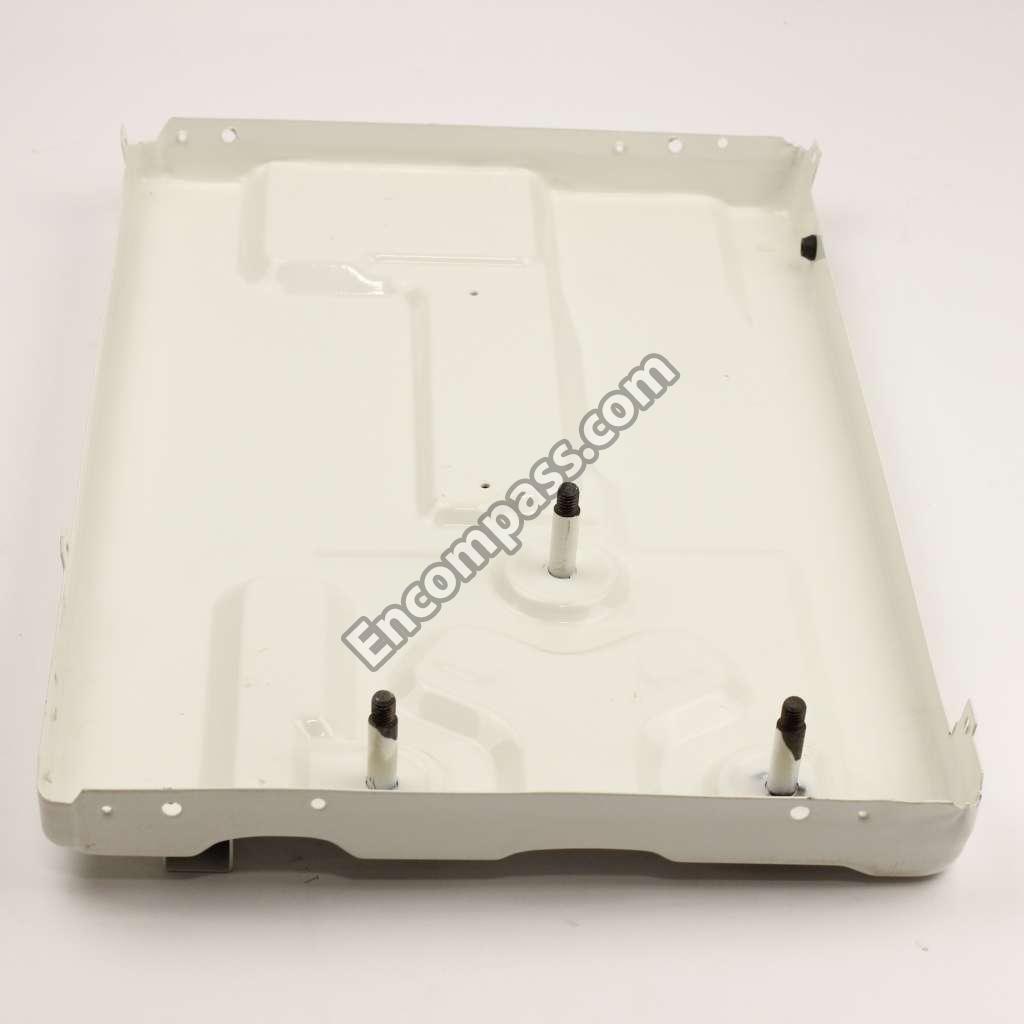

AC-1620-052 AC-1620-052 CHASSIS
WJ03X10093 WJ03X10093 CLAMP-CAPACITOR
AC-1750-231 AC-1750-231 COMPRESSOR

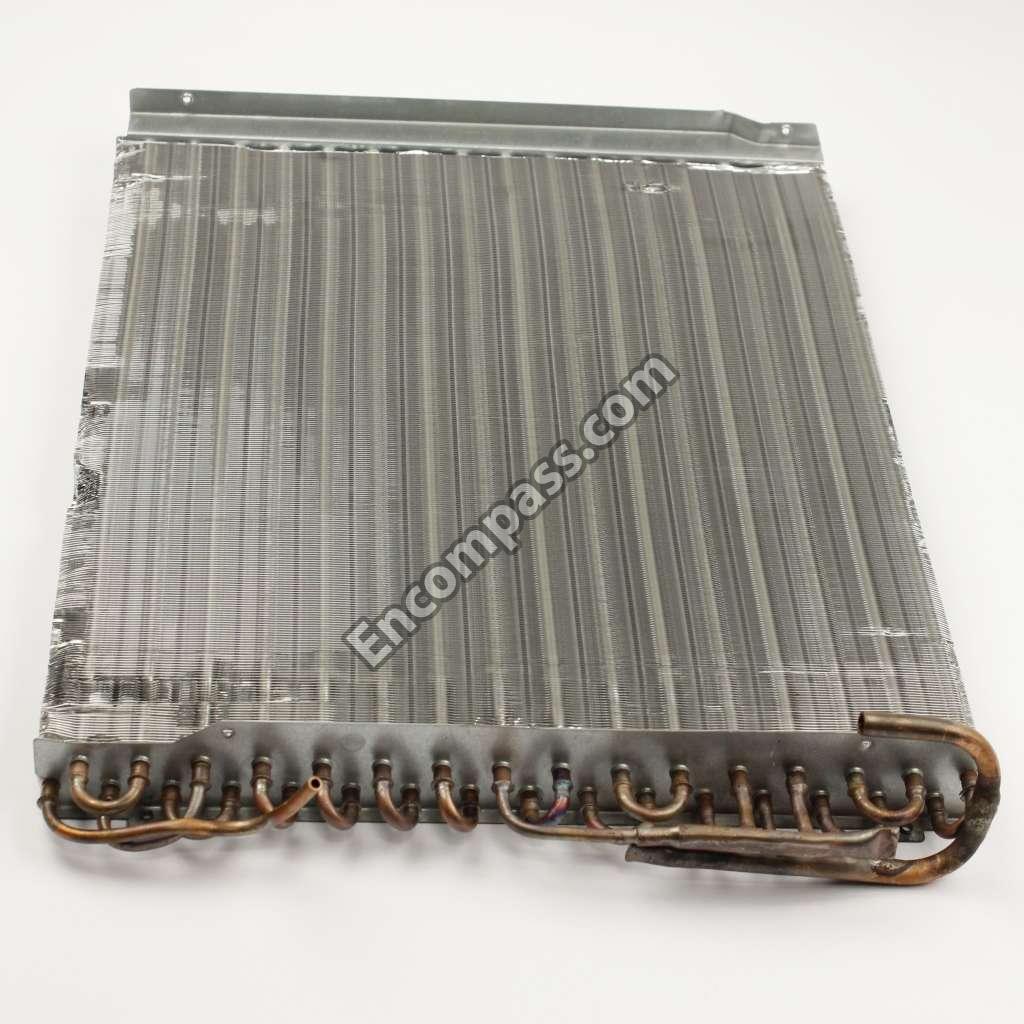

AC-1800-260 AC-1800-260 CONDENSER

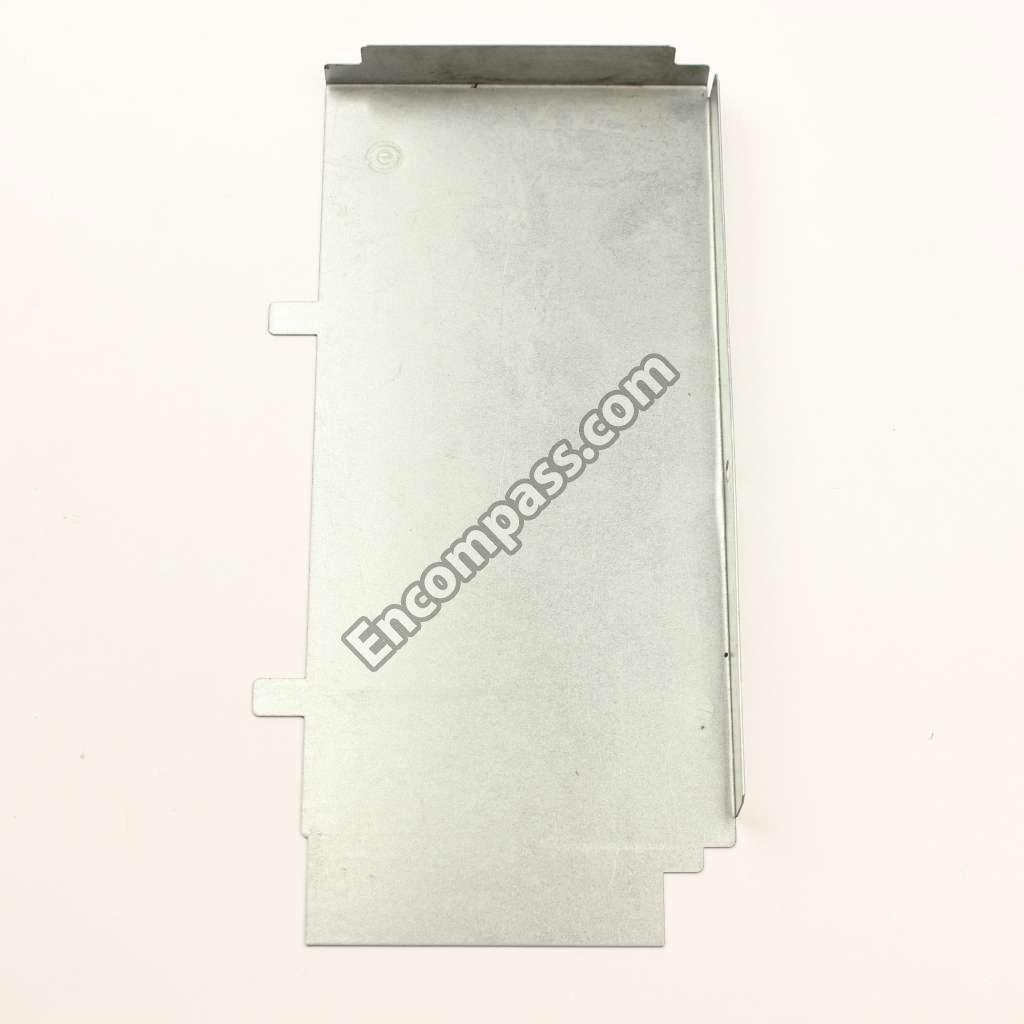

AC-1950-467 AC-1950-467 COVER
AC-2650-223 AC-2650-223 EVAPORATOR

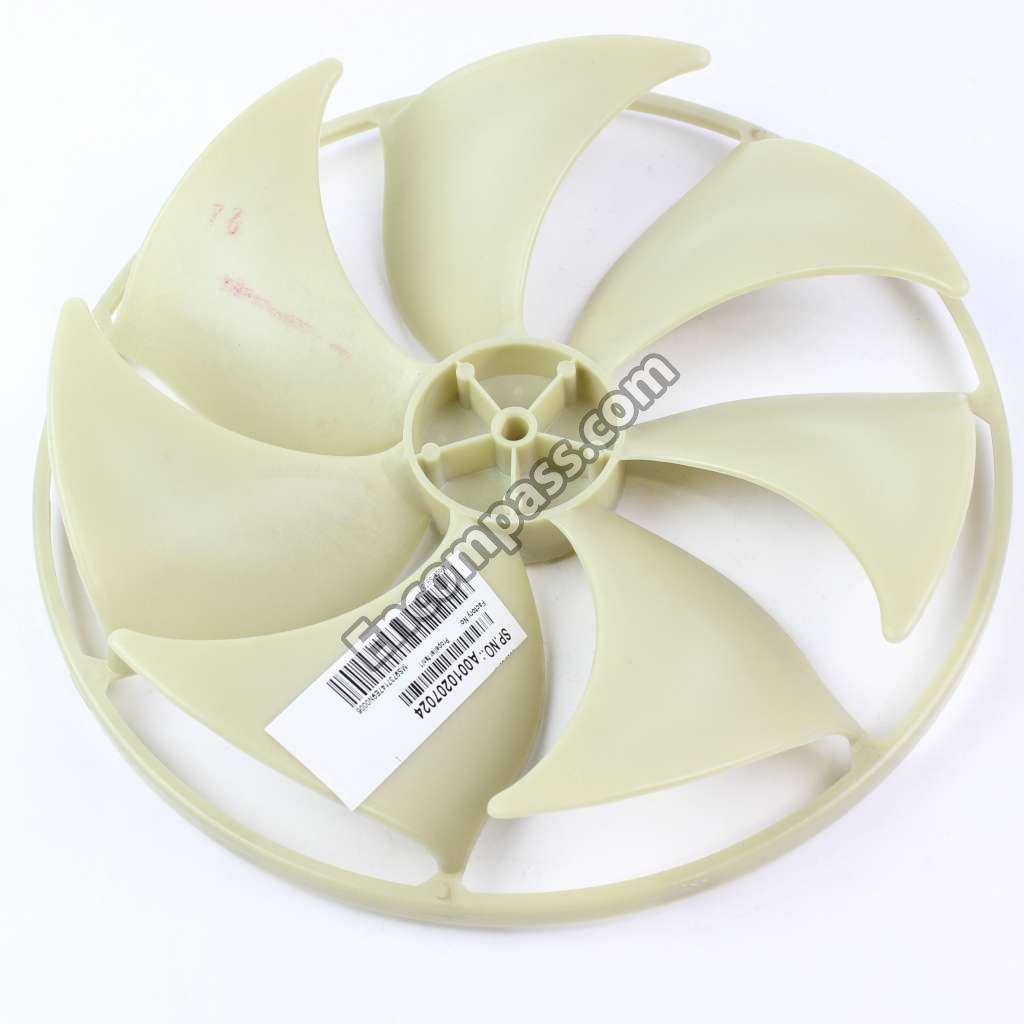

AC-2750-154 AC-2750-154 FAN
WJ65X23746 WJ65X23746 FRAME-LEFT
WJ65X23747 WJ65X23747 FRAME-RIGHT
WJ43X22906 WJ43X22906 GASKET
WJ86X23977 WJ86X23977 GUIDE
AC-3363-15 AC-3363-15 HARNESS-WIRE

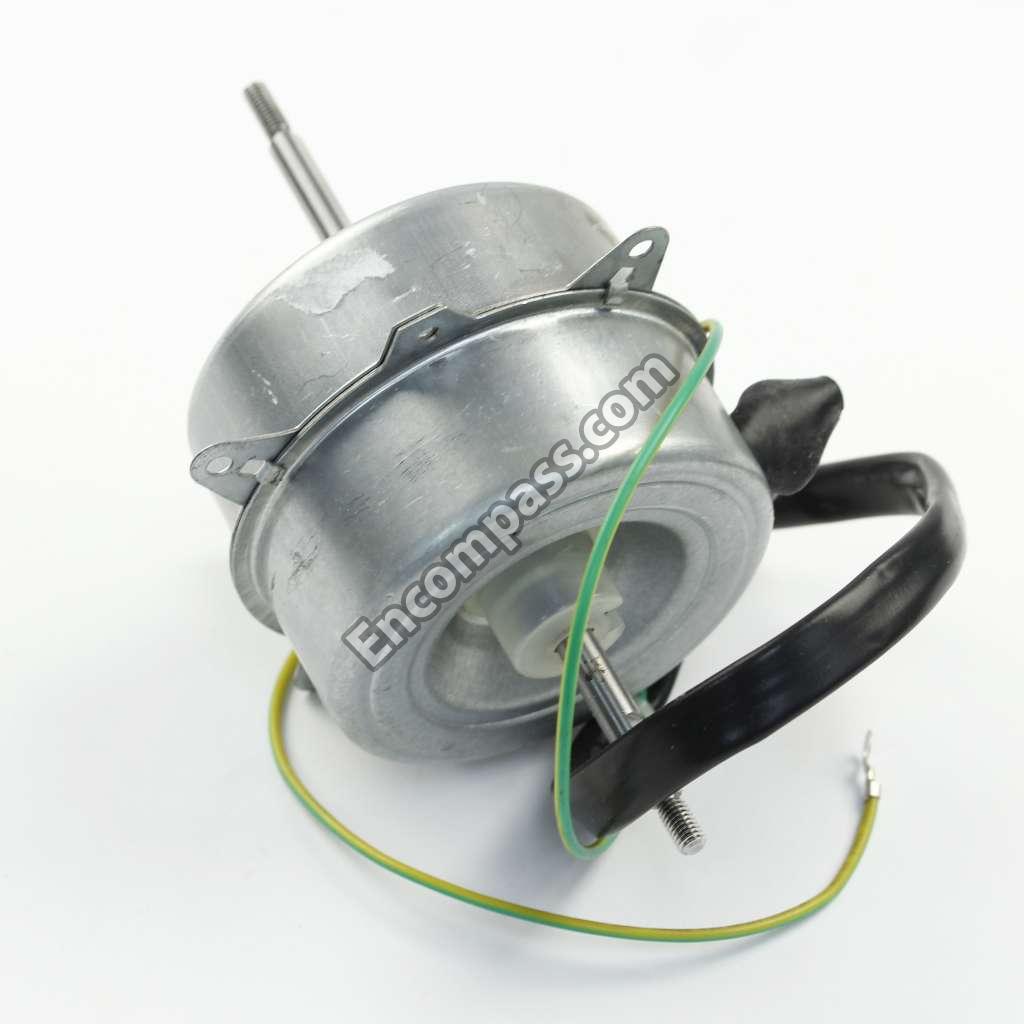

AC-4550-412 AC-4550-412 MOTOR

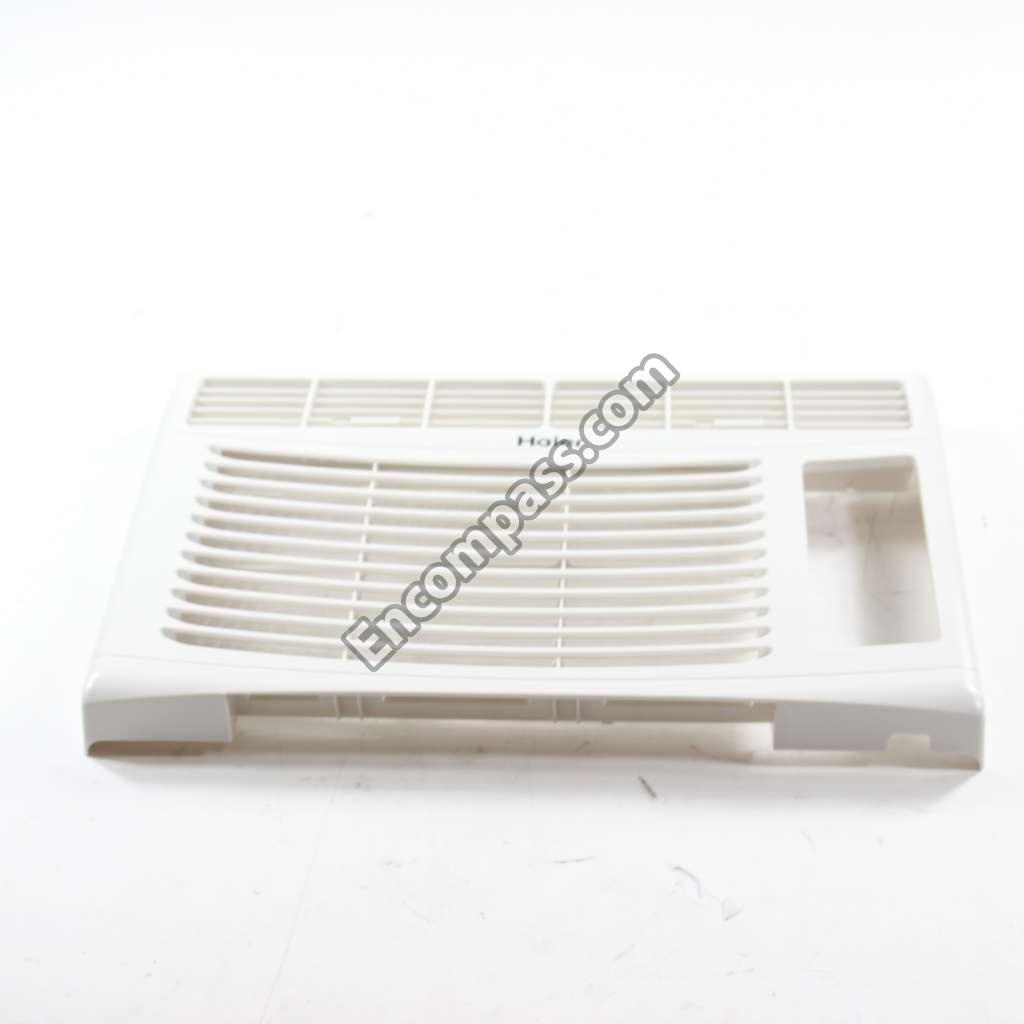

AC-5200-628 AC-5200-628 PANEL
AC-5200-620 AC-5200-620 PANEL
AC-5255-695 AC-5255-695 PIPE
AC-5255-694 AC-5255-694 PIPE

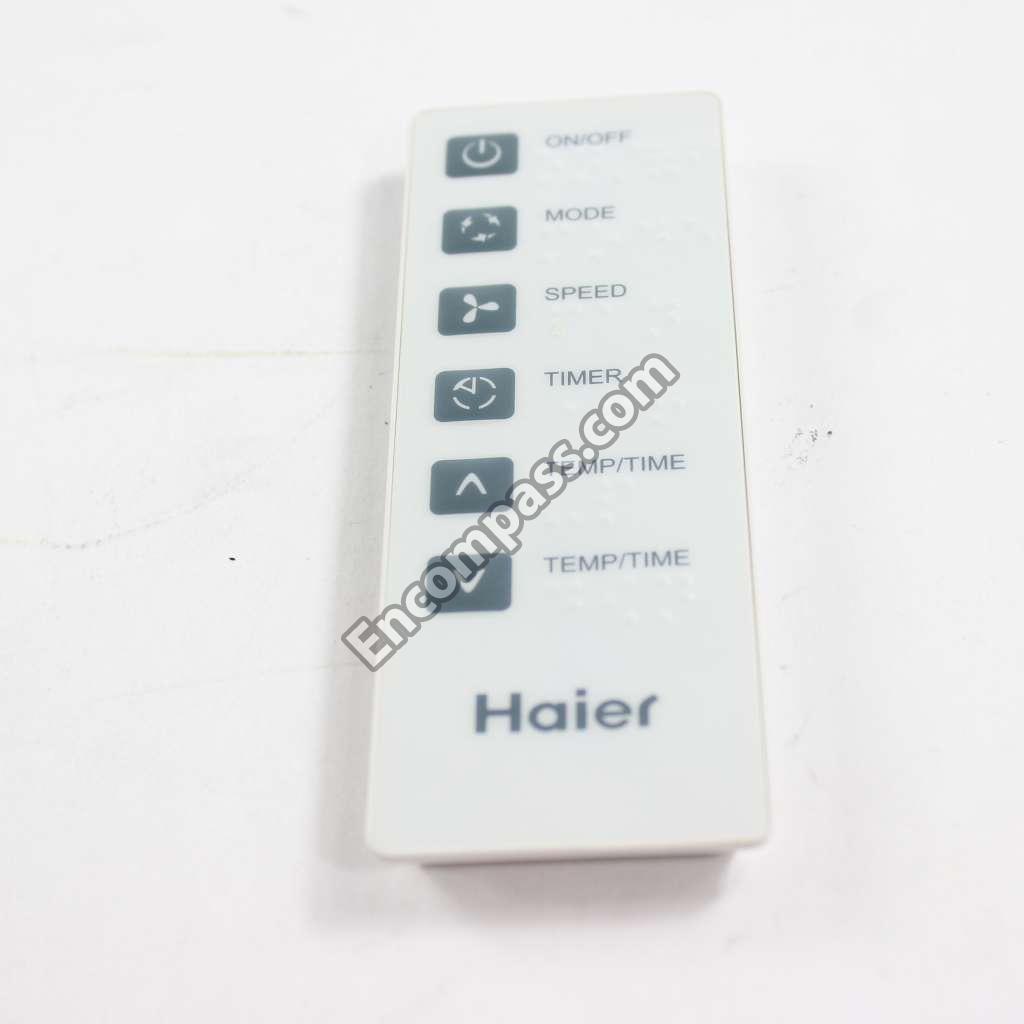

WJ26X23973 WJ26X23973 REMOTE
WJ86X23745 WJ86X23745 SCREEN-ACCORDION
WJ01X23761 WJ01X23761 SCREW-BAG
AC-6250-063 AC-6250-063 SENSOR
WJ27X23476 WJ27X23476 TRANSFORMER
AC-7750-347 AC-7750-347 TUBE
