Model Image
Manufacturer

GE

Model Number

HWR06XC7T

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WJ01X23601 WJ01X23601 BAG-SCREW
AC-0668-94 AC-0668-94 BOARD-TOP COVER
AC-0255-14 AC-0255-14 BRACE-ANGLE
WJ20X10192 WJ20X10192 CAPACITOR-COMPRESSOR
AC-1470-10 AC-1470-10 CASE-BLOWER SCROLL
AC-1620-16 AC-1620-16 CHASSIS-ASSY
AC-1750-49 AC-1750-49 COMPRESSOR
AC-1800-23 AC-1800-23 CONDENSER-ASSY (LG)
AC-1950-230 AC-1950-230 COVER-ELECTRICAL BOX
AC-2650-23 AC-2650-23 EVAPORATOR-ASSY (SEN
AC-2750-18 AC-2750-18 FAN-BLOWER WHEEL
WJ43X22906 WJ43X22906 GASKET
WJ65X22104 WJ65X22104 GUIDE
AC-4550-149 AC-4550-149 MOTOR
AC-5100-14 AC-5100-14 PAD-SIDE
AC-5200-275 AC-5200-275 PANEL-INDICATOR

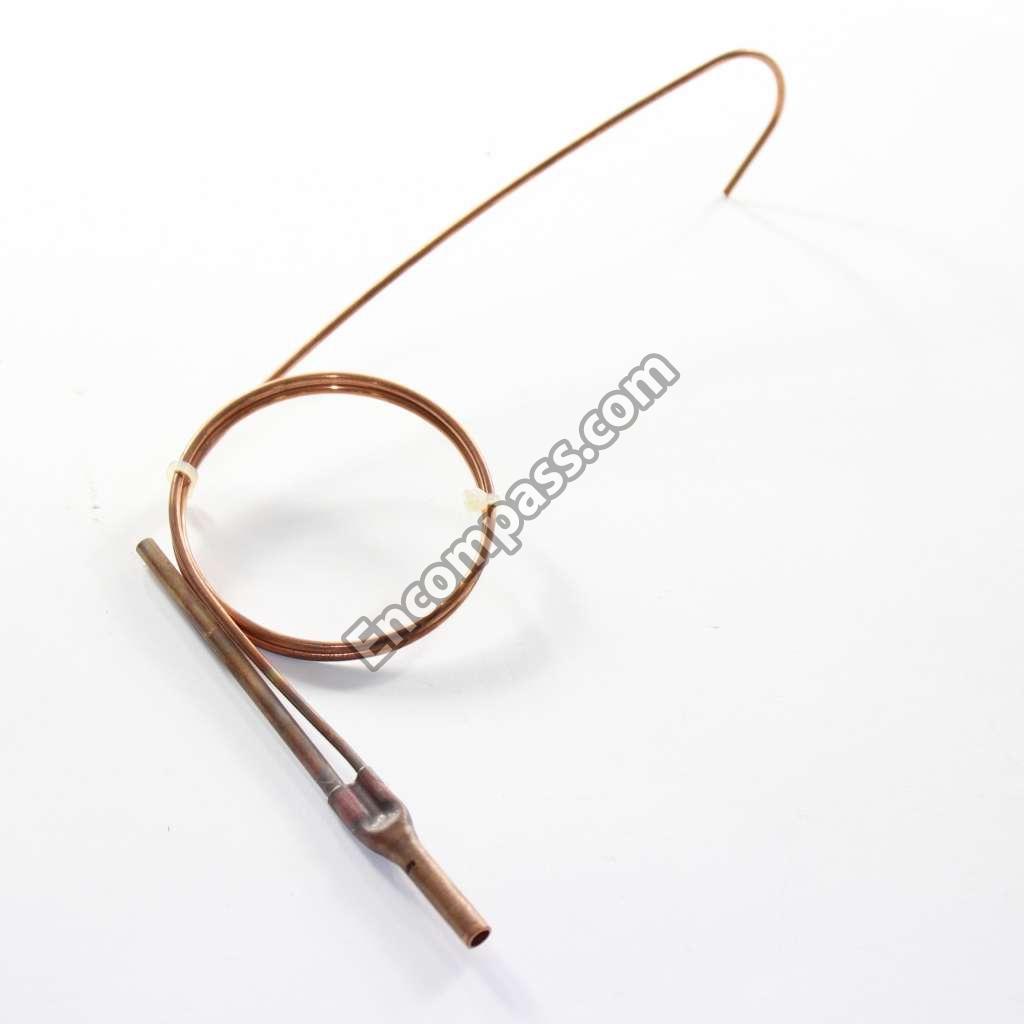

AC-5255-91 AC-5255-91 PIPE-CAPILLIARY (SEN
AC-5255-120 AC-5255-120 PIPE-SUCTION ASSY
AC-5255-89 AC-5255-89 PIPE-VENT (LG & RECH
AC-5300-31 AC-5300-31 PLATE-CONDUIT
WJ86X22903 WJ86X22903 SCREEN-ACCORDIAN
AC-6150-15 AC-6150-15 SCREW-25MM WOOD
AC-6500-05 AC-6500-05 SHROUD-CONDENSER
