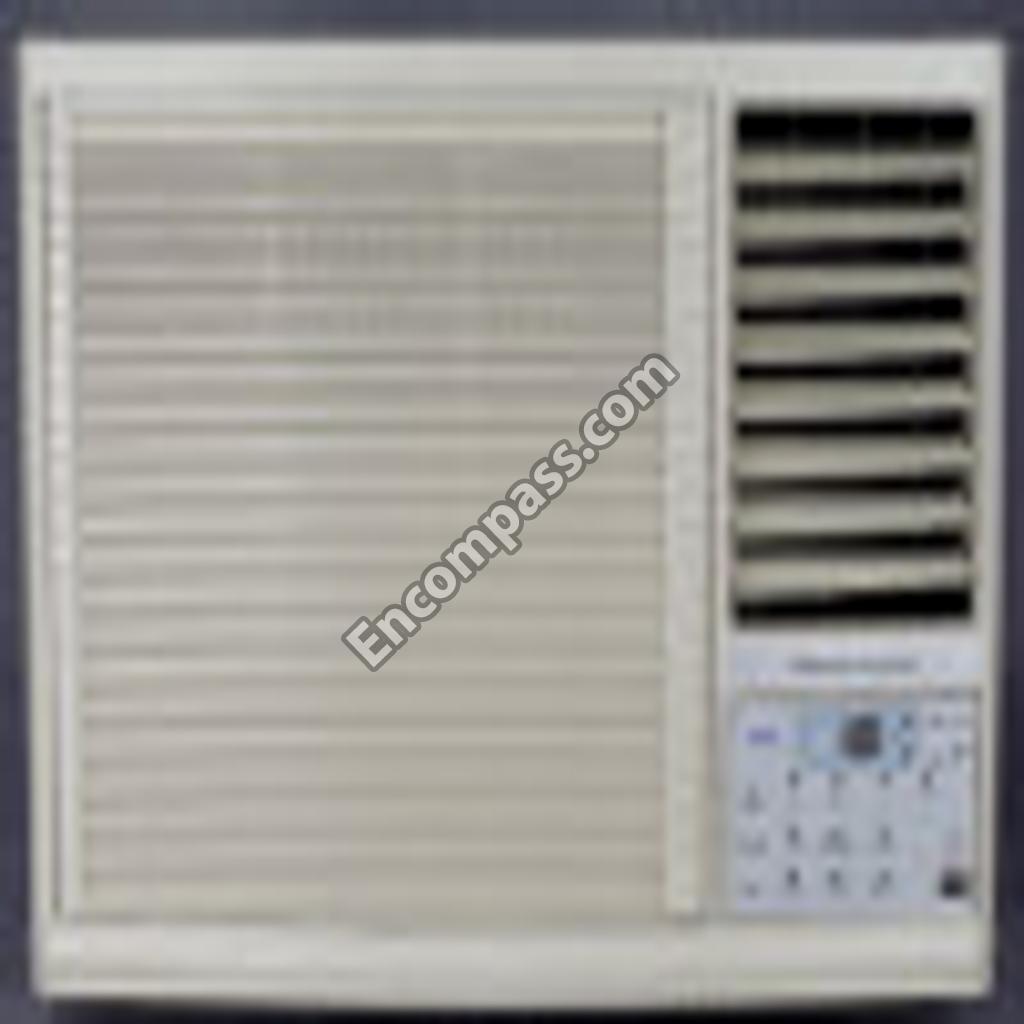

Model Image
Manufacturer

Haier

Model Number

HWR10XC1T

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0010-24 AC-0010-24 ACCESSORIES-HARDWARE
AC-0155-04 AC-0155-04 BAG-PLASTIC
WJ01X23601 WJ01X23601 BAG-SCREW
AC-0255-08 AC-0255-08 BASEPAN-ASSY
AC-0320-01 AC-0320-01 BATTERY
AC-0668-10 AC-0668-10 BOARD-CORRUGATED
AC-0750-04 AC-0750-04 BOLT-COMPRESSOR
AC-0800-12 AC-0800-12 BOX-ELECTRIC
AC-0800-32 AC-0800-32 BOX-ELECTRIC ASSY
AC-0840-08 AC-0840-08 BRACE-ANGLE
AC-0840-01 AC-0840-01 BRACE-LEFT TIE
AC-0840-10 AC-0840-10 BRACE-TRIANGLE [LEFT
AC-1300-06 AC-1300-06 CABINET
WJ20X10192 WJ20X10192 CAPACITOR-COMPRESSOR
AC-1400-15 AC-1400-15 CAPACITOR-FAN MOTOR
AC-1415-02 AC-1415-02 CARD
AC-1470-05 AC-1470-05 CASE-BLOWER SCROLL
AC-1650-16 AC-1650-16 CLIP-CAPACITOR
AC-1750-22 AC-1750-22 COMPRESSOR
AC-1750-23 AC-1750-23 COMPRESSOR-ASSY (REC
AC-1950-07 AC-1950-07 COVER-CONDENSER
AC-1950-19 AC-1950-19 COVER-EVAPORATOR
AC-2015-40 AC-2015-40 CUSHION
AC-2480-03 AC-2480-03 ELBOW-DRAIN
AC-2650-19 AC-2650-19 EVAPORATOR-ASSY
AC-2950-16 AC-2950-16 FRAME-ACCORDIAN SCRE
AC-3100-11 AC-3100-11 GASKET-LEFT A
AC-3100-12 AC-3100-12 GASKET-LEFT COND COV
AC-3100-16 AC-3100-16 GASKET-LEFT PILLAR
AC-3100-13 AC-3100-13 GASKET-REAR COND COV
AC-3100-10 AC-3100-10 GASKET-RIGHT
AC-3100-28 AC-3100-28 GASKET-SASH
AC-3100-35 AC-3100-35 GASKET-SEAL
AC-3100-34 AC-3100-34 GASKET-SILL
AC-3100-17 AC-3100-17 GASKET-TOP
AC-3200-01 AC-3200-01 GROMMET-WIRING
AC-3300-16 AC-3300-16 GUIDE-UPPER
AC-4440-05 AC-4440-05 LOUVER-VERTICAL
AC-4440-28 AC-4440-28 LOUVER-[ASSY]
AC-9999-09 AC-9999-09 MANUAL - USE & CARE
AC-4550-04 AC-4550-04 MOTOR-SYNCHRO
AC-4720-06 AC-4720-06 NUT
AC-5210-03 AC-5210-03 P.C.B.
AC-5150-06 AC-5150-06 PAN-DRAIN
AC-5200-94 AC-5200-94 PANEL-FRONT ASSY
AC-5200-23 AC-5200-23 PANEL-FRONT PARTITIO
AC-5200-18 AC-5200-18 PANEL-INLET
AC-5200-20 AC-5200-20 PANEL-LOWER BACK
AC-5200-19 AC-5200-19 PANEL-LOWER FRONT
AC-5255-69 AC-5255-69 PIPE-COOLING
AC-5255-73 AC-5255-73 PIPE-DISCHARGE
AC-5255-71 AC-5255-71 PIPE-LIQUID-OUT
AC-5255-72 AC-5255-72 PIPE-MARINATE
AC-5255-70 AC-5255-70 PIPE-SUCTION
AC-5310-02 AC-5310-02 PLUG-BASEPAN
AC-5550-04 AC-5550-04 RAIL-BOTTOM
AC-5950-05 AC-5950-05 ROD-CONNECTING
AC-6150-08 AC-6150-08 SCREW
AC-6150-03 AC-6150-03 SCREW
AC-6150-09 AC-6150-09 SCREW
AC-6150-10 AC-6150-10 SCREW
AC-6150-21 AC-6150-21 SCREW
AC-6150-23 AC-6150-23 SCREW
AC-6150-15 AC-6150-15 SCREW-25MM WOOD
AC-6150-22 AC-6150-22 SCREW-BOTTOM
AC-0750-35 AC-0750-35 SCREW-BRACE
AC-6500-01 AC-6500-01 SHROUD-CONDENSER
AC-6660-01 AC-6660-01 SPINDLE-ROTATION
AC-7000-14 AC-7000-14 SUPPORT
AC-7000-09 AC-7000-09 SUPPORT-MOTOR
AC-7550-01 AC-7550-01 TRANSFORMER
