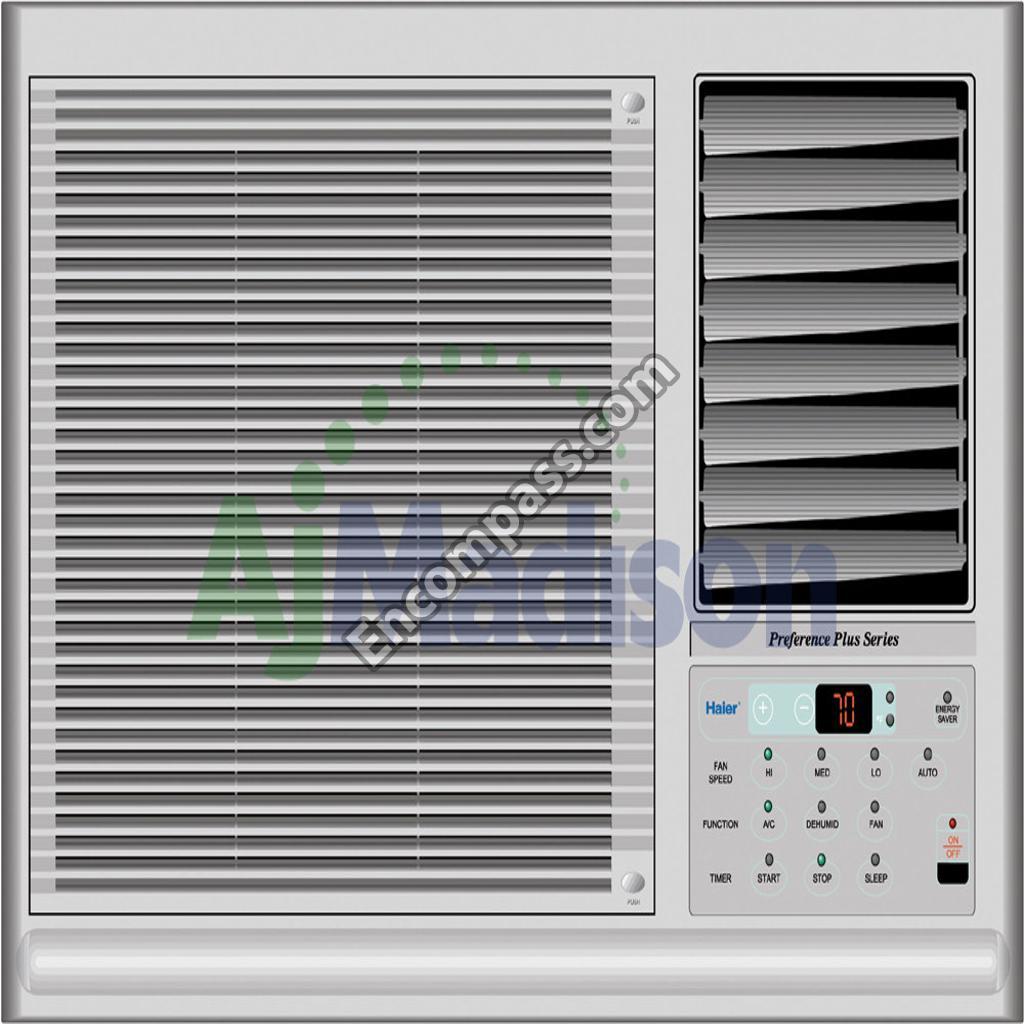

Model Image
Manufacturer

Haier

Model Number

HWR12XC3

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0010-24 AC-0010-24 ACCESSORIES-HARDWARE
AC-0155-04 AC-0155-04 BAG-PLASTIC
WJ01X23601 WJ01X23601 BAG-SCREW
AC-0668-10 AC-0668-10 BOARD-CORRUGATED
AC-0750-04 AC-0750-04 BOLT-COMPRESSOR
AC-0800-76 AC-0800-76 BOX-ELECTRIC
AC-0800-14 AC-0800-14 BOX-ELECTRIC
AC-0840-08 AC-0840-08 BRACE-ANGLE
AC-0840-03 AC-0840-03 BRACE-FRONT
AC-0840-05 AC-0840-05 BRACE-LEFT TIE
AC-0840-04 AC-0840-04 BRACE-REAR LOWER
AC-1300-27 AC-1300-27 CABINET
AC-1300-04 AC-1300-04 CABINET
WJ20X10192 WJ20X10192 CAPACITOR-COMPRESSOR
AC-1415-02 AC-1415-02 CARD
AC-1470-08 AC-1470-08 CASE-SCROLL
AC-1650-16 AC-1650-16 CLIP-CAPACITOR

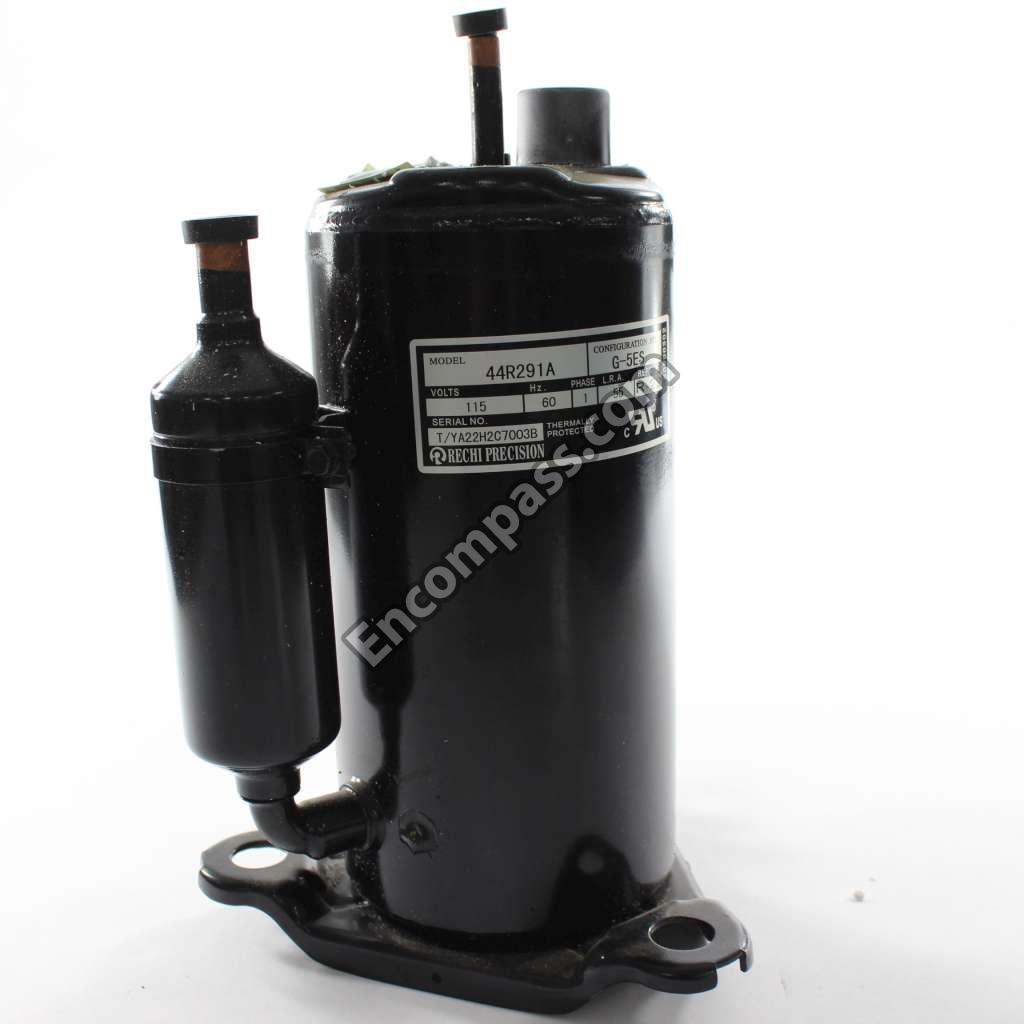

AC-1750-30 AC-1750-30 COMPRESSOR
AC-1950-21 AC-1950-21 COVER-CONDENSER
AC-2015-35 AC-2015-35 CUSHION
AC-2480-03 AC-2480-03 ELBOW-DRAIN
AC-2650-51 AC-2650-51 EVAPORATOR-ASSY.
AC-2750-17 AC-2750-17 FAN-BLOWER WHEEL
AC-3100-18 AC-3100-18 GASKET-LEFT COND COV
AC-3100-08 AC-3100-08 GASKET-REAR COND COV
AC-3100-28 AC-3100-28 GASKET-SASH
AC-3100-35 AC-3100-35 GASKET-SEAL
AC-3100-34 AC-3100-34 GASKET-SILL
AC-3300-16 AC-3300-16 GUIDE-UPPER
AC-9999-21 AC-9999-21 MANUAL - USE & CARE
AC-9999-32 AC-9999-32 MANUAL - USE & CARE
AC-4720-06 AC-4720-06 NUT
AC-5150-09 AC-5150-09 PAN-DRAIN
AC-5255-206 AC-5255-206 PIPE-CONDENSER
AC-5255-85 AC-5255-85 PIPE-DISCHARGE
AC-5255-78 AC-5255-78 PIPE-MARINATE
AC-5255-205 AC-5255-205 PIPE-SUCTION
AC-5255-207 AC-5255-207 PIPE-SUPER COOLING
AC-5310-01 AC-5310-01 PLUG-BASEPAN
AC-5310-02 AC-5310-02 PLUG-BASEPAN
AC-5550-11 AC-5550-11 RAIL-BOTTOM
WJ26X23974 WJ26X23974 REMOTE
AC-5950-05 AC-5950-05 ROD-CONNECTING
AC-6150-08 AC-6150-08 SCREW
AC-6150-10 AC-6150-10 SCREW
AC-6150-19 AC-6150-19 SCREW
AC-6150-21 AC-6150-21 SCREW
AC-6150-14 AC-6150-14 SCREW-10MM
AC-6150-15 AC-6150-15 SCREW-25MM WOOD
AC-6150-49 AC-6150-49 SCREW-BOTTOM
AC-0750-35 AC-0750-35 SCREW-BRACE
AC-6500-08 AC-6500-08 SHROUD-CONDENSER
AC-7000-17 AC-7000-17 SUPPORT-BOTTOM
AC-7000-01 AC-7000-01 SUPPORT-FAN MOTOR
AC-7550-01 AC-7550-01 TRANSFORMER
