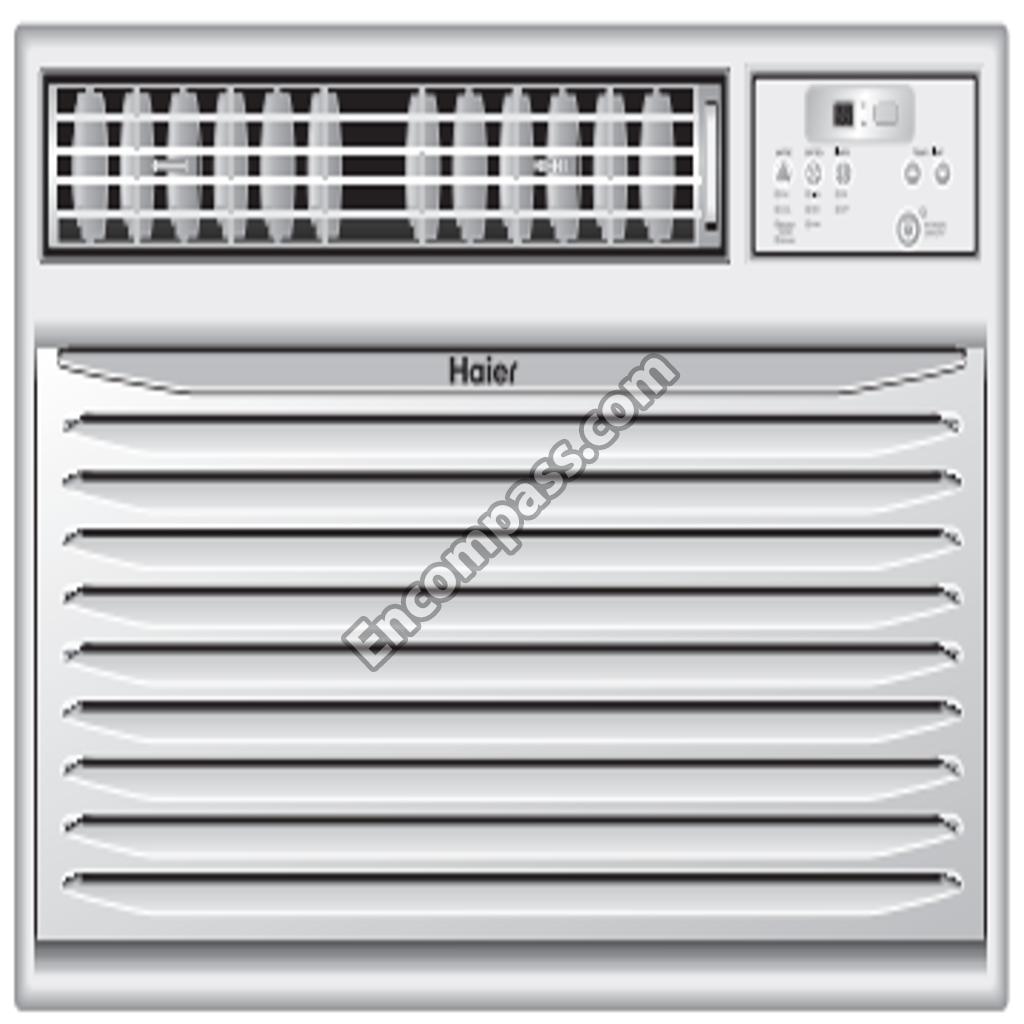

Model Image
Manufacturer

Haier

Model Number

HWS05XCA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AC-0010-18 AC-0010-18 ACCESSORIES-HARDWARE
WJ01X23601 WJ01X23601 BAG-SCREW
AC-0255-04 AC-0255-04 BASEPAN
AC-0550-01 AC-0550-01 BLADE-HORIZONTAL
AC-0668-10 AC-0668-10 BOARD-CORRUGATED
AC-0750-04 AC-0750-04 BOLT-COMPRESSOR
AC-0800-117 AC-0800-117 BOX-ELECTRIC
AC-0800-26 AC-0800-26 BOX-ELECTRIC
AC-0840-08 AC-0840-08 BRACE-ANGLE
AC-1400-177 AC-1400-177 CAPACITOR-COMPRESSOR
AC-1400-236 AC-1400-236 CAPACITOR-FAN MOTOR
AC-1415-02 AC-1415-02 CARD
AC-1470-01 AC-1470-01 CASE-INLET SCROLL
AC-1650-12 AC-1650-12 CLIP-CAPACITOR
AC-1750-21 AC-1750-21 COMPRESSOR
AC-1900-05 AC-1900-05 CORD-POWER
AC-1950-27 AC-1950-27 COVER-ELEC BOX (BOTT
AC-1950-12 AC-1950-12 COVER-TERMINAL
AC-2015-02 AC-2015-02 CUSHION-RUBBER
AC-2015-28 AC-2015-28 CUSHION-SIDE
AC-2480-03 AC-2480-03 ELBOW-DRAIN
AC-2650-05 AC-2650-05 EVAPORATOR-[ASSY]
AC-0600-23 AC-0600-23 FAN-BLOWER WHEEL
AC-2850-01 AC-2850-01 FLAP-VERTICAL (W/TAB
AC-2850-02 AC-2850-02 FLAP-VERTICAL [MAIN]
AC-3100-09 AC-3100-09 GASKET-BACK
AC-3100-28 AC-3100-28 GASKET-SASH
AC-3100-35 AC-3100-35 GASKET-SEAL
AC-3100-34 AC-3100-34 GASKET-SILL
AC-3100-19 AC-3100-19 GASKET-TERMINAL COVE
AC-3300-01 AC-3300-01 GUIDE-POSITION
AC-3300-16 AC-3300-16 GUIDE-UPPER
AC-4550-01 AC-4550-01 MOTOR
AC-4720-06 AC-4720-06 NUT
AC-5150-01 AC-5150-01 PAN-DRAIN
AC-5200-50 AC-5200-50 PANEL-CONTROL [ASSY]
AC-5200-74A AC-5200-74A PANEL-FRONT [COMPLET
AC-5200-02 AC-5200-02 PANEL-PARTITION
AC-5200-03 AC-5200-03 PANEL-PARTITION [FR
AC-5310-02 AC-5310-02 PLUG-BASEPAN
AC-5550-05 AC-5550-05 RAIL-TOP
AC-6150-07 AC-6150-07 SCREW
AC-6150-11 AC-6150-11 SCREW
AC-6150-10 AC-6150-10 SCREW
AC-6150-21 AC-6150-21 SCREW
AC-6150-14 AC-6150-14 SCREW-10MM
AC-6150-15 AC-6150-15 SCREW-25MM WOOD
AC-0750-35 AC-0750-35 SCREW-BRACE
AC-6500-03 AC-6500-03 SHROUD-CONDENSER
AC-6850-01 AC-6850-01 STARTER-PTC
WJ27X23600 WJ27X23600 SWITCH-MODE SELECTIO
WJ26X23602 WJ26X23602 THERMOSTAT
AC-7460-07 AC-7460-07 TRACK-CURTAIN [L]
AC-7750-04 AC-7750-04 TUBE-EVAP LIQUID IN
