Model Image
Manufacturer

Haier

Model Number

LW110W

Description

Lw110w:3.9 Cu.ft. Access Plus

Interactive Exploded View

Parts List

Part Number Description
RF-0200-34 RF-0200-34 BAR-SUPPORT
RF-0500-45 RF-0500-45 BIN-CRISPER
RF-0750-06 RF-0750-06 BOLT
RF-1050-23 RF-1050-23 BULB-YELLOW [W FAST
WR19X20670 WR19X20670 CABLE-GROUNDING
RF-1350-05 RF-1350-05 CAP-INSULATION (LARG
RF-1350-06 RF-1350-06 CAP-INSULATION (SMAL

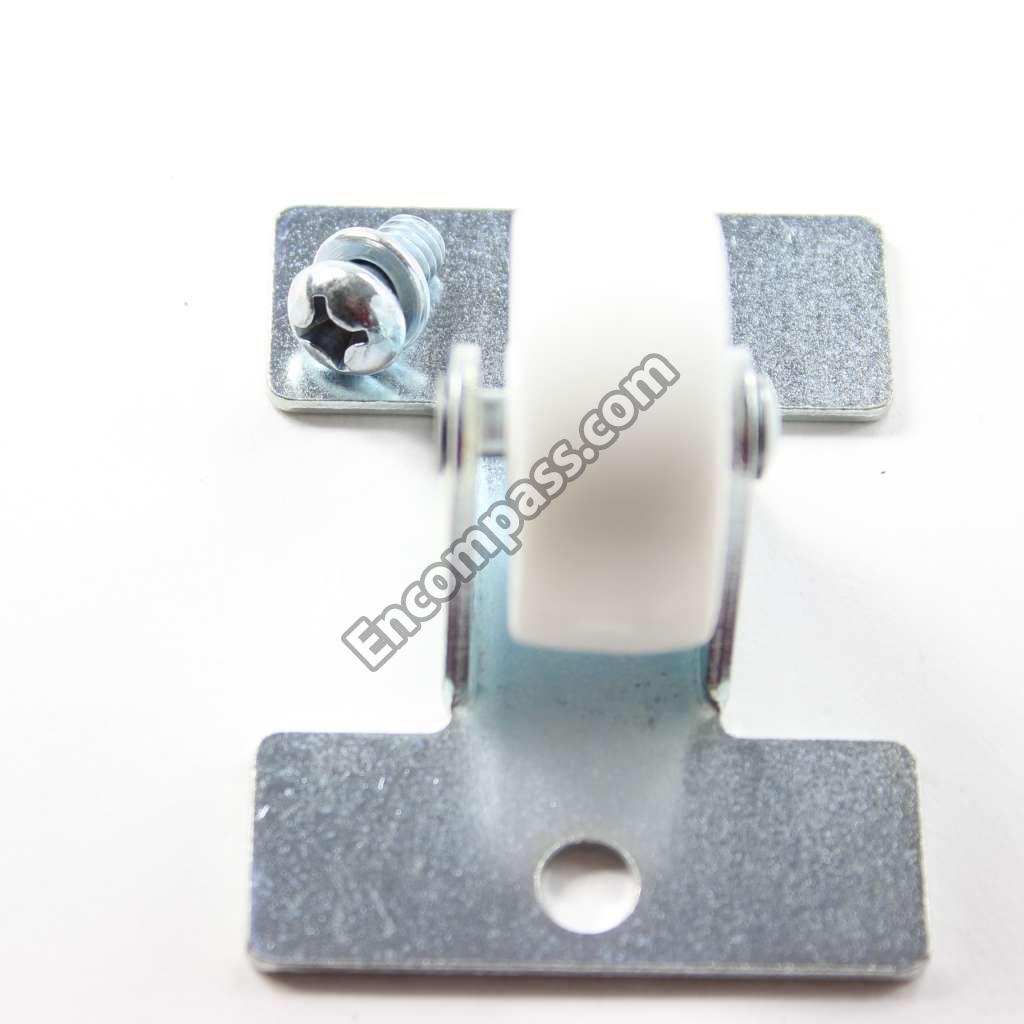

WR01X29923 WR01X29923 CASTER
WR02X13353 WR02X13353 CLIP
RF-1650-28 RF-1650-28 CLIP-WIRE
RF-1900-40 RF-1900-40 CORD - CONTROL CABLE
WR13X10370 WR13X10370 COVER-BOTTOM HINGE
RF-1950-188 RF-1950-188 COVER-HANDLE
WR13X10369 WR13X10369 COVER-HINGE (TOP)
RF-1950-A9 RF-1950-A9 COVER-LOCK
RF-1950-B1 RF-1950-B1 COVER-LOCK
RF-1950-168 RF-1950-168 COVER-THERMOSTAT TUB
RF-2400-36 RF-2400-36 DRIER
RF-2950-18 RF-2950-18 FRAME-INNER
RF-3350-50 RF-3350-50 HANDLE
RF-4000-52 RF-4000-52 KNOB-THERMOSTAT

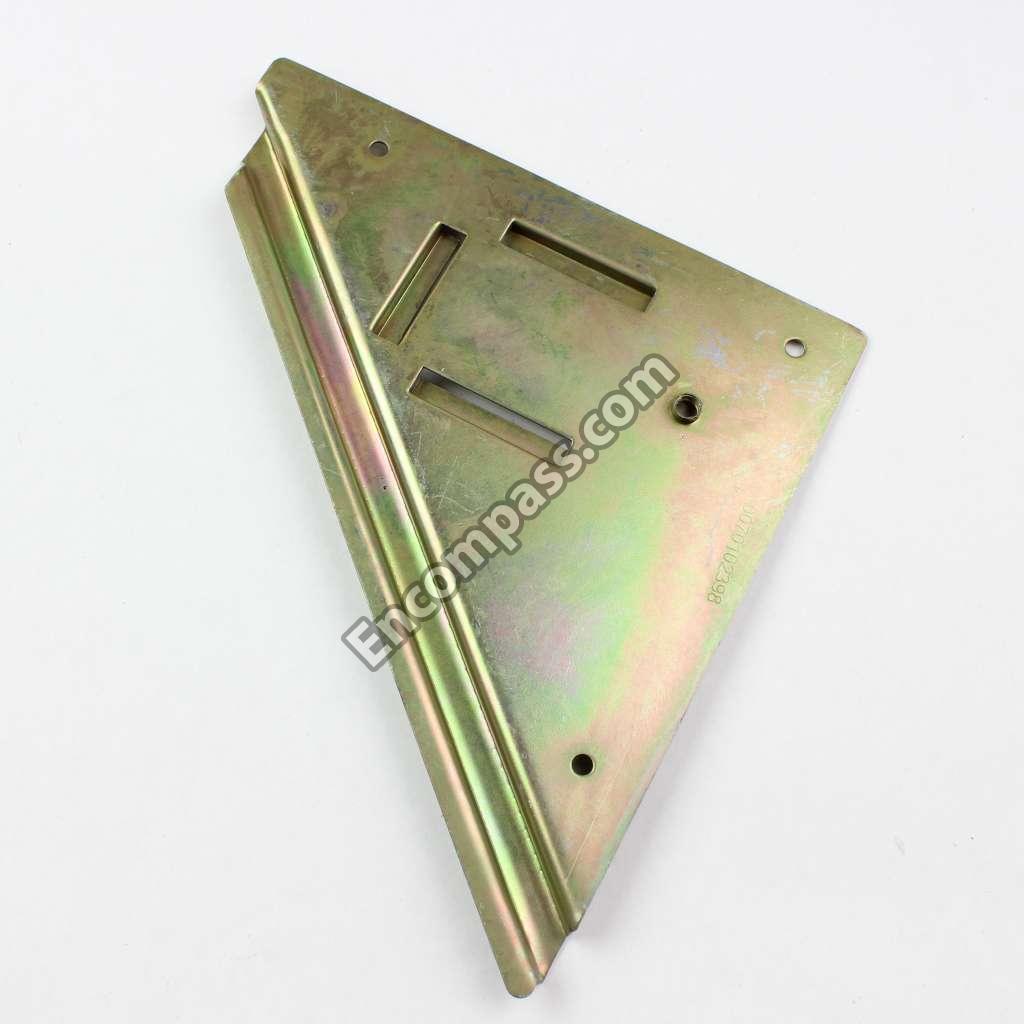

RF-4150-25 RF-4150-25 LEG-SUPPORT (RIGHT)

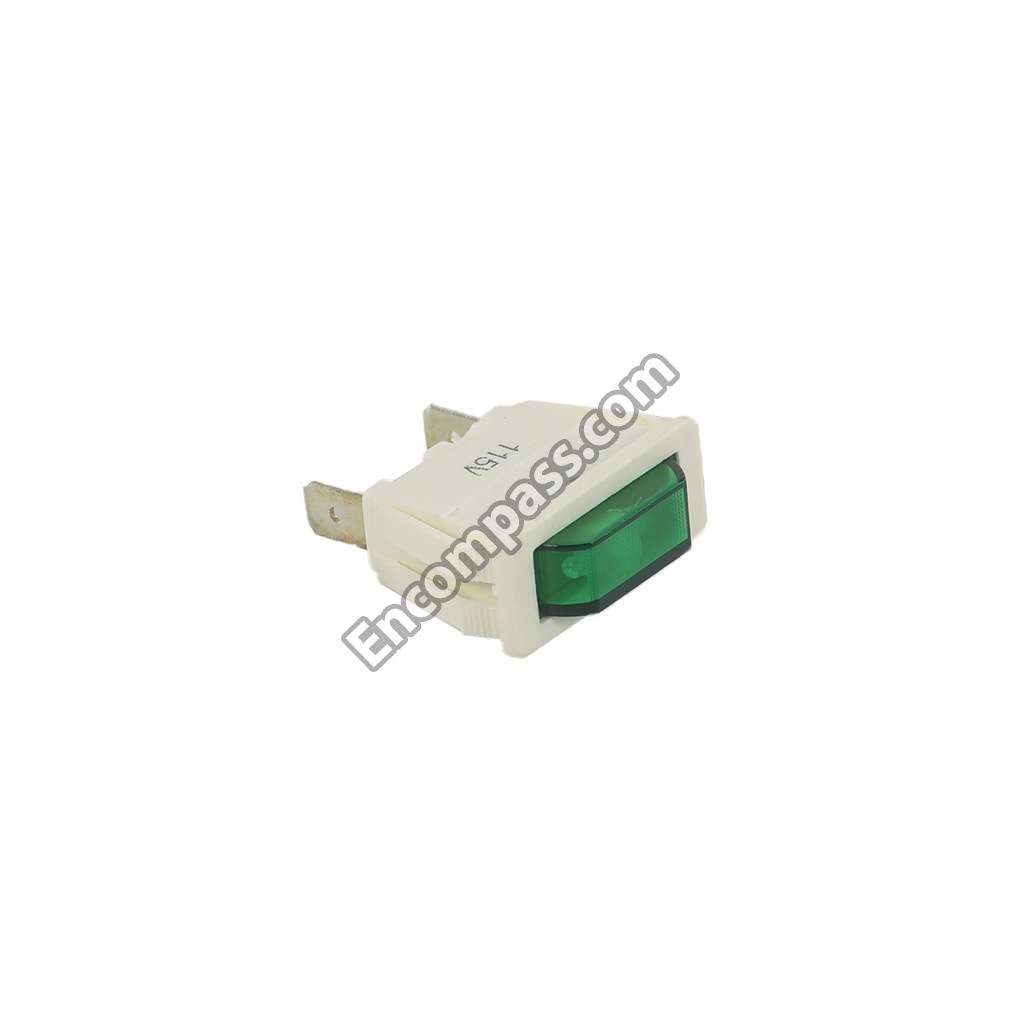

WR02X12046 WR02X12046 LIGHT-GREEN
WR01X28052 WR01X28052 LOCK
RF-9999-178 RF-9999-178 MANUAL - USE & CARE
RF-4720-27 RF-4720-27 NUT
RF-4720-03 RF-4720-03 NUT-THERMOSTAT
RF-5200-65 RF-5200-65 PANEL-CONTROL
RF-6000-01 RF-6000-01 ROLLER
RF-6150-185 RF-6150-185 SCREW
RF-6150-177 RF-6150-177 SCREW
RF-6150-99 RF-6150-99 SCREW
RF-6150-260 RF-6150-260 SCREW
RF-6150-98 RF-6150-98 SCREW
RF-6150-131 RF-6150-131 SCREW
RF-6150-41 RF-6150-41 SCREW
RF-6150-199 RF-6150-199 SCREW
RF-6150-187 RF-6150-187 SCREW - WASHER HEAD
WR01X27843 WR01X27843 SCREW-PHILIPS
RF-7750-16 RF-7750-16 TUBE
WR87X30051 WR87X30051 TUBE-PROCESS
RF-7950-11 RF-7950-11 WASHER
WR01X10570 WR01X10570 WASHER-SPRING
RF-7950-73 RF-7950-73 WASHER-SPRING
RF-7950-74 RF-7950-74 WASHER-SPRING
