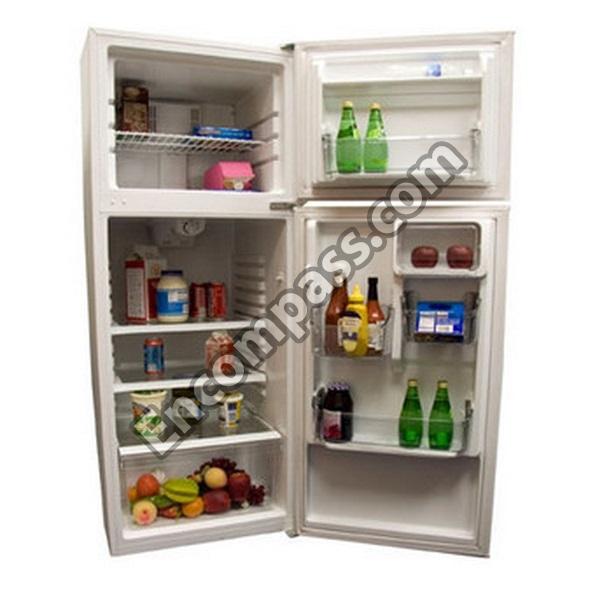

Model Image
Manufacturer

Haier

Model Number

M153

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RF-0500-79 RF-0500-79 BIN-CRISPER
WR60X29904 WR60X29904 BLADE-EVAP FAN (G.E.
RF-7350-58 RF-7350-58 BOX-THERMOSTAT
RF-0850-50 RF-0850-50 BRACKET
0060818483 0060818483 BRACKET-COMPRESSOR
WR14X29891 WR14X29891 BRACKET-EVAP FAN [B]
RF-1450-213 RF-1450-213 CARTON-CARDBOARD
RF-1650-36 RF-1650-36 CLIP-CABLE
RF-1750-67 RF-1750-67 COMPRESSOR-W/ACCESSO
RF-1800-55 RF-1800-55 CONDENSER-ASSY.
RF-1870-05 RF-1870-05 CONTROL-HUMIDITY
RF-1900-37 RF-1900-37 CORD-POWER
RF-3450-336 RF-3450-336 COVER- HINGE BOTTOM
RF-1950-407 RF-1950-407 COVER-EVAPORATOR
RF-1950-409 RF-1950-409 COVER-LAMP
RF-1950-408 RF-1950-408 COVER-PLASTIC
RF-1950-606 RF-1950-606 COVER-TOP HINGE COVE
RF-1950-324 RF-1950-324 COVER-TRAY
WR09X29895 WR09X29895 DEFROST HEATER
WR87X30058 WR87X30058 FILTER-DRIER

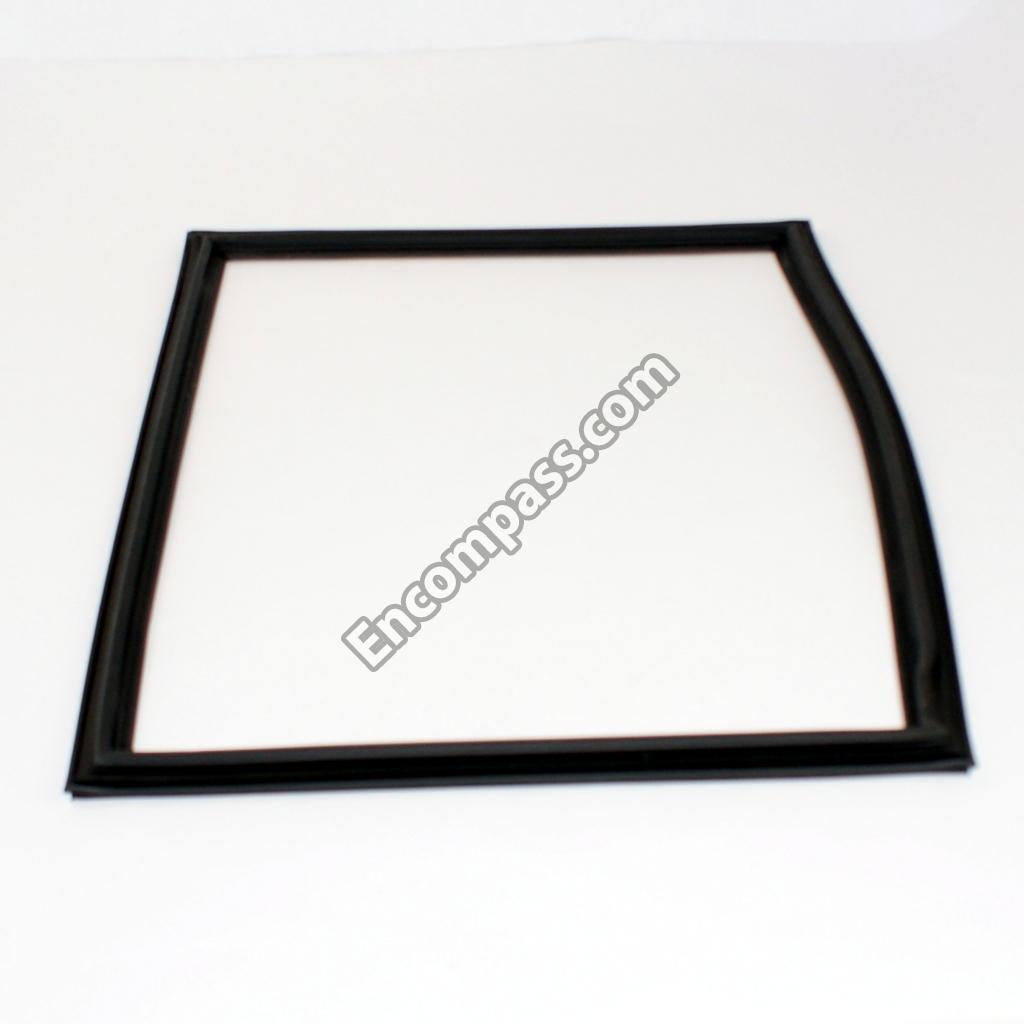

WR14X30199 WR14X30199 GASKET-FREEZER DOOR
WR14X27769 WR14X27769 GASKET-RF DOOR GASKE
RF-3450-227 RF-3450-227 HINGE-CENTER
WR13X27778 WR13X27778 HINGE-TOP
RF-4000-33 RF-4000-33 KNOB-THERMOSTAT
WR01X29887 WR01X29887 LIGHT
RF-4415-08 RF-4415-08 LOGO-TRADEMARK
WR60X29806 WR60X29806 MOTOR-EVAP. FAN
RF-4720-42 RF-4720-42 NUT
RF-5500-47 RF-5500-47 RACK-GALLON BOTTLE
RF-6050-09 RF-6050-09 RUBBER-VIBRATION
RF-6150-72 RF-6150-72 SCREW
WR01X27682 WR01X27682 SCREW
WR01X28375 WR01X28375 SCREW
WR01X27757 WR01X27757 SCREW
WR01X27774 WR01X27774 SCREW
RF-6350-314 RF-6350-314 SHELF-FREEZER
RF-6350-261 RF-6350-261 SHELF-LARGE BIN
WR71X27793 WR71X27793 SHELF-RF GLASS
RF-6600-04 RF-6600-04 SOCKET - BULB
WR23X27351 WR23X27351 SWITCH
RF-7253-08 RF-7253-08 TAPE-PACKING
RF-7253-09 RF-7253-09 TAPE-TAPE
RF-7600-95 RF-7600-95 TRAY - COMPRESSOR-DR
WR02X27688 WR02X27688 TRAY-ICE
WR14X27748 WR14X27748 VENT-AIR FZ
WR01X27750 WR01X27750 VENT-CONTROL
RF-7950-37 RF-7950-37 WASHER-RUBBER
