Model Image
Manufacturer

GE

Model Number

PBFS21EDAE

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WR30X29832 WR30X29832 ARM-ICEMAKER
RF-0200-74 RF-0200-74 BAR-CENTER ICE DRAWE
RF-0250-21 RF-0250-21 BASE-CENTER DIVIDER
RF-0500-108 RF-0500-108 BIN-CRISPER 03/26/12
RF-0500-107 RF-0500-107 BIN-DAIRY
WR60X27274 WR60X27274 BLADE-CONDENSER
RF-0550-23 RF-0550-23 BLADE-EVAPORATOR FAN
RF-0850-132 RF-0850-132 BRACKET-INNER LEFT
RF-0850-133 RF-0850-133 BRACKET-INNER RIGHT
RF-0850-142 RF-0850-142 BRACKET-LEFT BOTTOM
WR72X29825 WR72X29825 BRACKET-LEFT SLIDE
RF-0850-129 RF-0850-129 BRACKET-LEG
RF-0850-136 RF-0850-136 BRACKET-OUTER LEFT
RF-0850-137 RF-0850-137 BRACKET-OUTER RIGHT
RF-0850-141 RF-0850-141 BRACKET-RIGHT BOTTOM
RF-0850-139 RF-0850-139 BRACKET-RIGHT SLIDE
RF-0850-144 RF-0850-144 BRACKET-SHELF ASSY
RF-0850-134 RF-0850-134 BRACKET-SIDE BOTTOM
RF-0850-135 RF-0850-135 BRACKET-WINE FRONT
RF-0850-140 RF-0850-140 BRACKET-WINE REAR
RF-1200-11 RF-1200-11 BUTTON-WATER DISPENS
RF-1302-77 RF-1302-77 CABLE-COMPRESSOR
RF-1302-78 RF-1302-78 CABLE-P.C.B. DISPLAY
RF-1350-27 RF-1350-27 CAP-PIPE
RF-1450-181 RF-1450-181 CARTON
RF-1650-74 RF-1650-74 CLIP-ICEMAKER
RF-1650-75 RF-1650-75 CLIP-RAIL
RF-1650-76 RF-1650-76 CLIP-WATER LINE
RF-1800-89 RF-1800-89 CONDENSER-ASSY
WR55X28528 WR55X28528 CORD- POWER
RF-1950-462 RF-1950-462 COVER-AIR CURTAIN
RF-1950-472 RF-1950-472 COVER-AIR CURTAIN
RF-1950-451 RF-1950-451 COVER-CENTER DIVIDER
RF-1950-374 RF-1950-374 COVER-COMPRESSOR
RF-1950-466 RF-1950-466 COVER-CONTROL BOX
WR71X29816 WR71X29816 COVER-DRAWER FRONT
RF-1950-460 RF-1950-460 COVER-DRAWER TOP
RF-1950-469 RF-1950-469 COVER-EVAPORATOR
RF-1950-455 RF-1950-455 COVER-EVAPORATOR FAN
RF-1950-474 RF-1950-474 COVER-FRONT PANEL
RF-1950-471 RF-1950-471 COVER-FZ MOTOR
RF-1950-475 RF-1950-475 COVER-GLASS SHELF
RF-1950-473 RF-1950-473 COVER-JUNCTION BOX
RF-1950-467 RF-1950-467 COVER-LAMP FZ
RF-1950-458 RF-1950-458 COVER-LAMP RF
RF-1950-592 RF-1950-592 COVER-MOTOR
RF-1950-453 RF-1950-453 COVER-SCREW
RF-1950-452 RF-1950-452 COVER-SENSOR
RF-1950-368 RF-1950-368 COVER-WATER FILL ELB
RF-1950-457 RF-1950-457 COVER-WATER FILTER
RF-1950-468 RF-1950-468 COVER-WATER RESERVOI
RF-2047-04 RF-2047-04 DAMPER-AIR ADJUSTMEN
WR14X29873 WR14X29873 DAMPER-RF
RF-2050-15 RF-2050-15 DECAL-DISPENSER PANE
RF-2050-16 RF-2050-16 DECAL-DISPLAY PCB
RF-2100-01 RF-2100-01 DEFLECTOR-ICE DRAWER

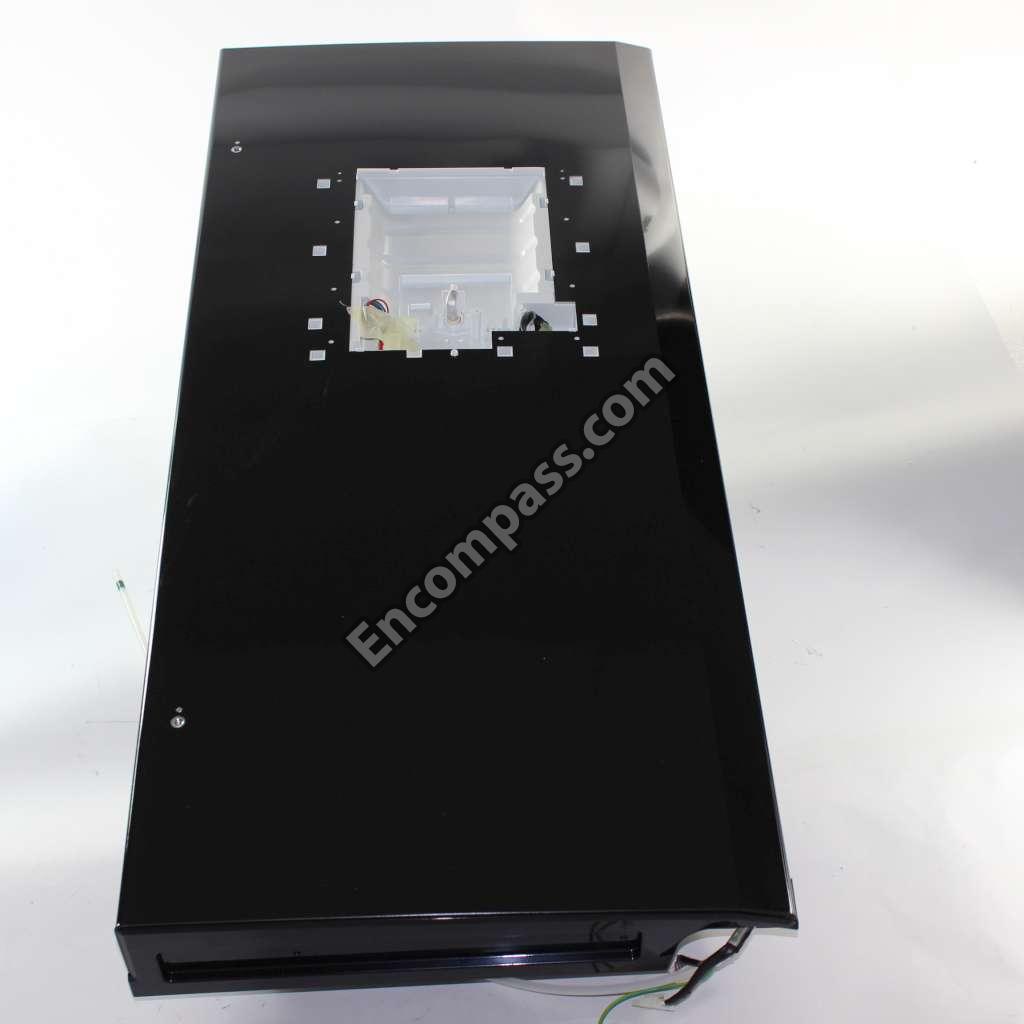

RF-2300-457 RF-2300-457 DOOR-RF LEFT
RF-2300-458 RF-2300-458 DOOR-RF RIGHT
RF-2300-459 RF-2300-459 DOOR-SMALL FZ
RF-2370-04 RF-2370-04 DRAWER-FZ
RF-2370-03 RF-2370-03 DRAWER-ICE
RF-2370-05 RF-2370-05 DRAWER-SNACK
WR01X29826 WR01X29826 ELBOW-WATER FILL
RF-2650-144 RF-2650-144 EVAPORATOR
WR01X29813 WR01X29813 FILTER - WATER (SERV
WR01X29808 WR01X29808 FILTER-WATER W/ RETA
WR01X29845 WR01X29845 FOOT
RF-2950-35 RF-2950-35 FRAME - CONDENSER FA
RF-2950-34 RF-2950-34 FRAME-ICEMAKER
WR71X29830 WR71X29830 FRAME-SHELF
RF-3100-167 RF-3100-167 GASKET-BIG FZ DOOR
RF-3100-166 RF-3100-166 GASKET-DOOR RF
RF-3100-168 RF-3100-168 GASKET-SMALL FZ DOOR
RF-3105-02 RF-3105-02 GEAR-ICE DRAWER
RF-5100-42 RF-5100-42 GROMMET - MOTOR FRON
RF-5100-41 RF-5100-41 GROMMET - MOTOR REAR
RF-3350-91 RF-3350-91 HANDLE - FZ BLACK
RF-3350-92 RF-3350-92 HANDLE - RF BLACK
RF-3350-90 RF-3350-90 HANDLE-CRISPER BIN
RF-3350-107 RF-3350-107 HANDLE-SHORT SCREW
RF-3400-22 RF-3400-22 HEATER
RF-3450-250 RF-3450-250 HINGE-CENTER LEFT
RF-3450-251 RF-3450-251 HINGE-CENTER RIGHT
RF-3450-252 RF-3450-252 HINGE-UPPER LEFT
WR30X29843 WR30X29843 ICEMAKER - ASSY
RF-3845-27 RF-3845-27 INSULATION - COVER
RF-3845-22 RF-3845-22 INSULATION-AIR CURTA
RF-3845-21 RF-3845-21 INSULATION-AIR CURTA
RF-3845-17 RF-3845-17 INSULATION-AIR CURTA
RF-3845-19 RF-3845-19 INSULATION-AIR CURTA
RF-3845-20 RF-3845-20 INSULATION-AIR CURTA
RF-3845-18 RF-3845-18 INSULATION-AIR DUCT
RF-3845-25 RF-3845-25 INSULATION-CENTER DI
RF-3845-16 RF-3845-16 INSULATION-EVAPORATO
RF-4000-84 RF-4000-84 KNOB-AIR ADJUSTMENT
RF-4000-83 RF-4000-83 KNOB-HUMIDITY ADJUST
RF-9999-349 RF-9999-349 MANUAL - USE & CARE
WR60X29878 WR60X29878 MOTOR - CONDENSER FA
RF-4550-48 RF-4550-48 MOTOR - EVAPORATOR F
0064001224 0064001224 MOTOR-ICEMAKER
WR14X29839 WR14X29839 MULLION-RF DOOR
RF-4720-42 RF-4720-42 NUT
WR55X29889 WR55X29889 P.C.B. - DISPLAY PAN
RF-5210-15 RF-5210-15 P.C.B.-COMPRESSOR IN
RF-5210-49 RF-5210-49 P.C.B.-DISPLAY DISPE
WR55X29906 WR55X29906 P.C.B.-POWER SUPPLY
RF-5150-04 RF-5150-04 PAN - CONDENSER WATE
RF-5150-03 RF-5150-03 PAN-DRAIN
RF-5200-157 RF-5200-157 PANEL - AIR TUNNEL -
RF-5200-158 RF-5200-158 PANEL-DISPENSER
RF-5200-156 RF-5200-156 PANEL-DISPLAY PCB
RF-5300-93 RF-5300-93 PLATE-COMPRESSOR
RF-5550-25 RF-5550-25 RAIL-BOTTOM FZ
RF-5550-22 RF-5550-22 RAIL-ICE DRAWER
RF-5550-23 RF-5550-23 RAIL-SHELF CENTER
RF-5550-24 RF-5550-24 RAIL-SHELF LEFT AND
RF-5580-01 RF-5580-01 REFLECTOR-LAMP
WR14X29840 WR14X29840 RESERVOIR-WATER DISP
RF-5700-03 RF-5700-03 RETAINER-DIVIDER CLI
RF-5950-06 RF-5950-06 ROD-AIR ADJUSTMENT
RF-6080-01 RF-6080-01 SCOOP-ICE
WR01X28345 WR01X28345 SCREW
WR01X27789 WR01X27789 SCREW
WR01X27790 WR01X27790 SCREW
RF-6150-340 RF-6150-340 SCREW
RF-6150-144 RF-6150-144 SCREW
RF-6150-93 RF-6150-93 SCREW
WR01X28362 WR01X28362 SCREW
RF-6150-342 RF-6150-342 SCREW
RF-6150-324 RF-6150-324 SCREW
RF-6150-279 RF-6150-279 SCREW
RF-6150-343 RF-6150-343 SCREW
RF-6150-341 RF-6150-341 SCREW-HINGE
RF-6190-02 RF-6190-02 SEAL
RF-6190-05 RF-6190-05 SEAL-AIR TUNNEL
RF-6190-03 RF-6190-03 SEAL-AIR TUNNEL
RF-6200-13 RF-6200-13 SEAT-SENSOR
WR55X28483 WR55X28483 SENSOR
WR09X27791 WR09X27791 SENSOR - FRZ
WR55X29874 WR55X29874 SENSOR-ICEMAKER
WR71X29847 WR71X29847 SHELF-GALLON BOTTLE
RF-6535-17 RF-6535-17 SLEEVE-ICEMAKER FILL
RF-6540-07 RF-6540-07 SLIDE-LEFT
WR71X29807 WR71X29807 SLIDE-RIGHT
RF-6600-09 RF-6600-09 SOCKET-LAMP RF
RF-6750-10 RF-6750-10 SPRING-DISPENSER ARM
RF-6900-02 RF-6900-02 STOPPER-LEFT RF DOOR
RF-6957-14 RF-6957-14 STRIP-ICE DRAWER
WR23X27351 WR23X27351 SWITCH
RF-7100-50 RF-7100-50 SWITCH-LIGHT BOTTOM
RF-7100-38 RF-7100-38 SWITCH-MICRO DISPENS
RF-7600-166 RF-7600-166 TRAY - DISPENSER
WR30X29811 WR30X29811 TRAY-FLEX
RF-7700-61 RF-7700-61 TRIM - SHELF
RF-7700-63 RF-7700-63 TRIM-CENTER DIVIDER
RF-7750-44 RF-7750-44 TUBE-CONDENSER SUMP
RF-7750-50 RF-7750-50 TUBE-WATER FILL
WR57X29899 WR57X29899 VALVE-WATER ASSY
WR57X29899 WR57X29899 WATER VALVE
RF-6250-05K RF-6250-05K
