Model Image
Manufacturer

GE

Model Number

PBFS21EDAS

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WR01X29845 WR01X29845 ADJUSTABLE FOOT
RF-5950-06 RF-5950-06 AIR ADJUST BAR
RF-2047-04 RF-2047-04 AIR ADJUST BOARD
RF-1950-462 RF-1950-462 AIR CURTAIN
RF-3845-20 RF-3845-20 AIR CURTAIN FOAM
RF-3845-19 RF-3845-19 AIR CURTAIN FOAM
RF-3845-17 RF-3845-17 AIR CURTAIN FOAM
RF-3845-18 RF-3845-18 AIR CURTAIN FOAM
RF-3845-21 RF-3845-21 AIR CURTAIN FOAM
RF-3845-22 RF-3845-22 AIR CURTAIN FOAM
RF-3845-16 RF-3845-16 AIRPROOF BAR
WR01X29947 WR01X29947 AIRPROOF FOR MULLION
RF-6190-03 RF-6190-03 AIRPROOF PAD OF WIND PASSAGE
RF-1950-469 RF-1950-469 BACK COVER OF FREEZER WIND PASSAGE
RF-3845-27 RF-3845-27 BACK GASKET OF FREEZER WIND PASSAGE COVER
RF-3845-25 RF-3845-25 BEAM FOAM FRZ
RF-1950-480 RF-1950-480 BEAM FRZ
RF-0250-21 RF-0250-21 BEAM SEAL PAD
RF-0850-129 RF-0850-129 BELOW HINGE
RF-2300-462 RF-2300-462 BIG DOOR FOR FRZ
WR60X27274 WR60X27274 BLADE CONDENSER FAN
RF-0550-23 RF-0550-23 BLADE FAN FREEZER
RF-4720-42 RF-4720-42 BOLT COMPRESSOR
WR01X29949 WR01X29949 BOTTOM AXIS FOR MULLION
WR13X29943 WR13X29943 BOTTOM COVER FOR MULLION
0060163723 0060163723 BRACKET,BIG DRAWER
0060164805 0060164805 BRACKET,ICE DRAWER
RF-1950-473 RF-1950-473 CABLE CONNECT COVER
RF-1950-453 RF-1950-453 CAP OF SCREW
RF-5700-03 RF-5700-03 CLAPBOARD OF FREEZER BIG DRAWER
RF-2100-01 RF-2100-01 COASTICE DRAWER
RF-1950-374 RF-1950-374 COMPRESSOR COVER
0064001358 0064001358 COMPRESSOR INVERTER BOARD
RF-5300-93 RF-5300-93 COMPRESSOR SUPPORT BOARD
RF-1800-89 RF-1800-89 CONDENSER ASSEMBLY
RF-7750-44 RF-7750-44 CONDENSER CONNECTOR TUBE
RF-1302-78 RF-1302-78 CONNECT CABLE, CABINET DISPLAY PANEL
0060401822 0060401822 CONNECT CABLE,COMPRESSOR
RF-1950-477 RF-1950-477 CONTROL BOARD BOX
0060821357 0060821357 COOLING FAN MOTOR ASSEMBLY
RF-2950-35 RF-2950-35 COOLING FAN MOTOR BRACKET
RF-1950-472 RF-1950-472 COVER FOR AIR CURTAIN
RF-5200-155 RF-5200-155 COVER FOR REF AIRPASSAGE
RF-1950-471 RF-1950-471 COVER OF FREEZER MOTOR
RF-1950-460 RF-1950-460 COVER OF SNACK DRAWER
RF-1950-452 RF-1950-452 COVER SENSOR
RF-6200-13 RF-6200-13 COVER SENSOR
RF-0500-108 RF-0500-108 CRISPER ASSEMBLY
RF-0500-107 RF-0500-107 DAIRY BIN CABINET

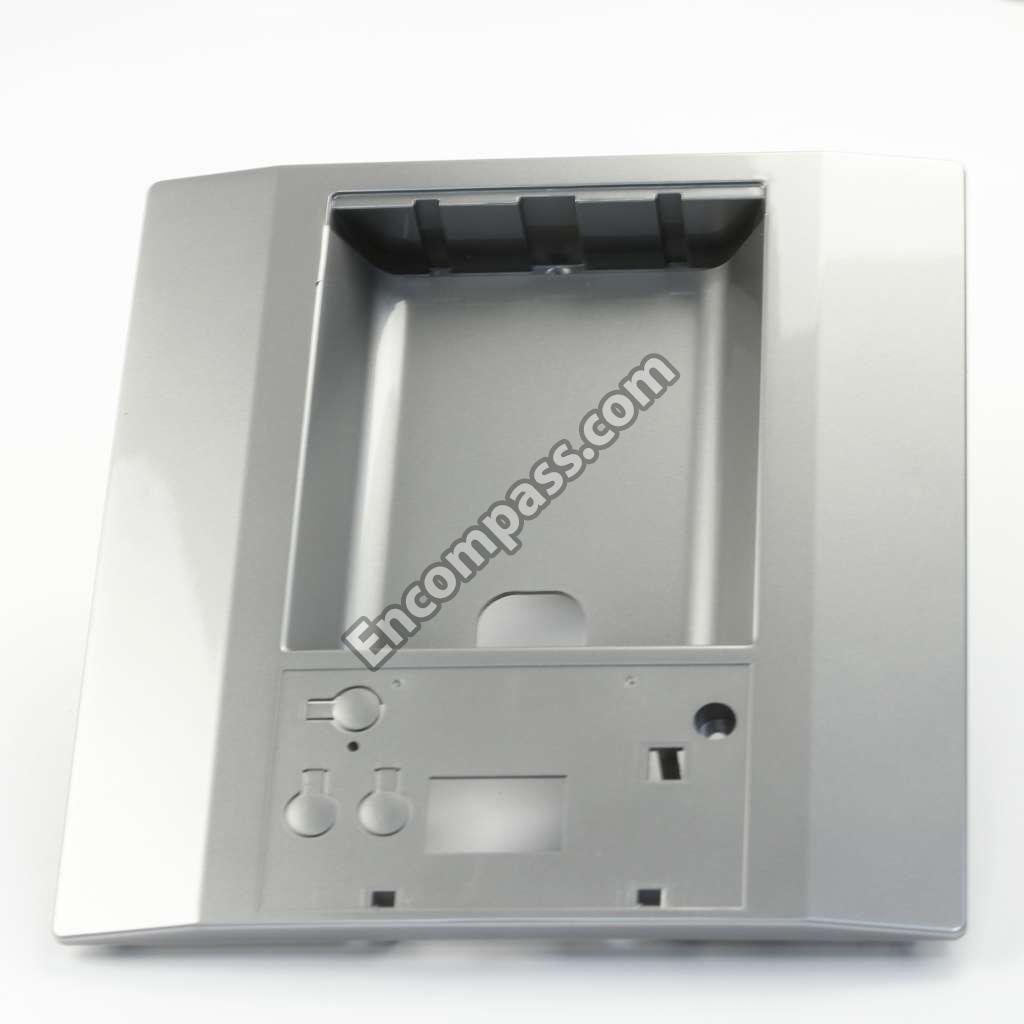

RF-5200-159 RF-5200-159 DISPENSER COVER (SILVER GREY PAINTED)
0060512615D 0060512615D DISPLAY LABEL
RF-5210-49 RF-5210-49 DISPLAY PANEL IN DOOR
WR55X29889 WR55X29889 DISPLAY PCB
RF-3100-166 RF-3100-166 DOOR GASKET FOR REF,BLACK PBFS21EDAS
RF-3100-167 RF-3100-167 DOOR GASKET,BIG DOOR FOR FRZ
RF-3100-168 RF-3100-168 DOOR GASKET,SMALL FRZ DOOR
RF-1950-478 RF-1950-478 DOWN DECORATING STRIP
0060218830E 0060218830E DRAIN TRAY (SILVER GREY PAINTED)
WR01X29826 WR01X29826 ELBOW, RUBBER,ICE MAKER FILL
WR14X29873 WR14X29873 ELECTRONIC AIR THROTTLE
RF-1950-592 RF-1950-592 FAN MOTOR COVER
RF-5100-41 RF-5100-41 FAN MOTOR DAMPING PAD
RF-1950-457 RF-1950-457 FILTER COVER
RF-2650-144 RF-2650-144 FINNED EVAPORATOR
0060218773 0060218773 FIXTURE FOR SLIDEWAY,ICE DRAWER,RIGHT
RF-0850-136 RF-0850-136 FIXTURE,SMALL SLIDE,LEFT
RF-5200-157 RF-5200-157 FOAM I FOR REF AIRPASSAGE
RF-3845-24 RF-3845-24 FOAM II IN MULLION
RF-3845-23 RF-3845-23 FOAM IN MULLION
RF-2047-03 RF-2047-03 FOAM PAD PE
RF-2370-04 RF-2370-04 FREEZER DRAWER
RF-4550-48 RF-4550-48 FREEZER FAN MOTOR
RF-1950-455 RF-1950-455 FRONT COVER OF FREEZER WIND PASSAGE
WR71X29816 WR71X29816 FRONT COVER OF SNACK DRAWER
0060164291 0060164291 FRZ HANDLE BASE I
0060164292 0060164292 FRZ HANDLE BASE II
WR71X29847 WR71X29847 GALLON-BOTTLE ASSEMBLY
RF-1950-475 RF-1950-475 GLASS PLATE ON CRISPER
RF-5550-22 RF-5550-22 GLIDEWAY OF ICE DRAWER
RF-5100-42 RF-5100-42 GROMMET CONDENSER FAN
0060220603 0060220603 HANDLE BASE I FOR FRESH ROOM
0060220604 0060220604 HANDLE BASE II FOR FRESH ROOM
0060164041 0060164041 HANDLE FIX BRACKET
RF-3350-90 RF-3350-90 HANDLE FOR CRISPER
WR12X29842 WR12X29842 HANDLE FOR FRESH ROOM
WR14X29933 WR14X29933 HEATER IN MULLION
WR55X28483 WR55X28483 HUMIDITY SENSOR
WR30X29811 WR30X29811 ICE BOX
WR30X29832 WR30X29832 ICE DETECTING PIN
RF-2370-03 RF-2370-03 ICE DRAWER
RF-1950-368 RF-1950-368 ICE MAKER PIPE FIXUP BOARD
RF-6080-01 RF-6080-01 ICE SCOOP
0064001224 0064001224 ICEMAKER ASSY
RF-2950-34 RF-2950-34 ICEMAKER BRACKET

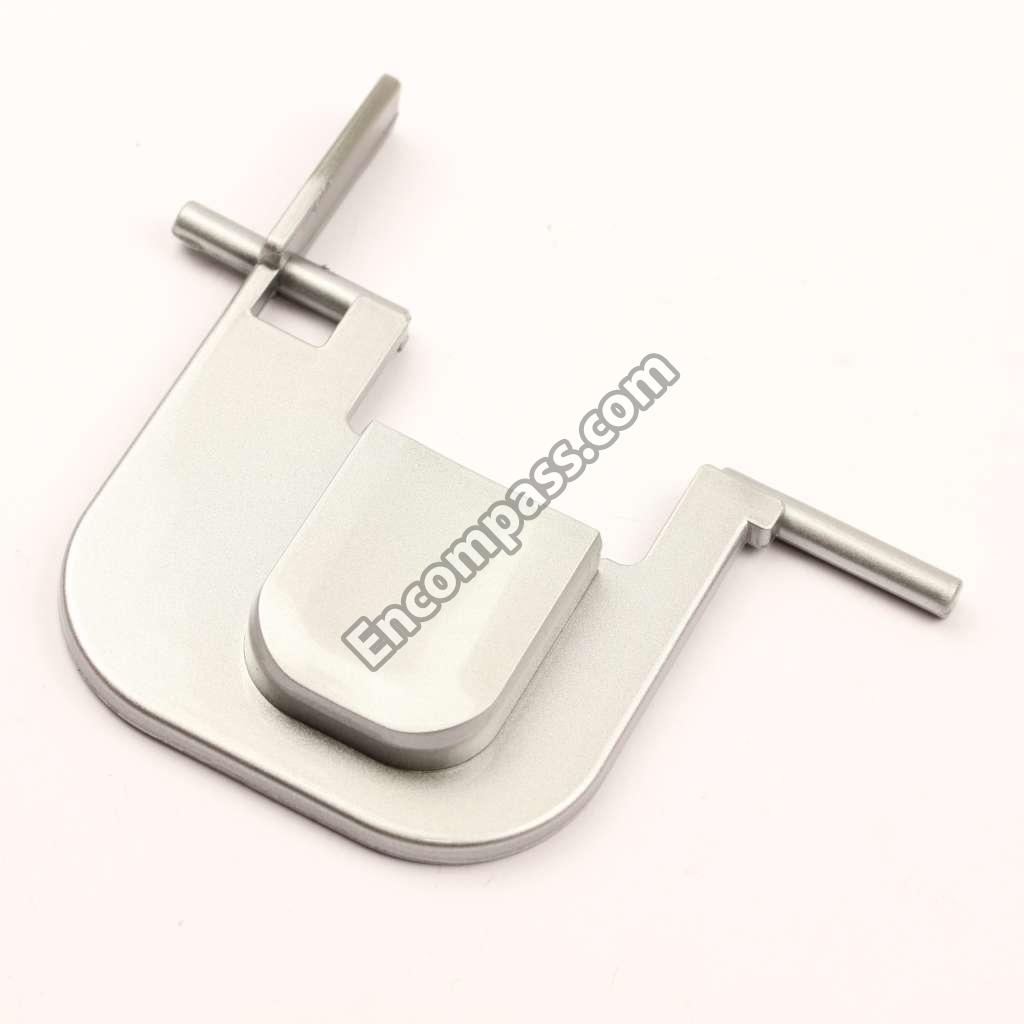

RF-1200-12 RF-1200-12 KEY-PRESS FOR GET DRINK (SILVER GREY PAINTED)
RF-5200-156 RF-5200-156 KEY-PRESS PANEL
RF-4000-84 RF-4000-84 KNOB FOR AIR ADJUSTMENT
RF-4000-83 RF-4000-83 KNOB FOR HUMIDITY ADJUSTMENT CRISPER
RF-6600-09 RF-6600-09 LAMP SOCKET
WR23X27351 WR23X27351 LAMP SWITCH
RF-1950-458 RF-1950-458 LAMPSHADE FOR REF
RF-1950-467 RF-1950-467 LAMPSHADE OF CONVERTIBLE COMPARTMENT
WR72X29825 WR72X29825 LEFT BRACKET FOR SNACK DRAWER
RF-3450-250 RF-3450-250 LEFT CENTER HINGE
RF-0850-142 RF-0850-142 LEFT FIXTURE OF FREEZER DRAWER SLIDE
RF-6540-07 RF-6540-07 LEFT SLIDEWAY FOR SNACK DRAWER
RF-3450-254 RF-3450-254 LEFT-UPPER HINGE
RF-7100-38 RF-7100-38 MICROSWITCH
RF-5550-23 RF-5550-23 MID-RACK FOR SHELF
WR14X29931 WR14X29931 MULLION FOR REF
RF-1450-181 RF-1450-181 PACKAGE
RF-1350-27 RF-1350-27 PIPE CAP
RF-7750-50 RF-7750-50 PIPE OF ICEMAKER IN
WR55X29906 WR55X29906 POWER BOARD
WR55X28528 WR55X28528 POWER CABLE
RF-2300-463 RF-2300-463 REF FOAMED DOOR,RIGHT
RF-2300-464 RF-2300-464 REF LEFT DOOR
RF-5580-01 RF-5580-01 REFLECTOR COVER FOR LAMP
RF-7700-61 RF-7700-61 REINFORCE FOR CRISPER COVER BOARD
WR14X29928 WR14X29928 REINFORCE FOR MULLION
RF-0850-139 RF-0850-139 RIGHT BRACKET FOR SNACK DRAWER
RF-3450-251 RF-3450-251 RIGHT CENTER HINGE
RF-0850-141 RF-0850-141 RIGHT FIXTURE OF FREEZER DRAWER SLIDE
WR71X29807 WR71X29807 RIGHT SLIDEWAY FOR SNACK DRAWER
RF-3450-255 RF-3450-255 RIGHT-UPPER HINGE
RF-1650-74 RF-1650-74 SADDLE HOSE
RF-6150-279 RF-6150-279 SCREW
RF-6150-342 RF-6150-342 SCREW
WR01X28375 WR01X28375 SCREW
RF-6150-93 RF-6150-93 SCREW
WR01X27789 WR01X27789 SCREW
WR01X28345 WR01X28345 SCREW
WR01X27790 WR01X27790 SCREW
RF-6150-341 RF-6150-341 SCREW
RF-6190-02 RF-6190-02 SEAL
RF-3845-26 RF-3845-26 SEAL FOR AIRPASSAGE COVER BOARD
RF-6190-05 RF-6190-05 SEAL PAD
RF-6190-04 RF-6190-04 SEAL PAD FOR REF AIRPASSAGE
RF-4800-049 RF-4800-049 SENSOR FC
RF-6250-05 RF-6250-05 SENSOR PC
WR55X29874 WR55X29874 SENSOR REFRIGERATOR
RF-0850-144 RF-0850-144 SHELF BRACKET ASSEMBLY
WR71X29830 WR71X29830 SHELF ON CRISPER
RF-6535-17 RF-6535-17 SLEEVE OF ICE MAKER FILL TUBE
RF-0850-132 RF-0850-132 SLIDEWAY BRACKET,LEFT
RF-0850-133 RF-0850-133 SLIDEWAY BRACKET,RIGHT
RF-5550-25 RF-5550-25 SLIDEWAY OF FREEZER DRAWER
RF-2300-461 RF-2300-461 SMALL FRZ DOOR
RF-2370-05 RF-2370-05 SNACK BOX
RF-6750-10 RF-6750-10 SPRING
WR01X29937 WR01X29937 SPRING FOR MULLION
RF-6900-02 RF-6900-02 STOPPER FOR DOOR OPEN
RF-7700-63 RF-7700-63 STRIP I
RF-6957-14 RF-6957-14 STRIP II
RF-0850-134 RF-0850-134 SUPPORT BAR FOR DOOR
RF-7100-50 RF-7100-50 SWITCH BOARD FOR BIG FRZ DOOR
0060220632B 0060220632B TABLE PLATE
WR13X29945 WR13X29945 TOP AXIS FOR MULLION
WR13X29948 WR13X29948 TOP COVER FOR MULLION
RF-1950-369 RF-1950-369 TRANSDUCER COVER
RF-5550-24 RF-5550-24 TWO SIDE-RACK FOR SHELF
RF-9999-349 RF-9999-349 USER'S MANUAL
RF-5150-03 RF-5150-03 WATER DISH
WR14X29840 WR14X29840 WATER JUG
RF-1950-468 RF-1950-468 WATER JUG COVER
RF-1650-76 RF-1650-76 WATER PIPE CLIP
RF-5150-04 RF-5150-04 WATER TRAY
WR57X29899 WR57X29899 WATER VALVE
WR57X29899 WR57X29899 WATER VALVE
RF-0850-135 RF-0850-135 WINE BRACKET
RF-0850-140 RF-0850-140 WINE FIX SEAT
