Model Image
Manufacturer

Haier

Model Number

PRTS18SAALV

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
RF-0150-08 RF-0150-08 BAFFLE-CONDENSER FAN

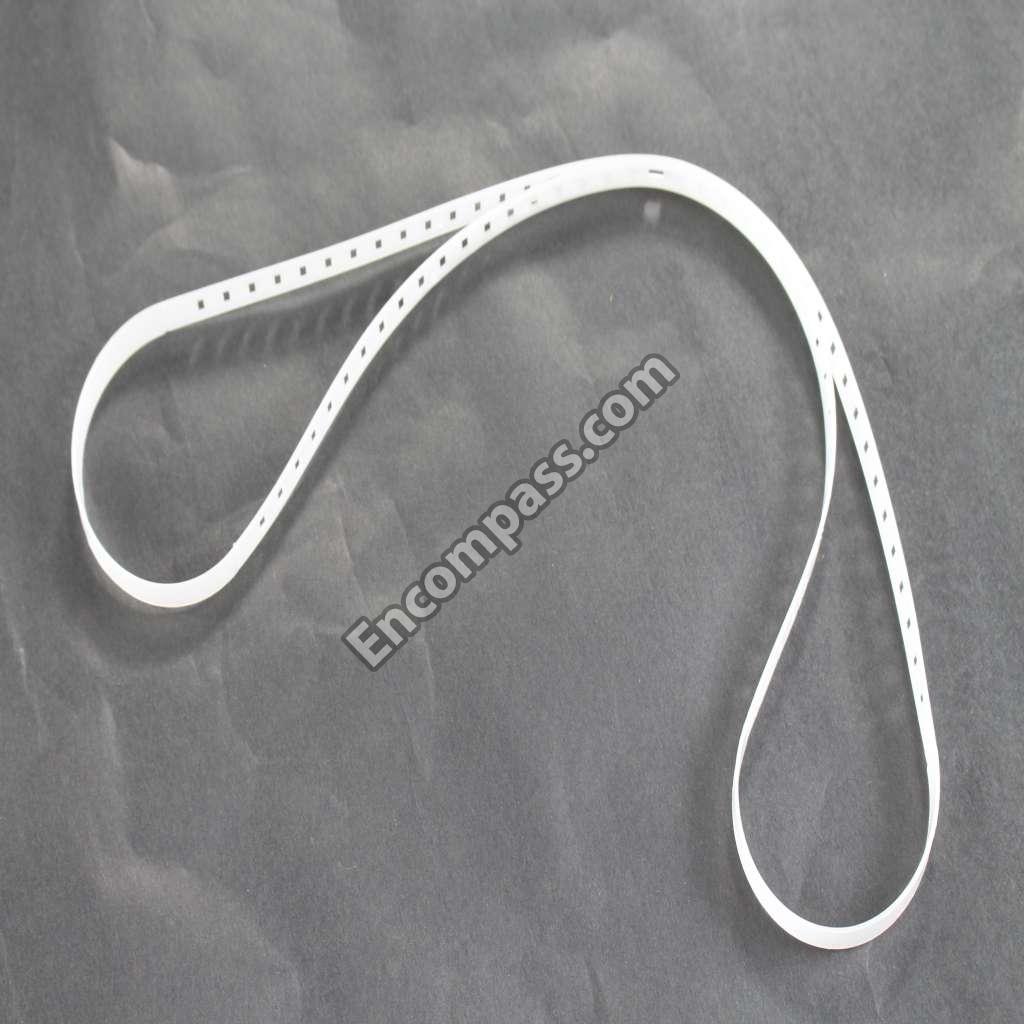

RF-0350-01 RF-0350-01 BELT-TRANSMISSION
RF-0500-59 RF-0500-59 BIN-1 (FULL WIDTH) B
RF-0550-21 RF-0550-21 BLADE-CONDENSER
WR60X29904 WR60X29904 BLADE-EVAP FAN (G.E.
WR14X29896 WR14X29896 BRACKET-EVAP FAN [A]
WR14X29891 WR14X29891 BRACKET-EVAP FAN [B]
RF-0850-156 RF-0850-156 BRACKET-LIGHT BULB
WR02X27461 WR02X27461 CAP-DOOR (BLACK/LEFT
WR02X27460 WR02X27460 CAP-DOOR (BLACK/RIGH
WR87X27279 WR87X27279 CAPACITOR 12MFD
WR02X27362 WR02X27362 CASTER-LEFT FRONT
WR02X27363 WR02X27363 CASTER-RIGHT FRONT
RF-1650-09 RF-1650-09 CLIP-CONDENSER
WR01X29822 WR01X29822 CLIP-HUMIDITY
WR87X27283 WR87X27283 COMPRESSOR - EGX70HL
RF-1950-422 RF-1950-422 COVER-CABLE
RF-1950-258 RF-1950-258 COVER-FREEZER BULB
RF-1950-259 RF-1950-259 COVER-FREEZER TUBE (
RF-1950-276 RF-1950-276 COVER-HANDLE [WHITE]
WR13X27459 WR13X27459 COVER-TOP HINGE BLAC
RF-2300-397 RF-2300-397 DOOR-FF LEFT VCM
RF-2300-401 RF-2300-401 DOOR-FF WHITE
RF-2300-396 RF-2300-396 DOOR-FZ LEFT VCM
RF-2300-400 RF-2300-400 DOOR-FZ WHITE
RF-2370-08 RF-2370-08 DRAWER-SNACK
RF-2400-26 RF-2400-26 DRIER
RF-2650-96 RF-2650-96 EVAPORATOR
WR14X29853 WR14X29853 FRESH FOOD DOOR GASKET WHITE
WR14X29856 WR14X29856 GASKET - FREEZER DOO
RF-3100-111 RF-3100-111 GASKET - REFRIG DOOR
WR14X29853 WR14X29853 GASKET-REFRIG DOOR [
WR12X29831 WR12X29831 HANDLE - ASSY [WHITE
WR13X29812 WR13X29812 HINGE-BOTTOM
WR13X29903 WR13X29903 HINGE-TOP
RF-5150-06 RF-5150-06 PAN - EVAP DEFROST
WR02X27458 WR02X27458 PLUG-HINGE HOLE
RF-5310-60 RF-5310-60 PLUG-WATER LINE
WR01X29890 WR01X29890 SHIM
WR01X29893 WR01X29893 SHIM - BOTTOM HINGE
WR13X27290 WR13X27290 SHIM-CENTER
RF-6600-10 RF-6600-10 SOCKET - BULB
RF-7950-37 RF-7950-37 WASHER-RUBBER
WR01X29890 WR01X29890 WASHERS
